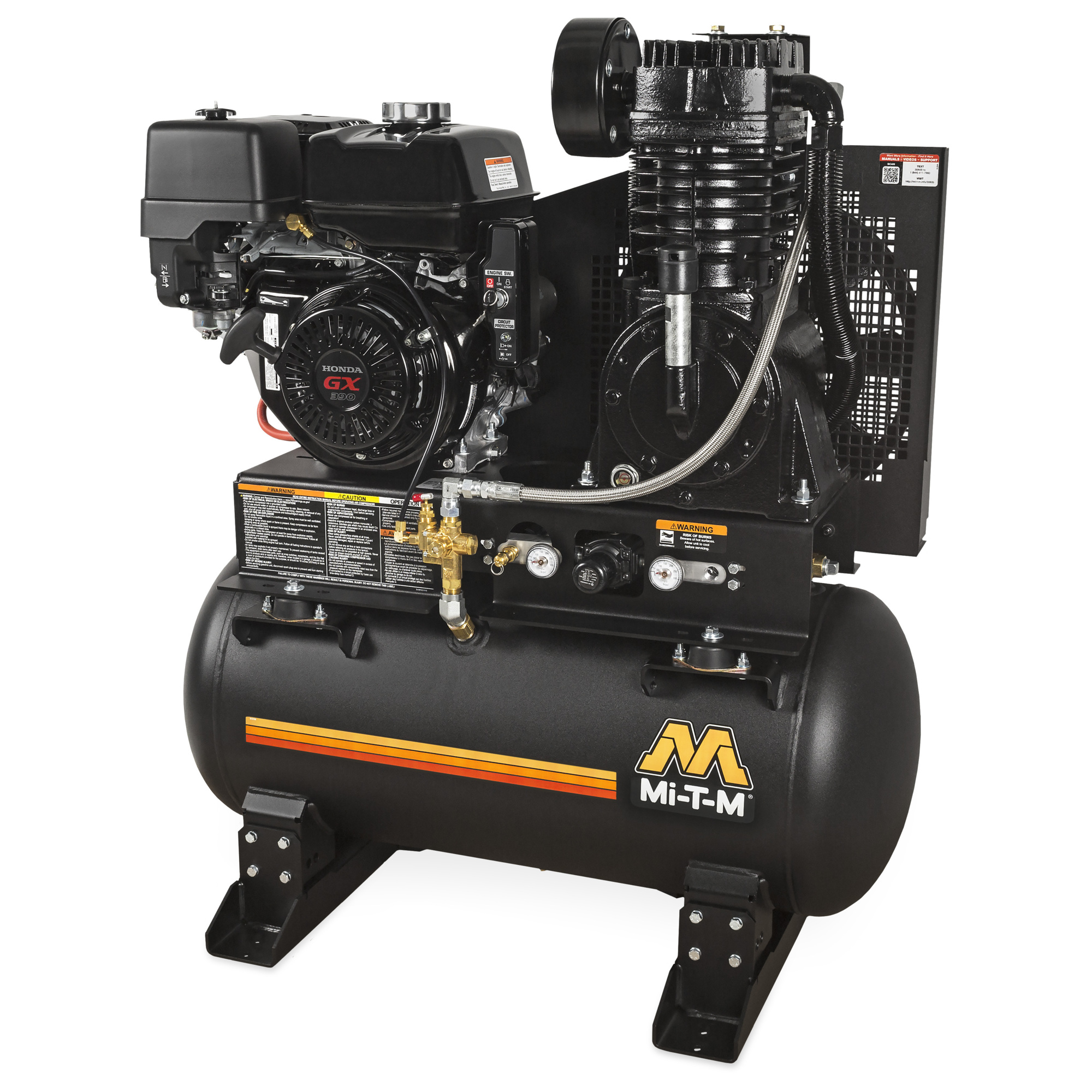

Mi-T-M 30-Gallon Two Stage Gasoline Air Compressor, ABS-13H-30H

Item# 7320496
Mi-T-M 30-Gallon Two Stage Gasoline Air Compressor, ABS-13H-30H

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Mi-T-M 30-Gallon Two Stage Gasoline Air Compressor, ABS-13H-30H

Click or Tap image to Zoom

$3968.42

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Compressor Pump: Cast iron compressor pump; Splash lubricated; Stainless-steel braided discharge hose; Large canister intake filter; Oil level sight indicator
  • Engine: Electric start – battery and cables not included
  • Frame: Powder coated ASME receiver tank; 3/16-inch base plate to reduce vibration; Powder coated two-piece belt guard; Removable base plate offers flexible installation
  • Components: Regulator and two gauges for tank and outlet pressure; ASME safety valves; 16 1/2-inch fly wheel; Tank drain valve; 1/2-inch port; Service truck mount kit; Start/stop control set at 145 to 175-PSI

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Designed with the ability to mount on trailers or service trucks, this air compressor delivers consistent power. | Compressor Pump: Cast iron compressor pump; Splash lubricated; Stainless-steel braided discharge hose; Large canister intake filter; Oil level sight indicator | Engine: Electric start – battery and cables not included | Frame: Powder coated ASME receiver tank; 3/16in. base plate to reduce vibration; Powder coated two-piece belt guard; Removable base plate offers flexible installation | Components: Regulator and two gauges for tank and outlet pressure; ASME safety valves; 16 1/2in. fly wheel; Tank drain valve; 1/2in. port; Service truck mount kit; Start/stop control set at 145 to 175-PSI

What's Included

    (1) Air Compressor

Downloads

Product Manual

Features + Benefits

  • Compressor Pump: Cast iron compressor pump; Splash lubricated; Stainless-steel braided discharge hose; Large canister intake filter; Oil level sight indicator
  • Engine: Electric start – battery and cables not included
  • Frame: Powder coated ASME receiver tank; 3/16-inch base plate to reduce vibration; Powder coated two-piece belt guard; Removable base plate offers flexible installation
  • Components: Regulator and two gauges for tank and outlet pressure; ASME safety valves; 16 1/2-inch fly wheel; Tank drain valve; 1/2-inch port; Service truck mount kit; Start/stop control set at 145 to 175-PSI

Key Specs

AttributeSpecification

item#

7320496

Brand

Mi-T-M

Manufacturer's Warranty

2 year limited warranty

Ship Weight

520.0 LB

Horsepower

13 HP

Air Tank Size

30 Gal

Engine Brand

Honda

Max. PSI

175

Stage

2

Fuel Capacity

1.7 Gal

Engine Displacement

389 cc

Engine Start Type

Electric

Pump Material

Cast Iron

Pump Drive

Belt
AttributeSpecification

Air Outlet Size

1/2 in. NPT

CFM at 40 PSI

31.9

CFM at Max. PSI

29

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

Tank Fill Time

1.44 min

Drain Type

Petcock

Tank Orientation

Horizontal

Engine Model

389cc Honda GX390 OHV

Product Weight

520.0000 lb

Dimensions L x W x H (in.)

38.0 x 23.0 x 46.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

2 year limited warranty
