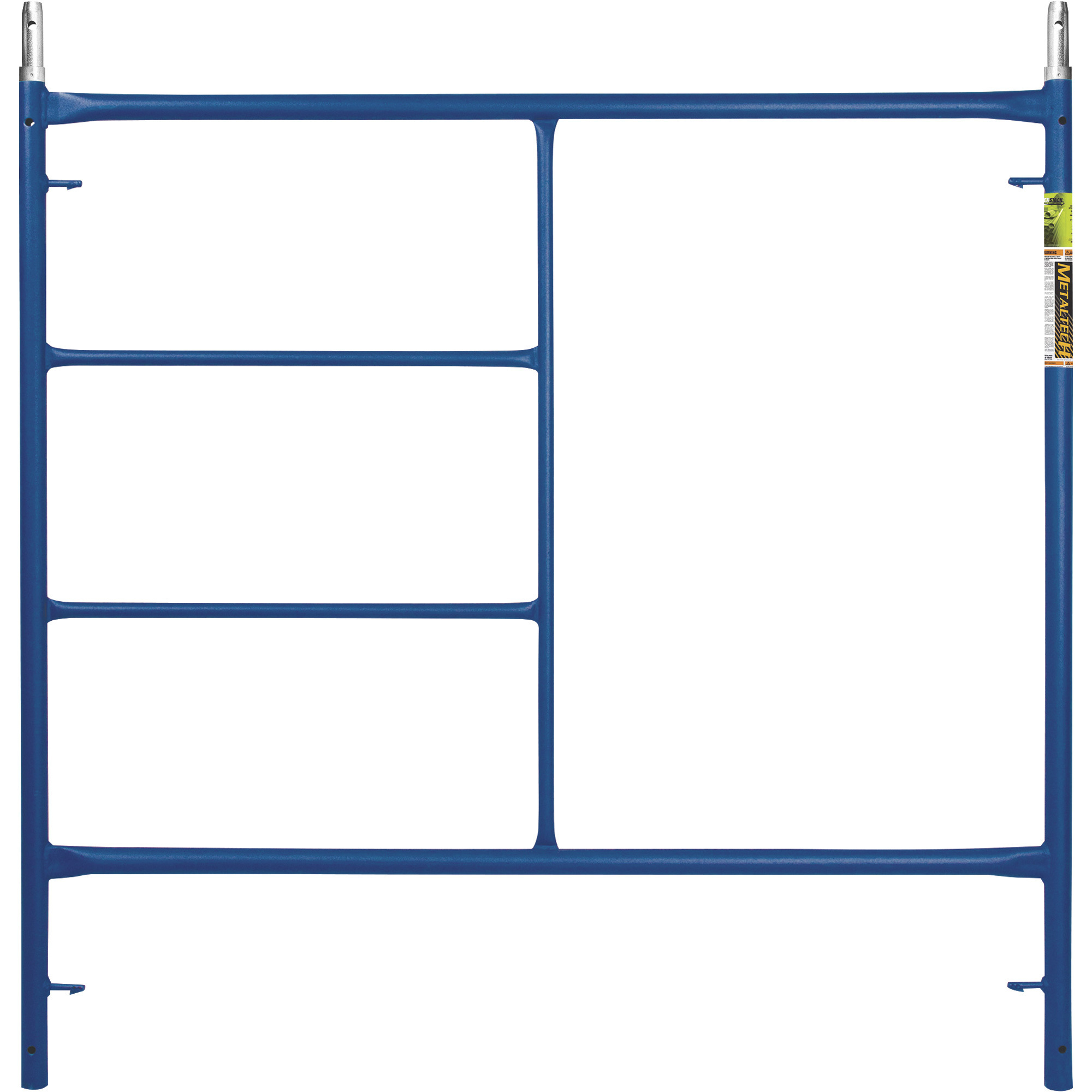

Metaltech Mason Scaffold Frame Section, 60In.W x 60In.H, Model# M-MF6060PS-A

Name: Metaltech Mason Scaffold Frame Section
Brand: Metaltech
SKU: 4059412

Item# 405941

"Metaltech Mason Scaffold Frame Section, 60In.W x 60In.H, Model# M-MF6060PS-A"

On Sale1 Included

Click or Tap image to Zoom

$89.99

Buy 4 or more at $79.99 ea.

Choose Options for complete product description, reviews and purchasing.

Size

Quantity

Save to List

Shipping:
Available now
Heavy/large item. Lift gate service available.
Store Pickup:
Not Available

The perimeter tubes are 1 11/16in., 13 gauge steel
The interior tubes being 1in., 16 gauge steel
Blue antislip textured powder-coat finish
Coupling pin and springs
4ft. pin spacing

See full description

Product Summary

Metaltech offers this Mason Scaffold frame section that features rugged and secure steel frame construction with 13-ga., 1 5/8in. O.D. tubes and coupling pin and springs. Assembled frame capacity is 4960 lbs. and all frame sections meet OSHA requirements.

What's Included

(1) Scaffold frame section

Downloads

Product Manual

Key Specs

Attribute	Specification
item#	405941
Brand	Metaltech
Manufacturer's Warranty	1 year limited warranty
Ship Weight	39.0 LB

Attribute	Specification
Accessory Type	Frame
Capacity	4,605 lb
Material	Steel
Included (qty.)	1

Reviews

Questions & Answers

Questions

1–8 of 8 Questions

6 years ago

Can 60"x60" sections be mixed with 72"x60" sections

Can a section made with 60x60 frames be stacked on top of a section made with 72x60 frames for a height of 11 feet?
1. BigAlFromApex

  6 years ago

  You would have to have 2 of the 72 x 60 sections on the same level and 2 of the 60 x 60 sections on the same level but they should stack.

  Helpful?
2. ProductExpert12

  6 years ago

  The 60" x 60" frame section can be stacked on top of the 60" x 72" frame section, item 405944, since they are the same width. It can also be stacked on top of the 60" x 76" frame section, item 405945. Frame sections of the same height must be used at the same level.

  Helpful?
a year ago

Is this a complete section with the bracing

1 answer
1. ProductExpert6

  a year ago

  This would be one frame end section with the bracing.

  Helpful?
2 years ago

Are the cross supports included

1 answer
1. ProductExpert11

  2 years ago

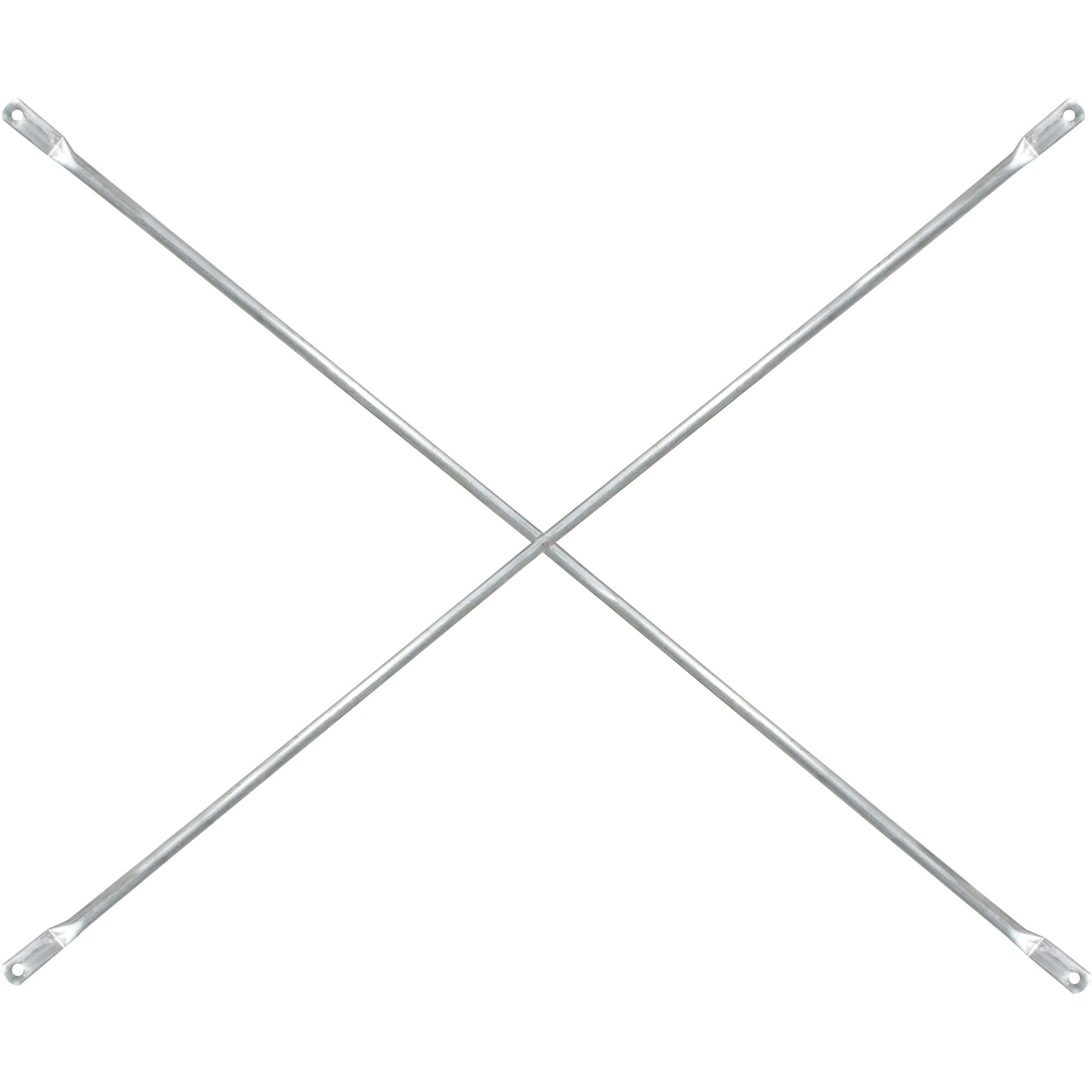

  The cross brace is item number 405939 (M-MC4884) sold separately. Two cross braces are needed per scaffolding section.

  Helpful?
3 years ago

Do this come as a set and it comes with the board across

1 answer
1. ProductExpert7

  3 years ago

  This is frame section along with the coupling pin and spring lock. Please view item #405953 for a compatible 7' scaffold platform section.

  Helpful?
4 years ago

Is this the complete section?

1 answer
1. ProductExpert37

  4 years ago

  This frame section will include the 13-ga., 1 5/8in. O.D. tubes, the coupling pin and springs. This is one complete frame section.

  Helpful?
4 years ago

What leveling jack should be used with this scaffolding?

1 answer
1. ProductExpert6

  4 years ago

  The adjustable leveling jack, item #405937 would be used with the scaffold frame.

  Helpful?
5 years ago

What is the reccomended maximum height ( how many stacked sections) can be worked off of ?

1 answer
1. ProductExpert6

  5 years ago

  The frames can be stacked as high as you need, but would need additional safety equipment added. If you stack 3 frames you would need to add the outriggers. If you go above 15 feet, you will need wall brackets and it cannot be used with casters.

  Helpful?
9 years ago

are all the locking pins and 2 top couplers included?

1 answer
1. ProductExpert38

  7 years ago

  The coupling pin and spring lock are included.

  Helpful?
