MaxxAir Ventamatic Exhaust Fan with Integrated Shutters, 1,400 CFM, 14in. Dia., Model# IF14UPS

Item# 517231
"MaxxAir Ventamatic Exhaust Fan with Integrated Shutters, 1,400 CFM, 14in. Dia., Model# IF14UPS"
MaxxAir Ventamatic Exhaust Fan with Integrated Shutters, 1,400 CFM, 14in. Dia., Model# IF14UPS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

MaxxAir Ventamatic Exhaust Fan with Integrated Shutters, 1,400 CFM, 14in. Dia., Model# IF14UPS

Click or Tap image to Zoom

$189.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Moves up to 1,400 CFM
  • Rust-resistant galvanized steel housing with removable interior grille
  • Pre-drilled holes on flange and rolled flange edges for safe and easy installation

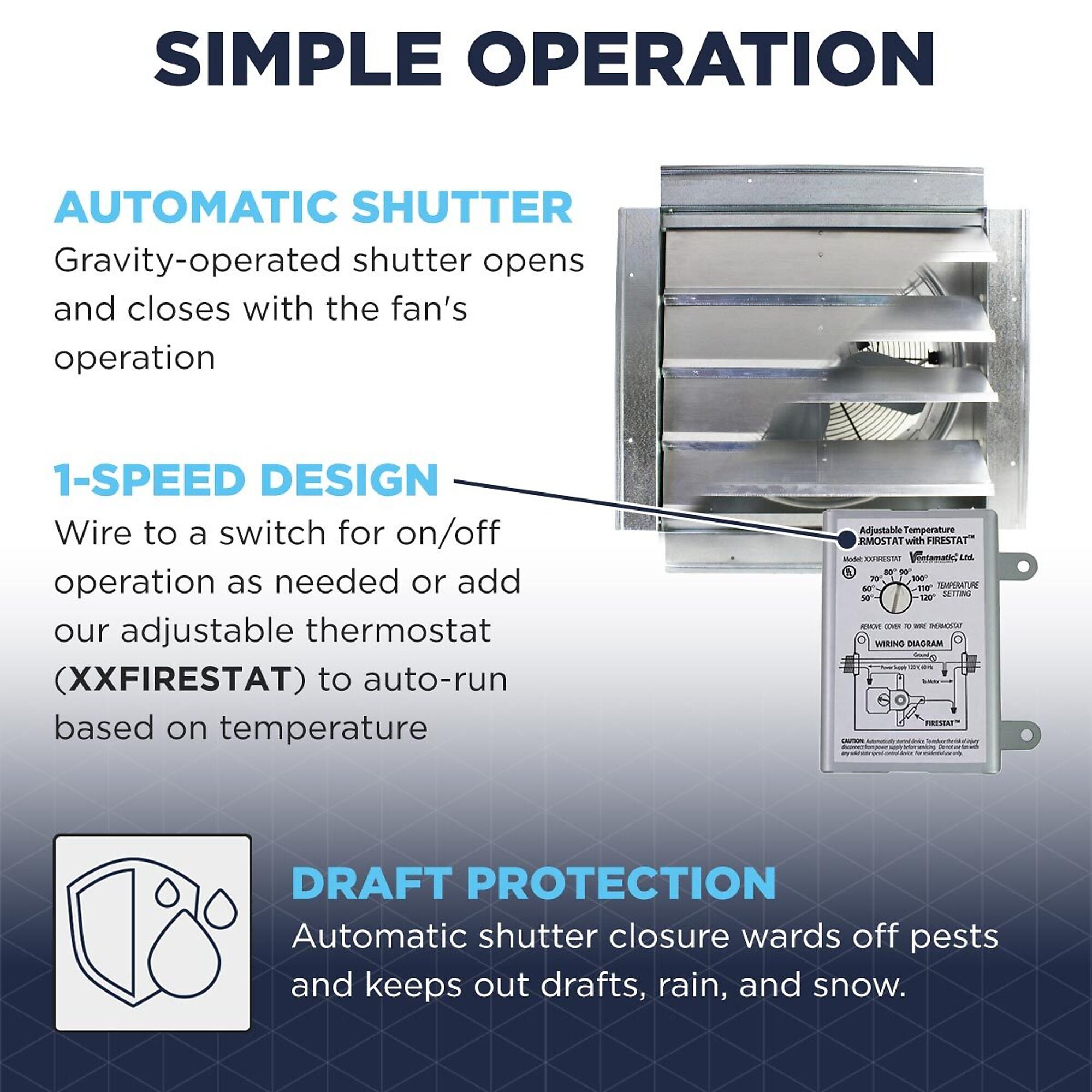

  • Automatic shutter prevents drafts from entering through the external opening
  • OSHA compliant grille and totally enclosed, energy efficient PSC motor

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

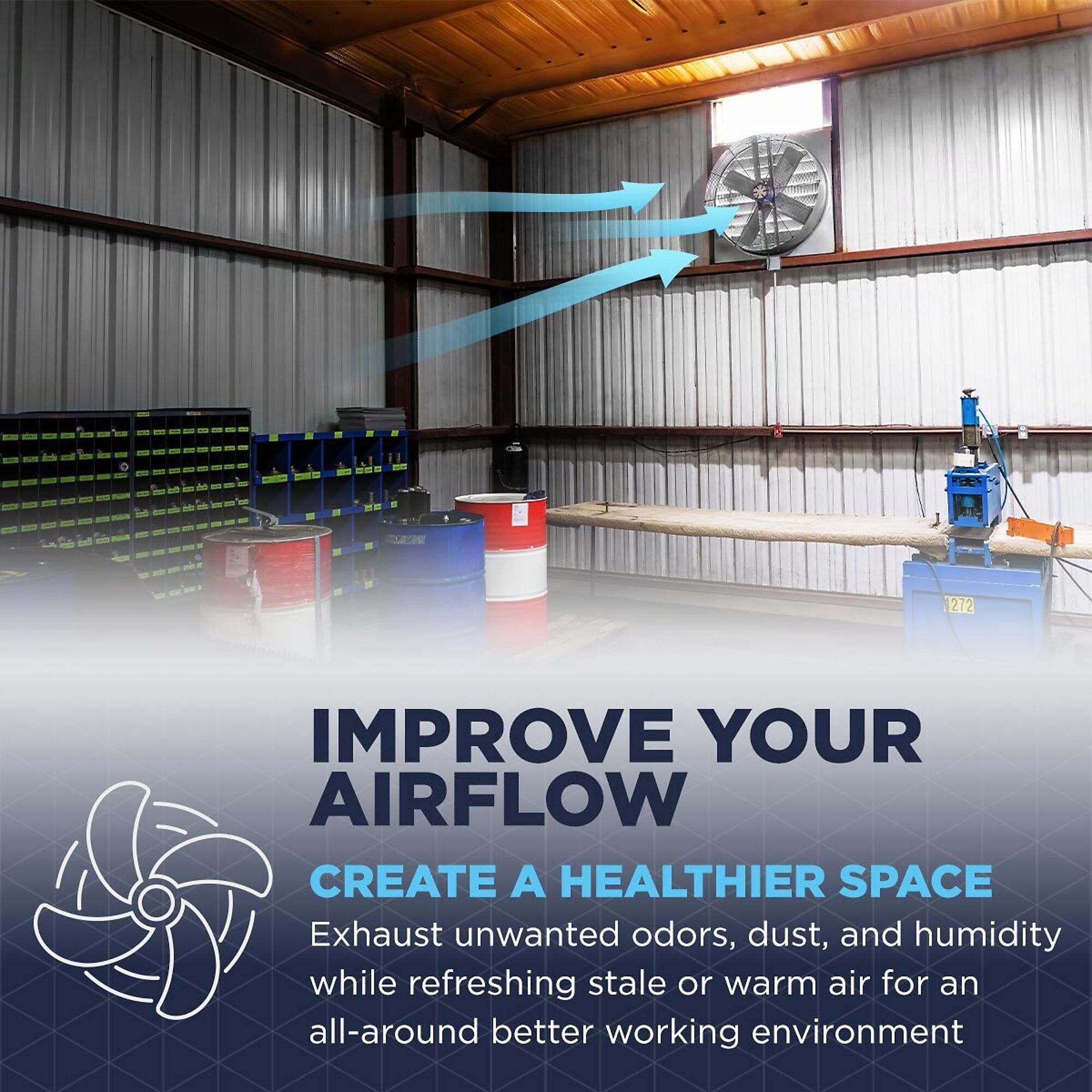

The Maxx Air 14in. Exhaust Fan can be used in a garage, barn, greenhouse, warehouse, and a variety of other agricultural and industrial locations to quickly remove unwanted odors, dust and humidity, and refresh stale or warm air in your space. This wall exhaust fan is constructed of a sturdy 20 gauge steel housing with aluminum shutter louvers, a safety grille and a totally enclosed, thermally protected motor. Arrives fully assembled, just mount to your desired building wall and wire into your electrical system to complete installation. Pair this industrial fan with our adjustable thermostat with firestat (XXFIRESTAT) for greater operational control and safety.

What's Included

    (1) Exhaust Fan with Integrated Shutter

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Moves up to 1,400 CFM
  • Rust-resistant galvanized steel housing with removable interior grille
  • Pre-drilled holes on flange and rolled flange edges for safe and easy installation
  • Automatic shutter prevents drafts from entering through the external opening
  • OSHA compliant grille and totally enclosed, energy efficient PSC motor
  • Requires wiring to your building's electrical system and 4.5 sq. ft. of NFA intake ventilation
  • Not intended to exhaust hazardous fumes or chemicals
  • 1-year limited warranty

Key Specs

AttributeSpecification

item#

517231

Brand

Maxx Air

Manufacturer's Warranty

1 year limited warranty

Ship Weight

27.0 LB

Drive Type

Direct

Fan Diameter

14 in

Air Delivery

1,400 cfm

Volts

120

Watts

310

Amps

2.65
AttributeSpecification

Hardwired

Yes

Speeds (qty.)

1

Max. Fan Speed

1,130 rpm

Primary Color

Silver

Secondary Color

Silver

Assembly Required

No

Horsepower

0.2 HP

Product Weight

27.0000 lb

Dimensions L x W x H (in.)

12.75 x 20.4 x 20.4 in
