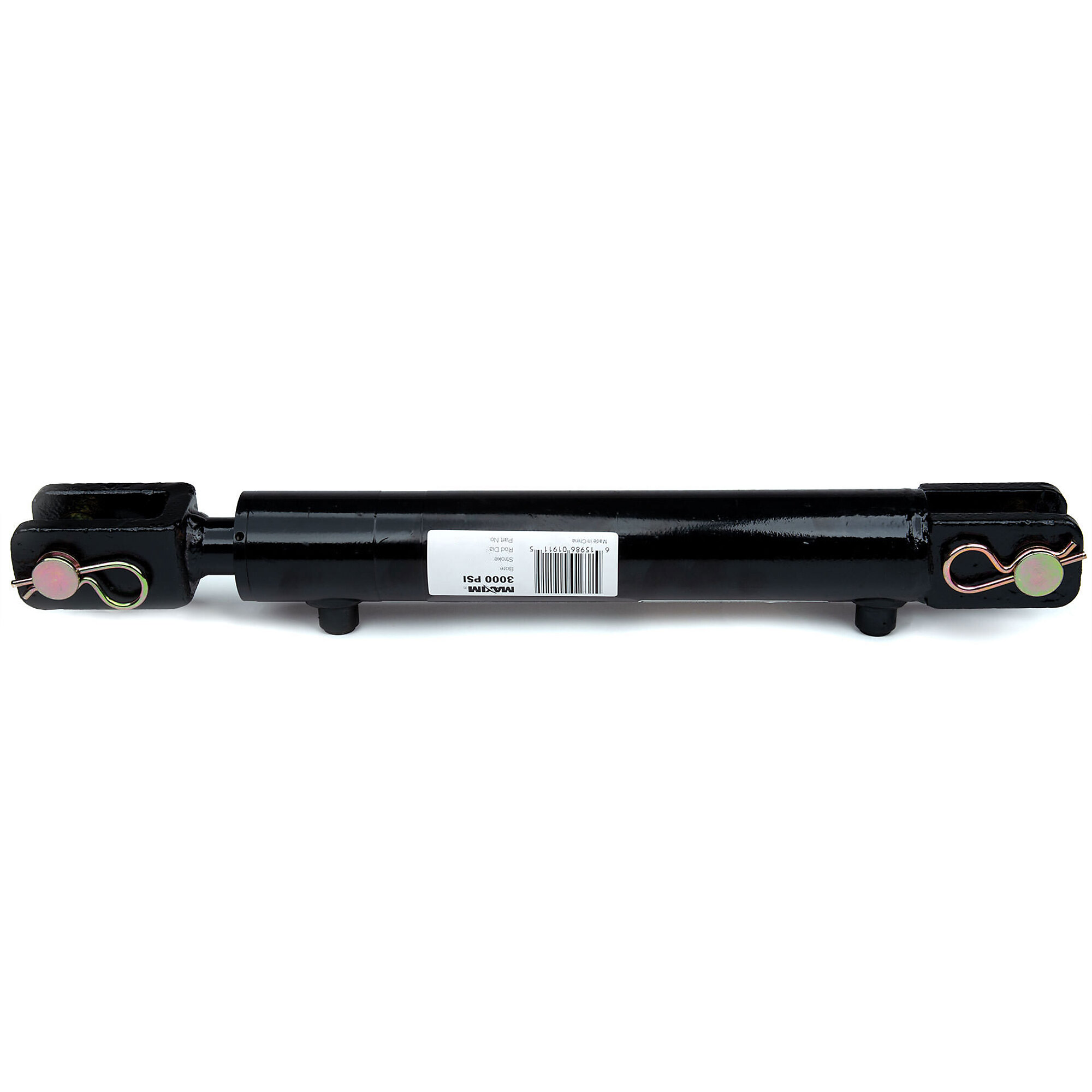

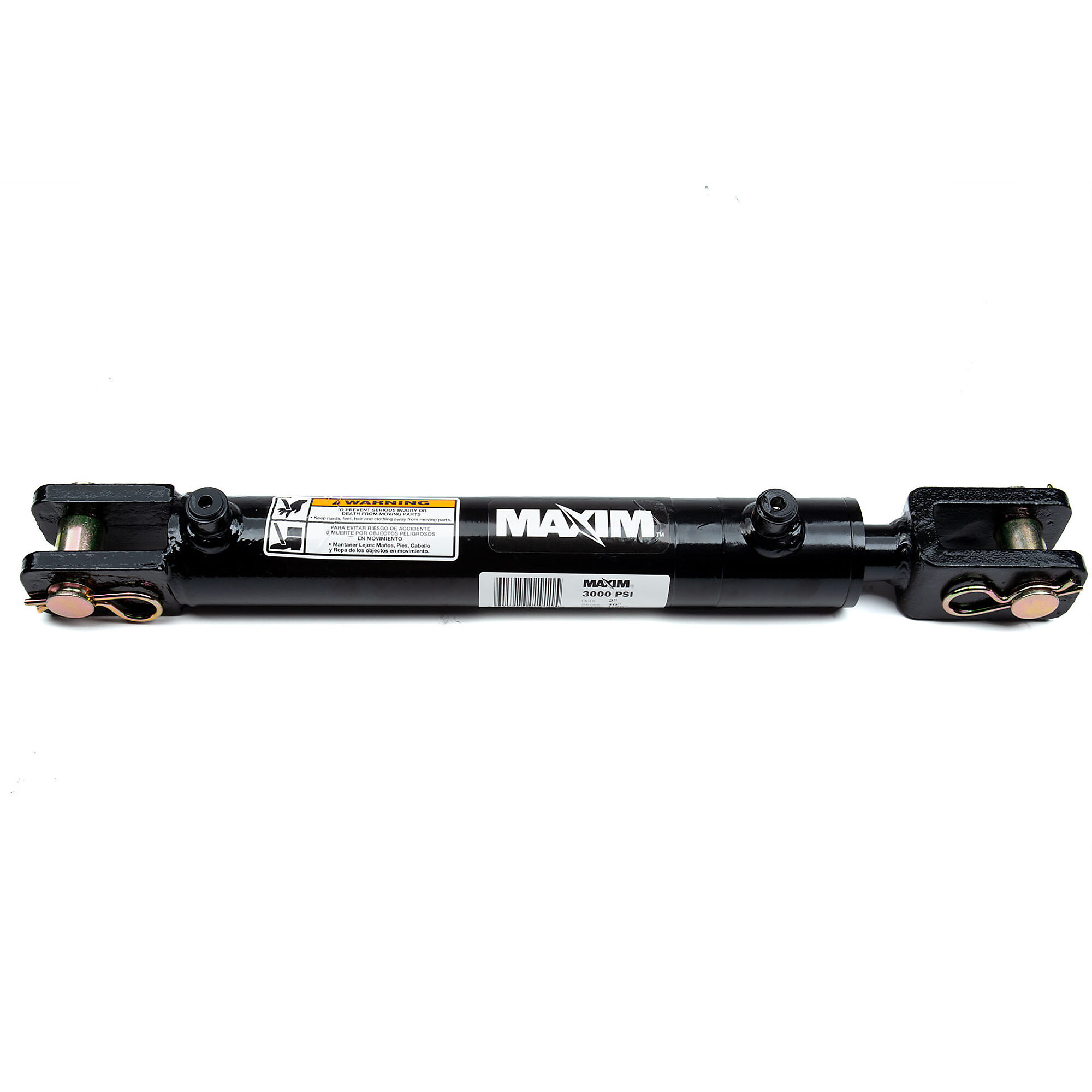

Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 4 in, Stroke Length 36 in, Model# 288464

Item# 4858071
Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 4 in, Stroke Length 36 in, Model# 288464

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 4 in, Stroke Length 36 in, Model# 288464

Click or Tap image to Zoom

$454.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Ductile iron ASTM A536 65-45-12 for excellent life
  • Grade 8, high tensile zinc-plagted piston lock nut

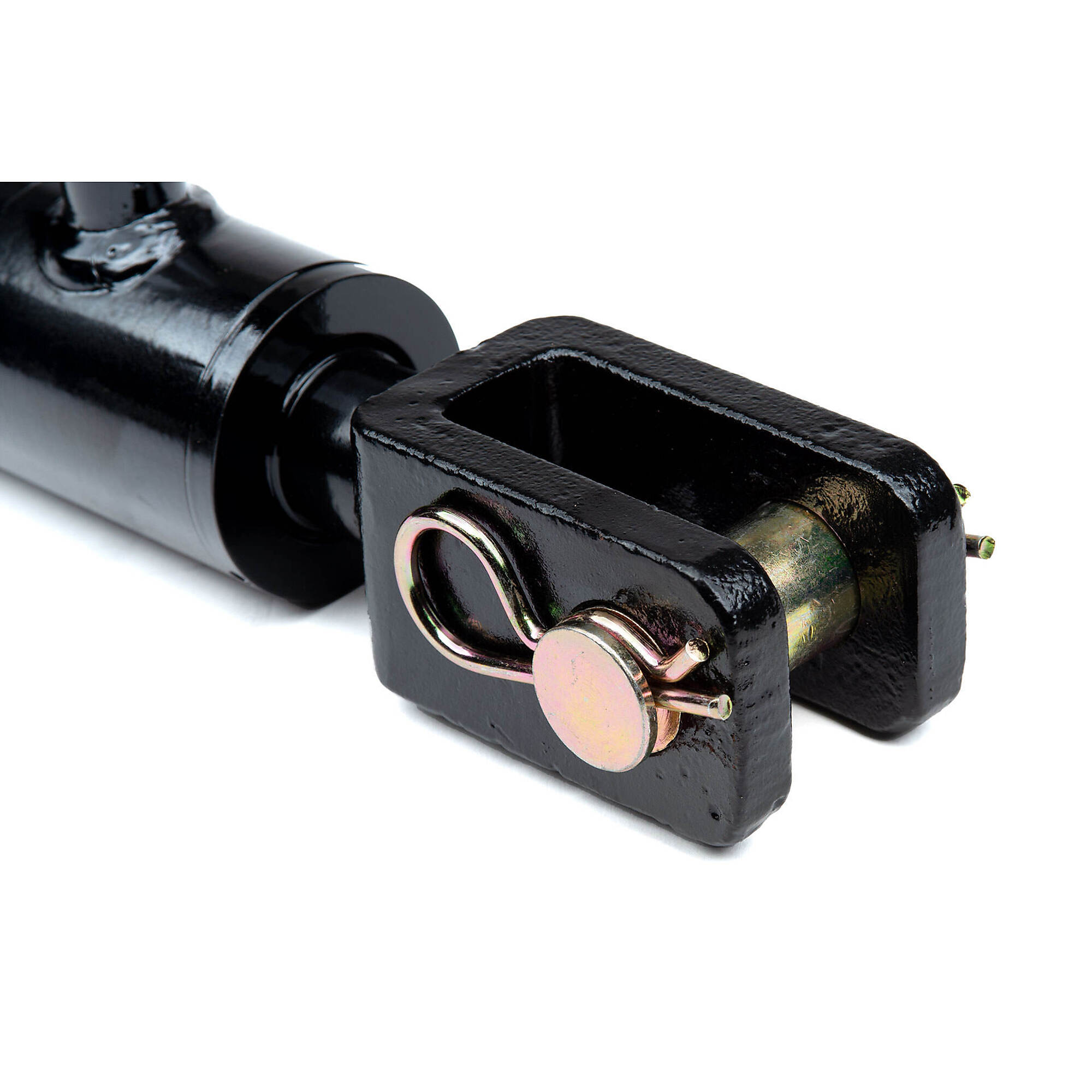

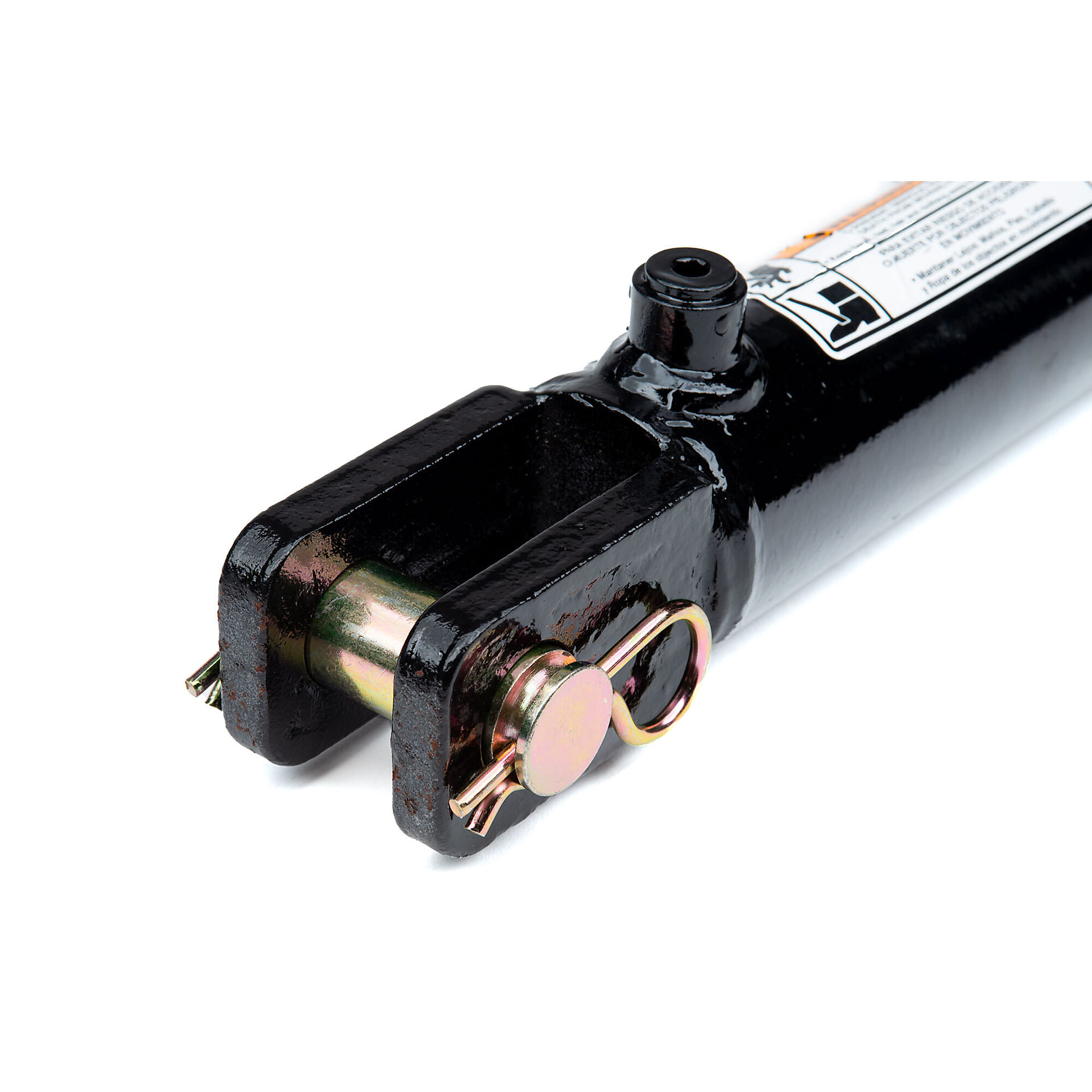

  • Steel-cast female clevis end mounts
  • Polypak rod seal with B lip design

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Maxim WC welded hydraulic cylinder is designed for demanding applications and built to ensure maximum reliability and performance, exceeding the highest standards. Manufactured from precision-forged steel with a hard chrome-plated rod, this cylinder is made for durability. For maximum flexibility the base-end clevis extends an extra 2in. to offer a greater swing radius. For the highest reliability, the Maxim WC features a piston made from ductile iron with a long-lasting Hallite 755 wear ring, Buna o-ring tube seals, a deep PolyPak rod seal with a B-lip design, and snap-in urethane rod wiper. This cylinder is rated for 3000 psi and female clevis-mounted with included pins and clips. Comes standard in black.

What's Included

    (1) Cylinder

Features + Benefits

  • Ductile iron ASTM A536 65-45-12 for excellent life
  • Grade 8, high tensile zinc-plagted piston lock nut
  • Steel-cast female clevis end mounts
  • Polypak rod seal with B lip design

Key Specs

AttributeSpecification

item#

4858071

Brand

Maxim

Manufacturer's Warranty

1 year limited warranty

Ship Weight

90.0 LB

Max. PSI

3,000

Bore Diameter

4 in
AttributeSpecification

Stroke Length

36 in

Retracted Length

46.25 in

Extended Length

82.25 in

Pin Diameter

1 in

Product Weight

90.0000 lb

Dimensions L x W x H (in.)

82.25 x 4.0 x 4.0 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. what size/type ports does this have ? Do you have a 90 degree elbow to got to 1/2 " pipe thread

    1 answer

    1. The cylinder would have SAE-8 ports. It would be a type of O-ring Boss (ORB) fitting. We would not carry a 90 degree elbow to go to 1/2" pipe thread.

      Helpful?

  2. Can this ram RETRACT(that is pull together) as well as extend (push out) with equal power?

    1 answer

    1. The extend force is 37,699 pounds max and the retract force is 28274 pounds max. The cylinder would not extend and retract with equal power.

      Helpful?

  3. What is the column load in lbs for this cylinder?

    1 answer

    1. The column load is rated at 26,560-lbs.

      Helpful?

  4. What is the rod diameter?

    1 answer

    1. The rod diameter for this hydraulic cylinder is 2".

      Helpful?
