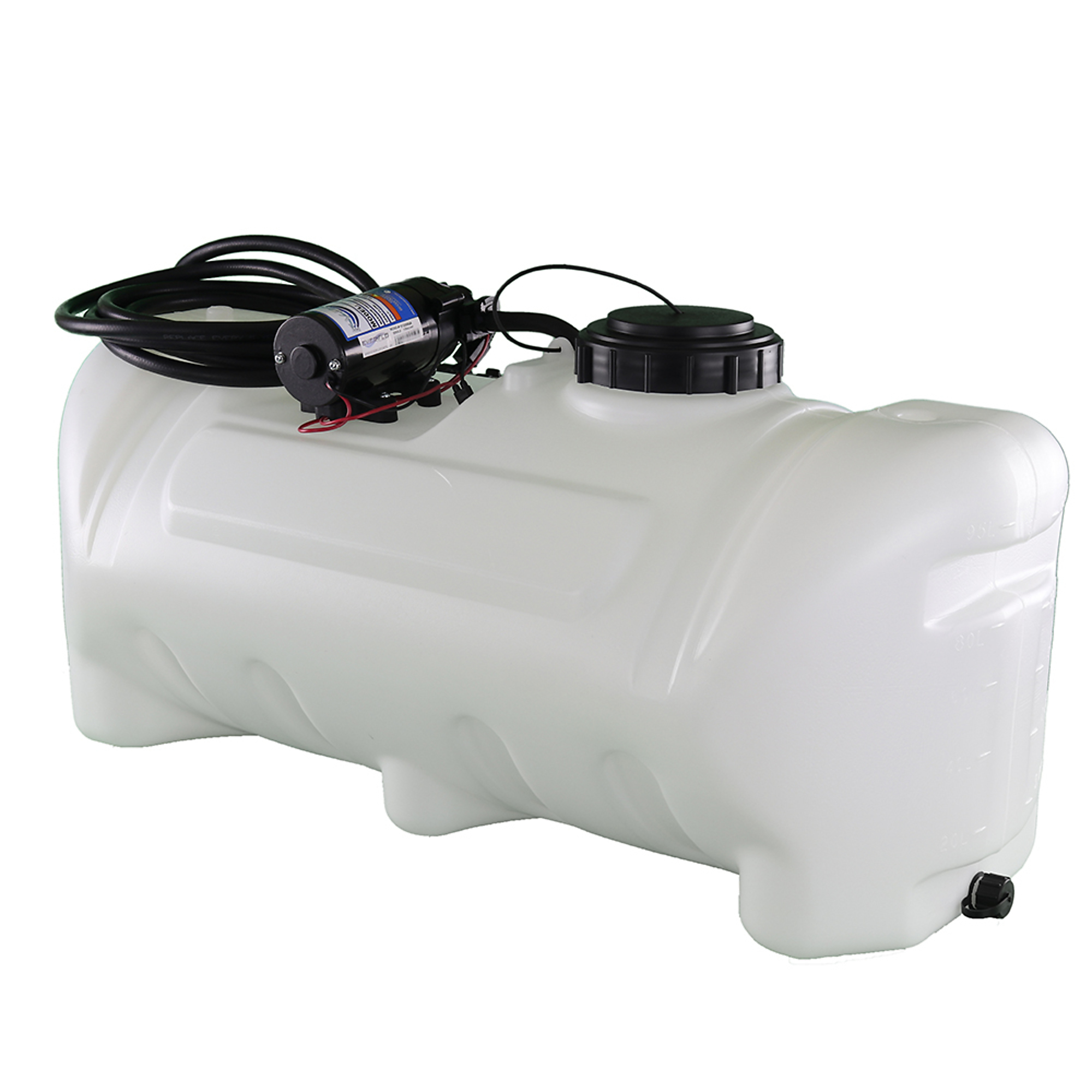

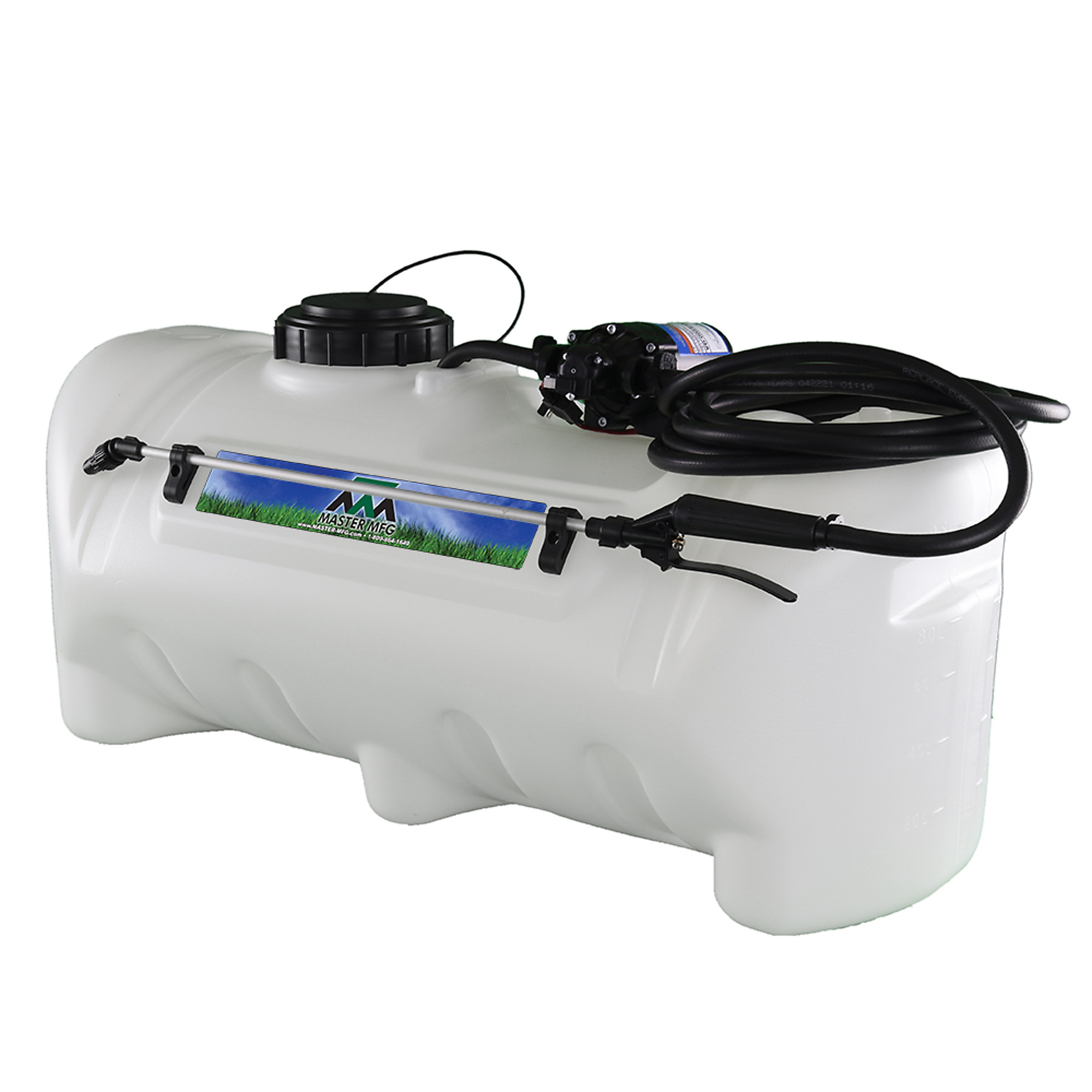

Master Mfg Spot Sprayer, 25-Gal. Tank, 2.2 GPM, 60 Max. PSI, Model# SSO-01-025A-MM

Item# 6464594
"Master Mfg Spot Sprayer, 25-Gal. Tank, 2.2 GPM, 60 Max. PSI, Model# SSO-01-025A-MM"
Master Mfg Spot Sprayer, 25-Gal. Tank, 2.2 GPM, 60 Max. PSI, Model# SSO-01-025A-MM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Master Mfg Spot Sprayer, 25-Gal. Tank, 2.2 GPM, 60 Max. PSI, Model# SSO-01-025A-MM

Click or Tap image to Zoom

$134.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Designed to handle low volume spraying of isolated areas
  • 25-gallon translucent tank with raised volume markings
  • Spot spray up to 25 feet vertically and 30 feet horizontally
  • Adjustable spray gun goes from steady stream to mist
  • Everflo 12V diaphragm pump that delivers up to 2.2 GPM at 70 PSI

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Sprayer Features: Be a sharpshooter with this Master Manufacturing 25 Gallon Spot Sprayer. Featuring a robust Everflo 2.2GPM 12V on-demand diaphragm pump. Easily move the sprayer on/off a vehicle with quick grip handles built into the UV resistant tank. Includes 15ft. of hose to spray gun that gives more flexibility for those hard-to-reach areas. After application use, drain remaining water and chemical with the accessible molded in drain port. Comes standard with 12v wire harness that has an alligator clamp connection. Approved for use with Round-Up® and other agricultural brand herbicides and insecticides. Backed by a two-year warranty on pump components. Can be used with ATVs, UTVs and other means of transportation with some modifications. Spot Spraying: When it comes time to spot spray, un-holster your traditional spray gun and reach up to 18ft. vertically and 20ft. horizontally from the comfort of your seat. As applications change, quickly adjust the nozzle from a steady stream to a wide mist. Spray gun features a trigger lock to reduce hand fatigue and an in-handle filter for increase durability. Coverage: This spot sprayer is designed to handle low volume isolated spraying applications. Easily tackle weeds, trees, fence lines, livestock, and similar applications.

What's Included

    (1) Sprayer

Features + Benefits

  • Designed to handle low volume spraying of isolated areas
  • 25-gallon translucent tank with raised volume markings
  • Spot spray up to 25 feet vertically and 30 feet horizontally
  • Adjustable spray gun goes from steady stream to mist
  • Everflo 12V diaphragm pump that delivers up to 2.2 GPM at 70 PSI

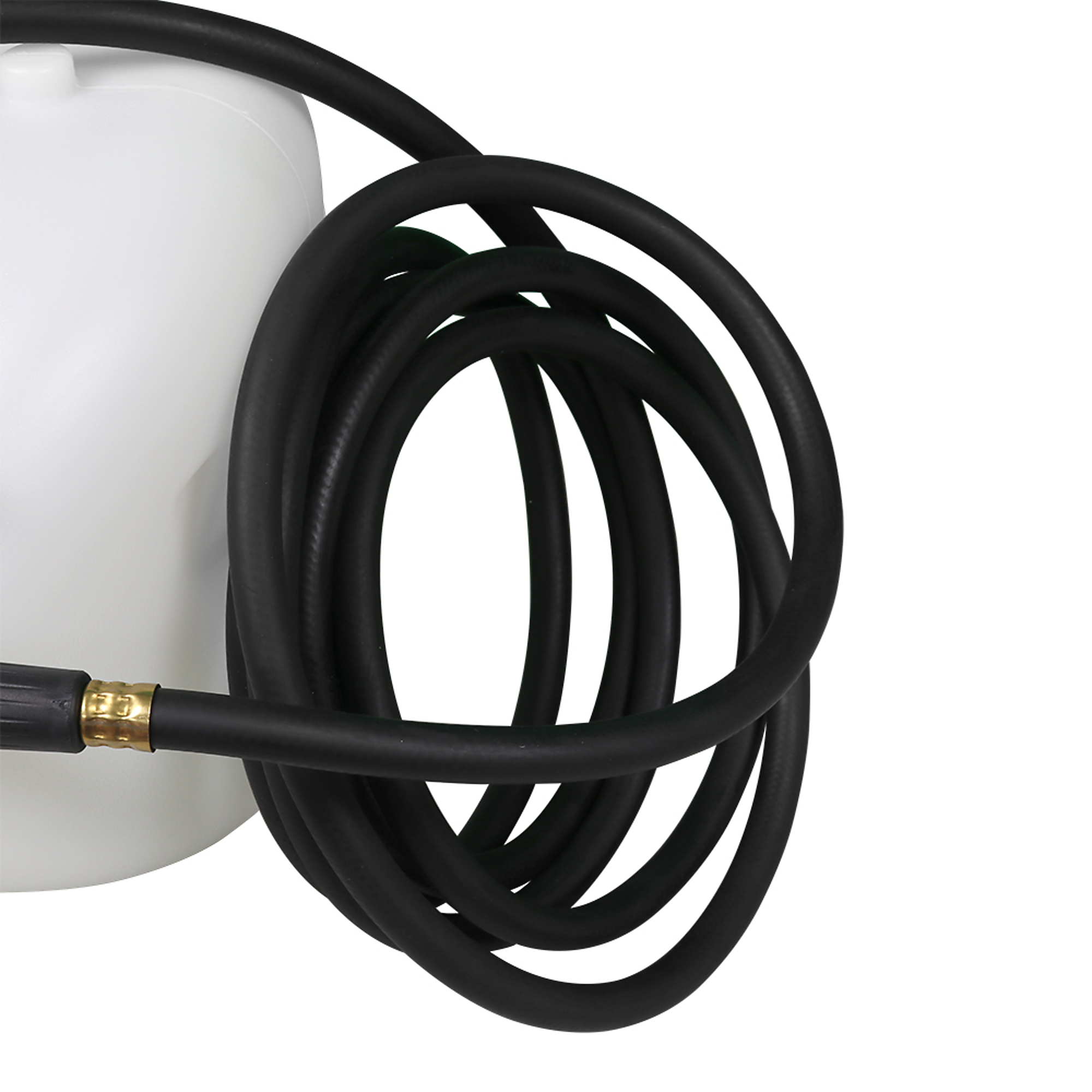

  • 15 feet of rubber hose for extended spot spraying

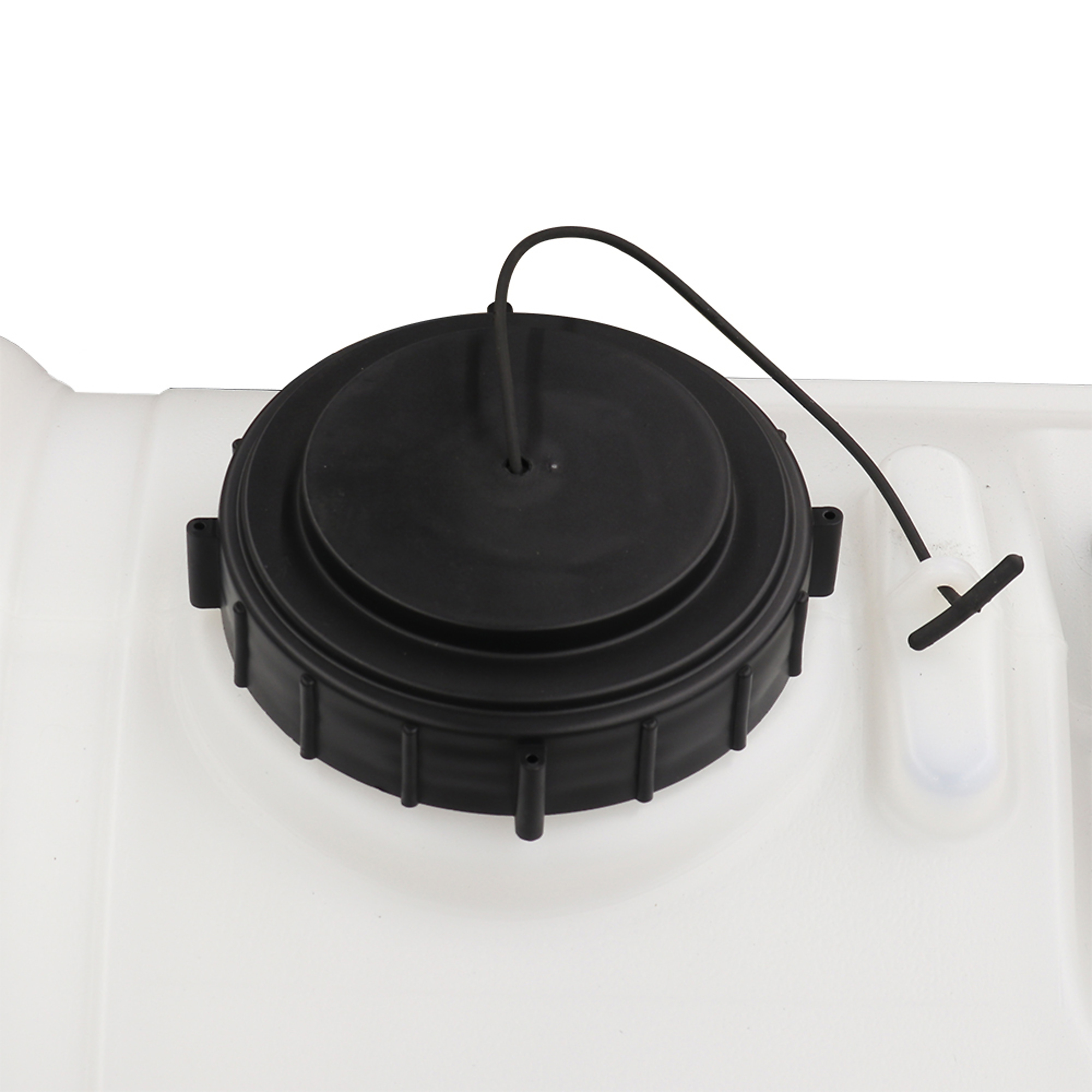

  • 6" tank lid with tether to keep fluids in

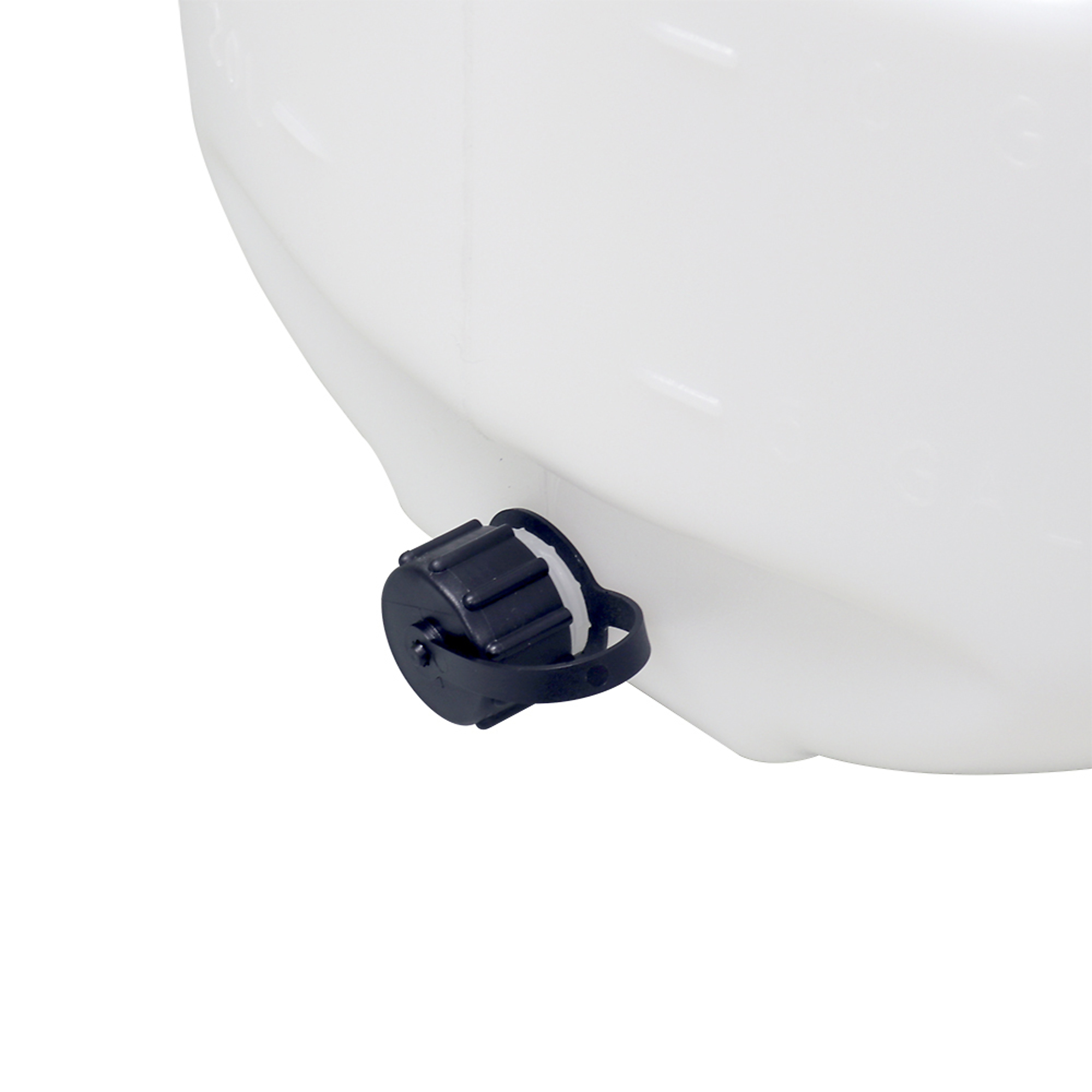

  • Molded-in drain port with tethered cap for complete draining
  • Includes 12-volt wire harness with clamps
  • Extra-thick tank walls for increased durability
  • Can be secured onto the back of an ATV, UTV and other vehicles
  • Mounting hardware not included
  • Backed by a two-year warranty on manufacturer defects

Key Specs

AttributeSpecification

item#

6464594

Brand

Master Mfg

Manufacturer's Warranty

2 year limited warranty

Ship Weight

25.0 LB

Tank Size

25 Gal

Flow

2.2 GPM

Pressure

60 PSI

Horizontal Spray Distance

30 ft
AttributeSpecification

Tank Material

Polyethylene

Spray Pattern

Steady Stream to Mist

Spray Gun Type

Adjustable Spray Gun

Tow Behind Cart Included

No

Pump Type

12-Volt

Hose Length

180 in

Product Weight

25.0000 lb

Dimensions L x W x H (in.)

36.0 x 18.0 x 17.25 in

Reviews

Questions & Answers

Questions

1–7 of 7 Questions
Sort by:

  1. Can I use a bigger pump etc.5.5 rpm?

    1 answer

    1. A 5.5 GPM pump can be added to this sprayer, but the inlet hose would have to increase to a 1/2" hose, and the wand would need to accommodate the GPM rating.

      Helpful?

  2. What is the inside diameter of the hose for the spray gun?

    1 answer

    1. The connection on the spray gun will be a 3/8" hose barb. The hose size is 3/8" x 15 feet.

      Helpful?

  3. Power source?

    1 answer

    1. This comes standard with 12 volt wire harness that has an alligator clamp connection to connect to your ATV or UTV battery.

      Helpful?

  4. Can this spray chlorine?

    1 answer

    1. It is not recommended to use the sprayer to spray chlorine bleach.

      Helpful?

  5. Will a garden hose fit on the drain port?

    1 answer

    1. The sprayer will have a 3/4 inch threaded garden hose drain port.

      Helpful?

  6. How does sprayer connect to lawn mower or AT V

    1 answer

    1. You would mount the sprayer to the back or the ATV or lawn mower with ratchet straps. It will come with a wiring harness to connect the vehicles 12 volt battery.

      Helpful?

  7. Can it be hooked to lawn mower battery

    1 answer

    1. There is not a specific battery recommendation for the sprayer. The most commonly used will be a deep cycle battery. The size of the battery would be determined by usage. The larger the amp hour battery the longer time frame you will be able to spray before the battery would need to be recharged.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
