Magister Hydraulic Solenoid Diverter Valve, 6 ports selector, 13 GPM

Item# 7454902
New

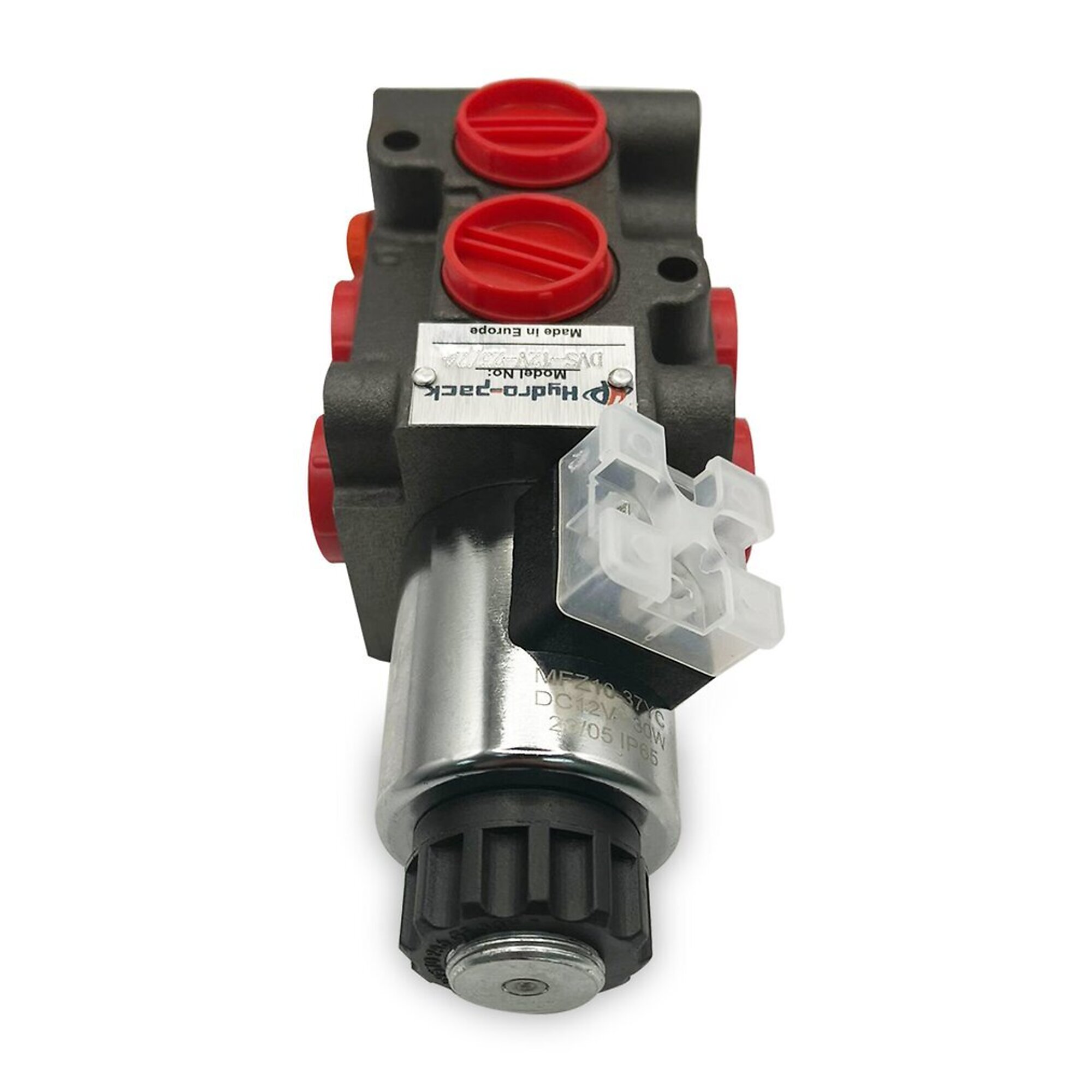

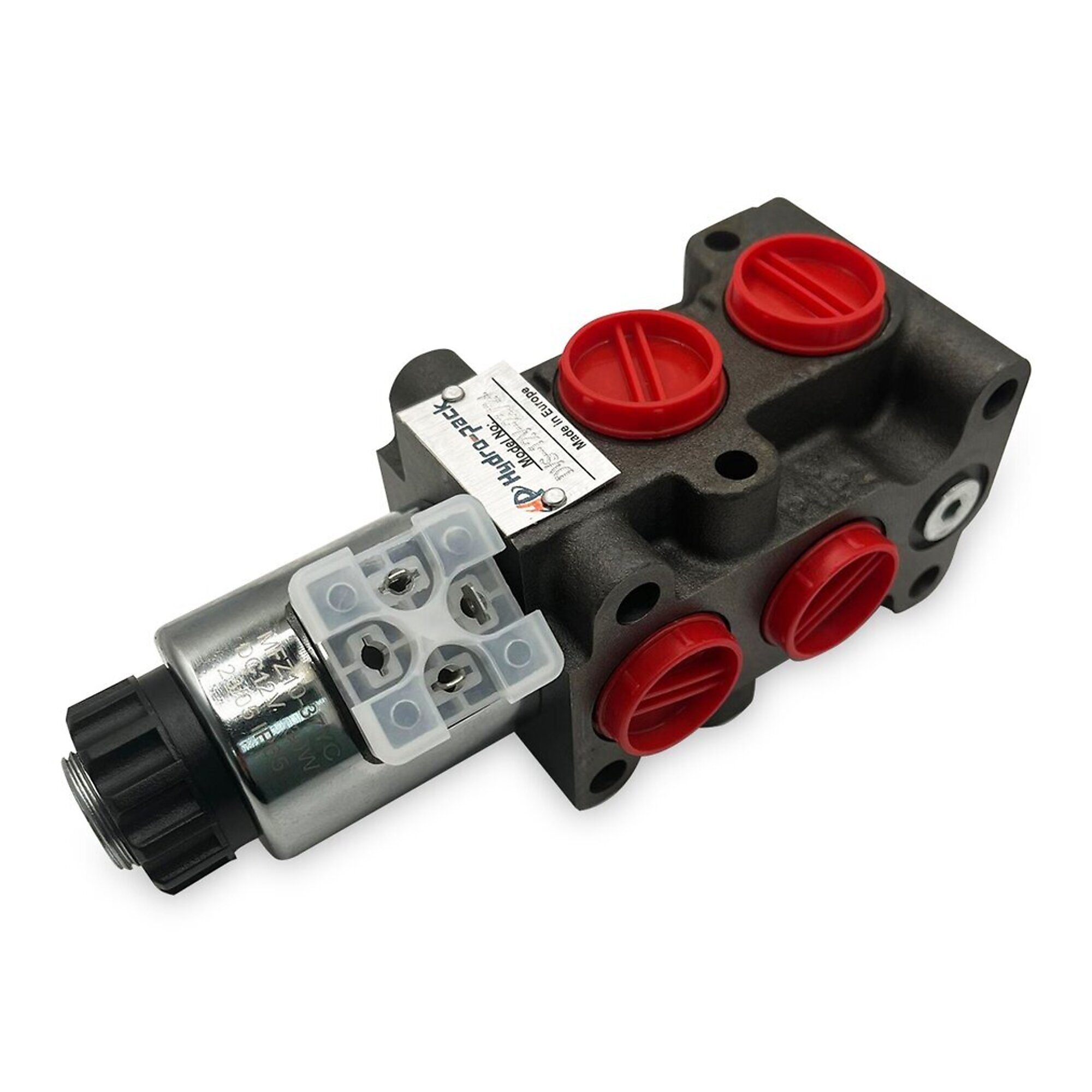

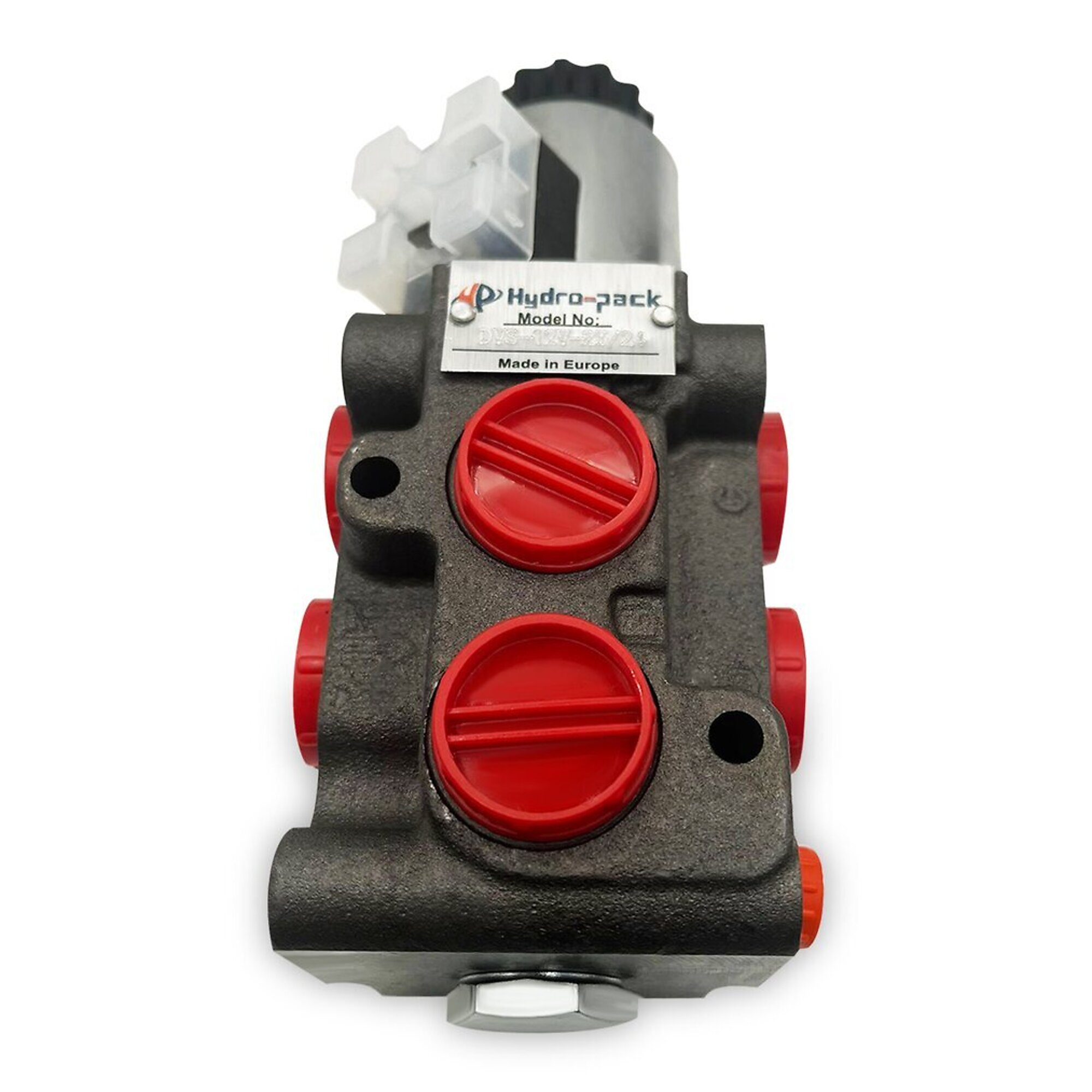

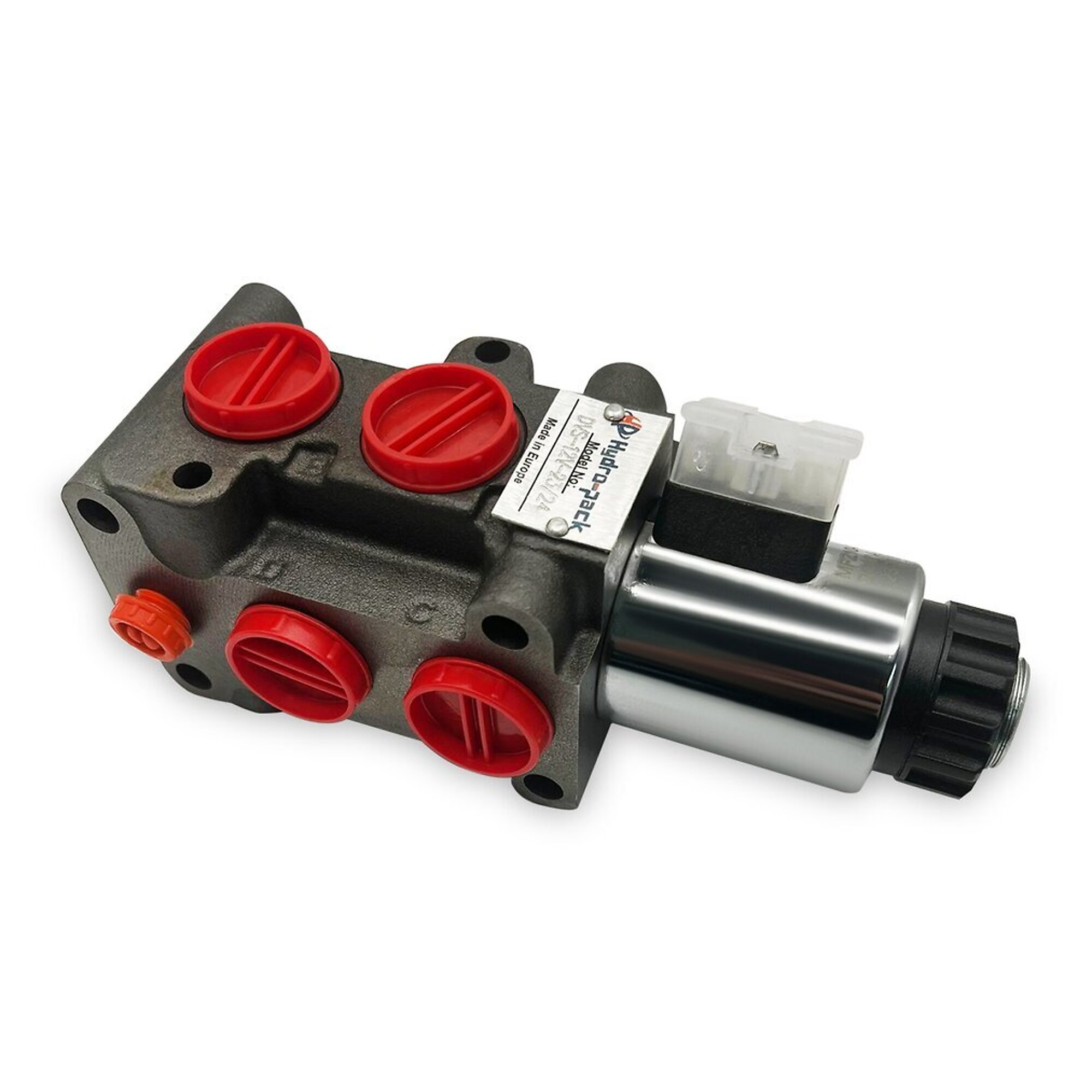

Magister Hydraulic Solenoid Diverter Valve, 6 ports selector, 13 GPM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Magister Hydraulic Solenoid Diverter Valve, 6 ports selector, 13 GPM

Click or Tap image to Zoom

$165.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Made in Europe, American Standards
  • Flow: 13 GPM
  • Inlet Port: SAE 8
  • Max Pressure: 4600 PSI
  • Outlet Port: SAE 8

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

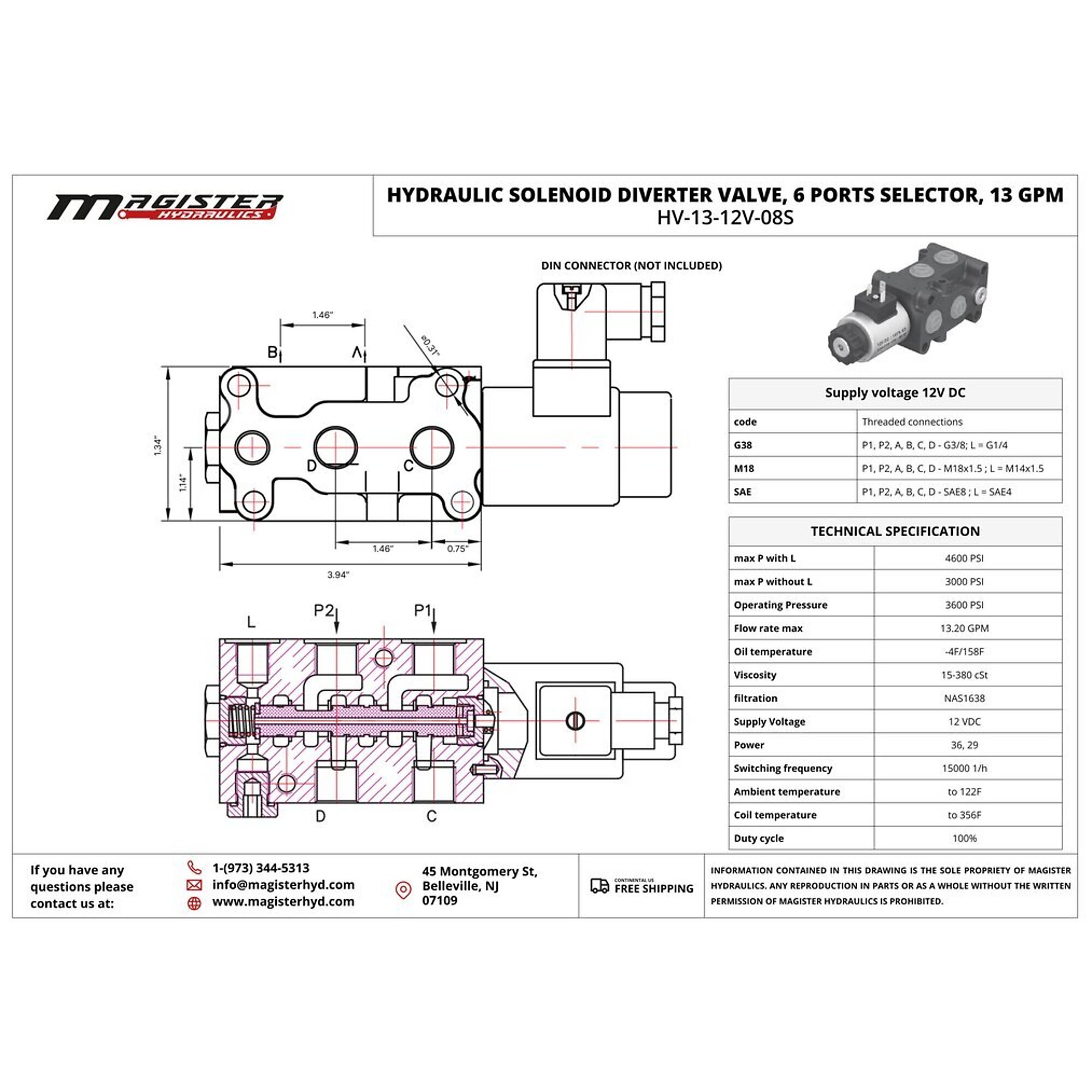

Hydraulic Solenoid Diverter Valve, 6 ports selector, 13 GPM. This diverter valve is a 6-way, 2-position (6/2) solenoid-operated valve. They are used for selective connection of different cylinders/hydraulic motors in the application. When the valve is de-energized, oil is directed from the D C ports to the first actuator. When the valve coil is energized, oil is directed from the A B ports to the second actuator. These diverter valves are used together with directional control valves. A and B ports (working ports) from the control valve are connected to P1 and P2 ports of Diverter/Selector valves. Other ports (A, B, C, and D) are connected to cylinders or hydraulic motors in the application. It is recommended to connect L ports to the oil tank. If the drain line (L) is not used (not connected to the tank, blind plugged), the max. pressure is 3000 PSI. L (Drain) port is SAE 4. A valve can be stacked up to 5 valves, allowing for the diverting of flow in 2, 3, or 4 directions depending on the combination chosen. DIN connector not included. Made in Europe utilizing American standards, can operate under temperature anywhere from - 40F and up to 140F. Can be operated from one control level on machines such as forklifts, agricultural front-end loaders, telescopic handlers, and in transmission circuits.

What's Included

    (1) Magister Hydraulic Solenoid Diverter Valve, 6 ports selector, 13 GPM

Features + Benefits

  • Made in Europe, American Standards
  • Flow: 13 GPM
  • Inlet Port: SAE 8
  • Max Pressure: 4600 PSI
  • Outlet Port: SAE 8

Key Specs

AttributeSpecification

item#

7454902

Brand

Magister Hydraulics

Manufacturer's Warranty

1 year limited warranty

Ship Weight

6.0 LB

GPM

13

Working Port

#8 SAE in

Max. PSI

4,600
AttributeSpecification

Directional Control

6-way, 2-position

Body Material

Cast Iron

Inlet Port

#8 SAE in

Outlet Port

#8 SAE in

Product Weight

6.0000 lb

Dimensions L x W x H (in.)

9.0 x 5.0 x 5.0 in

Reviews

Questions & Answers

Questions

  1. Does it have the switch to plug in and control the flow path

    0 answers

Warranty

Manufacturer's Warranty

1 year limited warranty
