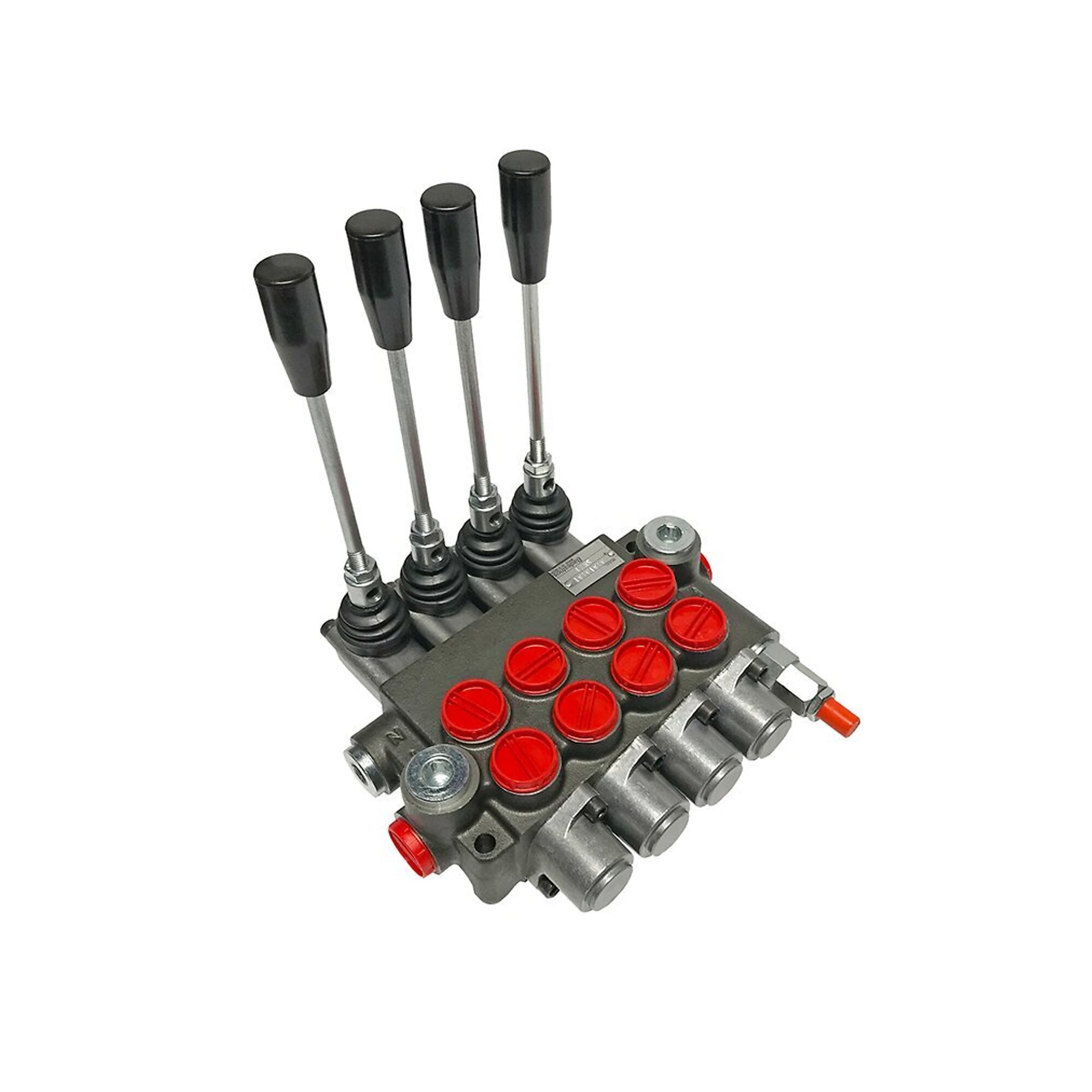

Magister 4 spool x 13 GPM hydraulic control valve HCV 4x13

Item# 7454726
New
Magister 4 spool x 13 GPM hydraulic control valve HCV 4x13

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Magister 4 spool x 13 GPM hydraulic control valve HCV 4x13

Click or Tap image to Zoom

$275.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Made in Europe, American Standards
  • Robust Construction: Durable, leak-resistant cast iron monoblock body designed for harsh operating environments
  • High-Pressure Operation: Standard operating pressure 3600 PSI; maximum pressure rating 4600 PSI
  • Extreme Temperature Resilience: Reliable performance from -40°F to 140°F for year-round use
  • Broad Compatibility: Excellent direct replacement for systems in small tractors, tractor loaders, log splitters, forklifts, and tow trucks

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Gain reliable control over your equipment with the 4 Spool, 13 GPM Hydraulic Control Valve. Engineered with a heavy-duty cast iron body, this valve directs hydraulic oil between pumps, cylinders, and motors under pressures up to 3600 PSI ( 4600 PSI max). Crafted in Europe to stringent American standards, it’s a dependable solution for demanding applications in temperatures from -40°F to 140°F. Built for Demanding Performance High-Pressure Operation: Standard operating pressure 3600 PSI ; maximum pressure rating 4600 PSI. Designed for Versatility Ease Flexible Configuration: Includes handles installable vertically or horizontally to match your setup. Secure Mounting: Uses 2 M8 mounting bolts for stable installation. Advanced Option (Power Beyond): Power Beyond capability available for daisy-chaining multiple valves (requires plug installation into the “N” Port). Ideal replacement or upgrade for: Small Tractors, Tractor Loaders, Log Splitters, Forklifts, and Tow Trucks. Note: Power beyond option is available ; plug must be installed into the “N” Port.

What's Included

    (1) Magister 4 spool x 13 GPM hydraulic control valve HCV 4x13

Features + Benefits

  • Made in Europe, American Standards
  • Robust Construction: Durable, leak-resistant cast iron monoblock body designed for harsh operating environments
  • High-Pressure Operation: Standard operating pressure 3600 PSI; maximum pressure rating 4600 PSI
  • Extreme Temperature Resilience: Reliable performance from -40°F to 140°F for year-round use
  • Broad Compatibility: Excellent direct replacement for systems in small tractors, tractor loaders, log splitters, forklifts, and tow trucks

Key Specs

AttributeSpecification

item#

7454726

Brand

Magister Hydraulics

Manufacturer's Warranty

1 year limited warranty

Ship Weight

16.0 LB

GPM

13

Working Port

#8 SAE in

Max. PSI

4,600

Spool (qty.)

4
AttributeSpecification

Directional Control

4-way, 3-position

Body Material

Cast Iron

Inlet Port

#10 SAE in

Outlet Port

#10 SAE in

Handle Type

Standard

Product Weight

16.0000 lb

Dimensions L x W x H (in.)

11.0 x 9.0 x 5.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
