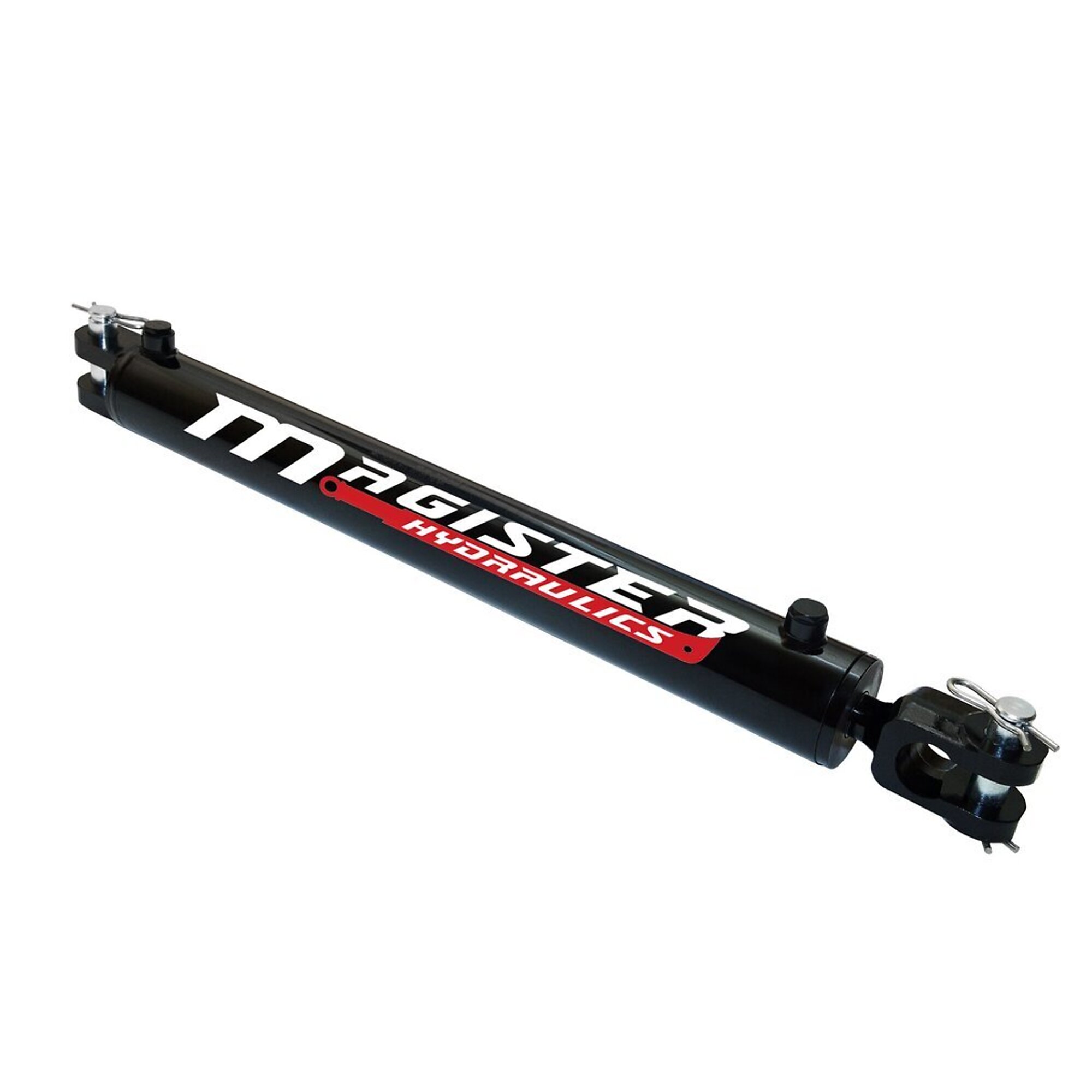

Magister 4" bore x 24" stroke ag clevis hydraulic cylinder WBC 4x24
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Made in Europe, American Standards
- High load capacity: Welded steel clevis ends, ? 4.5" honed cold-drawn tubing, ? 1.5" chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 24" stroke
- Agricultural Equipment: Ideal for tractors, harvesters, and other farming machinery, ensuring reliable operation in tough conditions
- Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications
- High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life
See full description
See All Welded Clevis Cylinders
See All Welded Clevis Cylinders
Currently Viewing This Product
Specifications
2,500
3,000
3,000
3,000
4 in
2 in
3 in
3 in
24 in
8 in
18 in
18 in
1.5 in
-
1.5 in
-
16,800 lb
-
21,200 lb
-
34.25 in
-
-
-
34.25 in
18.25 in
28.25 in
28.25 in
58.25 in
26.25 in
46.25 in
46.25 in
1 in
1 in
1 in
1 in
0.5 in
-
-
-
5.22 lb
-
-
-
59.0000 lb
19.0900 lb
37.0000 lb
38.3800 lb
42.0 x 6.0 x 6.0 in
26.25 x 2.0 x 2.0 in
31.0 x 4.0 x 5.0 in
46.25 x 3.0 x 3.0 in
