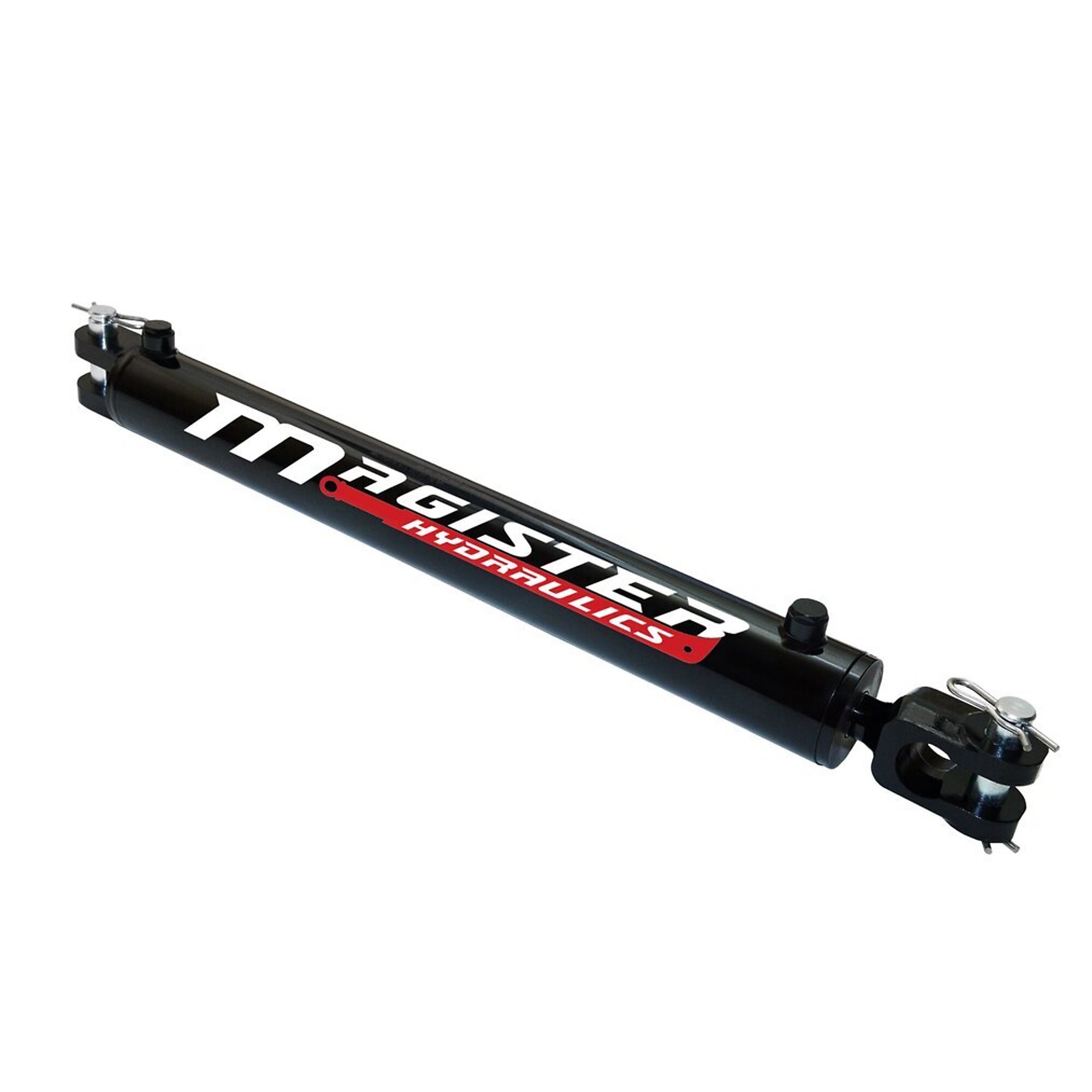

Magister 4" bore x 20" stroke ag clevis hydraulic cylinder WBC 4x20
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Made in Europe, American Standards
- High load capacity: Welded steel clevis ends, ? 4.5" honed cold-drawn tubing, ? 1.5" chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 20" stroke
- Agricultural Equipment: Ideal for tractors, harvesters, and other farming machinery, ensuring reliable operation in tough conditions
- Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications
- High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life
See full description
See All Welded Clevis Cylinders
See All Magister Hydraulics Welded Clevis Cylinders
Currently Viewing This Product
Specifications
2,500
3,000
3,000
3,000
4 in
3 in
2 in
2 in
20 in
18 in
8 in
10 in
1.5 in
1.5 in
-
-
22,600 lb
21,200 lb
-
-
30.25 in
-
-
-
30.25 in
28.25 in
18.25 in
20.25 in
50.25 in
46.25 in
26.25 in
30.25 in
1 in
1 in
1 in
1 in
0.5 in
-
-
-
4.35 lb
-
-
-
50.0000 lb
34.0000 lb
18.8700 lb
17.6400 lb
38.0 x 6.0 x 6.0 in
31.0 x 5.0 x 5.0 in
26.25 x 2.0 x 2.0 in
30.25 x 4.0 x 4.0 in
