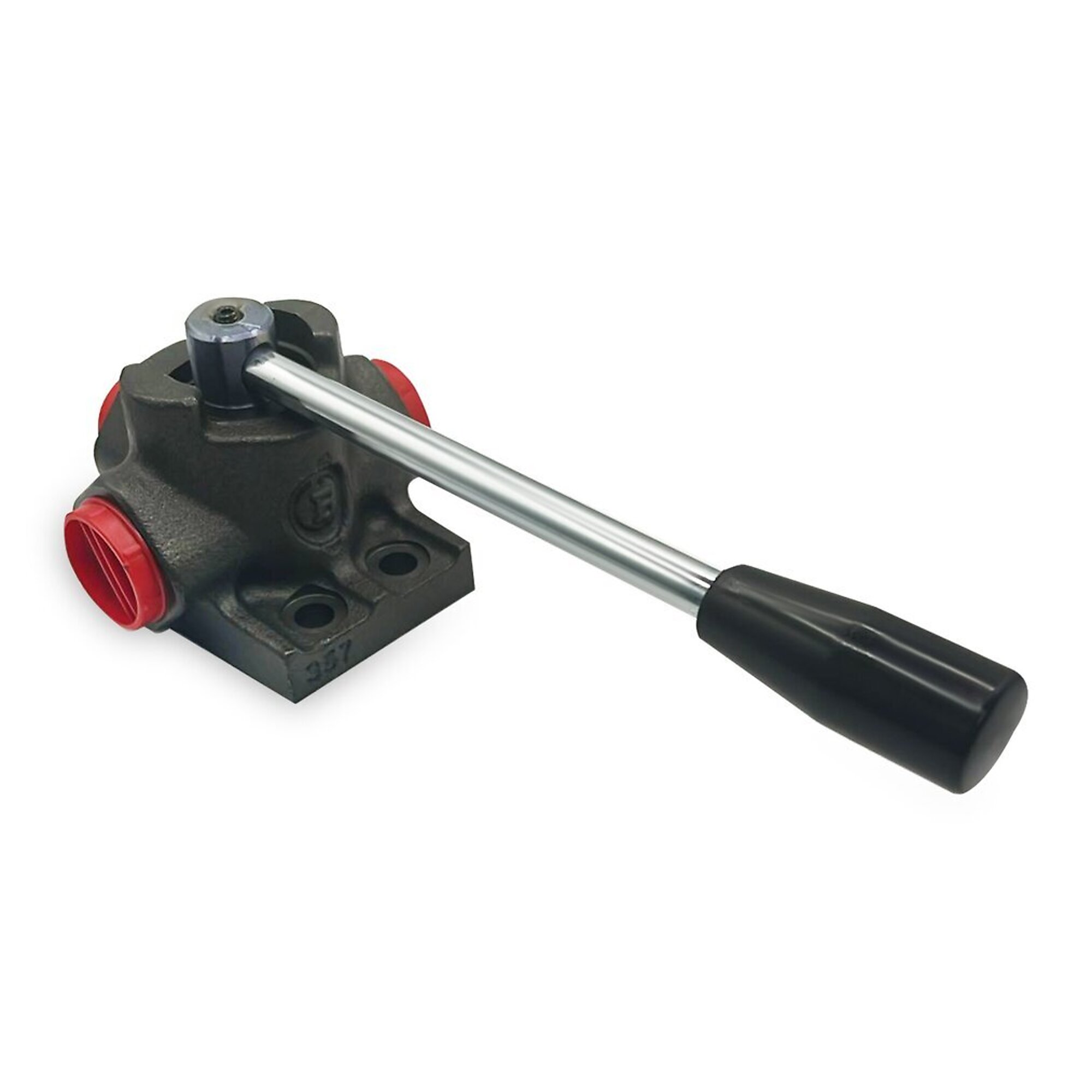

Magister 3 Way Hydraulic Rotary Diverter Valve, SAE 8 HV-DV-3W-2P-08S
New
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$44.00
- Made in Europe, American Standards
- Body: cast iron
- Internal parts: hardened and ground steel
- Seals: BUNA N standard
- Leakage: Minimal leakage
See full description
See All Selector Valves
See All Selector Valves
Currently Viewing This Product
Specifications
Specifications
Magister 3 Way Hydraulic Rotary Diverter Valve, SAE 8 HV-DV-3W-2P-08S
Metro Machine Selector Valve, 1/2in. Port, 20 GPM Flow
Buyers Products, NPTF 2-Pos Selector Valve, GPM 10 Working Port 1/2 in, Max. PSI 3000 Model# HSV050
Buyers Products, NPTF 2-Pos Selector Valve, GPM 30 Working Port 1 in, Max. PSI 3000 Model# HSV100
GPM
Same
16
20
10
30
Working Port
Same
#8 SAE in
1/2 in
1/2 in
1 in
Max. PSI
Same
4,300
3,000
3,000
3,000
Directional Control
Same
3-way, 2-position
-
-
-
Body Material
Same
Cast Iron
Cast Iron
Cast Iron
Cast Iron
Product Weight
Same
8.0000 lb
-
3.1300 lb
7.2850 lb
Dimensions L x W x H (in.)
Same
12.0 x 6.0 x 4.0 in
-
6.5 x 6.25 x 2.8 in
9.1 x 5.1 x 3.05 in
