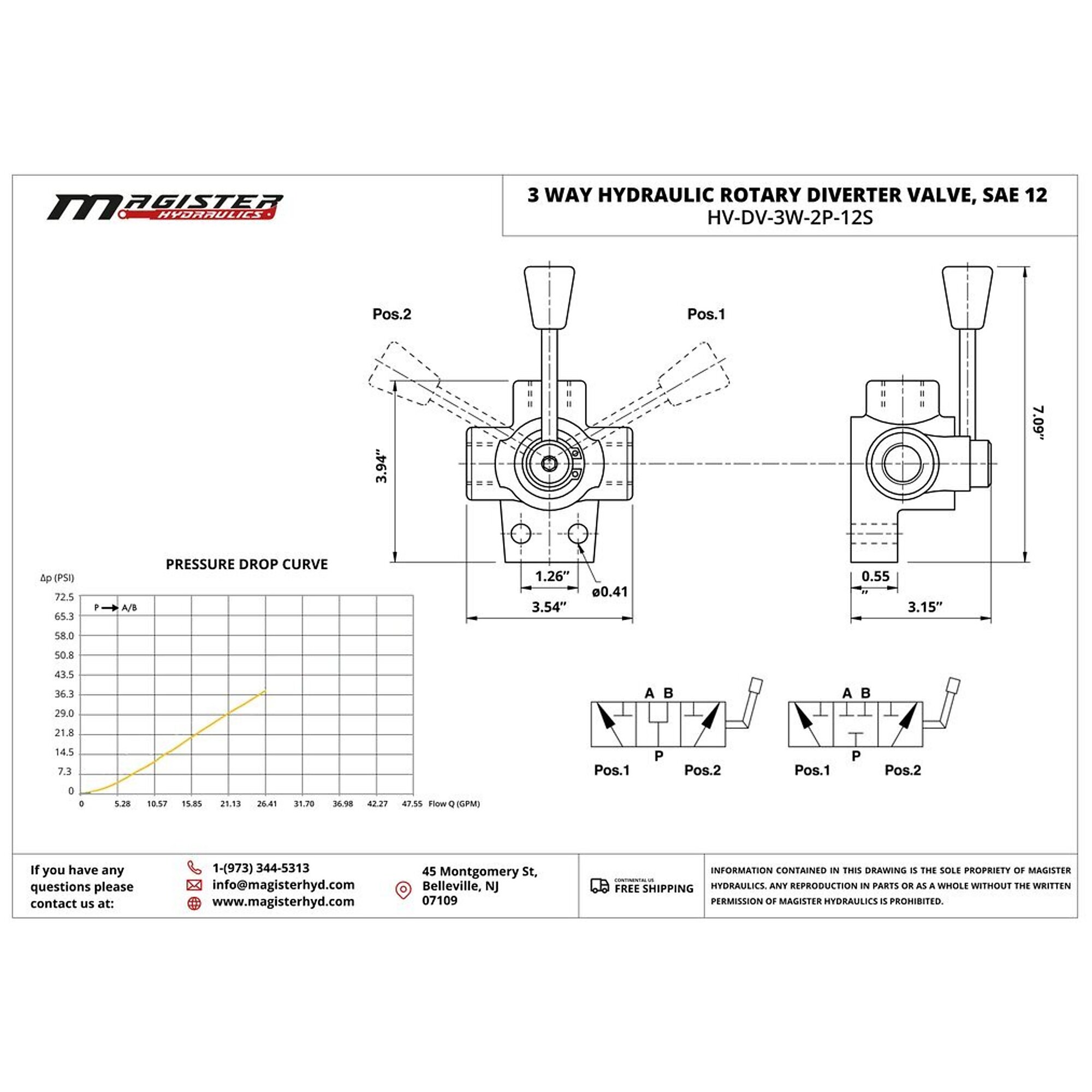

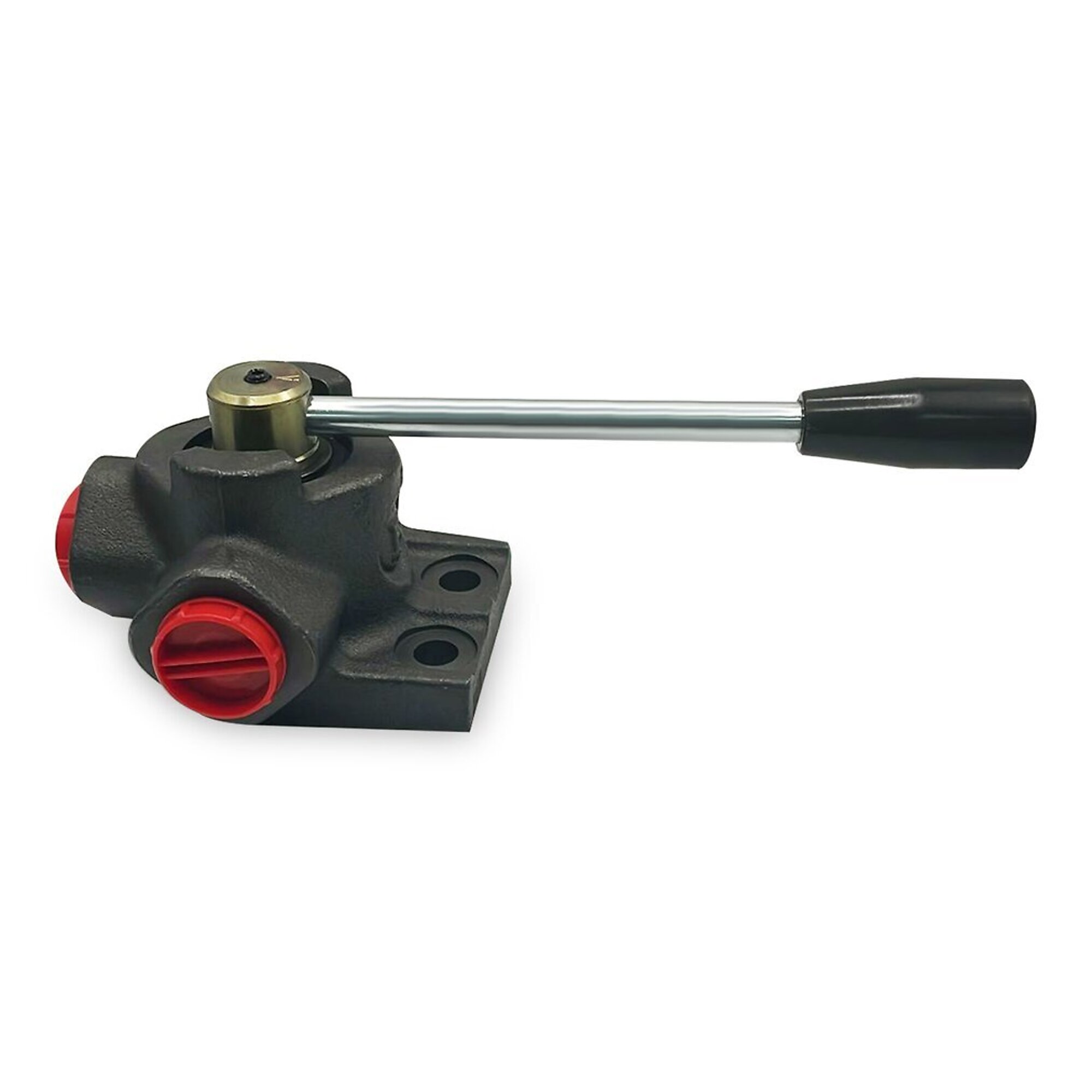

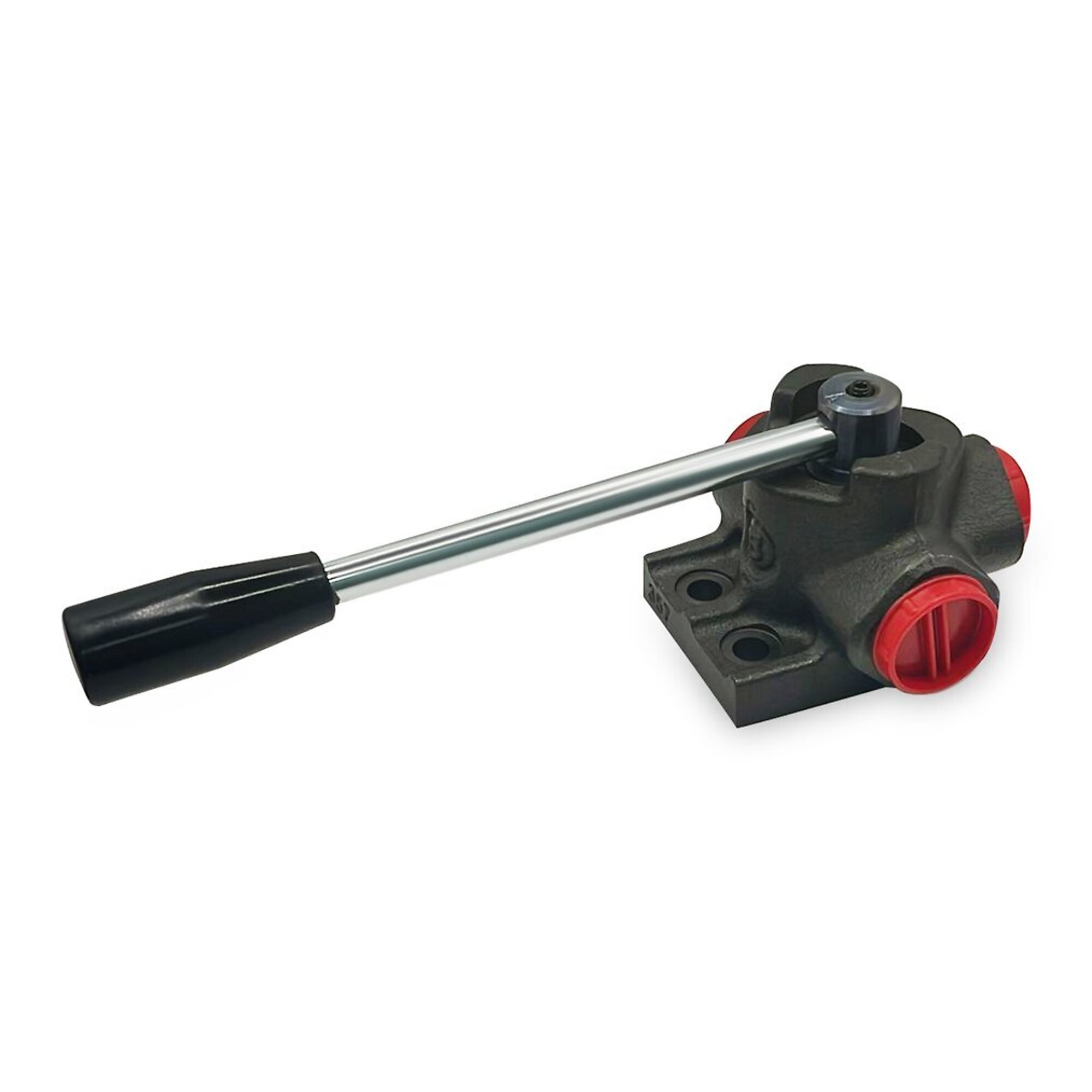

Magister 3 Way Hydraulic Rotary Diverter Valve, SAE 12 HV-DV-3W-2P-12S
New
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$65.00
- Made in Europe, American Standards
- Body: cast iron
- Internal parts: hardened and ground steel
- Seals: BUNA N standard
- Leakage: Minimal leakage
See full description
See All Selector Valves
See All Selector Valves
Currently Viewing This Product
Specifications
Specifications
Magister 3 Way Hydraulic Rotary Diverter Valve, SAE 12 HV-DV-3W-2P-12S
Metro Machine Selector Valve, 1/2in. Port, 20 GPM Flow
Buyers Products, NPTF 2-Pos Selector Valve, GPM 20 Working Port 3/4 in, Max. PSI 3000 Model# HSV075
Buyers Products, NPTF 2-Pos Selector Valve, GPM 10 Working Port 1/2 in, Max. PSI 3000 Model# HSV050
GPM
Same
32
20
20
10
Working Port
Same
#12 SAE in
1/2 in
3/4 in
1/2 in
Max. PSI
Same
3,200
3,000
3,000
3,000
Directional Control
Same
3-way, 2-position
-
-
-
Body Material
Same
Cast Iron
Cast Iron
Cast Iron
Cast Iron
Product Weight
Same
3.0000 lb
-
7.1900 lb
3.1300 lb
Dimensions L x W x H (in.)
Same
12.0 x 6.0 x 4.0 in
-
6.5 x 4.375 x 2.9 in
6.5 x 6.25 x 2.8 in
