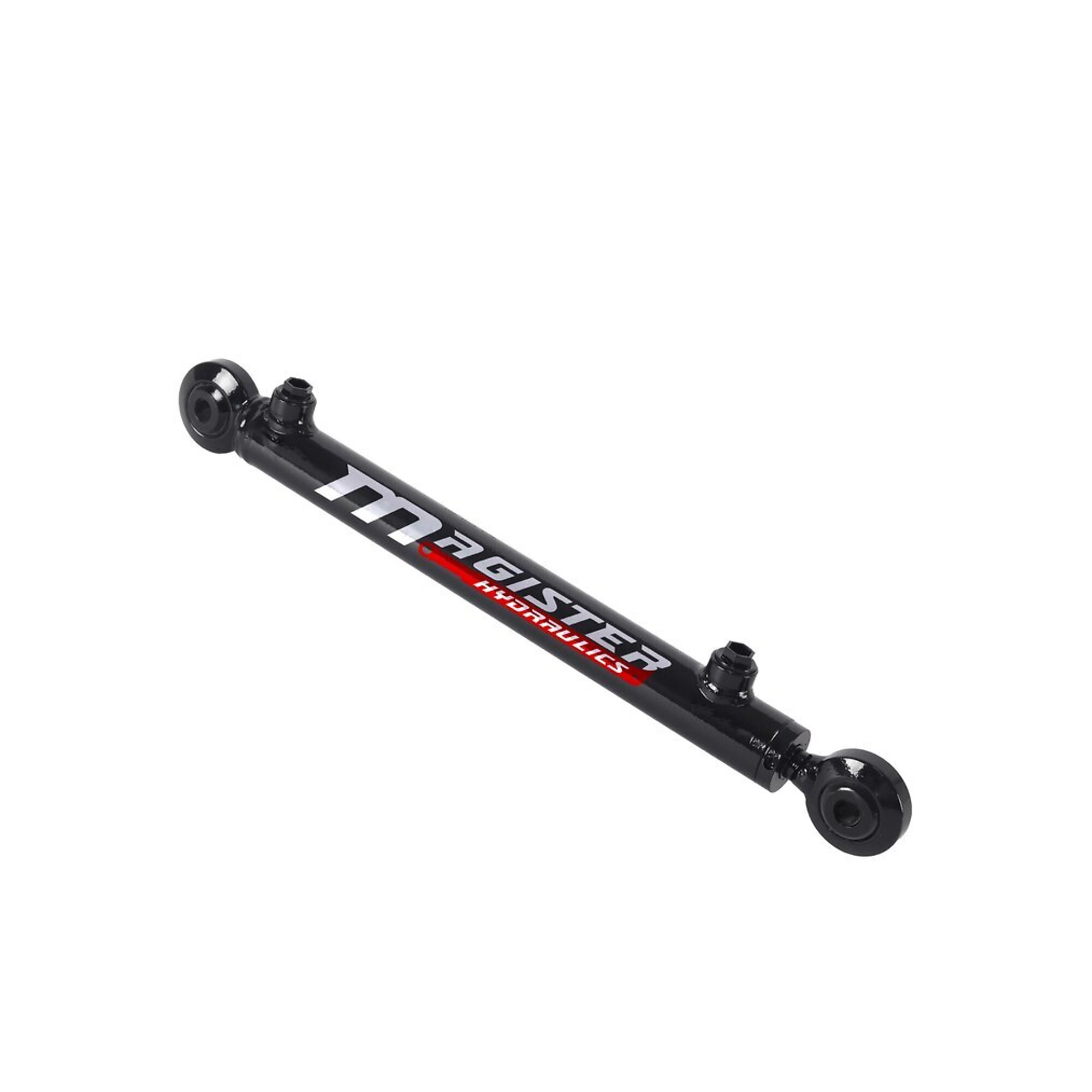

Magister 2" bore x 6" stroke swivel ball hydraulic cylinder WSB 2x6
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Made in Europe, American Standards

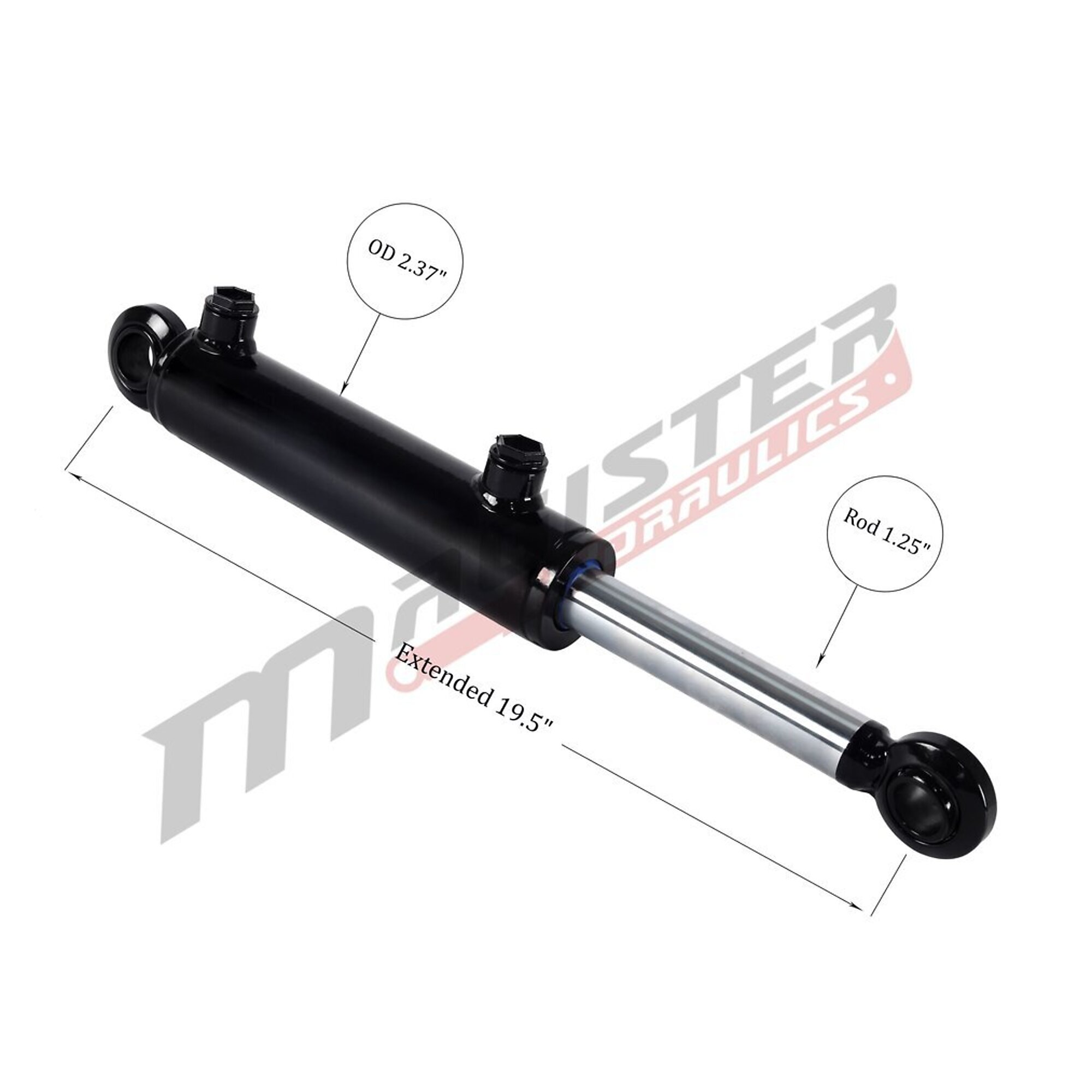

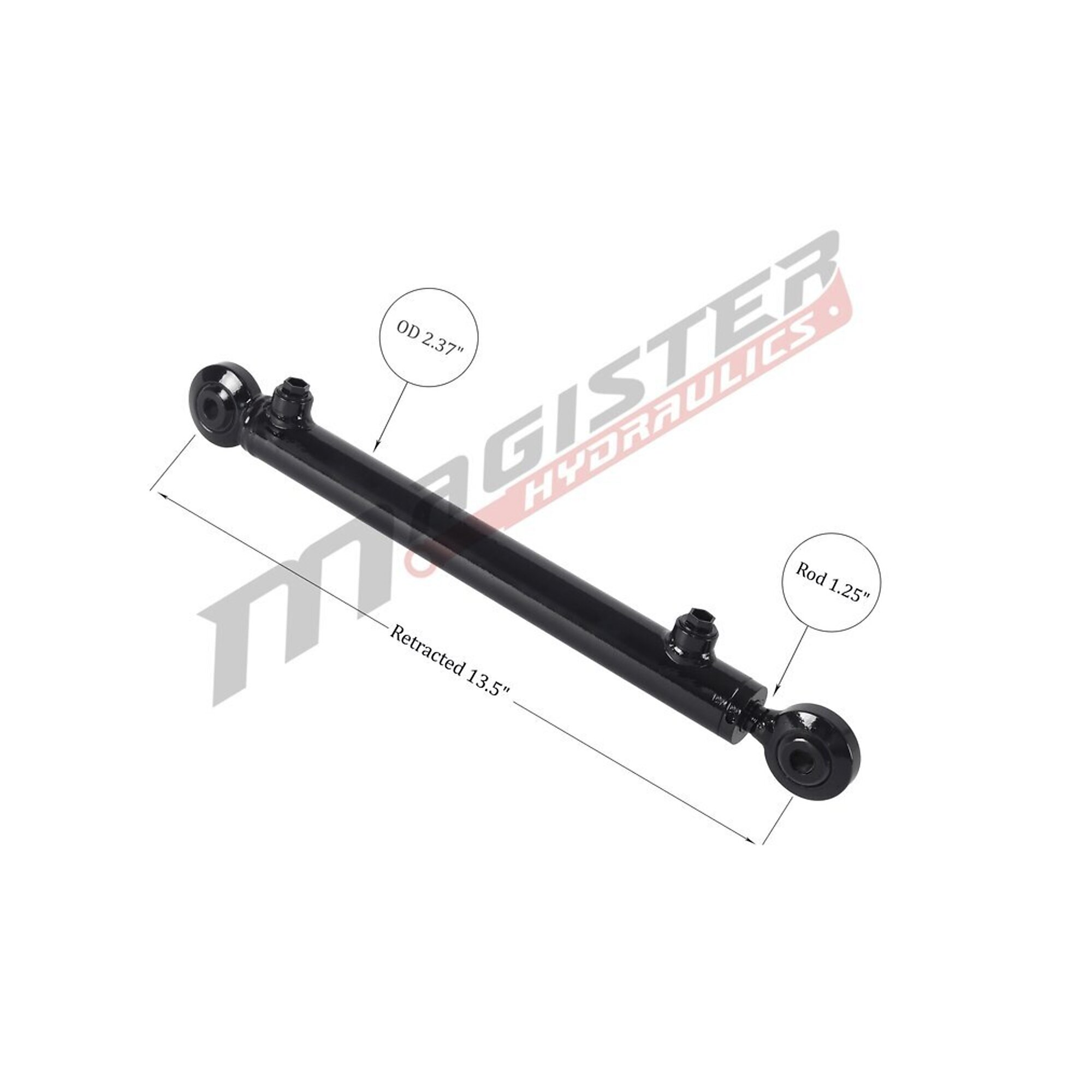

- Extreme load capacity: Welded steel mounts with bearings base end, ? 2.375" honed cold-drawn tubing, ? 1.25" chrome-plated rod (steel 1045).

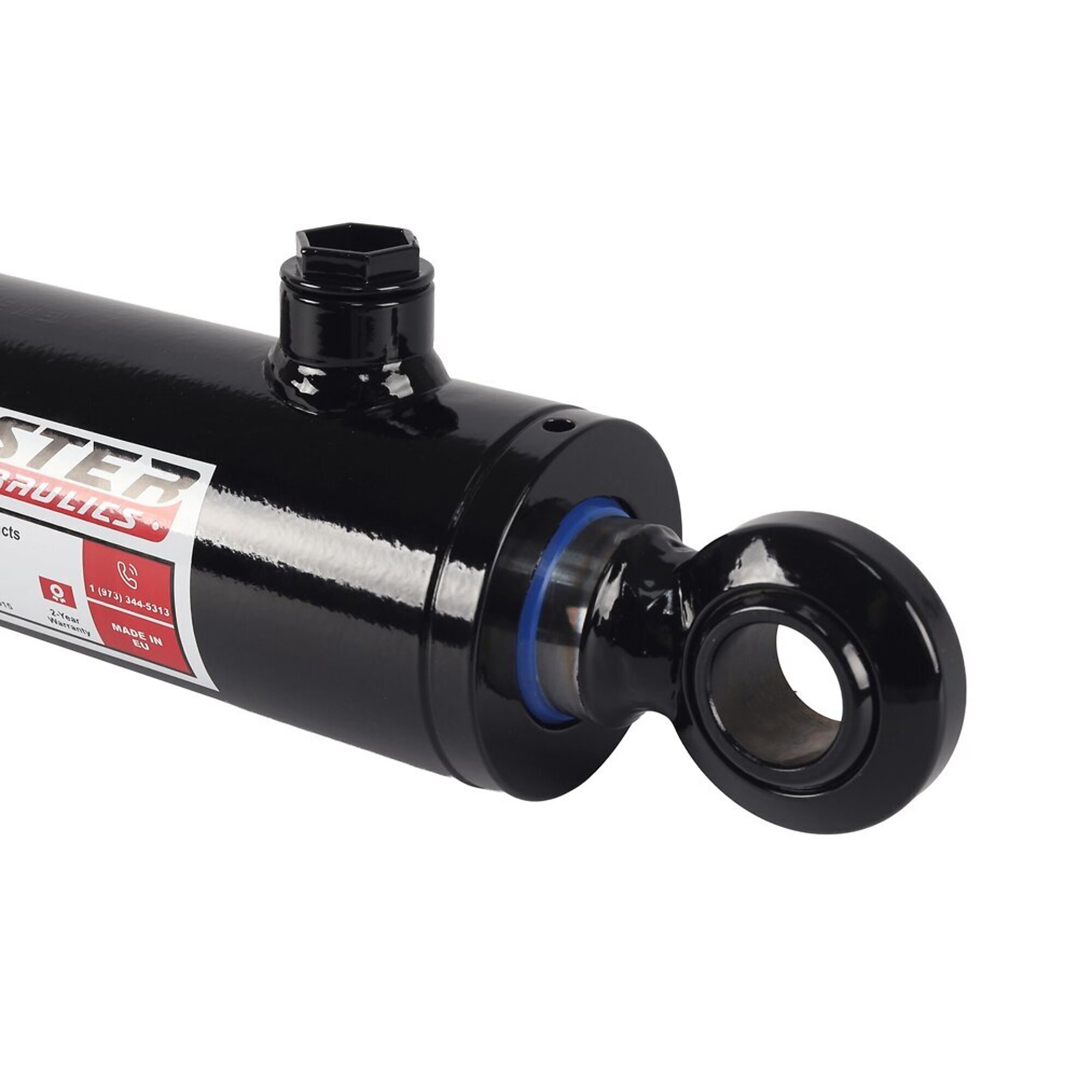

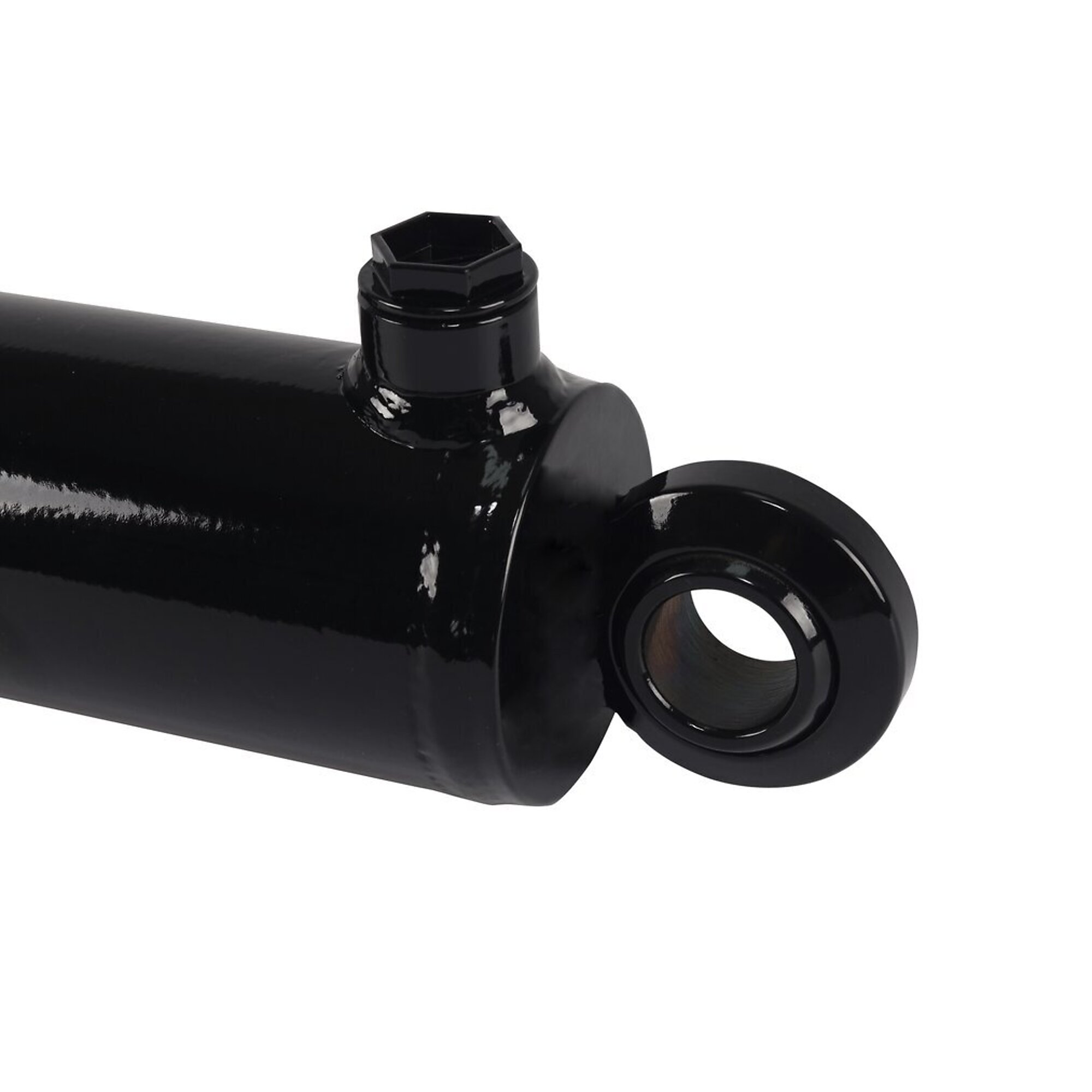

- Swivel Mount Mobility: Integrated swivel ball mounts allow for up to ±19° horizontal and ±10° vertical movement, ensuring optimal alignment under misaligned or dynamic load conditions.
- Wide Range Hydraulic Applications: Perfect for installations that require angular compensation — commonly used in agriculture, recycling, trailers, loaders, compact machinery such as skid steers and mini-loaders, and
- Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications
See full description
See All Cross Tube Welded Cylinders
See All Cross Tube Welded Cylinders
Currently Viewing This Product
Specifications
3,000
3,000
4,500
4,500
2 in
3 in
3 in
2.5 in
6 in
8 in
4 in
8 in
1.25 in
1.5 in
-
-
9,400 lb
21,200 lb
-
-
13.5 in
-
-
-
13.5 in
16 in
12 in
16 in
19.5 in
24 in
16 in
24 in
1 in
1 in
-
-
0.5 in
-
0.75 in
0.75 in
0.33 lb
-
-
-
12.0000 lb
22.7100 lb
18.5000 lb
17.9000 lb
16.0 x 3.0 x 4.0 in
40.0 x 5.0 x 5.0 in
13.5 x 4.22 x 3.75 in
17.5 x 3.7 x 3.25 in
