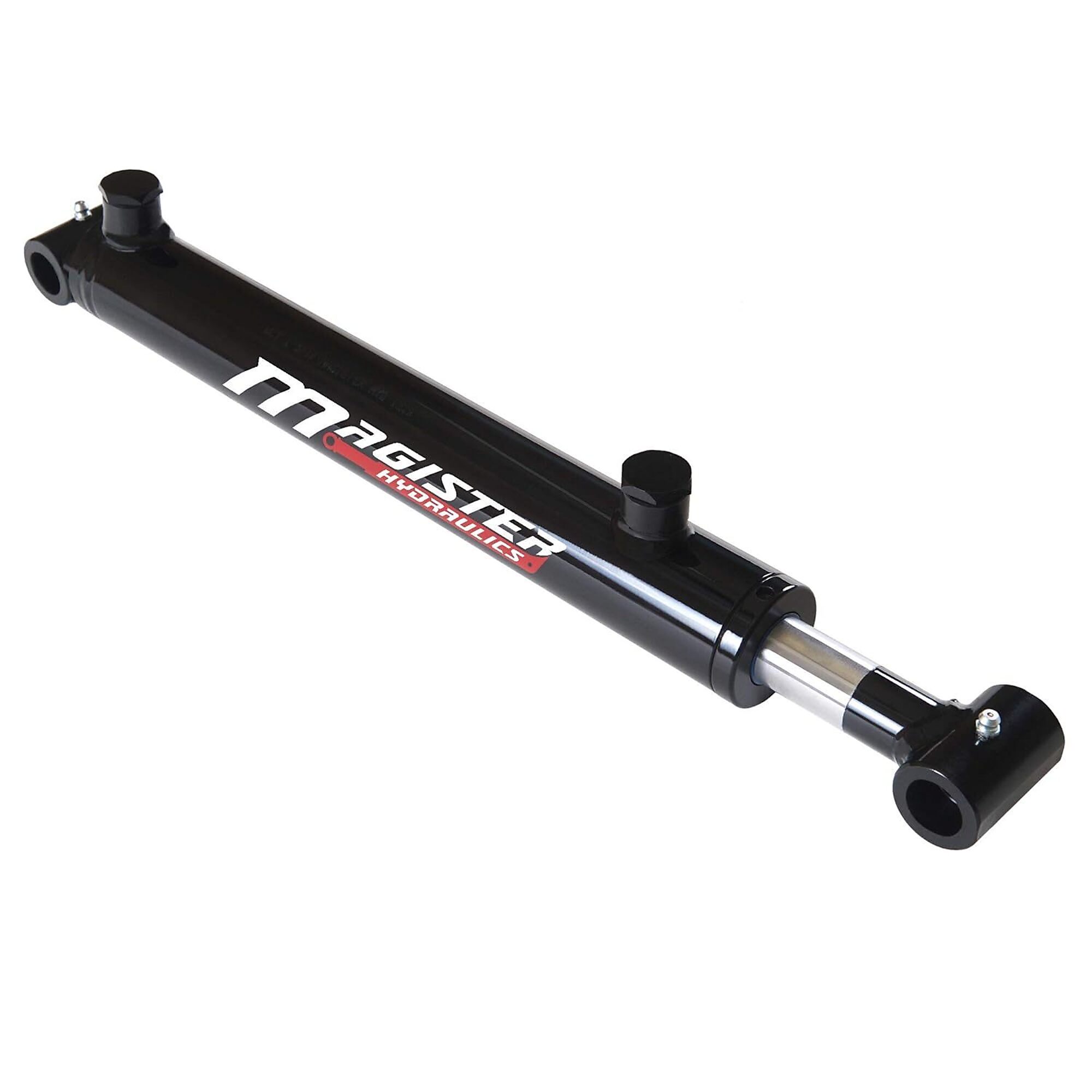

Magister 2" bore x 30" stroke cross tube hydraulic cylinder WCT 2x30
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Made in Europe, American Standards
- Extreme load capacity: Welded cross tube ends, ? 2.38" honed cold-drawn tubing, ? 1.25" chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 30" stroke
- Wide Range Hydraulic Applications: forklifts, backhoes, front end loaders, tractors, ensuring reliable operation in harsh environments thanks to the usage of this cross tube cylinder
- Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications
- High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life
See full description
See All Cross Tube Welded Cylinders
See All Magister Hydraulics Cross Tube Welded Cylinders
Currently Viewing This Product
Specifications
3,500
3,000
4,500
4,500
2 in
3 in
2 in
4 in
30 in
8 in
16 in
48 in
1.25 in
1.5 in
-
-
5,700 lb
21,200 lb
-
-
38 in
-
-
-
38 in
16 in
24 in
58 in
68 in
24 in
40 in
106 in
1 in
1 in
-
-
0.375 in
-
0.563 in
0.75 in
1.63 lb
-
-
-
30.0000 lb
22.7100 lb
18.7000 lb
114.9000 lb
41.0 x 4.0 x 4.0 in
40.0 x 5.0 x 5.0 in
25.5 x 3.15 x 2.75 in
50.25 x 5.32 x 4.75 in
