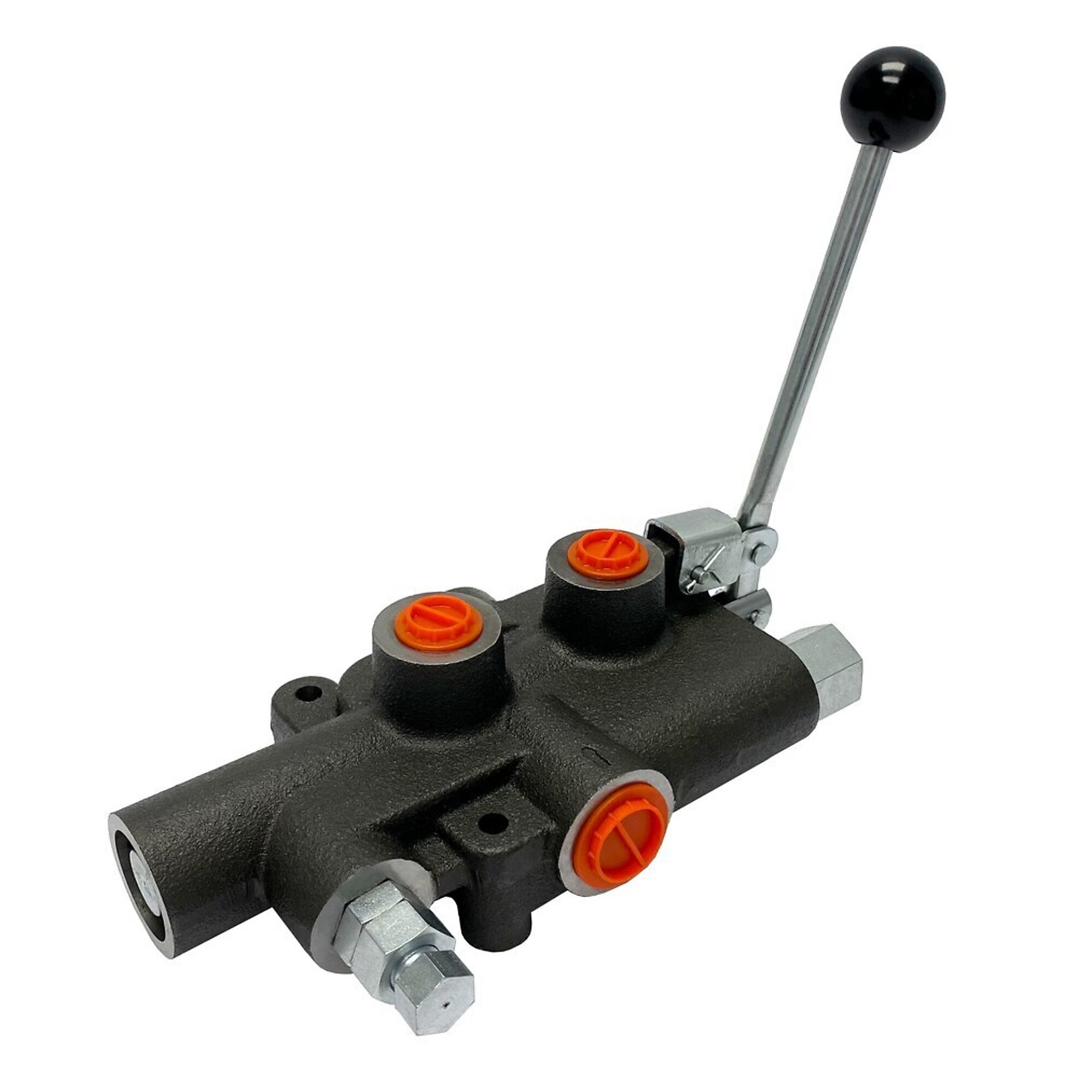

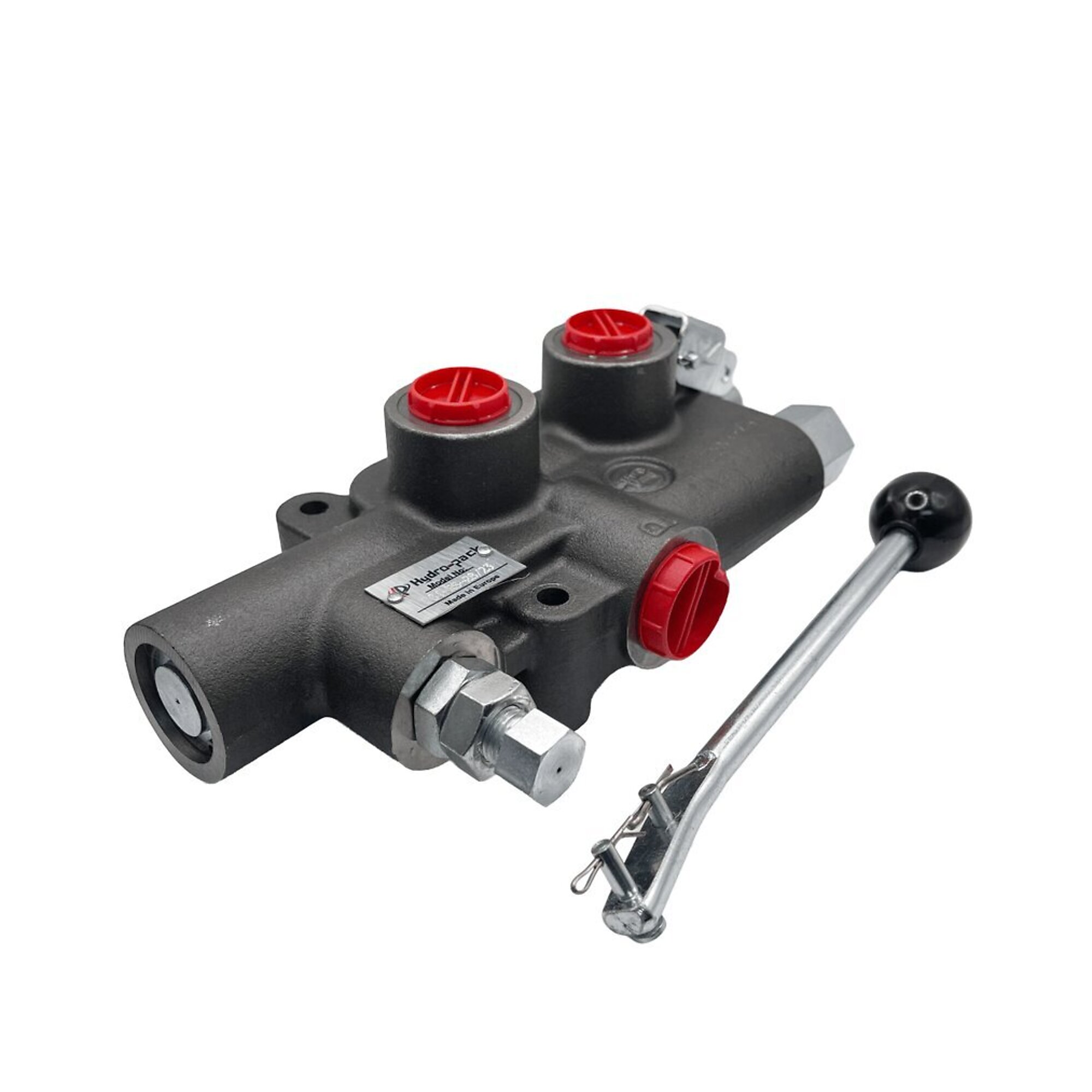

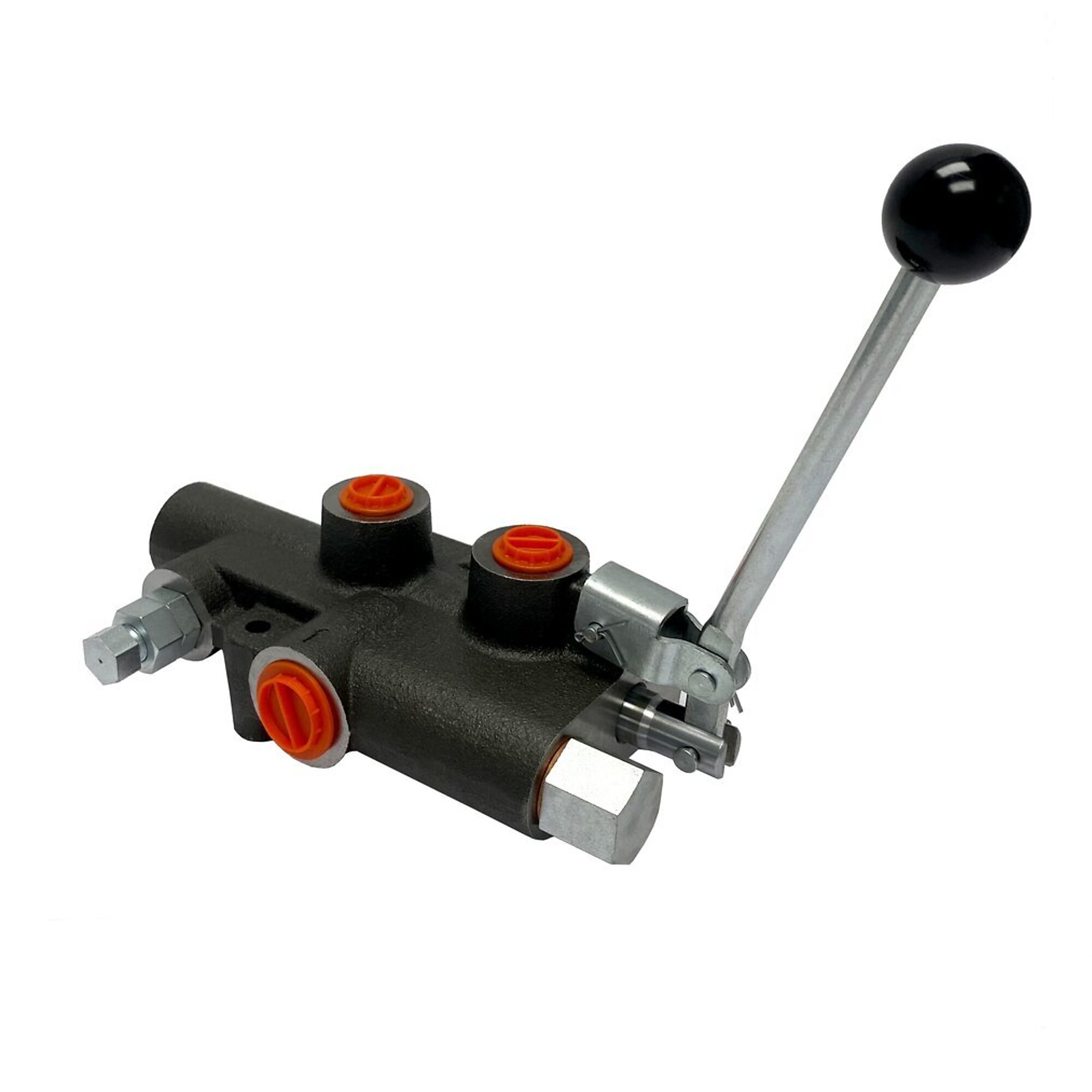

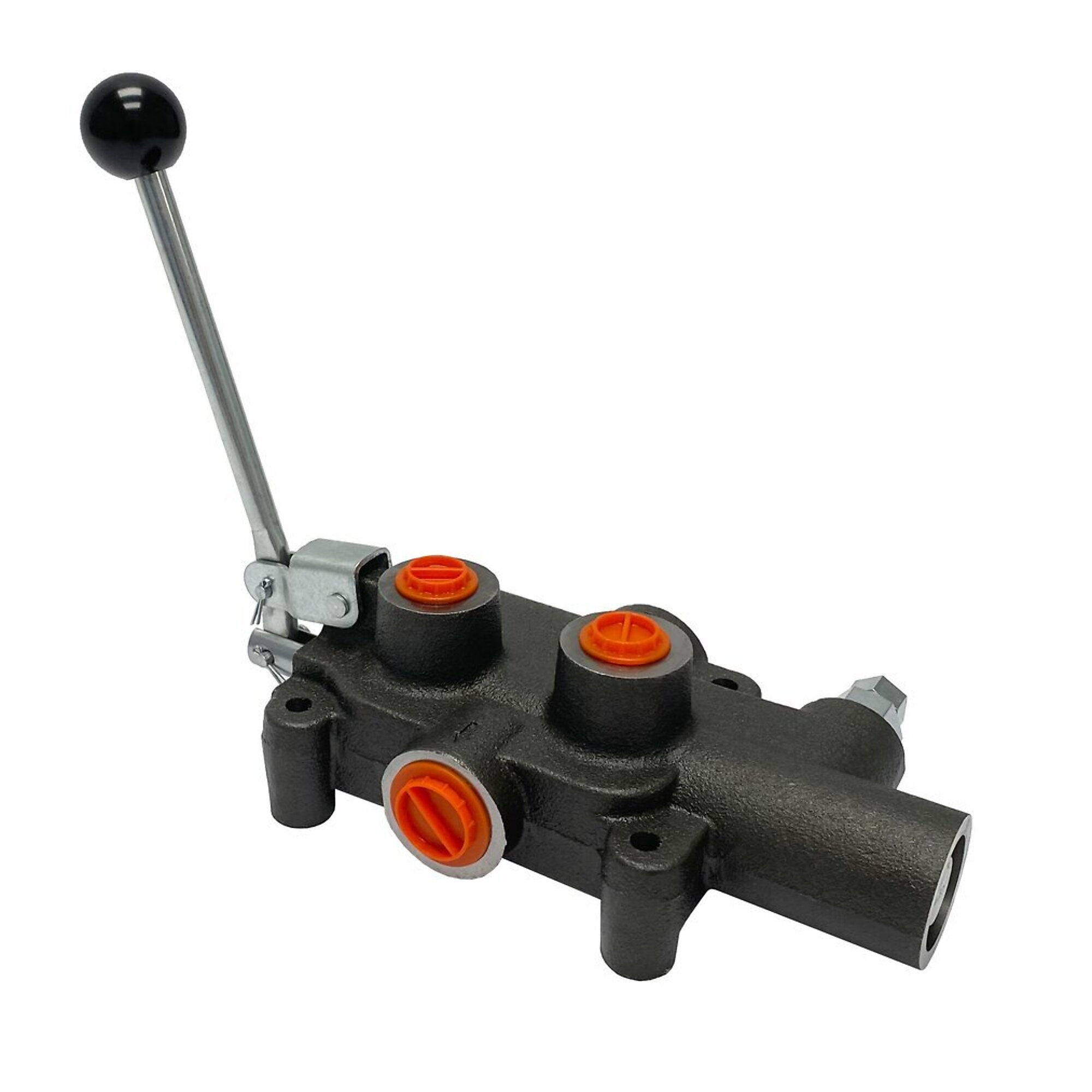

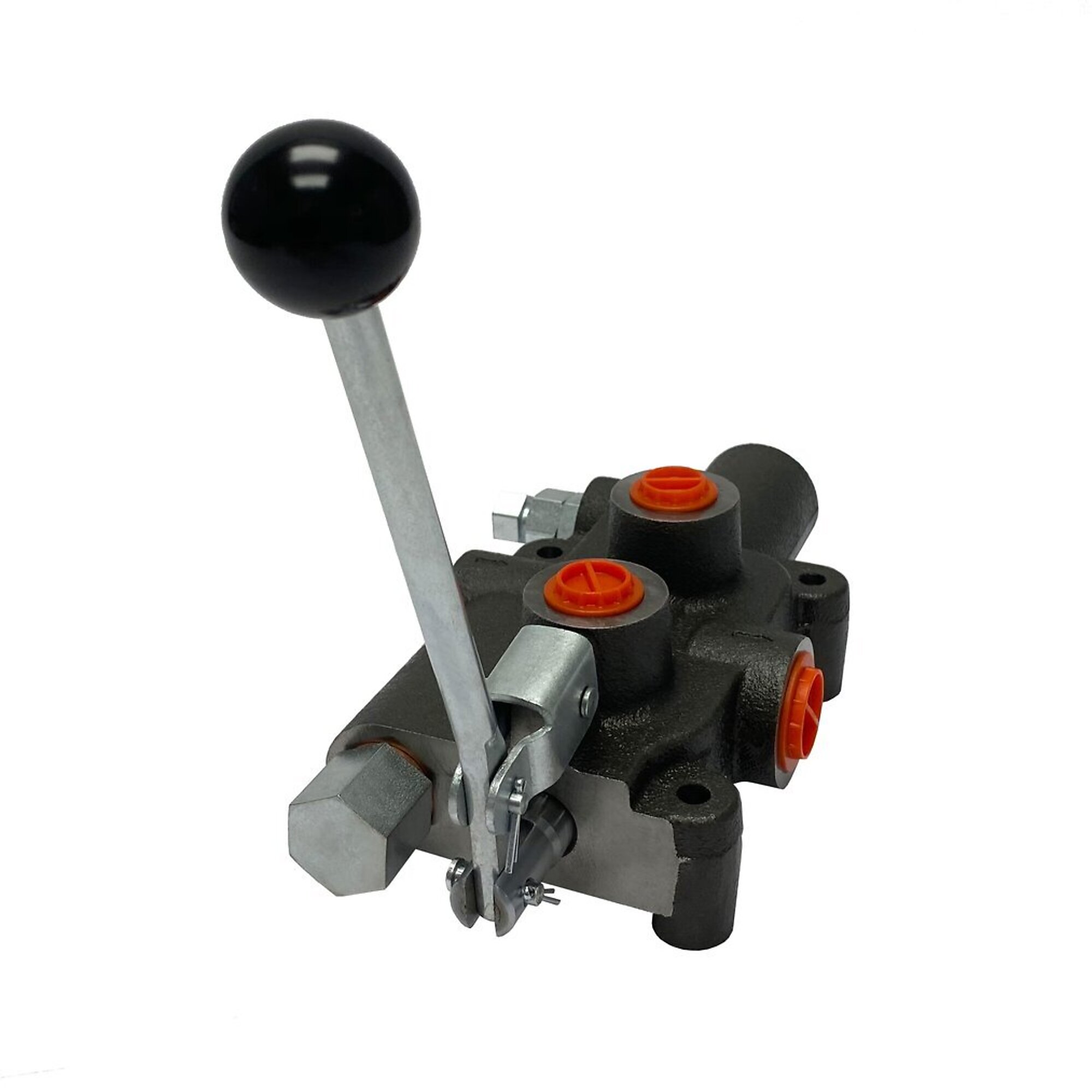

Magister 1 spool x 21 GPM hydraulic log splitter high speed control valve

Item# 7454611
New
Magister 1 spool x 21 GPM hydraulic log splitter high speed control valve

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Magister 1 spool x 21 GPM hydraulic log splitter high speed control valve

Click or Tap image to Zoom

$170.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Made in Europe, American Standards
  • Automatic Safety Feature:Press Release Detent spool action automatically returns the valve to neutral once the cylinder completes its stroke, improving operator safety andextending system life
  • Adjustable Relief Protection:Adjustable relief setting from 1000–2000 PSI provides automatic system switch-off for added protection
  • Easy Installation:Supplied with a handle and designed for simple mounting using 2 × M8 bolts
  • Spool Type: 4 Way, 4 Position (Spring to Neutral / Spring to Center)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Take control of your wood-splitting tasks with this heavy-duty 1-Spool, 21 GPM Hydraulic Control Valve High Speed with extremely "fast extend" high speed mode. Engineered specifically for high-performance log splitters, it delivers reliable operation at 3600 PSI (maximum 4600 PSI) thanks to its rugged cast iron monoblock body. This valve efficiently manages and directs hydraulic oil flow between pumps, cylinders, and motors, ensuring smooth, dependable performance in demanding applications.

What's Included

    (1) Magister 1 spool x 21 GPM hydraulic log splitter high speed control valve

Features + Benefits

  • Made in Europe, American Standards
  • Automatic Safety Feature:Press Release Detent spool action automatically returns the valve to neutral once the cylinder completes its stroke, improving operator safety andextending system life
  • Adjustable Relief Protection:Adjustable relief setting from 1000–2000 PSI provides automatic system switch-off for added protection
  • Easy Installation:Supplied with a handle and designed for simple mounting using 2 × M8 bolts
  • Spool Type: 4 Way, 4 Position (Spring to Neutral / Spring to Center)

Key Specs

AttributeSpecification

item#

7454611

Brand

Magister Hydraulics

Manufacturer's Warranty

1 year limited warranty

Ship Weight

10.0 LB

GPM

21

Working Port

#10 SAE in

Max. PSI

4,600

Spool (qty.)

1
AttributeSpecification

Directional Control

4-way, 4-position

Body Material

Cast Iron

Inlet Port

#12 SAE in

Outlet Port

#12 SAE in

Handle Type

Standard

Product Weight

10.0000 lb

Dimensions L x W x H (in.)

9.0 x 7.0 x 6.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
