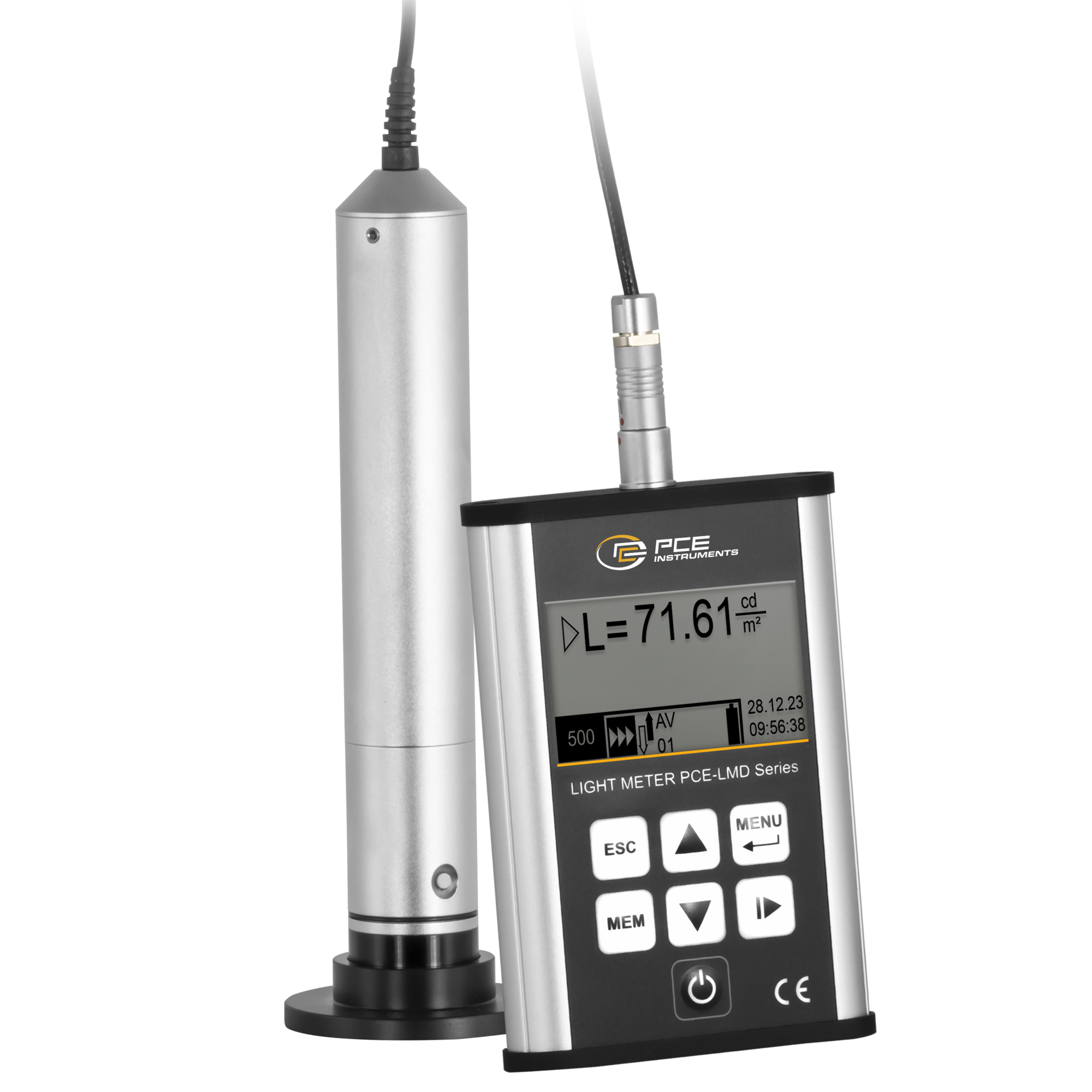

PCE Instruments Luxmeter — Luminance Measurement, Micro SD Memory, Rechargeable Battery, Model# PCE-LMD 100

Item# 6909670
PCE Instruments Luxmeter — Luminance Measurement, Micro SD Memory, Rechargeable Battery, Model# PCE-LMD 100

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

PCE Instruments Luxmeter — Luminance Measurement, Micro SD Memory, Rechargeable Battery, Model# PCE-LMD 100

Click or Tap image to Zoom

$4933.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Accuracy class: A according to DIN 5032-7
  • Large measuring range: 0.00 to 50000 cd/m²

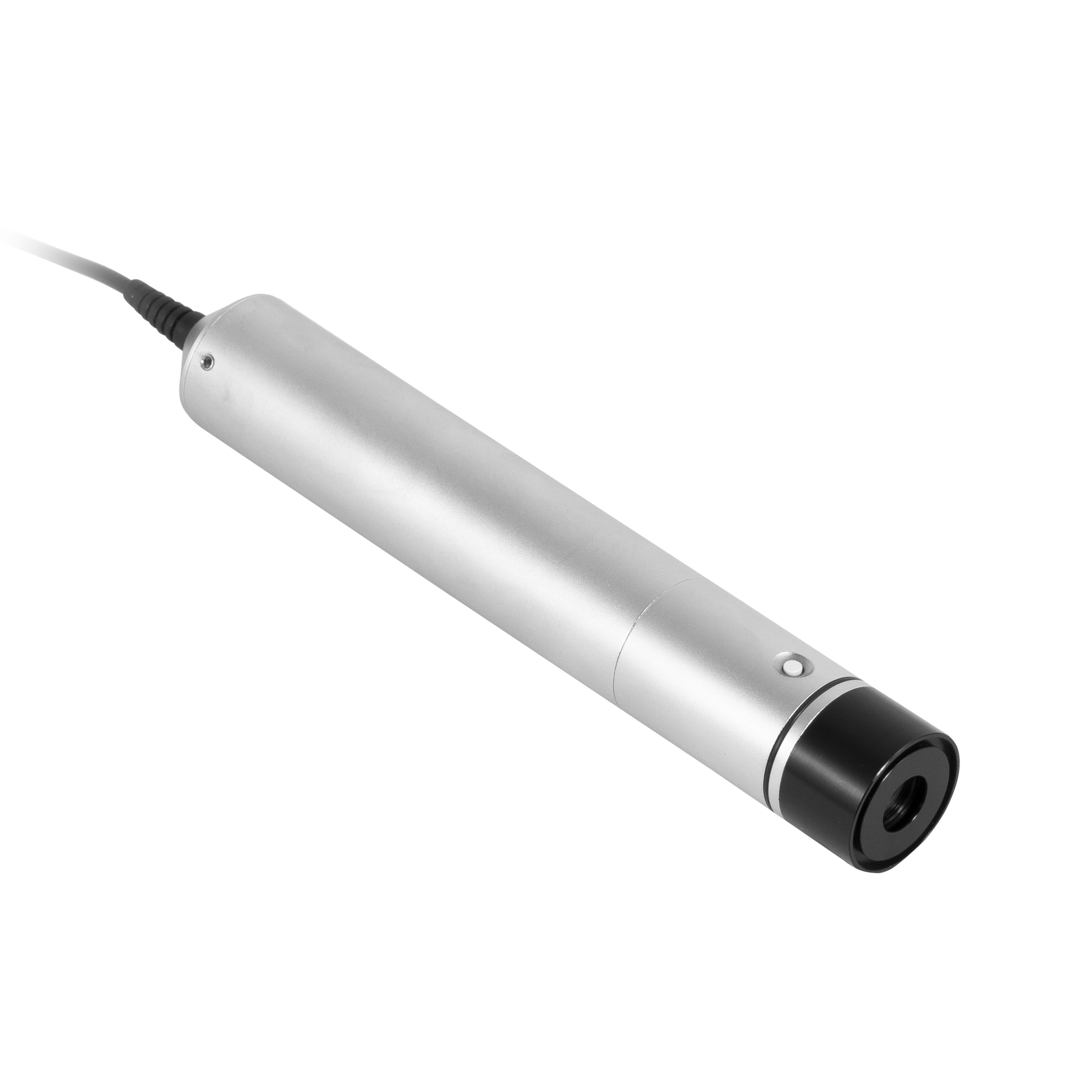

  • External sensor with multifunction button
  • 8 GB measured value memory
  • Resolution: 0.01 cd/m²

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Illuminometer for luminance measurement / for monitors, screens, LED video walls / memory on micro SD card / button on sensor / rechargeable battery The illuminometer is designed for measuring the luminance of self-illuminating surfaces, such as monitor matrices, TV screens, negatoscopes, reading boards, etc. e.g. monitor matrices, TV sets, negatoscopes, reading panels, etc. The illuminometer guarantees an accurate measurement, regardless of the spatial distribution of the measured luminance or the backlighting of the surface to be tested. It is indispensable for checking medical screens and negatoscopes. The unit cd/m2 relates the photometric quantity cd (abbreviation for candela) to the area of the display, expressed in square metres. Another feature of the illuminometer is the integrated measured value memory. With this function, measurement results can be easily saved and automatically recorded. The illuminometer creates a text document in which the measured values are stored one after the other. Due to its technical parameters, the illuminometer is classified in class A according to DIN 5032-7 and TC-2.2 CIE. The measuring probe is equipped with a multifunction button that can be used to trigger a measurement, save results and set the desired measurement method, e.g. for testing the greyscale reproduction of monitors according to DICOM GSDF 1) function.

What's Included

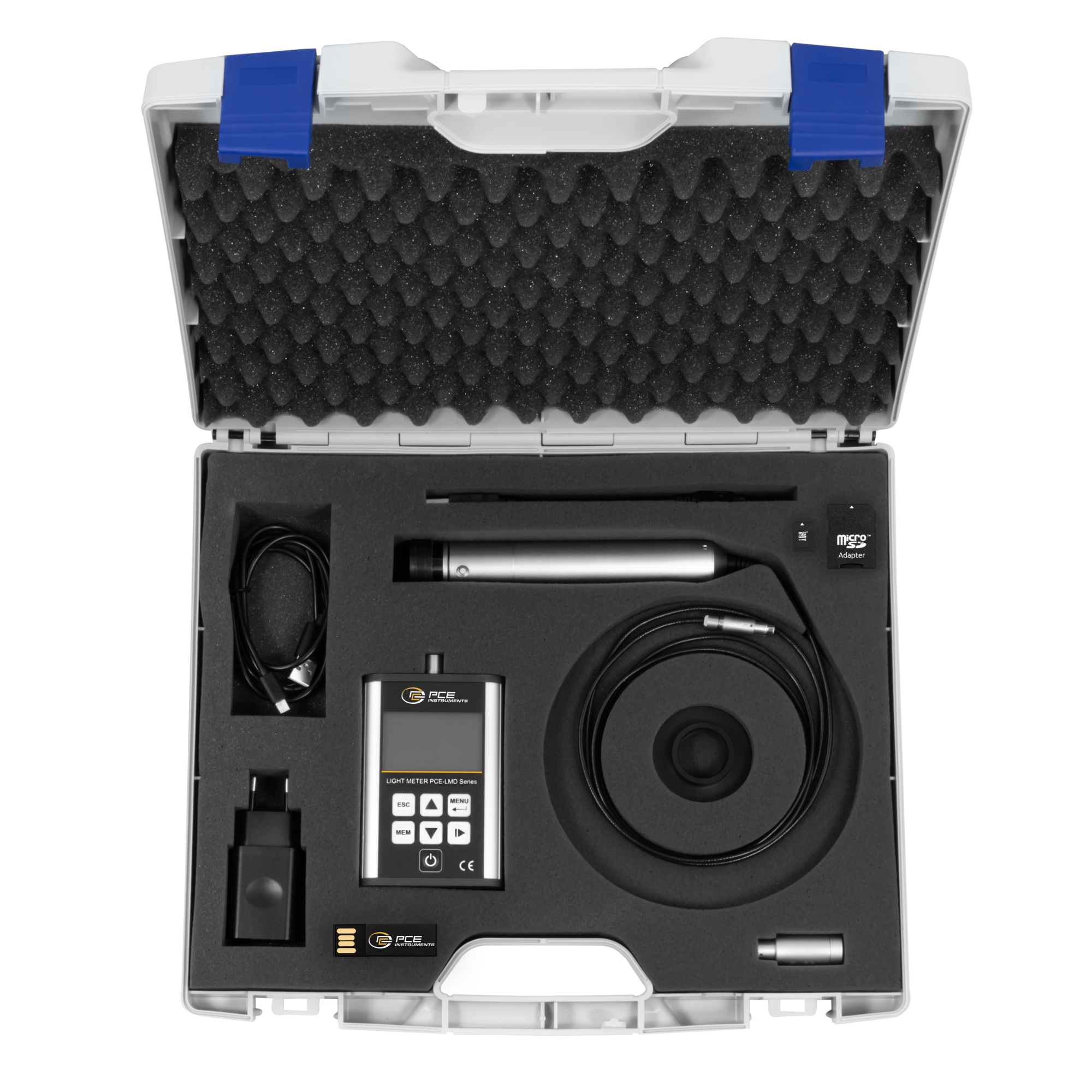

    (1) PCE-LMD 100 illuminometer (1) Measuring Probe (1) Micro USB Charging Cable (1) 8 GB micro SD memory card incl. adapter (1) Attachment cap for the probe (1) USB power supply (1) Operating Instructions (1) Transport Case

Features + Benefits

  • Accuracy class: A according to DIN 5032-7
  • Large measuring range: 0.00 to 50000 cd/m²
  • External sensor with multifunction button
  • 8 GB measured value memory
  • Resolution: 0.01 cd/m²

Key Specs

AttributeSpecification

item#

6909670

Brand

PCE INSTRUMENTS

Manufacturer's Warranty

2 year limited warranty

Ship Weight

5.0 LB

4-Way Flat Capable

No

6-Way Round Capable

No

7-Way Round Capable

No

Tests Turn Lights

No

Tests Brake Lights

No

Tests Tail Lights

No
AttributeSpecification

Tests Back-Up Lights

No

Tests Ground Wire

No

Tests Brake Controller

No

Tests Auxiliary Power

No

Batteries Included

Yes

Product Weight

3.9700 lb

Dimensions L x W x H (in.)

14.17 x 12.2 x 3.15 in

Product Weight

3.9700 lb

Dimensions L x W x H (in.)

14.17 x 12.2 x 3.15 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
