IPA Super Mutt Mobile Universal Trailer Light Tester, Deluxe, 0-20 Amps, Model# 9008-DL

Item# 32569
"IPA Super Mutt Mobile Universal Trailer Light Tester, Deluxe, 0-20 Amps, Model# 9008-DL"
IPA Super Mutt Mobile Universal Trailer Light Tester, Deluxe, 0-20 Amps, Model# 9008-DL

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

IPA Super Mutt Mobile Universal Trailer Light Tester, Deluxe, 0-20 Amps, Model# 9008-DL

Click or Tap image to Zoom

$2275.25

  • Shipping:

    Factory shipped

  • Store Pickup:

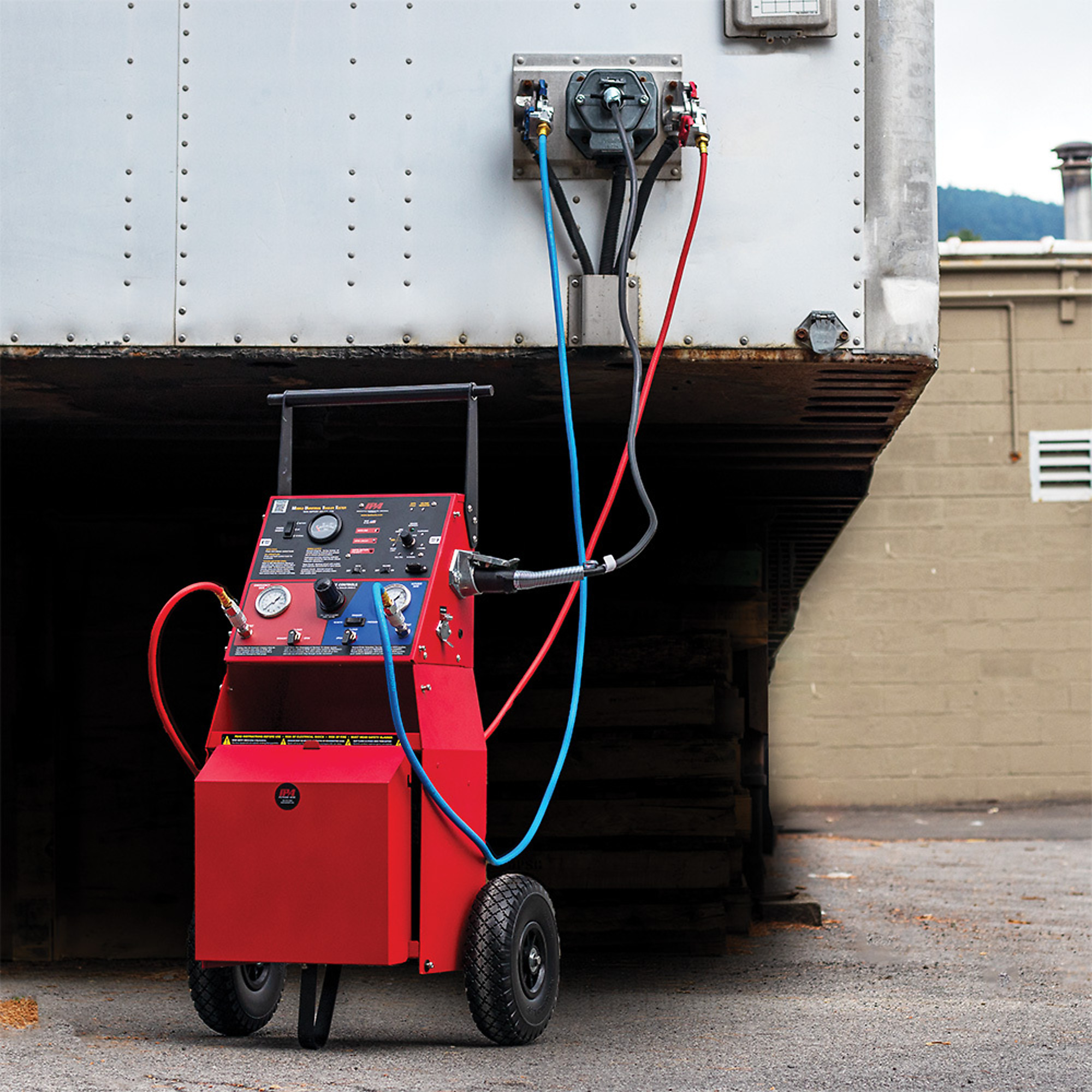

  • Rugged mobile unit with 10in. wheels
  • Light and air brake testing by remote control with 100-ft. operating range
  • Performs leak down tests on service and emergency lines, verifies leaking servo cans and lets you adjust slackers and measure pushrods while activating brakes using the remote

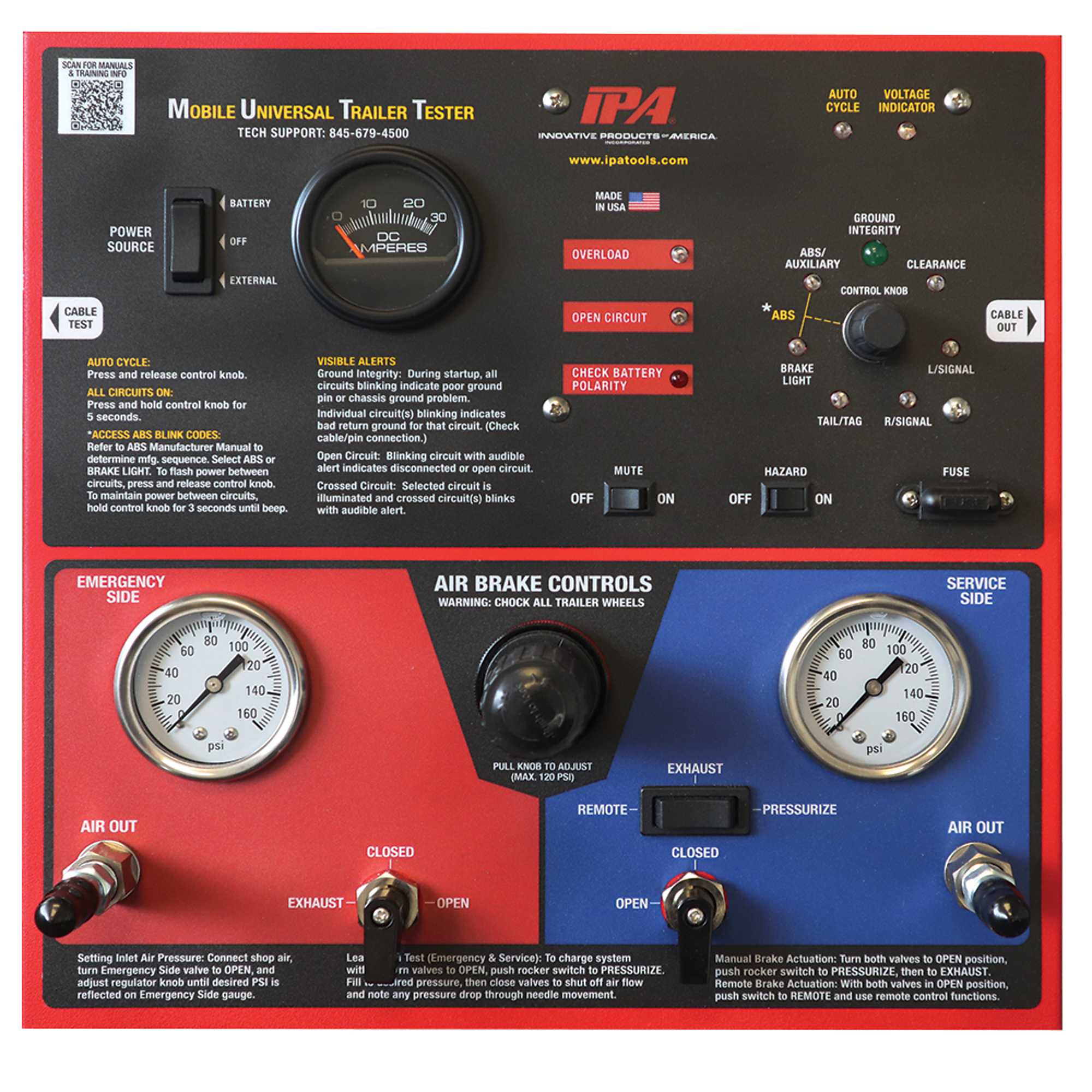

  • Electrical testing system allows you to power lights individually, all at once, via auto scan or with remote control
  • Patented Pulsar® technology pulses power to shorted and overloaded circuits and helps you identify open circuits and cross-wired circuits

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

State-of-the-art trailer tester provides advanced electrical diagnostics to simplify the process of locating electrical faults on trailers. Quickly troubleshoot and repair trailer light and air brake systems. Requires 12V battery (not included - Group 31 size suggested). U.S.A.

What's Included

    (1) Trailer tester unit (2) 12-Button Remote Controls (1) 5ft. 7-Way Cable (1) 8ft. Red Hose with Gladhands (1) 8ft. Blue Hose with Gladhands (1) 10-Amp Smart Battery Charger (1) Face/Battery Shield (1) Rain Cover

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Rugged mobile unit with 10in. wheels
  • Light and air brake testing by remote control with 100-ft. operating range
  • Performs leak down tests on service and emergency lines, verifies leaking servo cans and lets you adjust slackers and measure pushrods while activating brakes using the remote
  • Electrical testing system allows you to power lights individually, all at once, via auto scan or with remote control
  • Patented Pulsar® technology pulses power to shorted and overloaded circuits and helps you identify open circuits and cross-wired circuits
  • Ground failure detection with wire and chassis ground differentiation
  • Delivers audible and visual alerts to notify you of problems
  • 7-way pigtail cable test mode
  • Multiple remote (24) sync capacity
  • Telescoping handle retracts for compact storage
  • 20-ga. steel cart is powder-coated for durability
  • Lifetime technical support (available through manufacturer only)

Key Specs

AttributeSpecification

item#

32569

Brand

IPA

Manufacturer's Warranty

3 year limited warranty

Ship Weight

49.0 LB

4-Way Flat Capable

No

6-Way Round Capable

No

7-Way Round Capable

Yes

Tests Turn Lights

Yes
AttributeSpecification

Tests Brake Lights

Yes

Tests Tail Lights

Yes

Tests Back-Up Lights

Yes

Tests Ground Wire

Yes

Tests Brake Controller

No

Tests Auxiliary Power

Yes

Batteries Included

No

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. WILL THIS PRODUCT CHECK AND DIAGNOSE ABS BRAKE SYSTEM

    1 answer

    1. The trailer light tester will work with the following ABS blink codes. Meritor/WABCO blink codes, Haldex blink codes, and Bendix blink codes.

      Helpful?

  2. What is the recommended type batterie for the IPA super mutt

    1 answer

    1. The recommended battery is a group 31 12-volt battery.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
