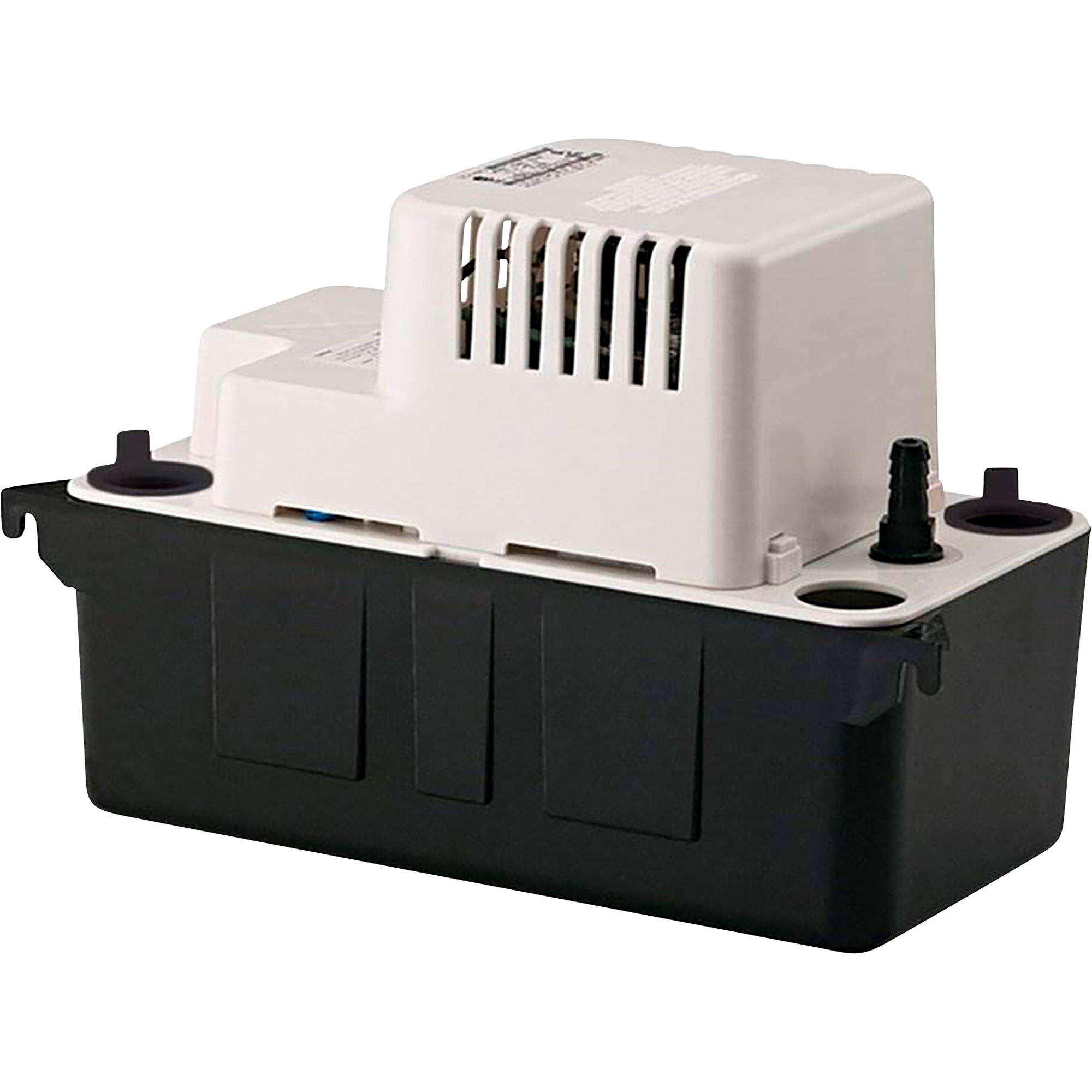

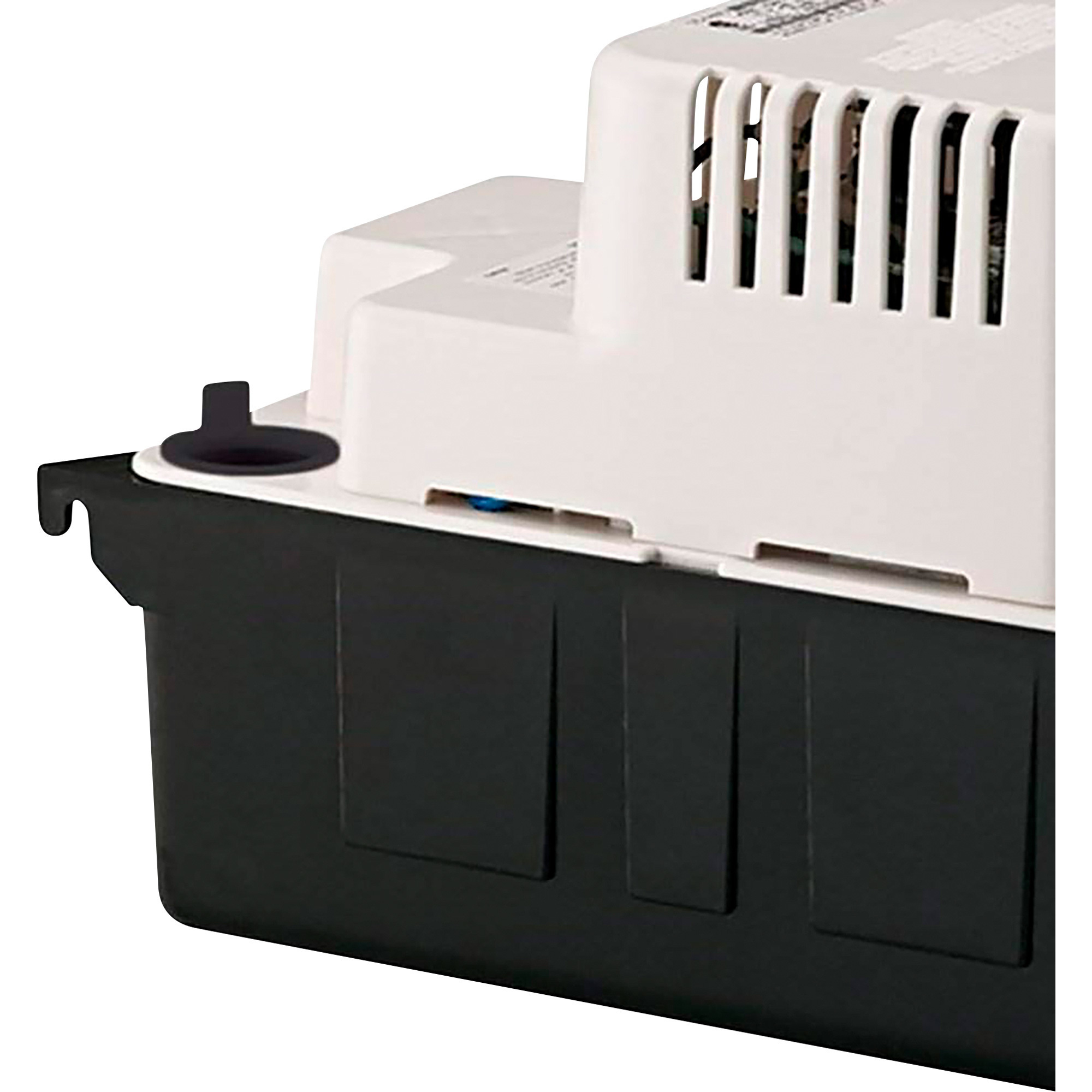

Little Giant Condensate Pump - 1/2-Gallon Tank, Vertical Centrifugal Pump, Stainless Steel Motor Shaft, Model# VCMA-15ULS

Item# 107835
Top Seller
Little Giant Condensate Pump - 1/2-Gallon Tank, Vertical Centrifugal Pump, Stainless Steel Motor Shaft, Model# VCMA-15ULS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Little Giant Condensate Pump - 1/2-Gallon Tank, Vertical Centrifugal Pump, Stainless Steel Motor Shaft, Model# VCMA-15ULS

Click or Tap image to Zoom

$54.99

  • Shipping:

    Available now

  • Store Pickup:

    Not Available
  • 1/2-gallon tank collects condensate from air conditioning, refrigeration and dehumidification equipment
  • Vertical centrifugal pump design quickly removes the condensate from the collection tank
  • Stainless steel pump motor shaft for corrosion resistance and long life
  • Automatic start and stop operation
  • Thermally protected, fan cooled motor helps prevent overheating

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

This Little Giant Condensate Pump with 1/2-gallon collection tank is designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical. The vertical centrifugal pump is also suitable for high-efficiency oil and gas-fired condensing furnace and condensing boiler equipment.

What's Included

    (1) Condensate pump

Downloads

Product Manual

Features + Benefits

  • 1/2-gallon tank collects condensate from air conditioning, refrigeration and dehumidification equipment
  • Vertical centrifugal pump design quickly removes the condensate from the collection tank
  • Stainless steel pump motor shaft for corrosion resistance and long life
  • Automatic start and stop operation
  • Thermally protected, fan cooled motor helps prevent overheating
  • 6ft., 3-conductor cable with grounded 3-prong plug

Key Specs

AttributeSpecification

item#

107835

Brand

Little Giant

Ship Weight

4.2 LB
AttributeSpecification

Power Cord Length

72 in

Housing Material

Stainless Steel

Reviews

Questions & Answers

14 Reviews This action will navigate to reviews.

Questions

1–10 of 16 Questions
Sort by:

  1. How do you get the top off so the collection box can be handed cleaned…I’ve done it several times ..  baffled.this is concerning  1/2 gal condensation pump

    1 answer

    1. There is one screw located on the top center of the cover of the pump. You will need to unscrew this to remove the cover.

      Helpful?

  2. Does the safety switch need to be installed in order to operate?

    1 answer

    1. The safety switch does need to be installed.

      Helpful?

  3. Saftey switch

    1 answer

    1. The safety overflow switch should be connected to a class II low voltage circuit. To control a thermostatic circuit the COM and NO connections from the safety switch are to be wired in series with the low voltage thermostat circuit to shut down the heating/AC circuit. The COM and NC switch contacts may be used to actuate a low voltage alarm circuit (connected in series) if the heating/cooling system can not be disrupted. The safety switch comes from the factory with leads connected to the COM and NO switch terminals.

      Helpful?

  4. When this pumps will it pump all the water out of the tank?

    1 answer

    1. The Little Giant VCMA-15ULS is not designed to remove every last drop of water from the tank; it pumps the water down to a normal low level and shuts off when the float switch lowers.

      Helpful?

  5. What if any additional parts are needed? Is a plumber necessary to hook it up

    1 answer

    1. To install the Little Giant VCMA-15ULS, you'll need tubing (like 3/8" vinyl for the drain, potentially 3/4" PVC for the inlet), a suitable drain line (e.g., to a floor drain or ejector pit), mounting hardware (screws/anchors), and potentially pipe fittings/connectors for your specific AC/furnace, plus low-voltage wire if using the safety switch to shut off the HVAC unit. The pump comes with a power cord, a short length of 3/8" drain tubing, and cap plugs for unused inlets, but you often need more tubing and potentially PVC. A qualified HVAC technician or plumber would be recommended for the installation.

      Helpful?

  6. What voltage is the pump

    1 answer

    1. The VCMA-15ULS pump is 115 volts (115 V).

      Helpful?

  7. What size tubing do I need to go with this pump?

    1 answer

    1. You need 3/8-inch inner diameter (ID) flexible tubing secured with a hose clamp for the discharge outlet of the Little Giant VCMA-15ULS pump.

      Helpful?

  8. how many hp

    1 answer

    1. The model VCMA-15ULS has a horsepower rating of 1/50 HP.

      Helpful?

  9. I installed it (also removed the travel tag) and I could not tell if it was operating. What needs to happen in order to know the unit is working?

    1 answer

    1. Follow the instructions below to check operation test: 1. Disconnect the pump from the power source. 2. Remove tank cover assembly. The cover snaps on to the reservoir. Pull out on the slot on the long side of the top. Place a finger in one of the larger corner holes and carefully lift off the cover. Hold level. 3. Turn on the power to the pump. 4. Test pump operating switch by raising the pump switch float. The motor should turn on before the float contacts the tank cover. 5. Test high level switch by raising the high level switch float. The switch should activate before the float contacts the tank cover. If wire to no terminal, air handling device should shut down. If wired to NC terminal, external component alarm or relay should activate. 6. Disconnect the pump from the power source. 7. Replace the tank cover assembly. 8. Turn the power to the pump.

      Helpful?

  10. What are the dimensions of the pump?

    1 answer

    1. The dimensions are 11" L x 5" W x 7" H.

      Helpful?
