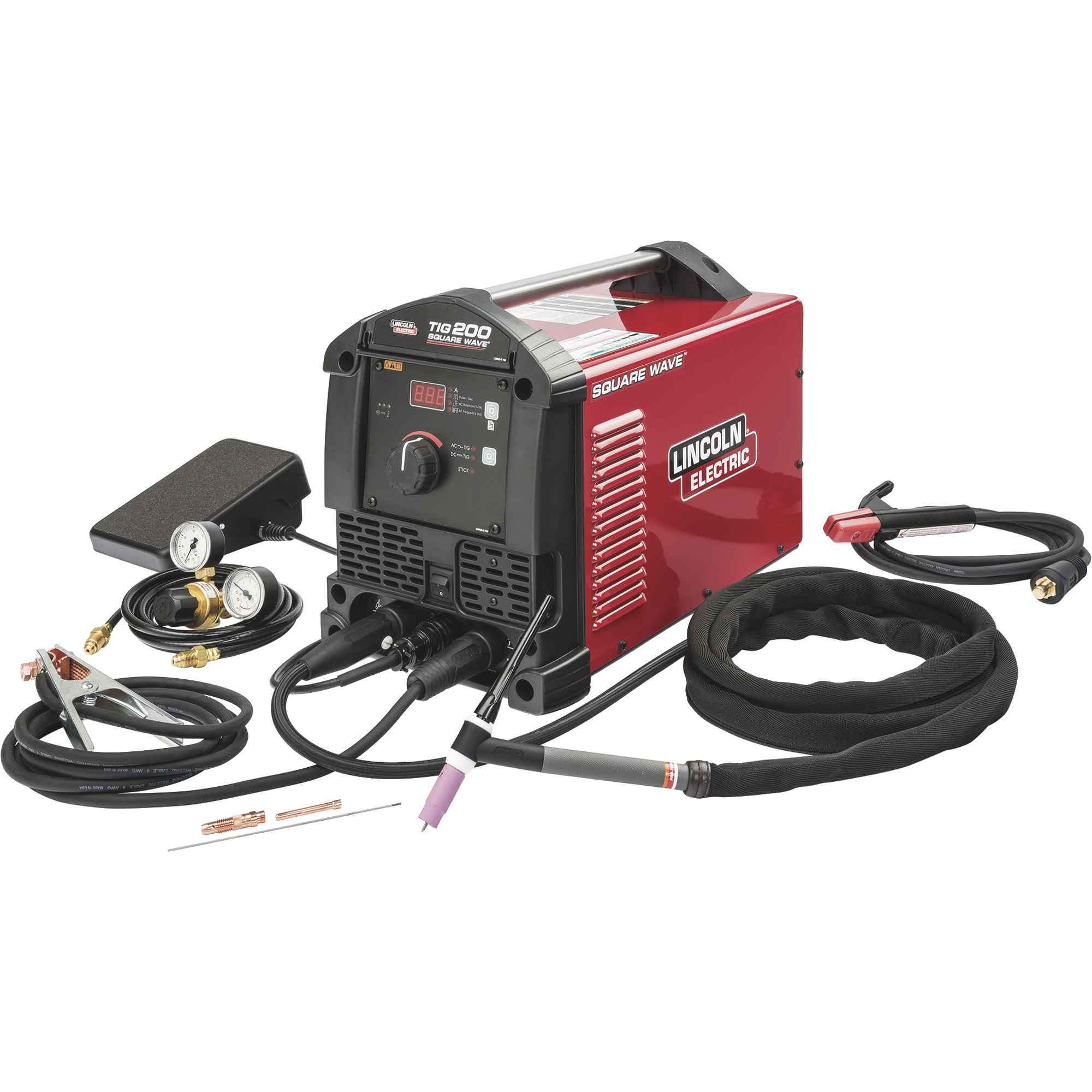

Lincoln Electric Square Wave TIG 200 Welder, 120/230 Volts, 10-200 Amp Output, Model# K5126-1

Item# 99494
"Lincoln Electric Square Wave TIG 200 Welder, 120/230 Volts, 10-200 Amp Output, Model# K5126-1"
Lincoln Electric Square Wave TIG 200 Welder, 120/230 Volts, 10-200 Amp Output, Model# K5126-1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lincoln Electric Square Wave TIG 200 Welder, 120/230 Volts, 10-200 Amp Output, Model# K5126-1

Click or Tap image to Zoom

  • A Great TIG Machine for Aluminum - For a wider or tighter welding bead, users can easily adjust AC Frequency Control. AC Balance can be adjusted to provide more cleaning action on dirty aluminum or to maximize penetration on thick materials.
  • TIG and Stick from One Power Source - The multi-process machine can TIG weld when precision and bead appearance are important. Users also have the advantage of stick welding capability for outdoor work or thicker materials.
  • Take it Everywhere, Plug in Anywhere.™ - Plug in the Square Wave TIG 200 where you need it - a standard 120V circuit or 230V for maximum output. Portable and convenient to use, only 46 lb (21 kg).
  • The ideal TIG machine for use on aluminum
  • Easily adjustable AC Frequency Control allows for a wider or tighter welding bead

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

SIMPLICITY WITHOUT COMPROMISE The Square Wave® TIG 200 is a portable TIG and stick welding machine that lets hobbyists, makers, small fabricators and craftsmen explore their creativity. It is designed to help expand your welding expertise. As your skills and confidence grow, you can take advantage of the Square Wave TIG 200’s additional functionality. No matter your skill level, you won’t be disappointed. The Square Wave TIG 200 provides smooth and stable AC TIG welding on aluminum and DC TIG welding on steel, stainless steel and chrome-moly. A user-friendly interface enables the operators to set it, forget it and weld. ADVANCED FEATURES YET EASY TO USE The user interface makes machine setup easy. Available features, such as Pulse, which provides a drumbeat-like rhythm for filler metal deposition, make you become a better TIG welder - faster.

What's Included

    (1) Square Wave TIG 200 TIG Welder, K1782-14 PTA-17 TIG Torch Ready-Pak®, K870 Foot Amptrol™, Gas Regulator/Flowmeter and 10 ft (3 m) Gas Hose Kit, Stick Electrode Holder 200A, Ground Clamp and Cable, 120 and 230V Input Cords (1) TIG Torch Ready-Pak® (1) Foot Amptrol™ (1) Gas regulator/Flowmeter with 10ft. gas hose kit (1) 200A stick electrode holder (1) Ground clamp and cable (1) 120V input cord (1) 230V input cord

Downloads

Product Manual Product Manual2

Features + Benefits

  • A Great TIG Machine for Aluminum - For a wider or tighter welding bead, users can easily adjust AC Frequency Control. AC Balance can be adjusted to provide more cleaning action on dirty aluminum or to maximize penetration on thick materials.
  • TIG and Stick from One Power Source - The multi-process machine can TIG weld when precision and bead appearance are important. Users also have the advantage of stick welding capability for outdoor work or thicker materials.
  • Take it Everywhere, Plug in Anywhere.™ - Plug in the Square Wave TIG 200 where you need it - a standard 120V circuit or 230V for maximum output. Portable and convenient to use, only 46 lb (21 kg).
  • The ideal TIG machine for use on aluminum
  • Easily adjustable AC Frequency Control allows for a wider or tighter welding bead
  • AC Balance can be adjusted to provide more cleaning action on dirty aluminum or to maximize penetration on thick materials
  • Multi-process machine enables TIG and Stick welding capabilities from one power source -- TIG weld when precision and bead appearance are important; Stick weld for outdoor work or thicker materials
  • A user-friendly interface enables the operators to set it, forget it and weld.
  • Portable design weighs just 46-lbs. (21 kg) making it convenient to take along with you
  • Includes: (1) Square Wave TIG 200 TIG Welder (1) K1782-14 PTA-17 TIG Torch Ready-Pak® (1) K870 Foot Amptrol™ (1) Gas Regulator/Flowmeter and 10 ft (3 m) Gas Hose Kit (1) Stick Electrode Holder 200A (1) Ground Clamp and Cable (1) 120 and 230V Input Cords

Key Specs

AttributeSpecification

item#

99494

Brand

Lincoln Electric

Manufacturer's Warranty

3 year limited warranty

Ship Weight

77.0 LB

Volts

Multi

Max. Amps

200

Power Type

AC

Multi-process

Yes

Duty Cycle

60%
AttributeSpecification

Weldable Materials

Aluminum, Stainless Steel

Min. Amps

10

Power Cord Length

10 ft

Clamp Cable Length

15 ft

Electrode Cable Length

10 ft

Regulator and Gas Hose Included

Yes

Product Weight

77.0000 lb

Dimensions L x W x H (in.)

21.5 x 20.0 x 12.5 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Does this welding machine have true lift arc tig that is not scratch tig?

    1. Yes I have one and understand you question it will jump an arc to the material no need to touch the material in fact be careful with your ground not hooked or worse touching you you will feel it

      Helpful?

    2. The welder would have square wave TIG technology.

      Helpful?

  2. No hand control for this tig welder???

    1 answer

    1. A hand control is not available for the welder.

      Helpful?

  3. Can this welder do flux core also?

    1 answer

    1. This welder does not have a wire feed welding option.

      Helpful?

  4. Is this welder good for welding regular/mild steel?

    1 answer

    1. The welder can be used for welding regular or mild steel.

      Helpful?

  5. Are Lincoln welders made in the USA?

    1 answer

    1. This Lincoln Electric welder is manufactured in Mexico.

      Helpful?

  6. Can this unit be set up for water cooling?

    1 answer

    1. This item does not accommodate a water cooler.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Stick Electrodes

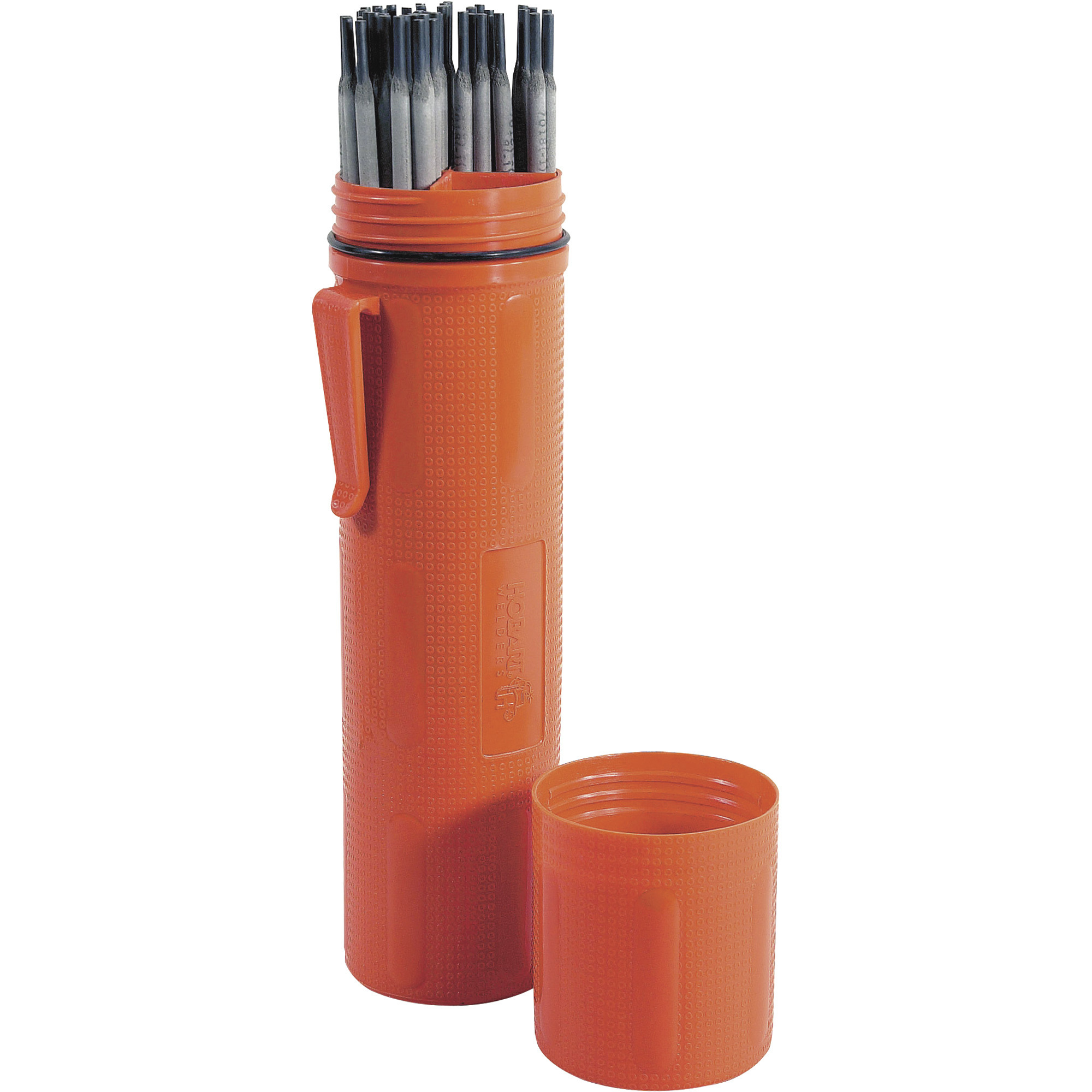

Hobart Filler Metals Stick Welding Electrodes Storage Can, Model# 770073
