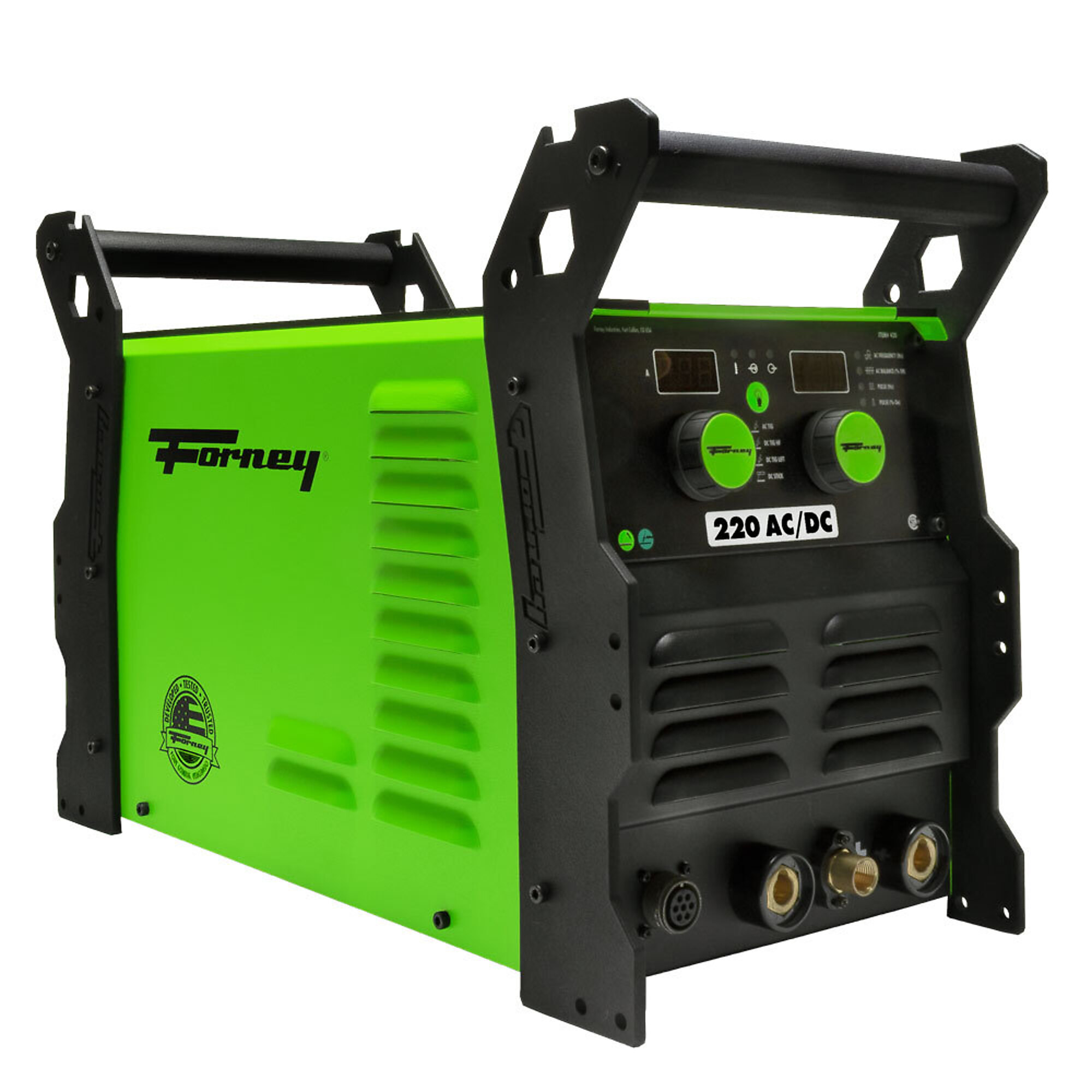

Forney, Forney 220 AC/DC TIG Welder Package, Model# 420

Item# 6488991
Top Seller
Forney, Forney 220 AC/DC TIG Welder Package, Model# 420

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Forney, Forney 220 AC/DC TIG Welder Package, Model# 420

Click or Tap image to Zoom

$2599.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Stable Arc at 5 AMPs
  • Pulse Welding
  • High Frequency Starts
  • Ability to Turn Off High Frequency
  • TIG Torch/Foot Pedal Combination

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Forney 220 AC/DC TIG welder is an ideal TIG machine for a wide variety of users. Perfect for beginners to professionals, this powerful machine features dual-voltage with 120V/240V input power. The ability to weld up to 1/2” and 220 AMPs of welding power makes machine a great tool for professionals. The intuitive controls allow for quick set-up and simple operation. This machine features amperage control settings as low as 5 AMPs, features pulse capabilities and allows users to weld with low frequency. What’s more, the ability to use AC and DC power makes welding anything from mild steel to aluminum a breeze! Product Specifications: Processes: * SMAW (Stick) * GTAW- DC (TIG) * GTAW- AC (TIG) Output Power: TIG * 120V: 25% 120 AMP (AC) * 120V: 25% 130 AMP (DC) * 240V: 35% 220 AMP Stick * 120V: 40% 85 AMP * 240V: 35% 200 AMP Input Power: * 120V 24.8 AMP * 240V 32 AMP Welding Capacity: * Up to 1/2in. Wire/Electrode Diameter: * Stick: 1/16in. (1.6 mm) to 5/32in. (4.0 mm) * TIG: .040in. (1.02 mm) to 1/8in. (3.2 mm) Unit Weight of Welder Out of Display Box: * 54 lbs. (24.54 kg) Unit Dimensions of Welder Out of Display Box: * H: 15.5in. (393.7 mm) * L: 23.25in. (263.53 mm) * W: 10.375in. (590.55 mm) For Use On: * Solid Steel * Cast Iron/Steel * Stainless Steel * Aluminum Features: * Stable Arc at 5 AMPs * Pulse Welding * High Frequency Starts * Ability to Turn Off High Frequency * TIG Torch/Foot Pedal Combination * Dual-Voltage * Digital Gauges Included Accessories: * 12.5ft. (3.81 m) 150 AMP 17 Series TIG Torch with Flexible Neck * 12.5ft. (3.81 m) 7 Pin Foot Pedal * 15’ (4.57 m) Ground Clamp with Cable * 15’ (4.57 m) Electrode Holder with Cable * 15’ (4.57 m) Input Power Cable * Flowmeter with Hose Recommended Accessories and Consumables: * ITEM# 85660 - 150 AMP 17F Amptrol TIG Torch 12.5ft.

What's Included

    (1) Forney 220 AC/DC TIG Welder Package
Play Item Video

Features + Benefits

  • Stable Arc at 5 AMPs
  • Pulse Welding
  • High Frequency Starts
  • Ability to Turn Off High Frequency
  • TIG Torch/Foot Pedal Combination
  • Dual-Voltage
  • Digital Gauges

Key Specs

AttributeSpecification

item#

6488991

Brand

Forney

Manufacturer's Warranty

3 year limited warranty

Ship Weight

88.0 LB
AttributeSpecification

Power Type

AC

Product Weight

88.0000 lb

Dimensions L x W x H (in.)

27.5 x 20.5 x 19.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty
