Lincoln Electric, Sprinter 180Si, Volts 115/230 Max. Amps 200 Model# K5453-1

Item# 6110180
Lincoln Electric, Sprinter 180Si, Volts 115/230 Max. Amps 200 Model# K5453-1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lincoln Electric, Sprinter 180Si, Volts 115/230 Max. Amps 200 Model# K5453-1

Click or Tap image to Zoom

$999.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
  • Multi-Process Capable - Welds DC Stick and DC TIG.
  • Two Stick Modes - Crisp arc allows for greater welding versatility and superior performance on E6010 and E6011 electrodes while soft arc allows for dependable E7018 arc starting.
  • Pulsed TIG Mode - Provides heat management and enhanced control when making thin, precise welds.
  • High Frequency Star - Strike a precise arc every time while TIG welding

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Sprinter 180Si gives you power in a small package. Weighing in under 20 lbs., it's lightweight and portable, and the 180-amp output enables you to weld electrodes up to 5/32in., including 7018 and 6010. This machine is more than just a stick welder, the Sprinter 180Si combines superior stick capabilities with high-frequency TIG, pulsed TIG mode, amptrol compatibility and dual input voltage (120V/230V). A simple display allows you to dial the weld settings so you can get started quickly and easily on any job anywhere – maintenance work, light-fabrication, light structural and everything in between. The Sprinter 180Si is a stick welder and so much more.

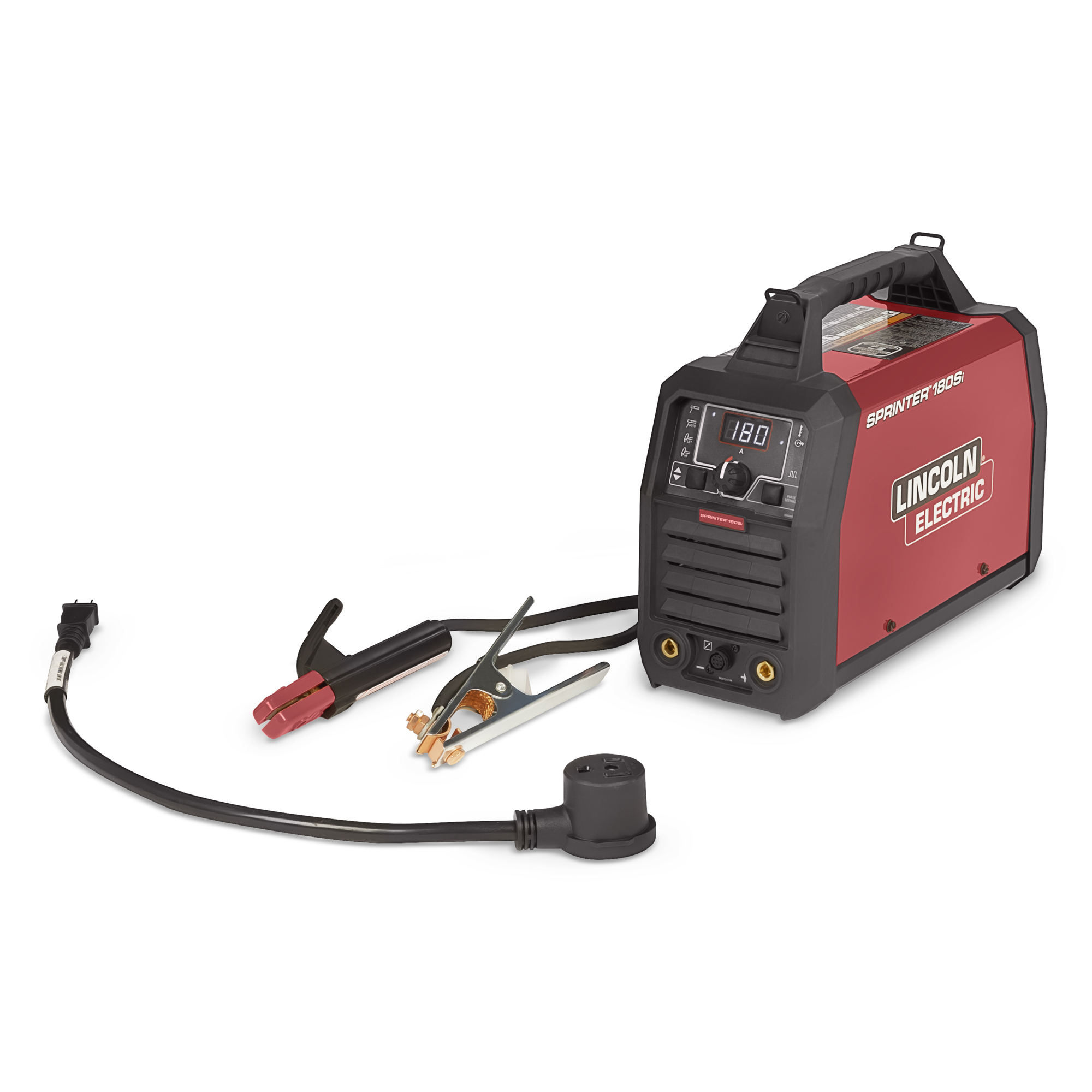

What's Included

    (1) Sprinter™ 180SiWelder (1) Insulated Electrode Holder and Cable (1) Heavy Duty Work Clamp and Cable (1) 230V to 120V Power Cord Adapter

Features + Benefits

  • Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
  • Multi-Process Capable - Welds DC Stick and DC TIG.
  • Two Stick Modes - Crisp arc allows for greater welding versatility and superior performance on E6010 and E6011 electrodes while soft arc allows for dependable E7018 arc starting.
  • Pulsed TIG Mode - Provides heat management and enhanced control when making thin, precise welds.
  • High Frequency Star - Strike a precise arc every time while TIG welding
  • Lightweight Portability - This durable machine weighs under 20 lbs. and is easy to carry with its ergonomic handle or included shoulder strap.

Key Specs

AttributeSpecification

item#

6110180

Brand

Lincoln Electric

Manufacturer's Warranty

3 year limited warranty

Ship Weight

32.5 LB

Volts

115/230

Max. Amps

200
AttributeSpecification

Power Type

DC

Multi-process

Yes

Spool Gun Included

No

Welding Processes

Stick, TIG

Duty Cycle

85A/23.2V/40%

Min. Amps

10

Reviews

Questions & Answers

Questions

  1. How many amps on input side

    1 answer

    1. On the input side, the welder draws a maximum of 22 amps at 120 volt and 22 amps at 230 volt when operating at its maximum rated output.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
