Century by Lincoln Electric Inverter Arc 230 DC Arc Welder, Inverter, 230 Volts, 10-155 Amp Output, Model# K2790-2

Item# 68284
"Century by Lincoln Electric Inverter Arc 230 DC Arc Welder, Inverter, 230 Volts, 10-155 Amp Output, Model# K2790-2"
Century by Lincoln Electric Inverter Arc 230 DC Arc Welder, Inverter, 230 Volts, 10-155 Amp Output, Model# K2790-2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Century by Lincoln Electric Inverter Arc 230 DC Arc Welder, Inverter, 230 Volts, 10-155 Amp Output, Model# K2790-2

Click or Tap image to Zoom

$489.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 230v input power, 230/1/60
  • 10-155 amp DC welding output range
  • 30% duty cycle at 150 amps
  • Weighs 18 lbs.
  • Dimensions of unit 14 x 10 x 17 inches

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Century by Lincoln Electric Inverter Arc 230 DC Arc Welder, Inverter, 230 Volts, 10-155 Amp Output, Model# K2790-2
  • Hobart Filler Metals Stick Welding Electrodes 6011, 5/32in. x 14in.L, 5-Lb. Container, Model# 770462
Price for all two:

$518.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Century Inverter Arc® 230 Stick Welder is compact for portability and has a 10 to 155 amp output that supports mild steel stick electrode diameters from 5/64in. to 5/32in. The smooth arc provides strong welds on 14 gauge sheet metal to 5/16in. thick steel. It has a 30% duty cycle at 150 amps that allows it to run 3 minutes out of each 10-minute period without overheating. A continuous amperage control permits exact temperature setting for consistent welds.

What's Included

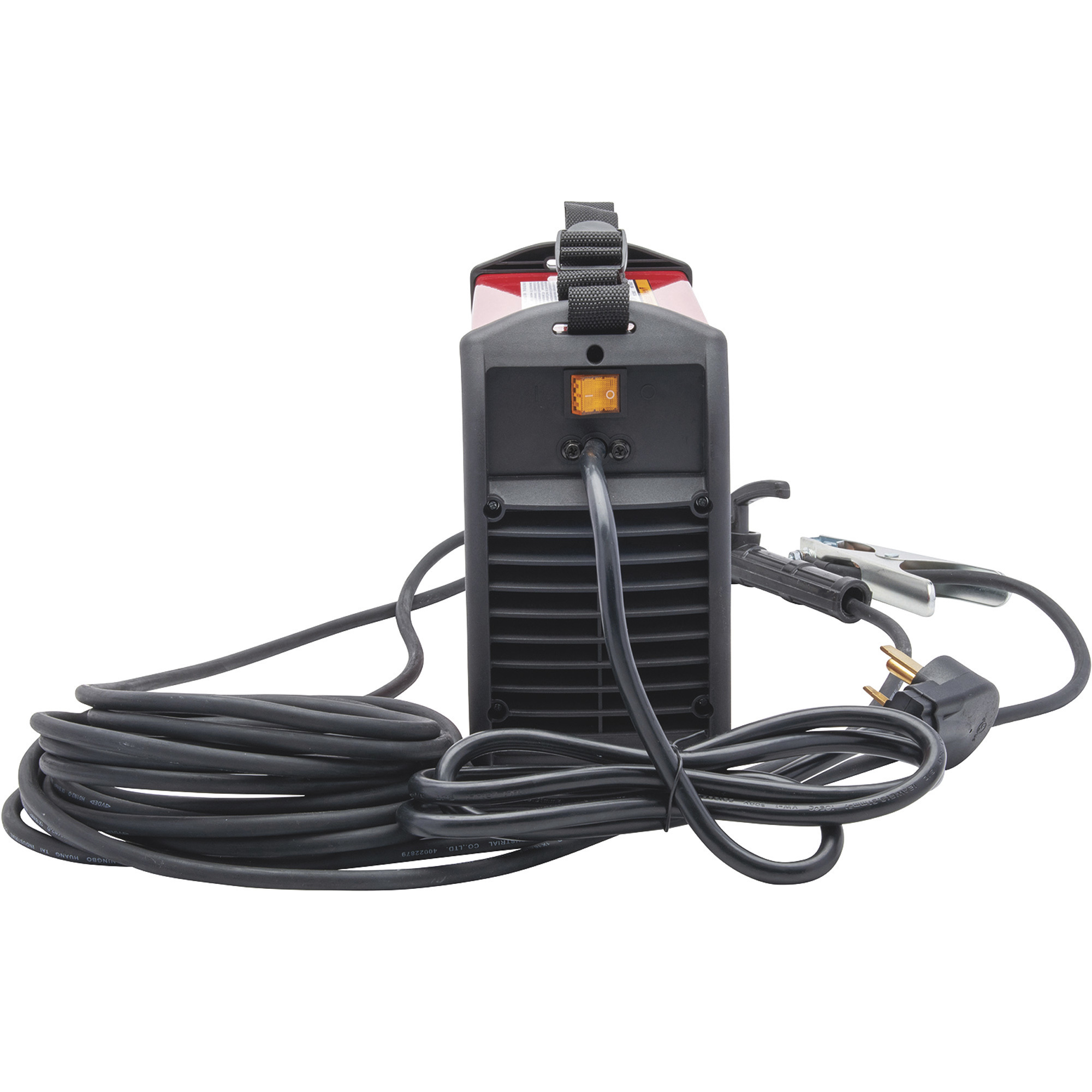

    (1) Welder (1) 10ft. cable with ground clamp (1) 10ft. cable with electrode holder (1) 6ft. input cable with NEMA 6-50P plug (1) Shoulder strap

Downloads

Product Manual
Play Item Video

Features + Benefits

  • 230v input power, 230/1/60
  • 10-155 amp DC welding output range
  • 30% duty cycle at 150 amps
  • Weighs 18 lbs.
  • Dimensions of unit 14 x 10 x 17 inches
  • Welds 14 gauge to 5/16" single pass
  • Comes with a shoulder strap, 10 foot work cable, 10 foot electrode holder, work clamp, and 6 foot input cable with attached three-prong 50 amp plug.
  • TIG capability with additional attachments

Key Specs

AttributeSpecification

item#

68284

Brand

Century Welders

Manufacturer's Warranty

1 year limited warranty

Ship Weight

21.0 LB

Volts

230

Max. Amps

155

Power Type

DC

Multi-process

No

Welding Processes

Stick, TIG

Max. Weld Thickness

0.31 in
AttributeSpecification

Duty Cycle

30% At 150a

Weldable Materials

Mild Steel, Stainless Steel, Aluminum

Min. Amps

10

Cart Included

No

Power Cord Length

6 ft

Clamp Cable Length

10 ft

Electrode Cable Length

10 ft

Shielding Gas Required

No

Product Weight

21.0000 lb

Dimensions L x W x H (in.)

10.0 x 5.5 x 14.0 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–10 of 14 Questions
Sort by:

  1. Can this be used with a power converter? For example a 220 power converter plugged in to a 110 outlet

    1 answer

    1. This cannot be used with a 110 Volt to 220 Volt converter. This welder draws 50 amps. A 50 amp breaker or larger is required.

      Helpful?

  2. will this run well off a generator ?

    1 answer

    1. As long as the generator can provide 8,000 continuous Watts, this welder will operate as intended.

      Helpful?

  3. Can I use a 7018 on this?

    1 answer

    1. A 1/16", 5/64" and 3/32" 6013 rod can be used with this welder. A 1/16", 5/64", 3/32" and 1/8" 6011 rod can also be used. It can be used with 1/16", 5/64" and 3/32" 7018 rod as well.

      Helpful?

  4. What will 10 amps weld? 24Gauge sheet metal?

    1 answer

    1. This unit can weld up to 18 gauge sheet metal at 10 amps. It cannot weld 24 gauge sheet metal.

      Helpful?

  5. Is this ready to run from a generator.

    1 answer

    1. The welder can be run off an 8000 watt or larger generator. The power requirements will be 230 volt 30 amps.

      Helpful?

  6. Can I weld cast aluminum with this machine? Which size 4043 rods do I use?

    1 answer

    1. This inverter arc welder will not work to weld aluminum.

      Helpful?

  7. can I use this as a generator also

    1 answer

    1. This can only be used as a welder. It could not be used as a generator.

      Helpful?

  8. Looking for a ground cable and a stick weld lead, also need their dimensions.thanks

    1 answer

    1. Replacement parts would be available through the manufacturer.

      Helpful?

  9. is this a full bridge welder?

    1 answer

    1. This is considered a full bridge welder.

      Helpful?

  10. Is this model Made in USA?

    1 answer

    1. This welder is manufactured in China.

      Helpful?
