Product Summary

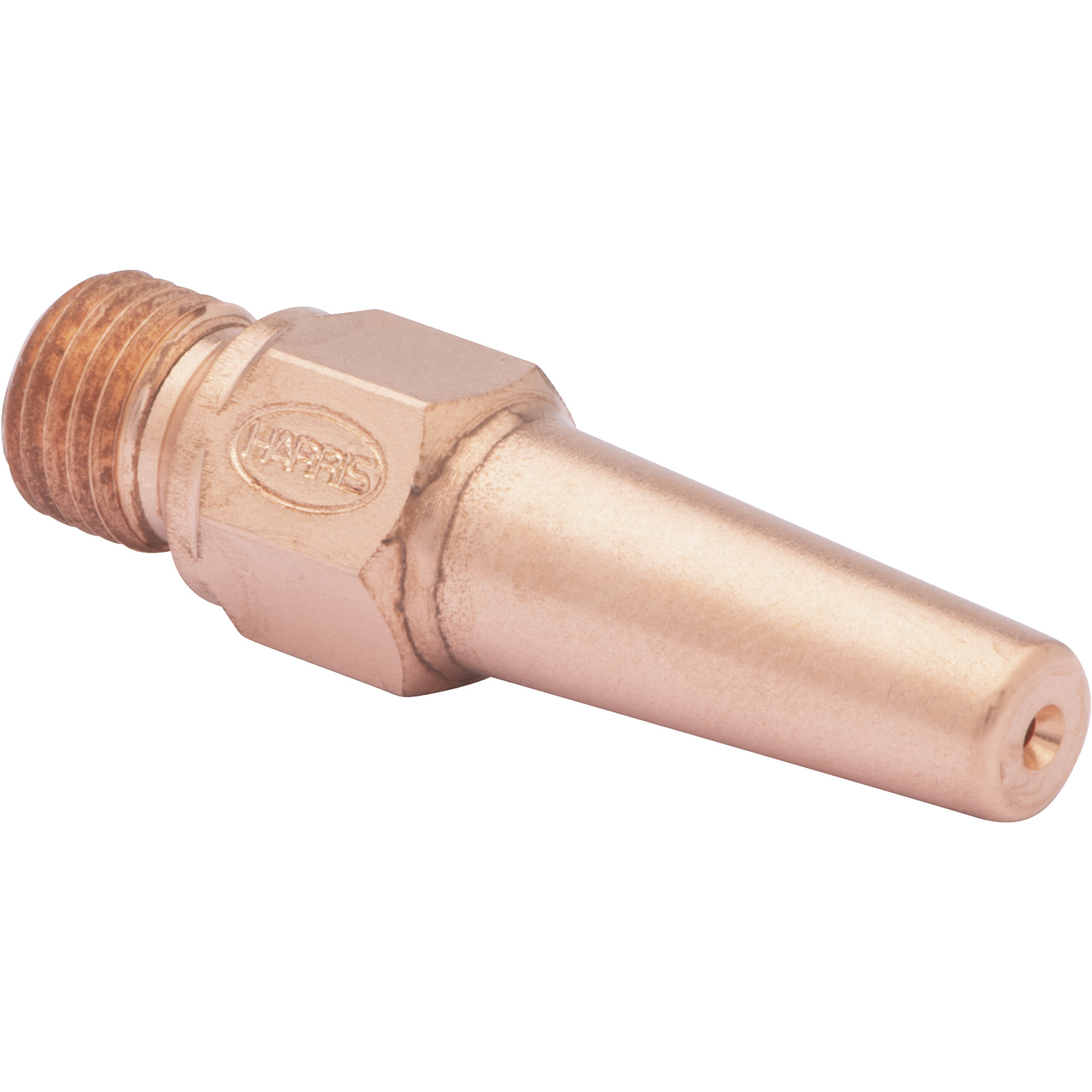

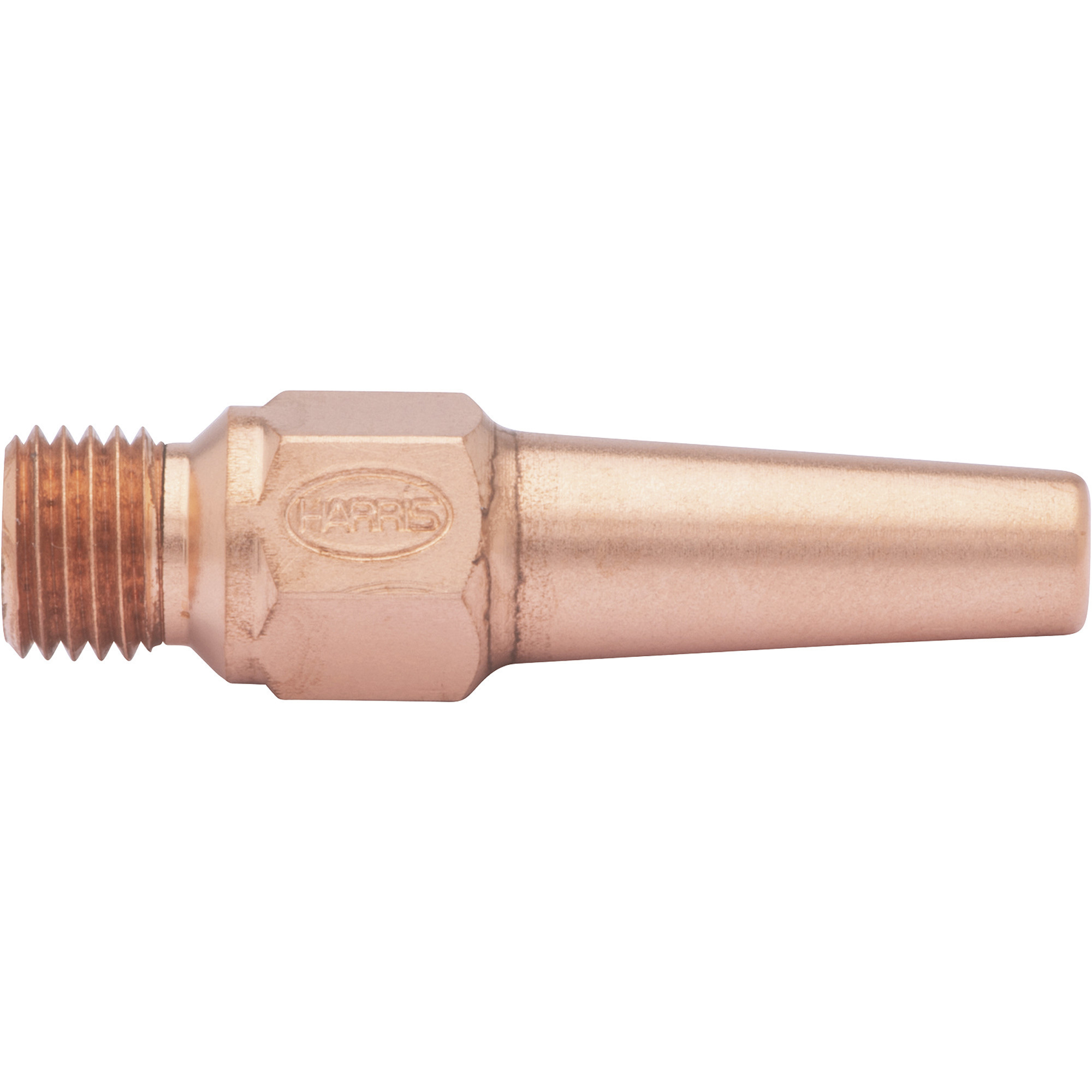

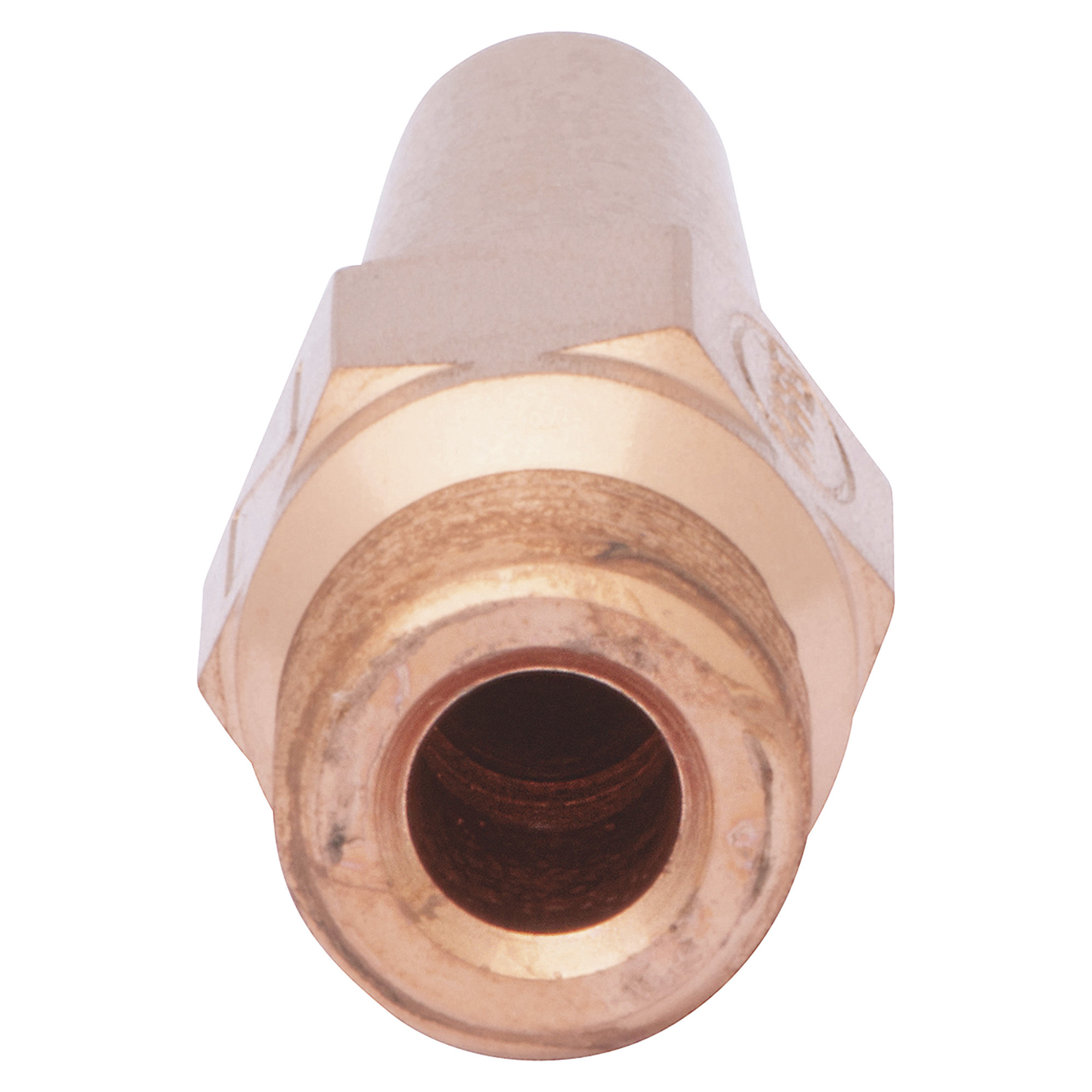

This 2.825in. Lincoln Electric Separable Brazing/Heating Tip is made from environmentally-friendly tellurium copper. It's designed to be used with a Harris universal tip tube and mixer system for tip sizes 2-10 and sizes 15-80N, eliminating the expense of using a special mixer for each size tip. The tip is designed with a counter-bored tip end for maximum performance using alternate fuels. Stable over an extremely broad BTU range, so one tip size can be used over a very wide range of joint sizes. A unique metal-to-metal seat reduces leaks, eliminating the need for joint sealants.

What's Included

    (1) Separable brazing/heating tip

Features + Benefits

  • Counterbored tip end for maximum performance using alternate fuels
  • Metal-to-metal seat reduces leaks, eliminating the need for joint sealants
  • Designed to be used with a Harris universal tip tube and mixer system for tip sizes 2-10 and sizes 15-80N, eliminating the expense of using a special mixer for each tip size
  • Stable over an extremely broad BTU range, allowing one tip size to be used over a very wide range of joint sizes

Key Specs

AttributeSpecification

item#

107132

Brand

Harris

Manufacturer's Warranty

1 year limited warranty

Typical Application

Brazing
AttributeSpecification

Product Type

Tip

Torch Kit

No

Product Weight

0.0500 lb

Dimensions L x W x H (in.)

2.825 x 0.375 x 0.375 in

Warranty

Manufacturer's Warranty

1 year limited warranty
