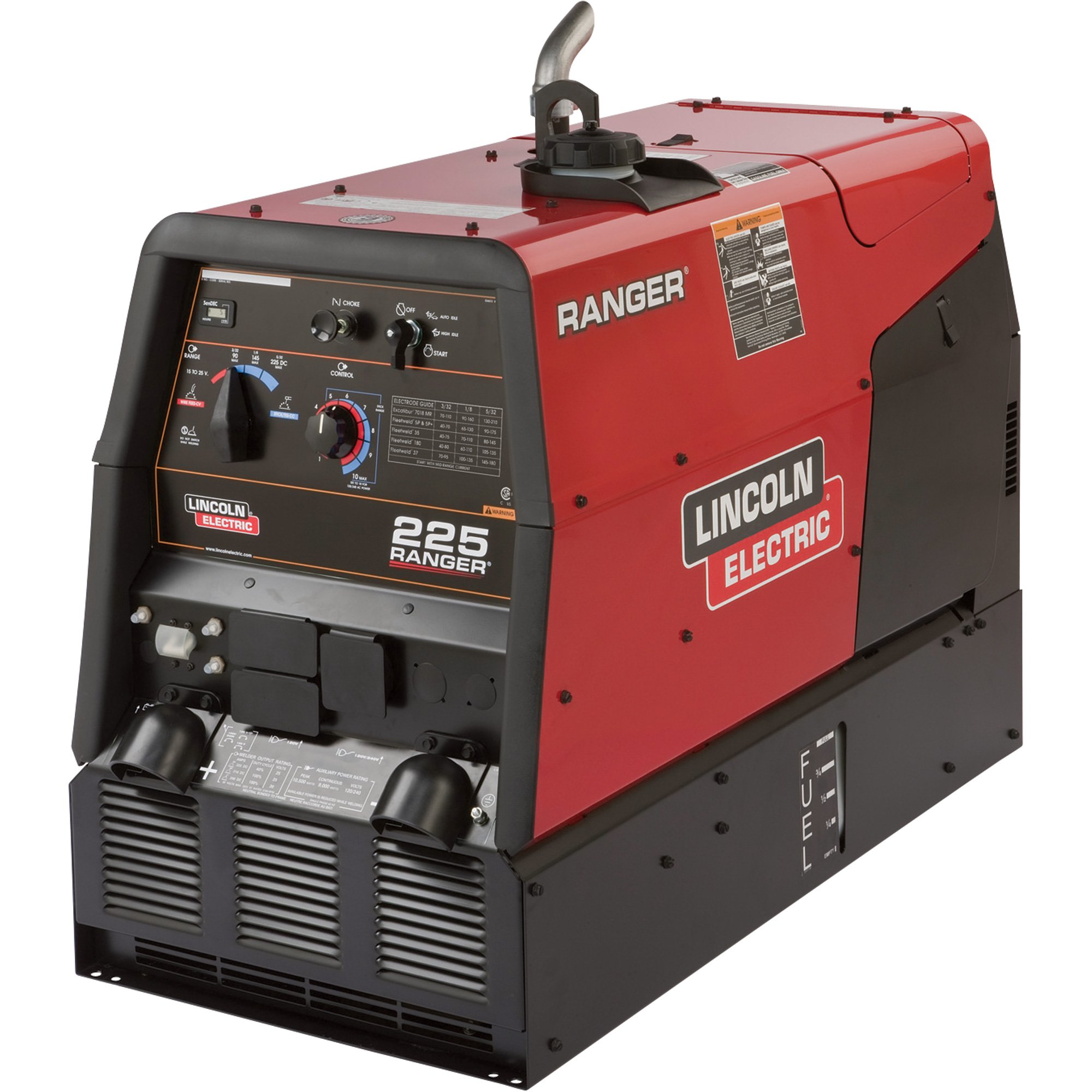

Lincoln Electric Ranger 225 Multi-Process/Welder Generator with Kohler 23 HP Gas Engine and Electric Start — 20–225 Amp DC Output, 10,500 Watt AC Power, Model# K2857-1

Item# 16428571
Lincoln Electric Ranger 225 Multi-Process/Welder Generator with Kohler 23 HP Gas Engine and Electric Start — 20–225 Amp DC Output, 10,500 Watt AC Power, Model# K2857-1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lincoln Electric Ranger 225 Multi-Process/Welder Generator with Kohler 23 HP Gas Engine and Electric Start — 20–225 Amp DC Output, 10,500 Watt AC Power, Model# K2857-1

Click or Tap image to Zoom

  • Powerful 23 HP Kohler® 2-cylinder, 4-cycle engine with overhead valve air-cooled design and electric start
  • 10,500 Watts peak generator power; 9,000 Watts continuous power
  • MIG, flux-core and TIG welding capable (with optional equipment)
  • Welds steel and stainless steel
  • 50–225 output amps

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Lincoln Electric Ranger 225 Multi-Process/Welder Generator with Kohler Engine handles a variety of welding jobs and delivers AC generator power for other industrial operations. Delivers smooth DC welding output for a broad range of stick electrode types, or provides power to run lights, tools, plasma cutters, inverter welders and more.

What's Included

    (1) Lincoln Electric Ranger 225 Multi-Process/Welder Generator, Model# K2857-1

Downloads

Product Manual

Features + Benefits

  • Powerful 23 HP Kohler® 2-cylinder, 4-cycle engine with overhead valve air-cooled design and electric start
  • 10,500 Watts peak generator power; 9,000 Watts continuous power
  • MIG, flux-core and TIG welding capable (with optional equipment)
  • Welds steel and stainless steel
  • 50–225 output amps
  • 210 Amps/25V@100% duty cycle
  • Totally enclosed case with 3 service access doors keeps the engine fully protected
  • Low noise: 76.4 dBA @ 23 feet, 100.7 dB (LwA) at rated output
  • Oil drain extension allows for easy oil changes
  • 12-gallon fuel tank provides extended run time
  • Visual fuel level gauges on both sides of the unit

Key Specs

AttributeSpecification

item#

16428571

Brand

Lincoln Electric

Manufacturer's Warranty

3 year limited warranty

Ship Weight

565.0 LB
AttributeSpecification

Duty Cycle

20V: 100% at 200A; 25V: 100% at 210A; 40% at 225A

Weldable Materials

Steel, stainless steel

Min. Amps

50

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. MIG, flux-core and TIG welding capable (with optional equipment)

    So, you mean, with the use of a spool gun ? Can you elaborate (tig option?).

    1. You can add Lincoln Electric LN-25 PRO and LN-15 acoss-the-arc wire feeders for use with a variety of wire electrodes. You can expand to AC TIG welding with the optional Square Wave TIG 175 or Invertec V205-T AC/DC for aluminum and other alloy welding.

      Helpful?

    2. You can add productivity to your Ranger 225 with self shielded flux-cored CV wire welding by adding the Lincoln Electric LN-25 PRO and LN-15 acoss-the-arc wire feeders for use with a variety of wire electrodes. And, also you can expand to AC TIG welding with the optional Square Wave TIG 175 or Invertec V205-T AC/DC (powered by the AC generator power from the Ranger 225) for aluminum and other alloy welding.

      Helpful?

  2. Generator or Welder ?

    You state that the welder/generator does not have the capability to be used as a backup generator for a home. So why does the listing indicate GENERATOR? Because if the lexicon of "generator" is used only for the welder to run it is misleading

    1. Yes, the welder/generator does have the capability to be used as a backup generator for a home, but a standby generator would be a better option. An emergency home standby generator system can automatically restore power to your house in about 20 seconds. When the power goes out, the generator automatically starts and continues to run until power is restored. Please see below for a great option.

      Helpful?

    2. Our professional opinion is that It will work as a standby generator for the home. Not sure who answered that previous question that it would not work, but as the manufacturer we do say that It will work as a standby generator for the home, as well as an AWESOME welder!

      Helpful?

  3. how much does ranger wiegh

    1 answer

    1. This model is 514-lbs (233 kg).

      Helpful?

  4. Does it have a 50 Amp plug

    1 answer

    1. The welder/generator would have one 50 amp 120/240 volt NEMA 14-50R receptacle and two 20 amp 120 volt NEMA 5-20R receptacles.

      Helpful?

  5. So what's the difference between the Eagle and the Ranger (specifics please)

    1 answer

    1. The Lincoln Electric Eagle is made for consumer use and the Lincoln Electric Ranger is made for industrial use and a heavier duty machine to stand up to everyday use. This is the only differences in the 2 machines.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

3 year limited warranty
