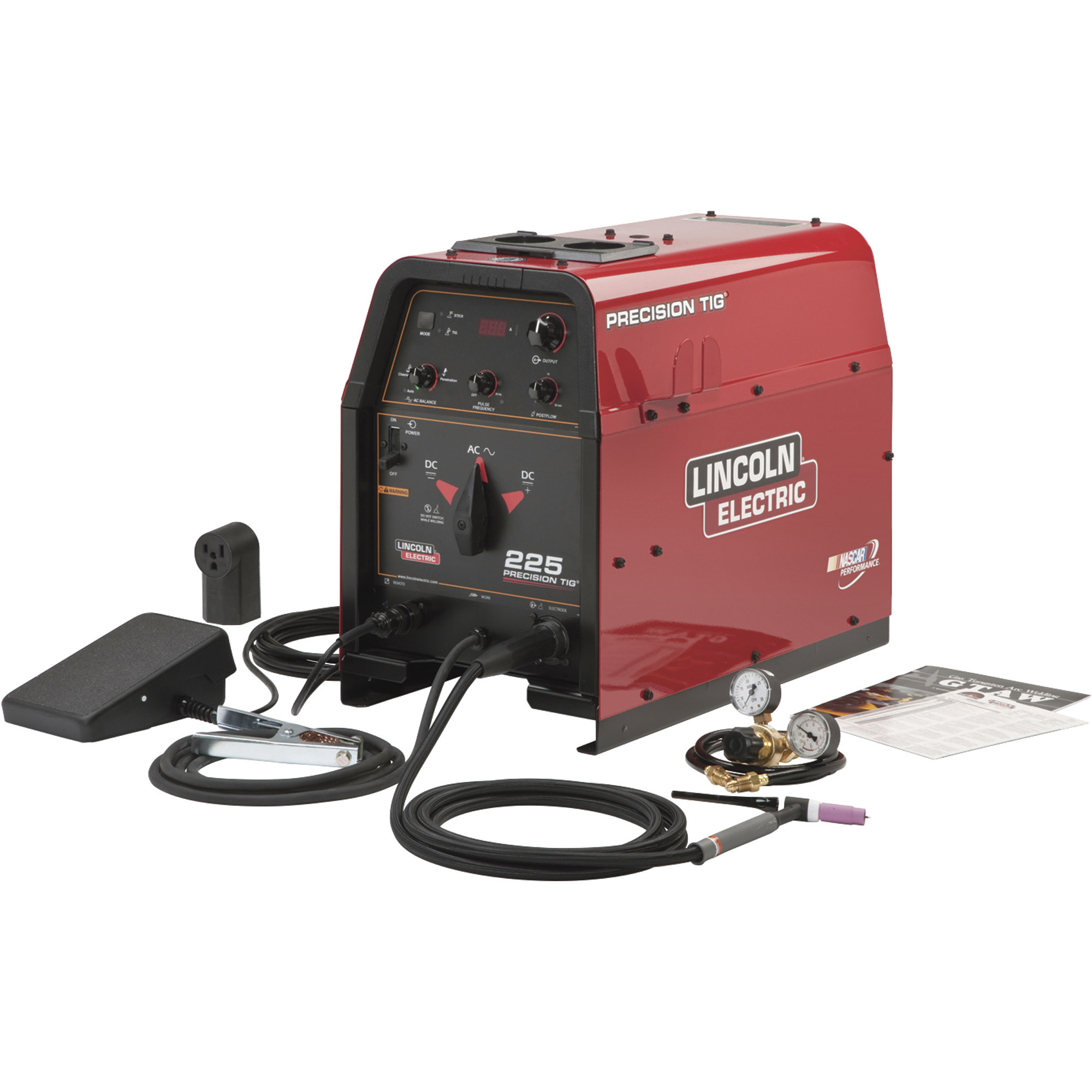

Lincoln Electric Precision TIG 225 AC/DC TIG Welder Ready-Pak, 230V, Model# K2535-1

Item# 1646909
"Lincoln Electric Precision TIG 225 AC/DC TIG Welder Ready-Pak, 230V, Model# K2535-1"
Lincoln Electric Precision TIG 225 AC/DC TIG Welder Ready-Pak, 230V, Model# K2535-1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lincoln Electric Precision TIG 225 AC/DC TIG Welder Ready-Pak, 230V, Model# K2535-1

Click or Tap image to Zoom

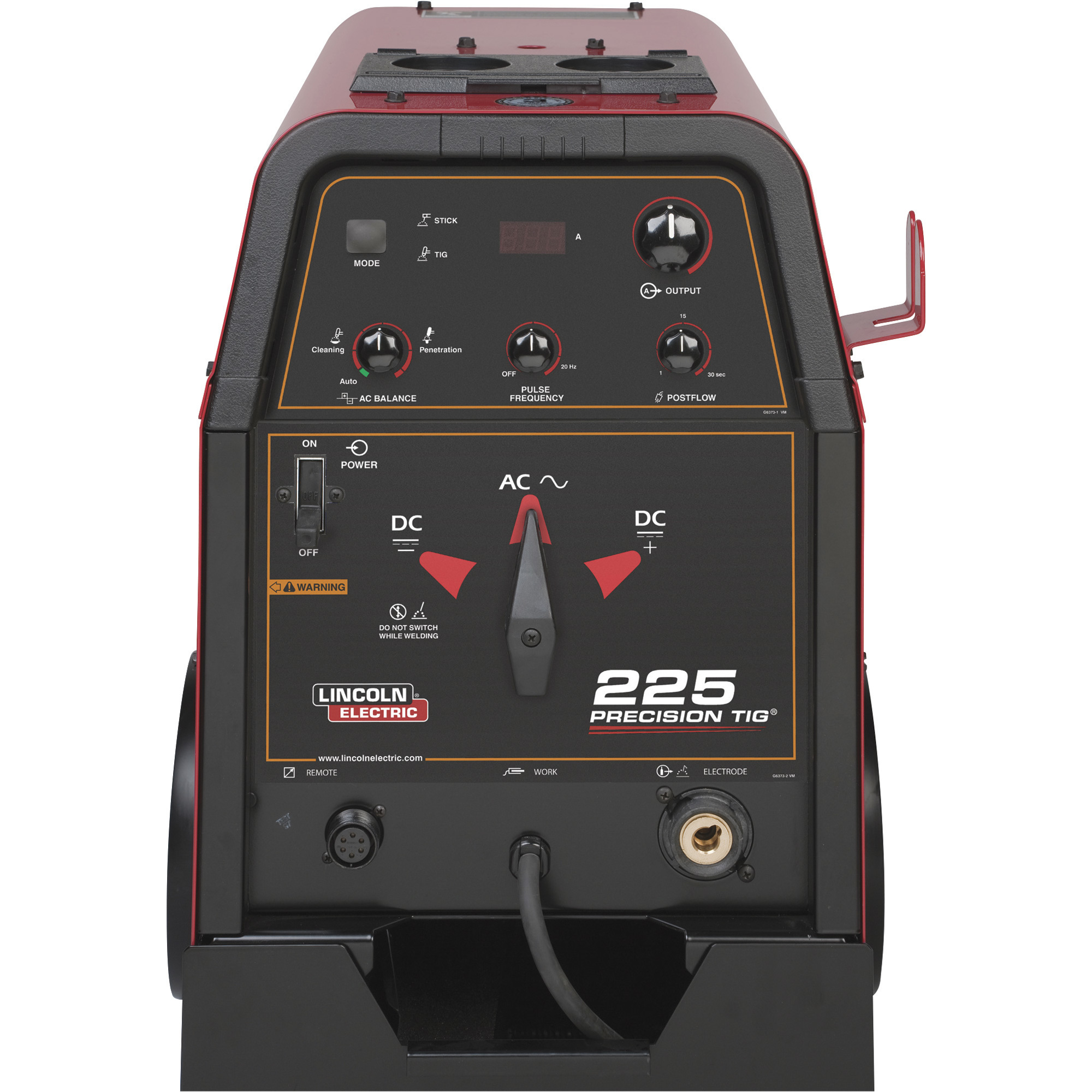

  • Easy-to-use operator interface - select mode, polarity and weld
  • AC Auto-Balance: automatically adjusts for the optimal mix of cleaning and penetration when welding aluminum
  • Enable the TIG pulser to minimize material distortion from excessive heat input
  • Offers outstanding stick welding capabilities with up to 5/32 in. (4.0 mm) electrodes
  • Experience enhanced starting, optimal arc stability, and accomplish more precise welds with our patented Micro-Start™ II Technology

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Get the widest operating range in its class (5 to 230 amps) with the durable Precision TIG 225. Experience enhanced starting, optimal arc stability and accomplish more precise welds and crater fills with our patented Micro-Start™ II technology. The 115V receptacles enable you to power a water cooler or other power tools. Ideal for small auto and fabrication shops and vocational training schools. SIMPLE TO USE, EASY TO CUSTOMIZE Simplicity Easy-to-use operator interface - select mode, polarity and begin welding. When welding aluminum, AC Auto Balance® automatically provides for the optimal mix of cleaning and penetration. Adjust for any situation: cleaning, penetration and pulse When welding thicker material requiring increased penetration, or when requiring increased cleaning action to break through heavy oxide layers, bypass AC Auto Balance and adjust manually for full control. Enable the TIG pulser feature to minimize material distortion from excessive heat input. The TIG pulser can also help moderate filler metal deposition for consistent bead appearance. Superior stick welder Also offers outstanding stick welding capabilities, including the use of up to 5/32in. (4.0 mm) electrodes - even with Fleetweld® 5P+ (E6010).

What's Included

    (1) Lincoln Electric Precision TIG 225 AC/DC TIG Welder 230V, Model# K2535-1 (1) 10-ft. work cable and clamp (1) 9-ft. input power cord (1) NEMA 650P plug (1) NEMA 650R receptacle (1) TIG procedure guide (1) TIG torch (1) Gas regulator

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Easy-to-use operator interface - select mode, polarity and weld
  • AC Auto-Balance: automatically adjusts for the optimal mix of cleaning and penetration when welding aluminum
  • Enable the TIG pulser to minimize material distortion from excessive heat input
  • Offers outstanding stick welding capabilities with up to 5/32 in. (4.0 mm) electrodes
  • Experience enhanced starting, optimal arc stability, and accomplish more precise welds with our patented Micro-Start™ II Technology
  • 60% duty cycle @ 110 Amps
  • Fan as needed feature prevents overheating and reduces power consumption
  • Includes storage compartment for built-in torch, 10-ft. work cable and clamp, 9-ft. input power cord, NEMA 6-50P plug, NEMA 6-50R receptacle, TIG procedure guide, TIG torch, gas regulator

Key Specs

AttributeSpecification

item#

1646909

Brand

Lincoln Electric

Manufacturer's Warranty

36 months parts/36months labor

Ship Weight

212.0 LB

Volts

230

Max. Amps

230

Power Type

AC

Max. Weld Thickness

0.15 in

Duty Cycle

60% At 110a
AttributeSpecification

Weldable Materials

Aluminum, Steel

Min. Amps

5

Power Cord Length

9 ft

Clamp Cable Length

10 ft

Electrode Cable Length

12.5 ft

Regulator and Gas Hose Included

Yes

Shielding Gas Required

Yes

Product Weight

lb

Dimensions L x W x H (in.)

25.6 x 14.5 x 20.7 in

Reviews

Questions & Answers

7 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. Does this model come with the foot pedal control as shown in the picture?

    1. The Lincoln Electric Precision TIG 225 Ready-Pak does come with the foot pedal shown in the picture.

      Helpful?

    2. YES

      Helpful?

    3. Yes

      Helpful?

    4. Yes, the Lincoln Electric Precision TIG 225 Ready-Pak does come with the foot pedal shown in the picture.

      Helpful?

  2. Is this welder available with running gear that also handles gas bottles?

    1. Northern Tool does not offer this welder with the cart. This is model #K2348-10, this can be purchased directly from the manufacturer.

      Helpful?

    2. This welder is available with the cart, but we do not currently offer it. The model # is K2535-2. We do offer the cart separately. Our part # is LCK2348-1. Please call us at 1-800-221-0516 for price and availability.

      Helpful?

    3. Yes, see K2535-2 Ready-Pak with cart. Or, order K2535-1 Ready-Pak + K2348-1 cart.

      Helpful?

  3. How thick of aluminum will it weld, and cycle

    1. I got much better penetration on 1/4" aluminum by using 50/50 argon/heluim using 4047 tig rod.

      Helpful?

    2. You can weld 1/4" aluminum material if you have the correct set up and experience. The duty cycle varies depending on the input power and length of welding time.

      Helpful?

    3. With the right torch set up and proper understanding of the process, and depending on the size of the part, a customer could expect to weld 1/4" aluminum material with this machine.

      The duty cycle varies depending on the input power and length of welding time. More, complete information on the cycle can be found inside the operating manual that is posted with this item on the Northern Tool website.

      Helpful?

  4. What size Portable generator do I need to run this Uni

    1. You would need at least a 11,500 rated watt unit.

      Helpful?

    2. You would need at least a 11,500 rated watt unit. Some examples would be listed below.

      Helpful?

  5. What rod holder and wire plug can go with this unit?

    So you can stick weld?

    1. The rod holder and cable kit are part #LCK2374-1. This can be purchased with our sister company Jack's Small Engines. Please visit their website at www.jackssmallengines.com.

      Helpful?

    2. The Stick Electrode Holder and Cable Kit can be purchased through Northern's Parts Department at 1-800-657-0516.

      Helpful?

  6. is there a button on the tig handle

    1. This does not have a button on the torch handle. A foot control is included with this unit.

      Helpful?

    2. No there is not a button on the tig torch. this unit is operated by a separate foot/hand control based on your preferences.

      Helpful?

  7. re the 225 amp tig welder

    Oh, I forgot, will this stick weld 6010?

    1 answer

    1. This welder can stick weld with 6010 welding rods.

      Helpful?

  8. re the 225 amp tig welder

    I am sure it is, but I do not see where it says ac/dc tig, also, this is far more powerful than the 165, why is this welder not able to weld stainless or other tougher steel?

    Thanks,

    Joe

    1 answer

    1. This Lincoln welder is capable of welding in AC and DC TIG. This welder can TIG weld stainless steel up to 1/4" thick.

      Helpful?

  9. Is this available in water cooled model

    1 answer

    1. There is an accessory available from the manufacturer that allows this model to be water cooled.

      Helpful?

  10. What type of tips does a tig welder use?

    Looking to replace for another person I do not know what to buy.

    1 answer

    1. The tig welder would use alumina and tungsten type nozzles. They are available in a variety of sizes.

      Helpful?
