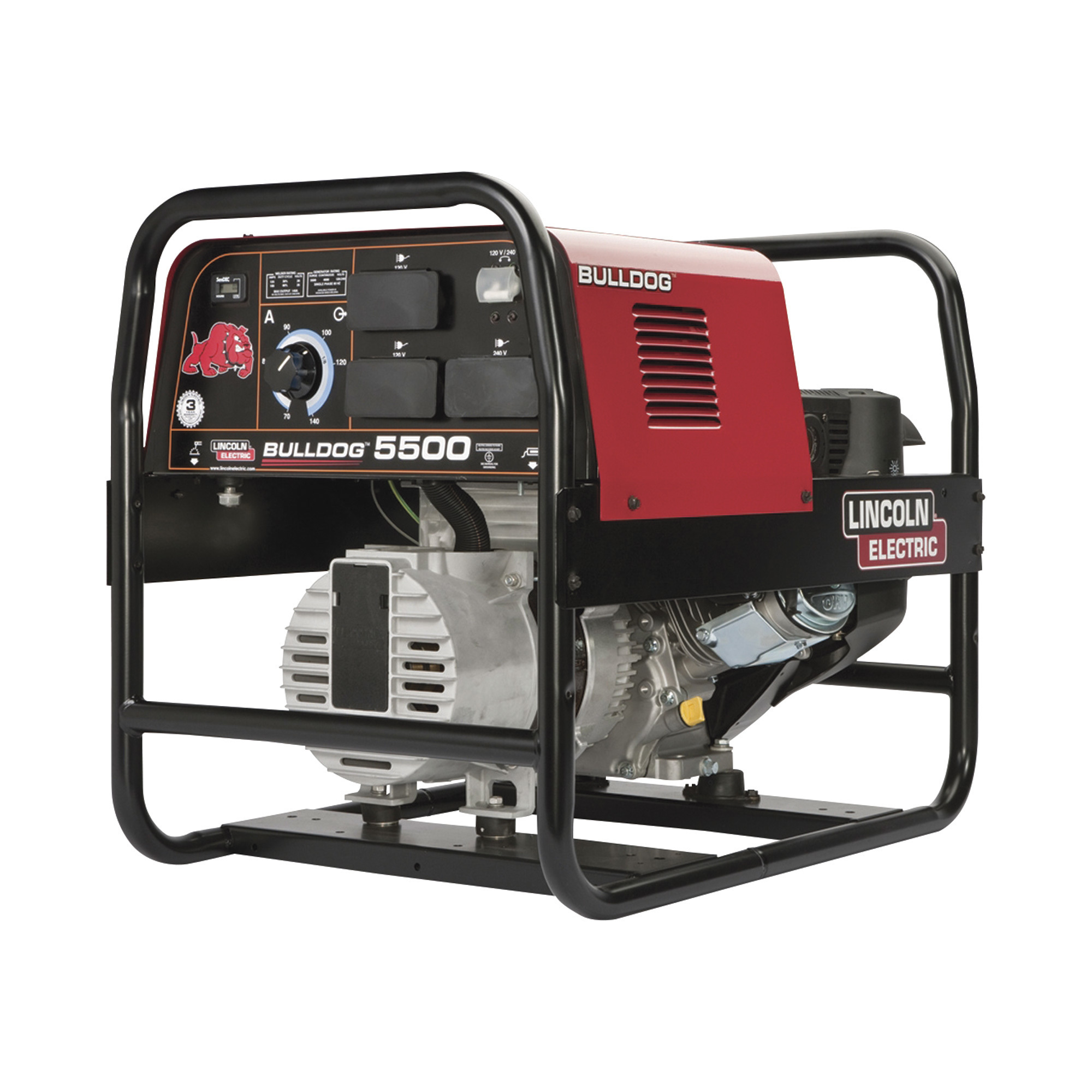

Lincoln Electric Bulldog 5500 Arc Welder/Generator with 277CC Kohler Gas Engine, 70-140 Amp AC Output, 5,500 Watt AC Power, Model# K2708-2

Item# 22560
"Lincoln Electric Bulldog 5500 Arc Welder/Generator with 277CC Kohler Gas Engine, 70-140 Amp AC Output, 5,500 Watt AC Power, Model# K2708-2"
Lincoln Electric Bulldog 5500 Arc Welder/Generator with 277CC Kohler Gas Engine, 70-140 Amp AC Output, 5,500 Watt AC Power, Model# K2708-2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lincoln Electric Bulldog 5500 Arc Welder/Generator with 277CC Kohler Gas Engine, 70-140 Amp AC Output, 5,500 Watt AC Power, Model# K2708-2

Click or Tap image to Zoom

$3849.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • Low-Lift™ Grab Bars (Patent Pending)
  • 1-1/4 in. (32 mm) Diameter Rugged Tube Frame
  • AC Welding with up to 1/8 in. (3.2 mm) Stick Electrode
  • 5,500 Watts Surge (4,000 Watts Continuous) AC Generator Power
  • Welds stainless steel, steel, aluminum

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Lincoln Electric Bulldog 5500 Arc Welder/Generator with 277CC Kohler Gas Engine, 70-140 Amp AC Output, 5,500 Watt AC Power, Model# K2708-2
  • Hobart Welding Stick Cable Set, No. 2 AWG, 50ft. Electrode Cable with Holder and 50ft. Work Cable with Clamp, 2-Pc. Set, Model# 195195

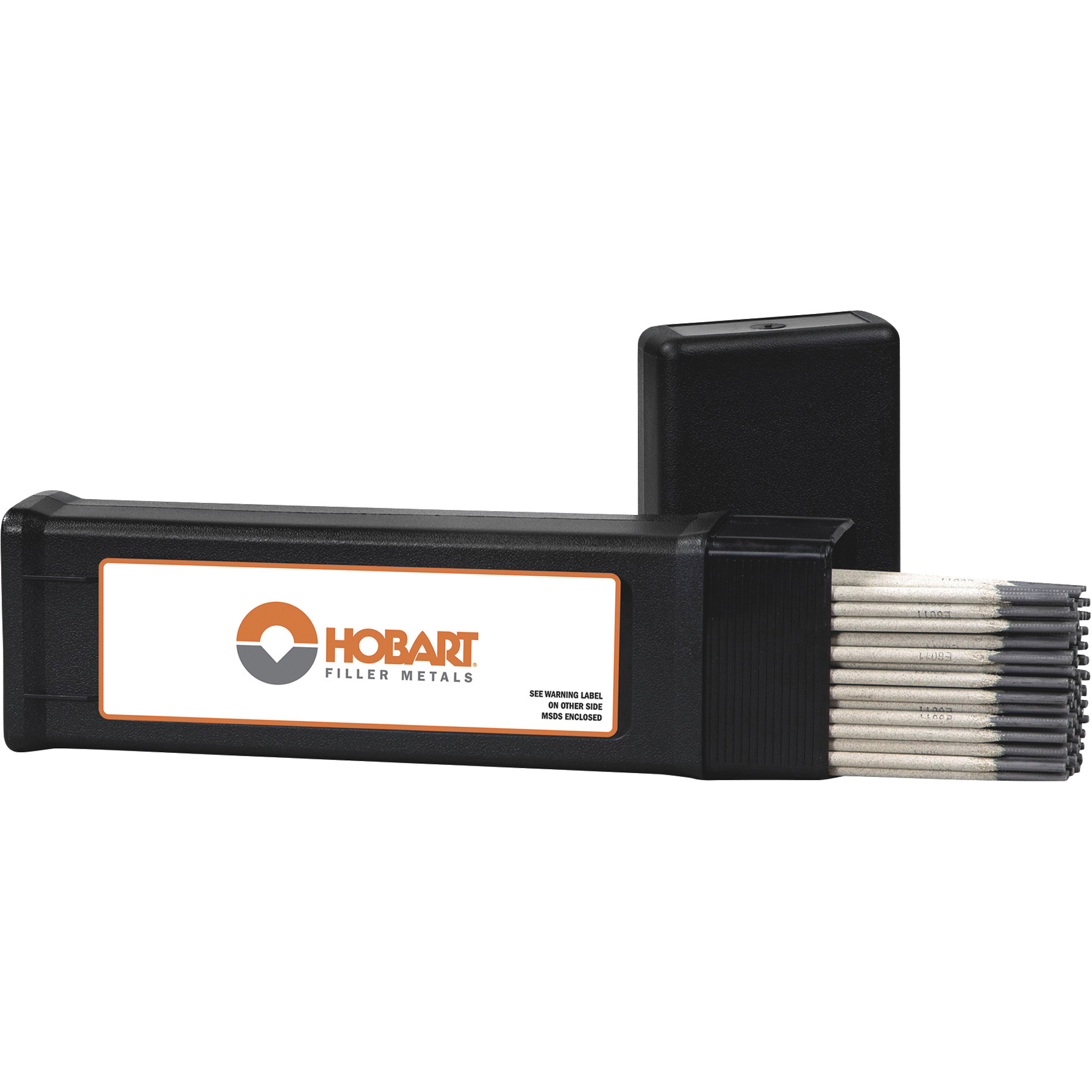

  • Hobart Filler Metals Stick Welding Electrodes, 6011, 1/8in. x 14in.L, 5-Lb. Container, Model# 770459
  • Hobart Filler Metals Stick Welding Electrodes, 6013, 1/8in. Dia. x 14in.L, 5-Lb. Carton, Model# 770469
Price for all four:

$4321.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

It’s great for hobbyists and anyone who needs portable AC stick welding and AC generator power! Dependability and long life aided by all-copper windings in rotor and stator with high quality insulation. Red and black powder paint finish offers increased durability with added protection from rust and corrosion. Also ultraviolet resistant to better retain color and gloss. Manufactured under a quality system certified to ISO 9001 requirements and meets U.S. EPA EVAP standards for reduced emissions of gasoline vapor.

What's Included

    (1) Portable AC welder/AC generator

Downloads

Product Manual
Safety Data Sheet
Play Item Video

Features + Benefits

  • Low-Lift™ Grab Bars (Patent Pending)
  • 1-1/4 in. (32 mm) Diameter Rugged Tube Frame
  • AC Welding with up to 1/8 in. (3.2 mm) Stick Electrode
  • 5,500 Watts Surge (4,000 Watts Continuous) AC Generator Power
  • Welds stainless steel, steel, aluminum
  • Duty Cycle: 30% @ 125A AC/20V; 60% @ 100A AC/25V
  • Delivers up to 16.7 Amps continuous power from the 240V AC receptacle, up to 33.3 Amps continuous power from the four 120V AC outlets
  • Automatic low-oil level shutdown
  • Low-Lift™ Grab Bars provide more leverage for lifting the unit plus added protection
  • Largest in its class 1 1/4in. dia. rugged tube frame provides sturdy all-around protection
  • Lincoln Electric K875 accessory kit (sold separately) is required for stick welding

Key Specs

AttributeSpecification

item#

22560

Brand

Lincoln Electric

Manufacturer's Warranty

3 year limited warranty

Ship Weight

230.0 LB

Max. Amps

140

Power Type

AC

Multi-process

No

Spool Gun Included

No

Duty Cycle

60% At 100a; 30% At 125a

Fuel Type

Gasoline

Fuel Capacity

1.9 Gal

Engine Type

4 Cycle

Engine Displacement

277 cc

Electric Start

No

Battery Included

No
AttributeSpecification

Welding Power Output Type

AC

Receptacles Included

Yes

120V Receptacles Included

4

240V Receptacles Included

1

GFCI Protection

No

Lifting Hook

No

Welding Cables Included

No

Generator Output (Continuous Watts)

4,000

Generator Output (Surge Watts)

5,500

Weldable Materials

Most Metals

Min. Amps

70

Wire Feed Speed Control

No

Cart Included

No

Mig Ready

No

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. Will this welder produce clean electricity to run my RV's Air Conditioner or do I need an inverter style generator?

    I understand there's plenty of watts and I have no intention of running a TV or Computer with this Welder but I'd like to run a simple AC Unit and maybe even a microwave..

    1. This welder/generator does not produce clean power like an inverter style generator. In most cases, your RV A/C unit does not require a low total harmonic distortion generator.

      Helpful?

    2. It should work fine. "Dirty" power can effect certain electronics but simple electrical devices should be OK. If the microwave is basic I would expect it to be fine but a microwave with all of the electronic bells and whistles may have issues.

      Helpful?

  2. Dose it come with leads?

    1 answer

    1. This unit does not include leads. Please see our item #628510 or #628511 for leads that will work with this machine.

      Helpful?

  3. will this operate a 7 hp air compressor

    1 answer

    1. This woud not be large enough for a 7 HP air compressor.

      Helpful?

  4. How long before the gas goes out??

    1 answer

    1. At full load this will run for approximately 2.5 hours with on a full tank of gas.

      Helpful?

  5. Does the generator provide a sine wave or a square wave?

    1 answer

    1. The generator produces a modified sine wave.

      Helpful?

  6. where do you hook up the leads

    1 answer

    1. The output studs are located under the name plate right on the underside of the case front.

      Helpful?

  7. Will it TIG?

    1 answer

    1. This welder does not offer a TIG option.

      Helpful?

  8. Is this an AC or DC welder?

    1 answer

    1. The Lincoln Electric Bulldog welder would be an AC welder.

      Helpful?

  9. Do they make a wheel kit for this welder generator?

    1 answer

    1. There is not a wheel kit available for this welder/generator through Northern Tool.

      Helpful?

  10. rpm's

    need to know the running rpm's both for welding and generator
    thanks
    rich

    1 answer

    1. The engine on this welder/generator runs at 3600 rpm.

      Helpful?
