Lincoln Electric Invertec V155-S Dual Voltage DC Arc Welder with TIG Function, Inverter, 120/230 Volt, 5-155 Amp Output, Model# K2605-1

Item# 164588
"Lincoln Electric Invertec V155-S Dual Voltage DC Arc Welder with TIG Function, Inverter, 120/230 Volt, 5-155 Amp Output, Model# K2605-1"
Lincoln Electric Invertec V155-S Dual Voltage DC Arc Welder with TIG Function, Inverter, 120/230 Volt, 5-155 Amp Output, Model# K2605-1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lincoln Electric Invertec V155-S Dual Voltage DC Arc Welder with TIG Function, Inverter, 120/230 Volt, 5-155 Amp Output, Model# K2605-1

Click or Tap image to Zoom

$1949.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

  • Two stick modes, SOFT and CRISP, provide the right arc characteristics for different types of electrodes.
  • Fan-As-Needed (F.A.N.™) reduces noise and dust inside the machine.
  • Auto-Adaptive Arc Force minimizes electrode sticking in the puddle without compromising arc stability or increased spatter.
  • Automatic Hot Start boosts the current during starting to make striking an arc easier.
  • Touch Start TIG mode - it’s like getting a TIG welder for free!

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Lincoln Electric Invertec V155-S Dual Voltage DC Arc Welder with TIG Function, Inverter, 120/230 Volt, 5-155 Amp Output, Model# K2605-1
  • Hobart Filler Metals Stick Welding Electrodes, 6011, 3/32In. x 14in.L, 5-Lb. Container, Model# 770456
  • Hobart Filler Metals Stick Welding Electrodes, 6013, 3/32in. x 12in.L, 5-Lb. Container, Model# 770466
  • Hobart Filler Metals Stick Welding Electrodes, Stainless Steel 308L-16, 3/32in. x 14in.L, 5-Ct. Pkg., Model# H481930-RDP
Price for all four:

$2019.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Portable. Professional. Rugged. Affordable. The Invertec V155-S offers much more than you would expect from a welder this size. Weighing in at just under 15 lbs. (6.8 kg) the Invertecreg; V155-S is no lightweight contender. It packs the full punch of a heavyweight professional that you can take to the most demanding job sites. It features 120/230V auto reconnect operation and can operate from a portable generator. It can also plug into a 200ft. (61 m) 230V extension cord so you can weld just about anywhere.

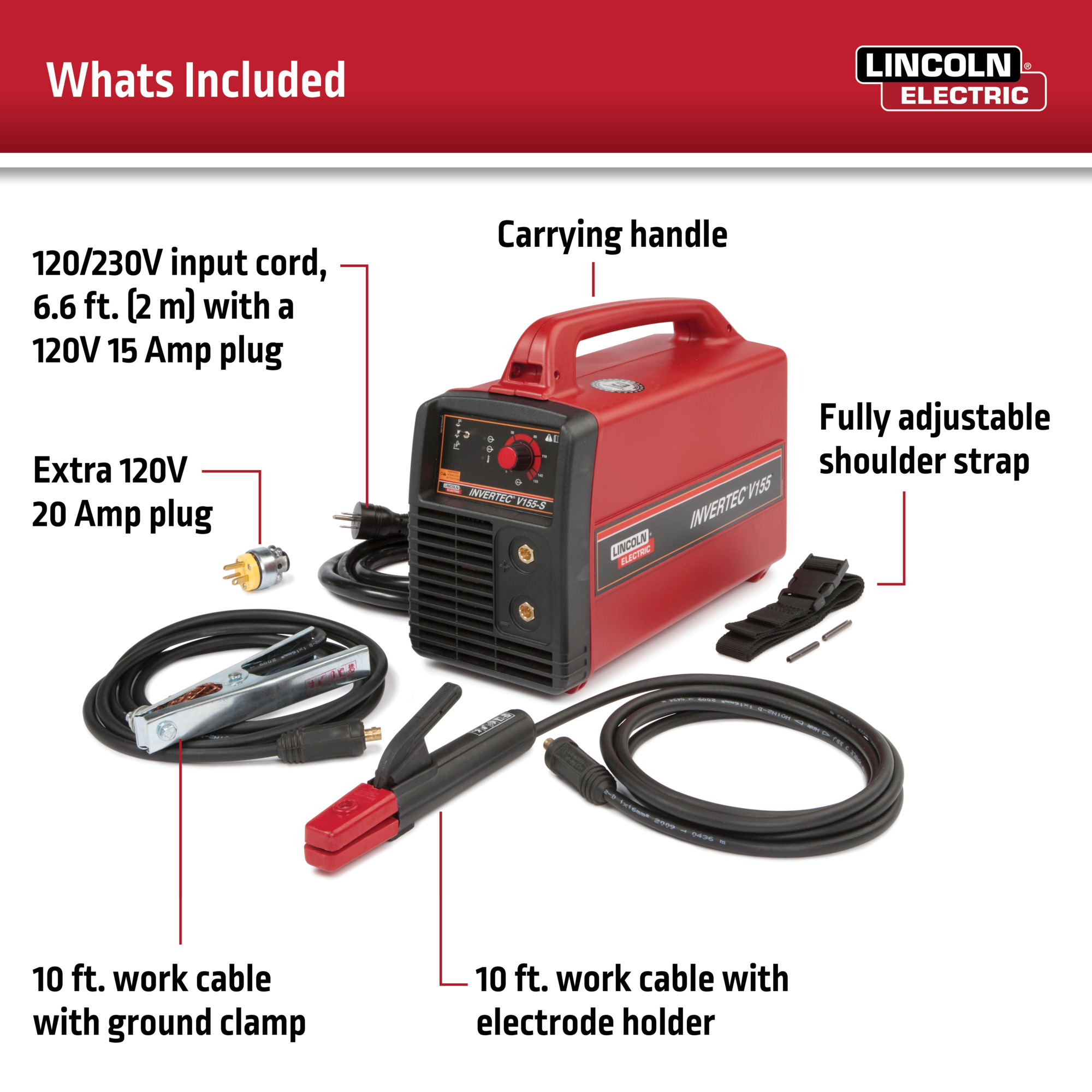

What's Included

    (1) Welder (1) Stick electrode holder (1) Cable (1) TwistMate™ plug (1) Adjustable shoulder strap (1) Extra 120V 20 Amp plug

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Two stick modes, SOFT and CRISP, provide the right arc characteristics for different types of electrodes.
  • Fan-As-Needed (F.A.N.™) reduces noise and dust inside the machine.
  • Auto-Adaptive Arc Force minimizes electrode sticking in the puddle without compromising arc stability or increased spatter.
  • Automatic Hot Start boosts the current during starting to make striking an arc easier.
  • Touch Start TIG mode - it’s like getting a TIG welder for free!
  • Arc and TIG welding capabilities
  • Welds steel, stainless, brass, copper
  • 5-155 Amp Output
  • 30% duty cycle
  • 120/230V auto reconnect operation
  • Dent-resistant case is rated for outdoor use
  • Auto restore fuse protects machine from input overcurrent and self-resets without difficult fuse changes
  • Fan As Needed™ feature reduces noise and dust inside machine
  • Requires 3000 Watt generator to run 120V; requires 5000 watt generator to run 220V (generators sold separately)
  • Includes stick electrode holder, cable, 120/230V input cord, 120V/15 Amp TwistMate™ plug, extra 120V/20 Amp plug, and shoulder strap

Key Specs

AttributeSpecification

item#

164588

Brand

Lincoln Electric

Manufacturer's Warranty

3 year limited warranty

Ship Weight

1.0 LB

Volts

120/230
AttributeSpecification

Max. Amps

155

Power Type

DC

Welding Processes

Stick, TIG

Duty Cycle

75A/23.0V/100%

Min. Amps

5

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. What’s the thickest steel I can use this on

    1 answer

    1. The thickest steel that the welder is able to weld is 1/4" thick.

      Helpful?

  2. Would the invertec v-155 work in a standard dryer receptacle or stove receptacle?lug (30 Amp

    I believe the standard dryer is rated 30a and stove is 50a. Wondering which plug to buy.

    1 answer

    1. This Invertec Arc Welder/stick welder comes with a 120/230v input cord with a 120 volt 15 amp plug and also a extra 120 volt 20 amp plug. If you ran it on the 230 volt you could use a 30 or 50 amp plug.

      Helpful?

  3. V155 manual recommends NEMA 6-30P but portable generators have NEMA L14-30

    th V155 manual states:

    230V INPUT
    To achieve the full output capacity of the V155-S,
    230VAC inputs should be used. The change over is
    accomplished by replacing the 120VAC plug with a 30
    Amp 230VAC plug (NEMA 6-30P). (and suggests 30A)

    Question: most portable generators rated at the necessary 10000 running watts have a NEMA L14-30 receptacle. Would this mean not using the NEMA 6-30P and instead use a L14-30 plug or just use an adapter? Want to make sure that there are no grounding or safety issues.

    Thanks

    1 answer

    1. If you wish to use this welder at full power through a portable generator, the manufacturer recommends using an adapter from the 6-30P to the L14-30. As long as everything is wired correctly, there should be no grounding or safety concerns.

      Helpful?

  4. Lincoln Electric Invertec V155-S 120/230V

    I have a generator that is rated at 8550 watts. It has 1 120/240 Volt - 30 Amp AC plug. In addition to 4 standard 120 Volt - 20 Amp AC plugs.

    Will this Lincoln Invertec V155-S mini stick welder operate with this generator ?

    1 answer

    1. The Lincoln Welder should work with your 8550 rated generator hooked up to 120 or 230 voltage according to the manufacturer.

      Helpful?

  5. will a 2300 watt generator run this welder

    1 answer

    1. This welder would require a generator that produces a minimal of 7200 running watts.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

3 year limited warranty
