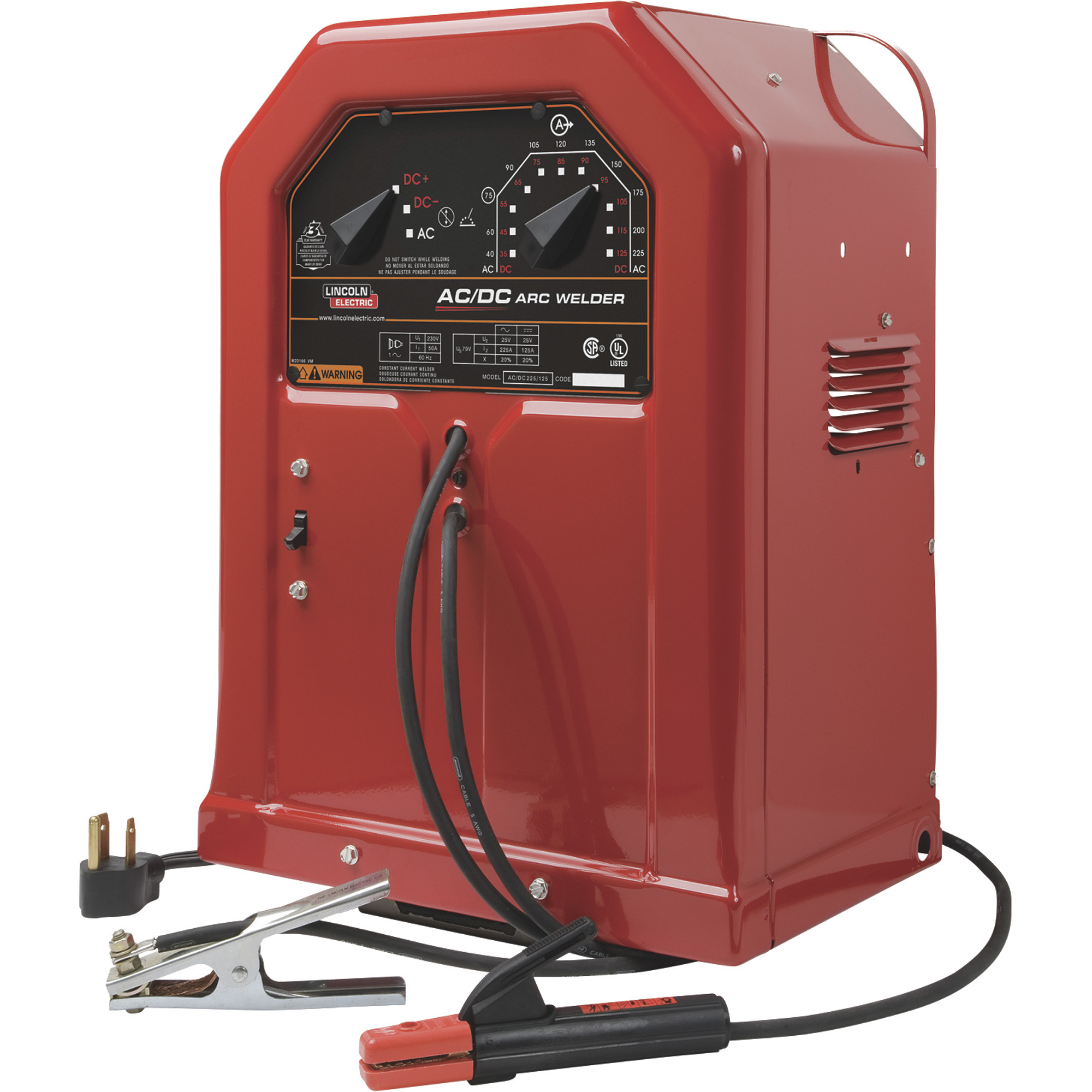

Lincoln Electric, AC/DC 225/125 STICK WELDER, Max. Amps 225 Model# K1297

Item# 167744
"Lincoln Electric 225/125 AC/DC Arc Welder, Transformer, 230 Volts, 30-125 Amp DC/40-225 Amp AC Output, Output, Model# K1297"
Lincoln Electric, AC/DC 225/125 STICK WELDER, Max. Amps 225 Model# K1297

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lincoln Electric, AC/DC 225/125 STICK WELDER, Max. Amps 225 Model# K1297

Click or Tap image to Zoom

  • Versatile unit offers both AC and DC arc welding capabilities
  • Front-mounted AC/DC polarity switch and full range amperage selector switch provide accurate and dependable procedure setting
  • Welds carbon, low alloy, stainless steel and cast iron
  • Amperage range: 40-225 Amps AC, 30-125 Amps DC
  • Duty cycle: 20% @ 225 Amps, 25V

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Lincoln Electric 225/125 AC/DC Arc Welder is the deluxe version of Lincoln's AC-225 arc welder. It gives the user the same traditional design and functionality of the AC-225 but adds the smoother, more traditional DC welding arc, making it an ideal choice for the farm, shop, home or anywhere improved arc welding performance is desired. It provides AC arc welding power from 40-225 Amps and a DC welding output range of 30-125, making it extremely useful as a stick welding power source for maintenance, repair, fabrication, construction, erecting and hardfacing applications. You can also use the AC/DC 225/125 for cutting and piercing holes in steel. Requires a 50 Amp circuit breaker. NEMA rated; UL listed; CSA approved.

What's Included

    (1) Welder (1) Insulated electrode holder and cable (1) Input cable with attached plug

Downloads

Product Manual
Play Item Video

Built For Superior Performance

Versatility To Match Your Job

Need one welder that can do it all? The Lincoln Electric AC/DC 225/125 230V Stick Welder uses the same proven design as the renowned AC-235 arc welder, but adds a smoother, more stable welding arc. The result is a welder that's great for use in the shop, on the farm, or for maintenance and repair needs, yet in a compact size that's easy to take almost anywhere. The broad 40–225 amp range produces a smooth arc regardless of the metal you are welding. The 30–125 Amp DC output range delivers a smooth arc that makes it easy to weld with a variety of electrodes.

Durability To Go The Long Haul

The AC/DC225/125 is durable enough to handle job after job. This powerful machine is designed for 16-gauge metals and higher and is capable of welding multiple metals including steel, cast iron and stainless steel. An insulated electrode holder and cable and a heavy-duty work clamp and cable help to set this machine above the rest.

Powerful Output To Get The Work Done

The AC/DC225/125 offers an open circuit voltage of 230 volts plus 225 Amp AC output. This ensures an easy strike to start welding and a smooth AC arc to keep you welding. This machine is a great choice for build-up welding and light fabrication.

Easy To Use

User-Friendly Design

Whether you're a beginner or an experienced welder, the simple design of this machine makes it very easy to use. Just plug it into a 230 Volt outlet and you're ready to go. The full range amp selector switch quickly sets the welding current and ensures a uniform arc each and every time you weld.

Ready To Weld Right Out Of The Box

The AC/DC225/125 comes with everything you need to weld right out of the box. This machine includes an insulated electrode holder and cable, a heavy-duty work clamp and cable and an input cable with attached plug, making setup easier than ever.

Easy-To-Operate Amp Selector

If you're looking for versatility, this welder has it with a full range 40–225 amp selector switch. The switch quickly sets the welding current and ensures a uniform arc each time you weld. The smooth arc also makes it easy to weld with different electrodes, including mild steel, low hydrogen, stainless steel and hard-facing electrodes. The front-mounted AC/DC polarity switch and full range amperage selector switch provide accurate and dependable procedure setting.

Built To Last

Time-Tested Original

The Lincoln Electric AC/DC225/125 Stick Welder is a quality built machine that uses top-notch components to deliver lasting performance. This machine is NEMA rated, UL listed and CSA approved, so you never have to think twice about the quality you're getting.

Add The Extras

By adding a few extras you can customize performance and enhance this welder to meet your needs. The Lincoln Electric wheel kit (Item #49520, sold separately) adds easy portability throughout the shop. Additional electrodes are also available (sold separately) to match your welding needs.

Weld With Confidence

Expert Answers Are Available

Northern Tool + Equipment is here to help you succeed. Our field-trained, dedicated team of welding experts is ready to help — call or email and you'll get a prompt response.

The Lincoln Electric Advantage

The Lincoln Electric AC/DC225/125 Stick Welder is built to last and perform. But to give you extra peace of mind, Lincoln Electric stands behind this product with a 3-year limited warranty.

Guaranteed Satisfaction

Shop in complete confidence, knowing that Northern Tool + Equipment protects your investment and is ready to provide you with the assistance and helpful resources you need.

Features + Benefits

  • Versatile unit offers both AC and DC arc welding capabilities
  • Front-mounted AC/DC polarity switch and full range amperage selector switch provide accurate and dependable procedure setting
  • Welds carbon, low alloy, stainless steel and cast iron
  • Amperage range: 40-225 Amps AC, 30-125 Amps DC
  • Duty cycle: 20% @ 225 Amps, 25V
  • Welds up to 1/4in.; electrode sizes 3/16in. to 5/32in. AC and up to 1/8in. DC
  • Smooth arc for easy welding with mild steel, low hydrogen, stainless and hardfacing electrodes
  • Traditional design for long life and low cost operation
  • Compact size for easy storage and handling
  • Smooth arc allows use of a variety of electrodes, including mild steel, low hydrogen, stainless and hardfacing
  • Electrode selection chart on machine case provides quick and easy reference guide
  • Fan cooled for extra thermal protection
  • Applications: home, farm, shop, repair and maintenance, light fabrication, hardfacing
  • Durable powder-coat finish
  • Easy to install; includes attached input power cable and NEMA 6-50P plug, insulated electrode holder and cable, along with heavy-duty work clamp and cable

Key Specs

AttributeSpecification

item#

167744

Brand

Lincoln Electric

Manufacturer's Warranty

3 year limited warranty

Ship Weight

117.0 LB

Volts

230

Max. Amps

225

Power Type

DC

Multi-process

No
AttributeSpecification

Duty Cycle

20% At 225a

Weldable Materials

Carbon, Low Alloy, Stainless Steel, Cast Iron

Min. Amps

30

Power Cord Length

6 ft

Clamp Cable Length

10 ft

Electrode Cable Length

10 ft

Product Weight

lb

Dimensions L x W x H (in.)

12.0 x 17.25 x 24.0 in

Reviews

Questions & Answers

46 Reviews This action will navigate to reviews.

Questions

1–10 of 22 Questions
Sort by:

  1. i have a 60 amp service in my shed will it be enough amps to run the lincoln ac/dc 225/125 welder

    I have a 60 amp electical service in my shed. will it be enough amps to run the lincoln electric ac/dc 225/125 welder?

    1. 60 amps is enough amperage to operate the welder. The minimum is a 50 amp breaker.

      Helpful?

    2. Yes you have plenty of power with a 60 amp service. It requires a dedicated breaker.

      Helpful?

    3. My Hobart can pull a bit more than your Lincoln (235) and I have it hooked to a 50 amp service in my shed. We ran 6/2 wire for the electrician. As I had no idea what I was doing at first and I never got the advice from our electrician before I bought the materials for the shed electricity, I only had the welder's manual to go by to see what I needed. 50 amp does the trick. No lights dimming around the house, no flipped breakers. Good to go.

      Helpful?

  2. Can you attach longer leads or power cable

    1. Yes you can.

      Helpful?

    2. Additional leads can be connected to the existing lugs (insulated) for up to 25 feet (using 4 gauge) and 50-100 feet (using 2 gauge). A longer 8/3 gauge rated power cord can be used to extend the existing 6 gauge power cord (with a 6-50 plug adapter) an additional 25-50 feet.

      Helpful?

  3. Where is this welder made

    1. The K1297 is made in the U.S.A.

      Helpful?

    2. This welder is manufactured in the United States.

      Helpful?

  4. What thickness can this weld for ac & dc?

    Steel thickness

    1. This Lincoln Electric AC/DC 225/125 230V Stick Welder is capable of welding medium, heavy and thick plate steel. For medium steel it can weld 1/16" to 7/64" using a 3/32 electrode, for heavy steel it can weld 1/8" to 3/16" using a 3/32-1/8 electrode, and with thick steel it can weld 1/4" and up using an 1/8-5/32 electrode.

      Helpful?

    2. This welder can weld Medium, heavy and thick plate thicknesses
      Medium steel 1/16 to 7/64 / use 3/32 electrode
      Heavy steel 1/8 to 3/16 / use 3/32 - 1/8 electrode
      Thick steel 1/4 and up use 1/8 - 5/32 electrode

      Helpful?

  5. I have a Lincoln AC/DC 225/125 , 60 Hz , with a 20 % duty cycle I would like to know what size breaker,size and type wire to run to service panel

    1. Consult a licensed electrician for any specifics, but this is an extremely common installation.

      Lincoln lists maximum AC Amperage as 50A @ 230V. Best safety is provided with a 60-amp 230V breaker, 6 or 8 AWG wire, 6/2 with ground or 8/2 with ground.

      You can run her off DC power as well, but you're probably not talking about shipboard power.

      Helpful?

    2. The size of the breaker is 50 amp. The size of the wire is not given due to liability. You will want to check with your local electrician for the wiring.

      Helpful?

  6. Cables, Which is which ????

    I bought me one of these welders but I haven't found nowhere which cable is the electrode cable (the one coming out of the top hole or the bottom one), and which is the clamp cable? Or it doesn't matter ??? Thanks for your feedback !!!!!!!!!!!!

    1. It does matter. My suggestion would be to put the welder on DC+, and use a multi meter between between the leads. The + one would be the stinger.
      Also, the lead with the bare end should be the stinger, the lead with the lug attached should be the ground.

      Helpful?

    2. The red and black cable would be the clamp cable and the silver cable is the electrode cable.

      Helpful?

  7. How long is the power cord and how are long are the leads?

    1. The power cord is 6 feet. The positive and negative leads are 10 feet in length.

      Helpful?

    2. This Lincoln has a 6 foot power cord and comes with 10 foot leads.

      Helpful?

  8. Is this welder a three phase or singlephase?

    1. Lincoln Electric AC/DC 225/125 Arc Welder - 40-225 Amp, Model# K1297
      Is a single phase 220 volt unit.

      Helpful?

    2. This Lincoln welder is single phase.

      Helpful?

  9. Can this machine use 6010 electrodes

    1 answer

    1. You would be able to use 6010 electrodes with this welder.

      Helpful?

  10. Can this unit be operated at 100% duty cycle at a lower amperage?

    1 answer

    1. At AC: 225A/25V the welder will have a 20% duty cycle. At DC: 125A/25V the welder will have a 20% duty cycle. It will not have a 100% duty cycle at a lower amperage.

      Helpful?
