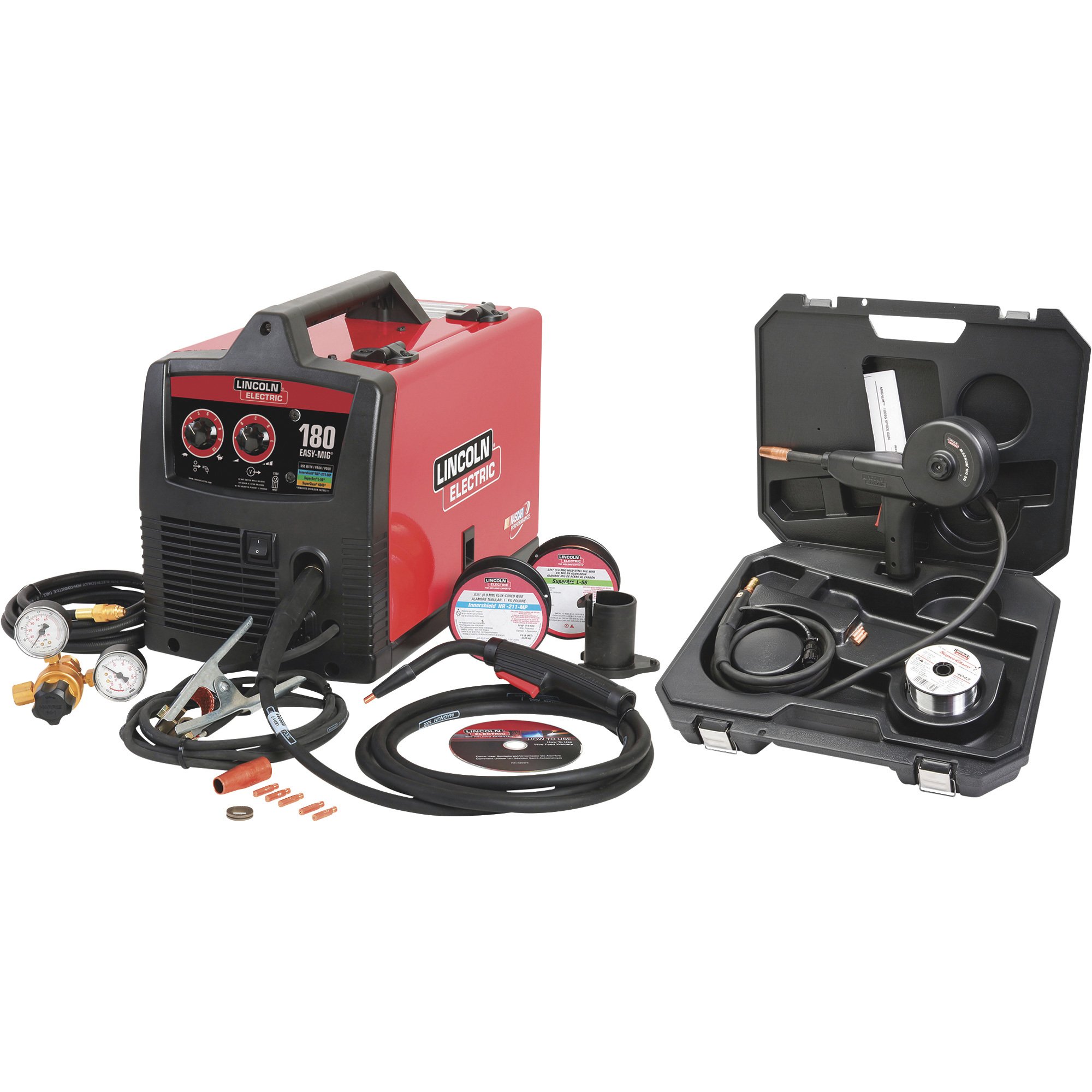

Lincoln Electric 180A Easy MIG Weld Kit — Includes K2532-1 Spool Gun

Item# 113740
Lincoln Electric 180A Easy MIG Weld Kit — Includes K2532-1 Spool Gun

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lincoln Electric 180A Easy MIG Weld Kit — Includes K2532-1 Spool Gun

Click or Tap image to Zoom

  • Spool gun is lowest cost way to add reliable and precise wire feeding for soft aluminum wire
  • Easy to set up for novice and experienced welders on Lincoln Electric compact wire feeder/welders
  • Lightweight at only 3.5 lbs. (1.6 kg.)
  • All aluminum alloys and recommended wire diameters can be fed with same drive roll and liner assembly
  • Ergonomic grip and balanced design

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Lincoln Electric 180A Easy MIG Weld Kit includes the K2532-1 Spool Gun and is an excellent choice for farm, light fabrication, auto and home projects. If you have access to 208/230 Volt input power, you can weld on thicker material. The simple 2-knob control makes it easy to tackle thin steel, stainless or aluminum sheet metal with MIG or thicker steel with flux-cored welding. The heavy-duty wire drive is fully adjustable to reduce the chance of wire tangling and crushing. Brass-to-brass gun connection enhances conductivity. The durable cast aluminum gear box delivers added drive torque and quiet operation. The easy-turn numeric drive tension indicator identifies optimized ranges for different wire diameters. The high-performance forgiving arc makes dialing in your application easy, and a smooth arc starts with minimal spatter. Welding output is a wide 30–180 Amp range. You can MIG weld 24 gauge up to 3/16 in. (4.8 mm) sheet metal in a single pass. You can weld up to 1/2in. (12.7 mm) steel using self-shielded Lincoln Electric Innershield® (FCAW-S) wires.

What's Included

  • (1) K2698-1 Easy MIG 180

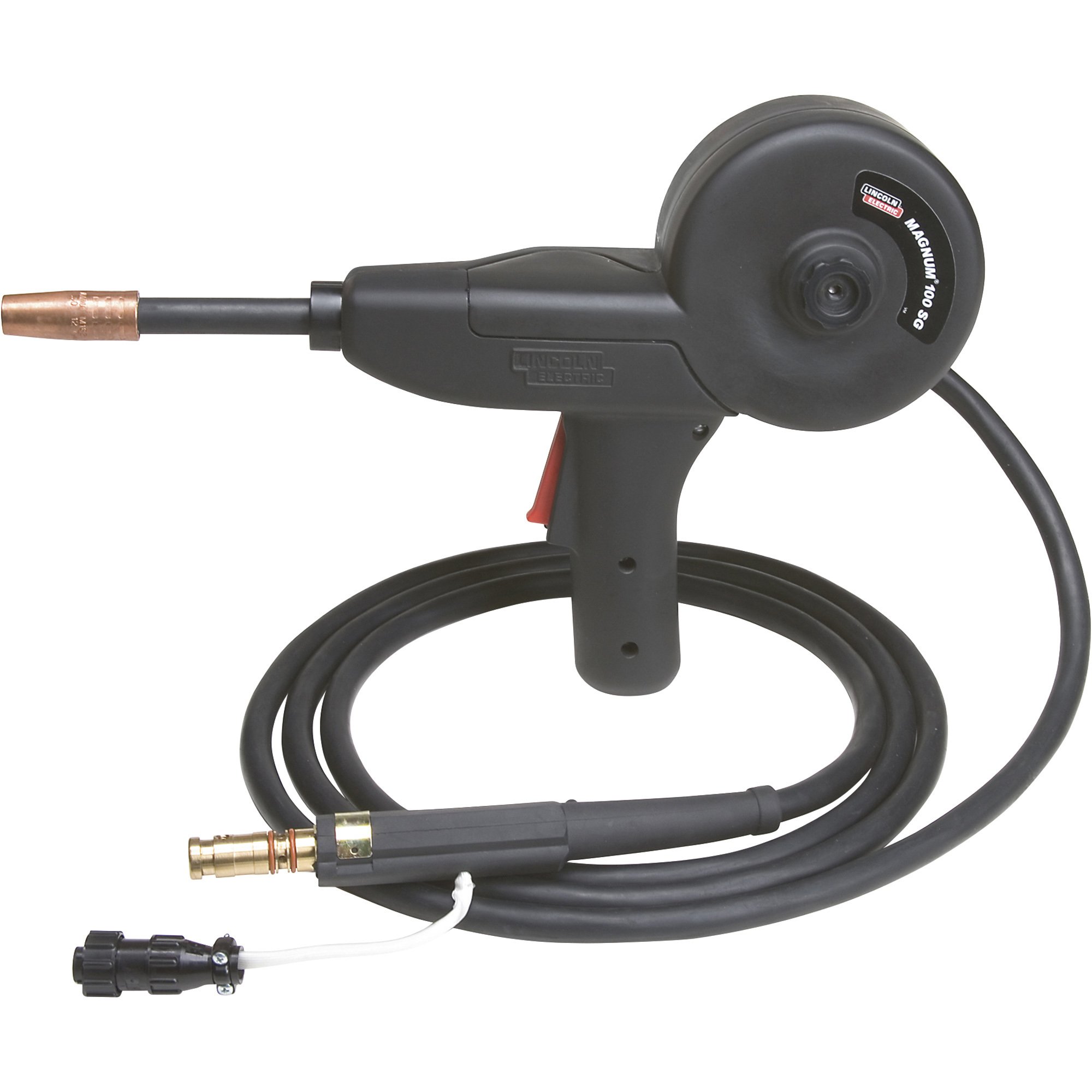

  • (1) K2532-1 Spool Gun

Features + Benefits

  • Spool gun is lowest cost way to add reliable and precise wire feeding for soft aluminum wire
  • Easy to set up for novice and experienced welders on Lincoln Electric compact wire feeder/welders
  • Lightweight at only 3.5 lbs. (1.6 kg.)
  • All aluminum alloys and recommended wire diameters can be fed with same drive roll and liner assembly
  • Ergonomic grip and balanced design
  • Full travel mechanical trigger can be easily felt through welding glove
  • 10ft. (3.0m) gun cable, control harness and gun connector offers fast connections to welding machine
  • No expensive gun or bulky adapter module is required
  • Cushioned carrying case protects gun during transport and storage.

Key Specs

AttributeSpecification

item#

113740

Brand

Lincoln Electric

Manufacturer's Warranty

3 year limited warranty

Ship Weight

75.0 LB

Volts

Multi

Max. Amps

180

Multi-process

Yes

Max. Weld Thickness

0.5 in

Max. Welding Wire Diameter

0.045 in

Duty Cycle

30% at 130A

Weldable Materials

Mild steel, aluminum
AttributeSpecification

Min. Amps

30

Wire Feed Speed Control

Yes

Cart Included

No

Mig Ready

Yes

Power Cord Length

10 ft

Clamp Cable Length

10 ft

Regulator and Gas Hose Included

Yes

Shielding Gas Required

No

Product Weight

56 lb

Dimensions L x W x H (in.)

14 x 10.15 x 18.2 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty
