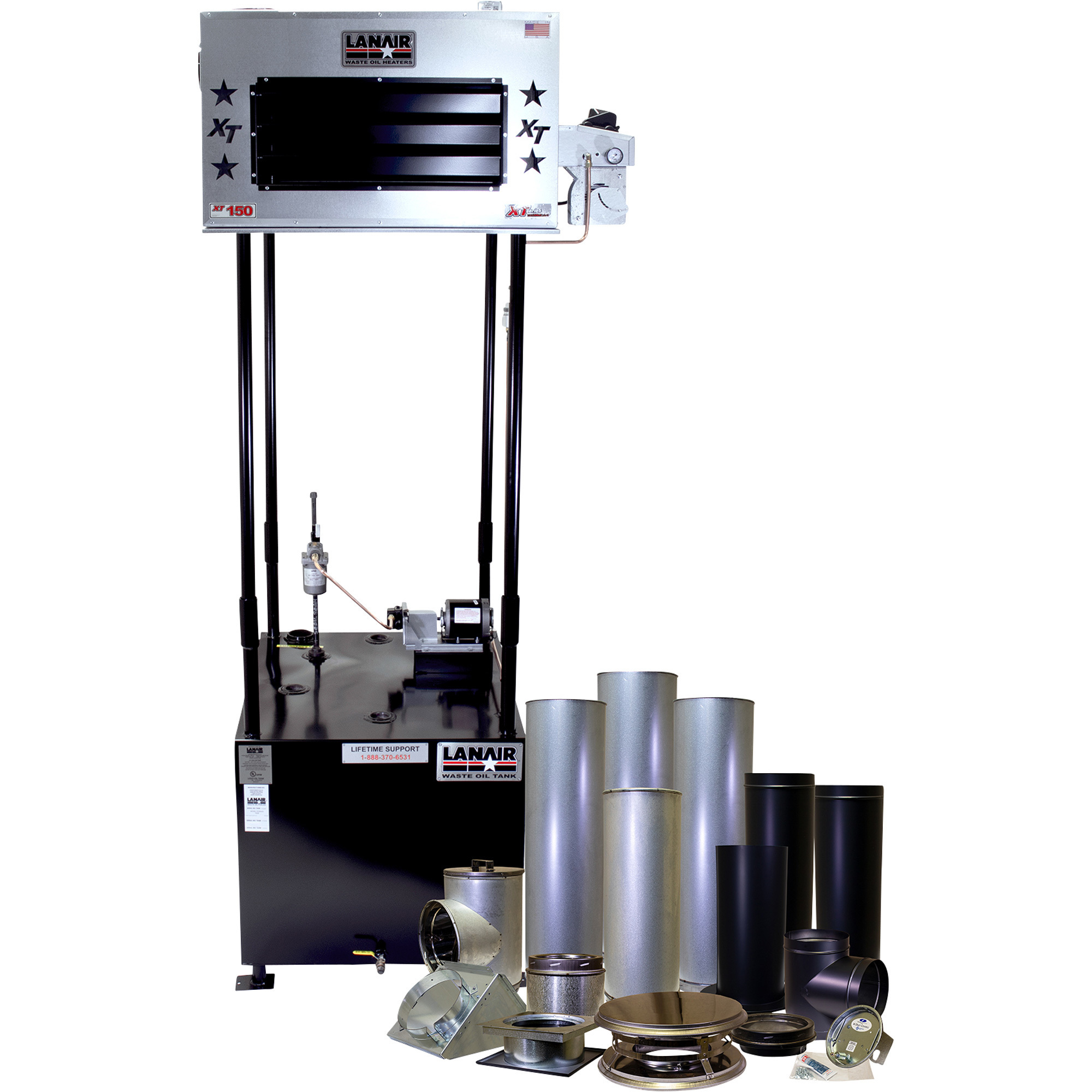

LAINAIR Waste Oil-Fired, Thermostat-Controlled Heater Package 4, 150,000 BTU, 3500 Sq. Ft. Capacity, Model# XT-150 HEATER

Item# 112900
LAINAIR Waste Oil-Fired, Thermostat-Controlled Heater Package 4, 150,000 BTU, 3500 Sq. Ft. Capacity, Model# XT-150 HEATER

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

LAINAIR Waste Oil-Fired, Thermostat-Controlled Heater Package 4, 150,000 BTU, 3500 Sq. Ft. Capacity, Model# XT-150 HEATER

Click or Tap image to Zoom

$10,034.14

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • XT-150 heater burns 100% synthetic, conventional, transmission fluid #1 and #2 fuel oil (diesel)
  • Pump, filter, fuel piping kit, fuel lines, fittings and hour meter burner
  • Rust-resistant galvanized cabinet
  • Adjustable locking louvers
  • Axial fan

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The LAINAIR Waste Oil-Fired, Thermostat-Controlled Heater Package 4 helps you control rising energy costs. Waste oil not only eliminates the cost to haul used oil offsite, but it can also reduce your heating bills. In addition, burning waste oil to get "free" heat deals with a major pollution problem in an environmentally friendly way. This complete package is designed for commercial use. Advanced atomization technology with monthly maintenance eliminates the tedious daily cleaning required by old vaporization technology. Heat output varies with fuel type, building design, placement and heat loss. Not for residential use. Please Note--Heater can be mounted on 215-gal. tank OR mounted from ceiling. This item is not for sale in the state of California. Customers are responsible for checking local codes and regulations prior to purchase.

What's Included

    (1) Heater (1) 215-gal. oil tank (1) Chimney kit (1) 2600 CFM blower (1) Thermostat (1) 6in. through-wall chimney

Downloads

Product Manual

Features + Benefits

  • XT-150 heater burns 100% synthetic, conventional, transmission fluid #1 and #2 fuel oil (diesel)
  • Pump, filter, fuel piping kit, fuel lines, fittings and hour meter burner
  • Rust-resistant galvanized cabinet
  • Adjustable locking louvers
  • Axial fan
  • Chimney pipe: Class A kit for 16ft. eave through-wall
  • Chimney location: top/left side
  • AC power: 120V; 60 Hz
  • Compressed air (customer supplied): 2 CFM, 15 PSI
  • Combustion chamber: 12 GA CRS
  • Hanging weight (lbs.): 453
  • UL listed Included
  • 48in.L x 40in.W x 24in.H

Key Specs

AttributeSpecification

item#

112900

Brand

Lanair

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1096.0 LB

Heat Output

150,000 Btu/hour

Heating Capability

3,500 ft²

Volts

120

Amps

20
AttributeSpecification

Fuel Capacity

215 Gal

Fuel Consumption

1.1 GPH

Blower Included

Yes

Thermostat Included

Yes

Blower CFM

2,600

Chimney Pipe Size

6 in

Product Weight

lb

Dimensions L x W x H (in.)

48.0 x 40.0 x 24.0 in
