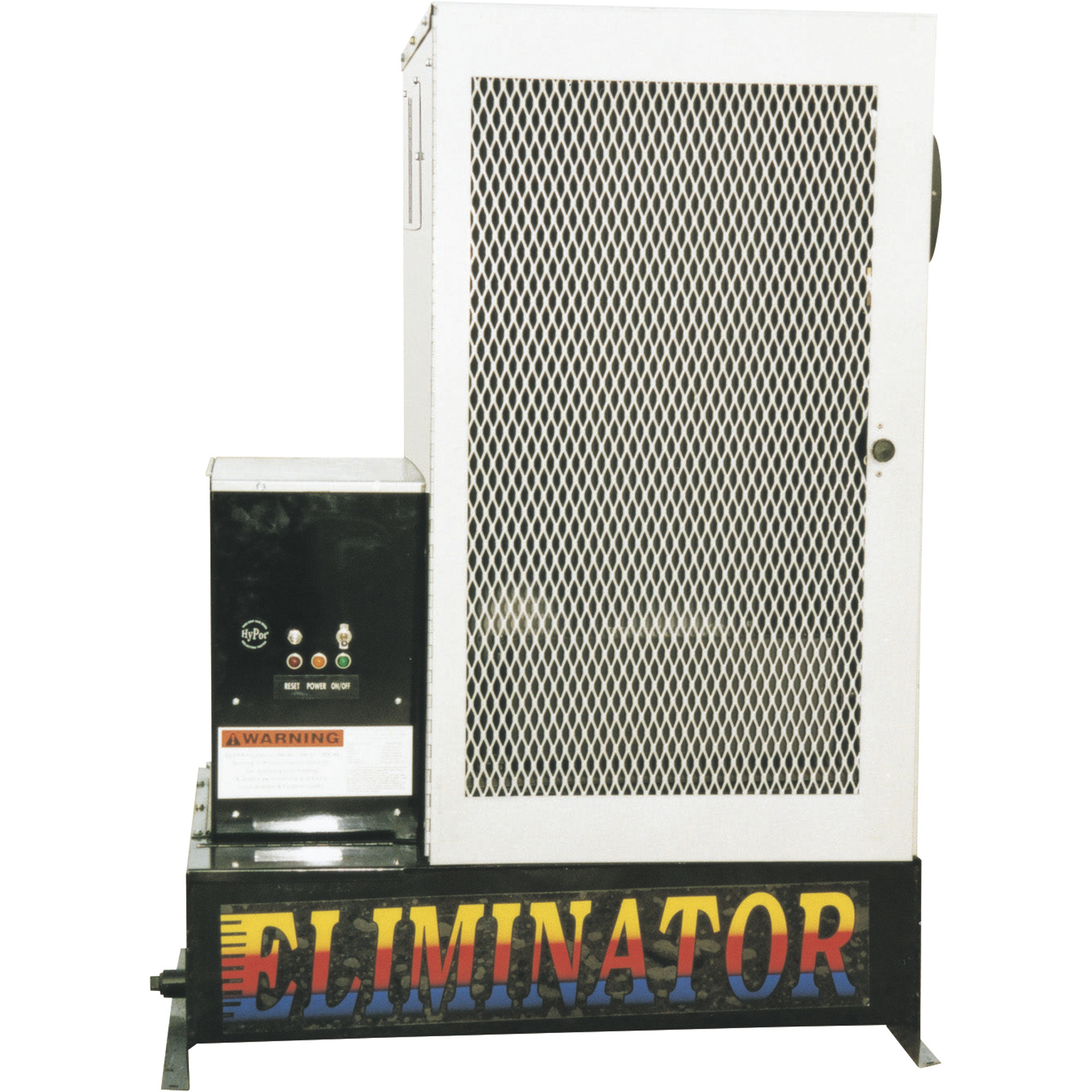

Eliminator Shop and Garage Waste Oil Heater, 120,000 BTU, Model# AENH-001

Item# 221550
Top Seller
Eliminator Shop and Garage Waste Oil Heater, 120,000 BTU, Model# AENH-001

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Eliminator Shop and Garage Waste Oil Heater, 120,000 BTU, Model# AENH-001

Click or Tap image to Zoom

$4379.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Burns waste oil, new oil, vegetable oil and transmission fluid
  • Generates clean, affordable heat
  • Control box has integrated circuit board and indicator lights for easy operation
  • Remote thermostat
  • Dependable stainless steel fuel pump

See full description

Complete Your Solution

  • Eliminator Shop and Garage Waste Oil Heater, 120,000 BTU, Model# AENH-001
  • Mechanix Men's Wear M-Pact Glove - Covert, Large, Model# MPT-55-010
Price for all two:

$4414.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Eliminator shop heater burns up to 4/5 of a gallon of waste or vegetable oil per hour. Ideal for garage, fleet maintenance and other facilities. Easy to maintain. Truck Ship. U.S.A.

Downloads

Product Manual

Features + Benefits

  • Burns waste oil, new oil, vegetable oil and transmission fluid
  • Generates clean, affordable heat
  • Control box has integrated circuit board and indicator lights for easy operation
  • Remote thermostat
  • Dependable stainless steel fuel pump
  • Note: user needs to light unit before operation
  • Model AENH-001

Key Specs

AttributeSpecification

item#

221550

Brand

Eliminator

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

250.0 LB

Heat Output

120,000 Btu/hour

Volts

115

Amps

3.8
AttributeSpecification

Fuel Capacity

15 Gal

Fuel Consumption

0.8 GPH

Thermostat Included

Yes

Chimney Pipe Size

6 in

Product Weight

lb

Dimensions L x W x H (in.)

30.0 x 23.0 x 42.0 in

Reviews

Questions & Answers

14 Reviews This action will navigate to reviews.

Questions

1–10 of 32 Questions
Sort by:

  1. Must it ignited at every call for heat?

    1. Once the unit is on it will keep running until you shut it off or it runs out of oil. When it hits the temperature you want on the thermostat then it just switches into low mode. So you will always have a fire going.

      Helpful?

    2. This unit does not have to be reignited for increased heating.

      Helpful?

  2. does it come with the exhaust stack?

    1. CHIMNEY PIPE IS NOT INCLUDED

      Helpful?

    2. The Eliminator Shop and Garage Waste Oil Heater does not come with any vent piping.

      Helpful?

  3. Does this create a lot of smoke out of the chimney when in use?

    1. mine is pretty clean. very little particulates.

      Helpful?

    2. This heater will produce a lot of smoke out of the chimney when in use.

      Helpful?

  4. What is the maximum sq footage that this will heat in coordination w/ceiling height

    1. Our shop is three bays, 14 ' ceilings, and spread out plus office space. We move the air around with fans. When the wind comes up or the temperature goes below 20* we use additional propane heaters.

      Helpful?

    2. There is no exact answer to this question. It is dependent on your location within the United States and how well your area is insulated. It will heat approximately 1200 square feel with a 9 foot ceiling.

      Helpful?

  5. do you need a air compresser to run this unit?

    1. No this is an old fashion pan heater.

      Helpful?

    2. The Eliminator shop and garage waste oil heater does not require an air compressor.

      Helpful?

  6. Can you adjust how much heat oput there is therefore varying the amout of oil it burns?

    1. It has a thermostat that runs heater on low or high, I do not know what the oil usage is for each. It will use about 20 gallons in a 24 hour period if it has to run on high to maintain temperature.

      Helpful?

    2. You can adjust the thermostat on this Eliminator Shop and Garage Waste Oil Heater, which will determine how much oil the unit will use.

      Helpful?

  7. Can it be used to burn Mineral Spirits type paint thinner?

    1. I would not , no......

      Helpful?

    2. You would not be able to burn mineral spirits in this waste oil heater.

      Helpful?

  8. Will this unit burn used Hydrolic Oils?

    1. yes

      Helpful?

    2. Yes, you can burn used hydraulic oil with this waste oil heater.

      Helpful?

  9. Crude oil?

    Will this burn unrefined crude oil with a gravity between 27-40?

    1. yes

      Helpful?

    2. To burn crude oil in the waste oil heater, the oil will need to be well filtered. Being we are unfamiliar with this type of oil for the heater, the best test is to place some of the oil in a pan, put it outside, and try to light the oil. If the oil will burn, then this oil will also burn in the waste heater.

      Helpful?

  10. How much Diesel fuel is needed to mix with synthetic oil to burn?

    I want to know how much diesel fuel to mix with Synthetic oil to be able to burn the synthetic oil in this heater.

    1. 10% diesel. I use 50% synthetic 50% hydraulic oil with no issues.

      Helpful?

    2. Being this has not been tested with the waste oil heater, it is suggested to start with a 50/50 mix of diesel and synthetic oil for burning. To determine if this is burning appropriately, check the oil pan in the bottom of the heater for excess oil. More or less diesel could be used for a better burn.

      Helpful?
