Laguna Metal Dust Collector - 1.5 HP, 110V, 490 CFM, 4.4-Gallon Capacity, Model# U|15

Item# 6490397
Laguna Metal Dust Collector - 1.5 HP, 110V, 490 CFM, 4.4-Gallon Capacity, Model# U|15

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Laguna Metal Dust Collector - 1.5 HP, 110V, 490 CFM, 4.4-Gallon Capacity, Model# U|15

Click or Tap image to Zoom

$2626.98

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Motor: 1.5 HP Motor Speed: 3450 RPM Electrical: 110 volt / 60 Hz / 1 Ph Amps: 10 FLA Switch: Magnetic Power Cord: 6 Ft Plug: 5-15P Inlet Size: 3" x 2 (+2" adapter)
  • Noise Volume: 71.5 dB Maximum Air Flow: 490 CFM Static Pressure: 9.4" H2O Impeller Size: 11" Diameter Collection Volume: 4.4 Gallons Filter Material: Galvanized micro mesh Filter Size: 19.25" x 9.5" x 1.8" Construction: Steel Cabinet – Aluminum Impeller
  • Start Capacitor: 200”F/125V Run Capacitor: 300”F/250V Wheels: 2.5" Swiveling Assembled Size (LxWxH): 35.5" x 32" x 29.3" Shipping Size (LxWxH): 35" x 26" x 30.7" Weight (Net/Gross): 165 lb / 185 lb

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

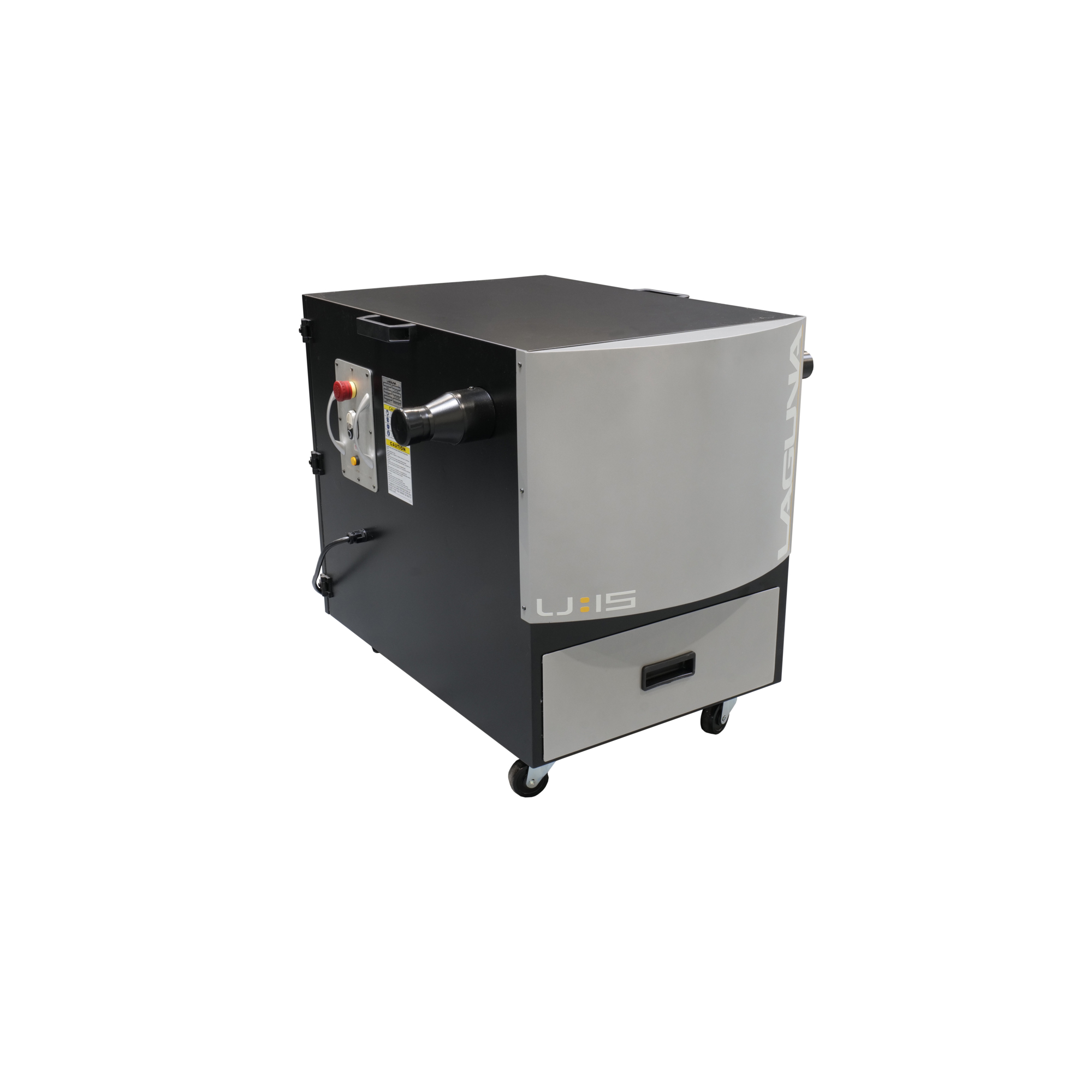

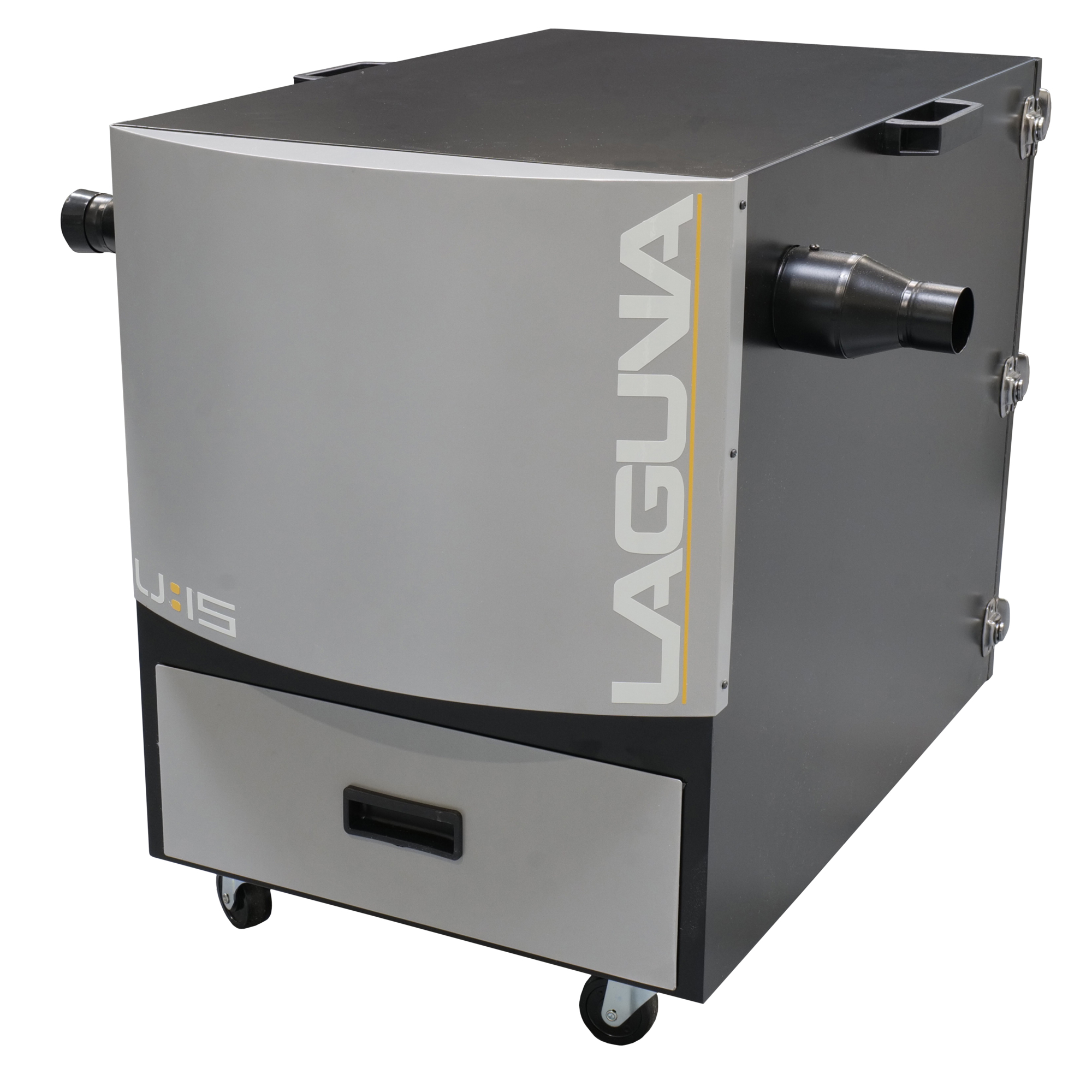

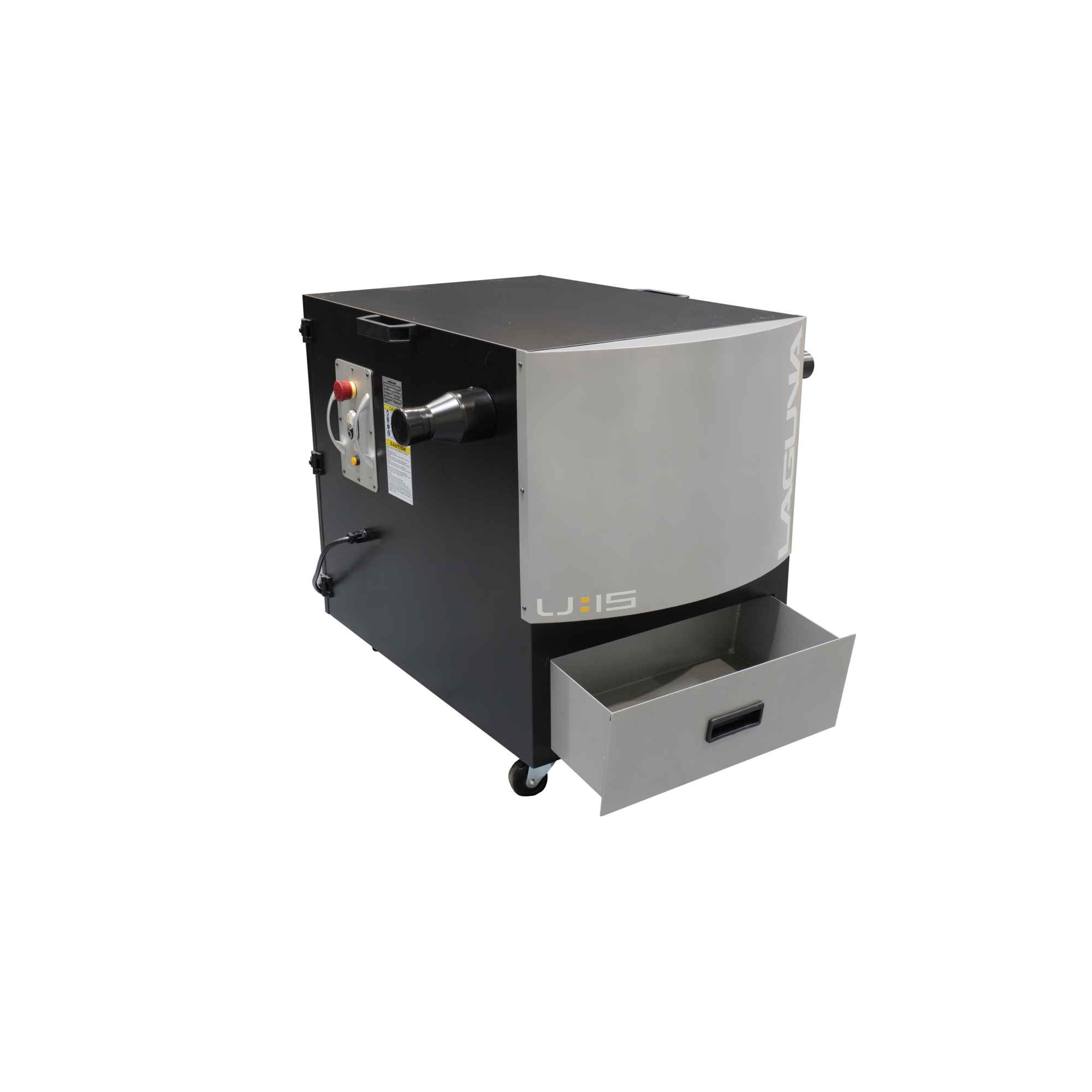

The Laguna Tools U|15 Metal Dust Collector combines power and efficiency in a compact design, perfect for smaller shops. Its 1.5 HP motor delivers up to 490 CFM, effectively capturing metal dust and shavings from multiple machines through two 3in. inlets (+2in. adapter). Built with a durable steel cabinet and aluminum impeller, the U|15 is designed for consistent performance. The 4.4-gallon metal collection drawer is easy to empty, while the fire-resistant micro mesh filter ensures cleaner air. With low noise output at 71.5 dB and smooth-rolling casters, this dust collector provides reliable dust control without disrupting your workspace

What's Included

    (1) Main housing (1) Drawer (1) Main housing cover (16) Flange bolt (2) Hose adapter (2) Adapter cover (4) Caster (1) Open wrench
Play Item Video

Features + Benefits

  • Motor: 1.5 HP Motor Speed: 3450 RPM Electrical: 110 volt / 60 Hz / 1 Ph Amps: 10 FLA Switch: Magnetic Power Cord: 6 Ft Plug: 5-15P Inlet Size: 3" x 2 (+2" adapter)
  • Noise Volume: 71.5 dB Maximum Air Flow: 490 CFM Static Pressure: 9.4" H2O Impeller Size: 11" Diameter Collection Volume: 4.4 Gallons Filter Material: Galvanized micro mesh Filter Size: 19.25" x 9.5" x 1.8" Construction: Steel Cabinet – Aluminum Impeller
  • Start Capacitor: 200”F/125V Run Capacitor: 300”F/250V Wheels: 2.5" Swiveling Assembled Size (LxWxH): 35.5" x 32" x 29.3" Shipping Size (LxWxH): 35" x 26" x 30.7" Weight (Net/Gross): 165 lb / 185 lb

Key Specs

AttributeSpecification

item#

6490397

Brand

Laguna

Manufacturer's Warranty

2 year limited warranty

Ship Weight

253.0 LB
AttributeSpecification

Product Type

Dust Collector

Product Weight

210.0000 lb

Dimensions L x W x H (in.)

30.0 x 30.0 x 27.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
