The 686cc at 15.4 HP is the correct information on this Kohler engine. The 15.4 HP would be listed at 11.5KW at 3600 RPM.

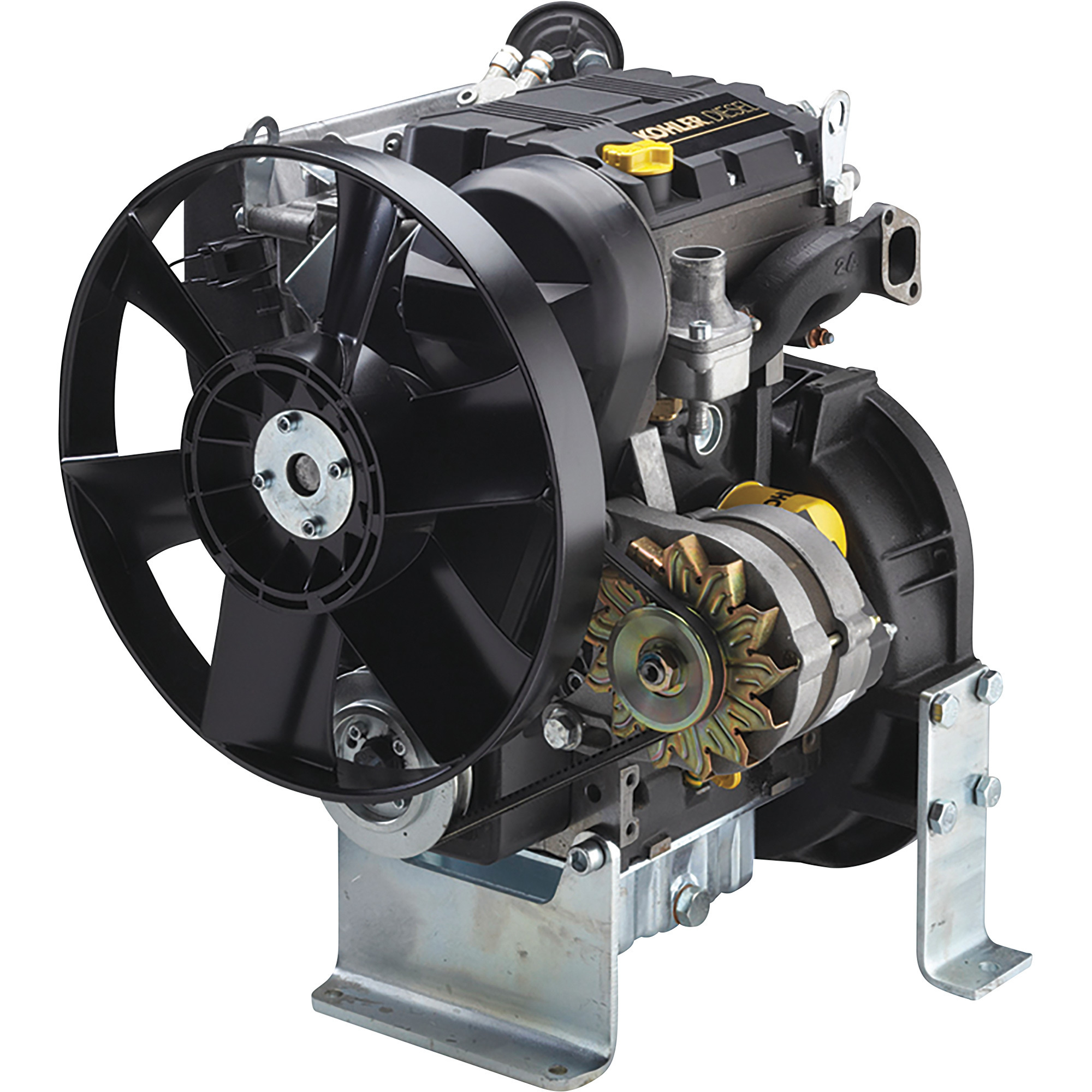

Kohler Liquid-Cooled Horizontal Diesel Engine - 686cc, 15.4 HP, 2-Cylinder, Electric Start, Model# PA-KDW702-1001A
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$6299.99
- 2 cylinder diesel engine has horizontal shaft with counterclockwise rotation
- Group 8 housing
- Liquid-cooled design
- 6.535in.L x 6.677in.W mounting base
- Electric start/electronic ignition
See full description
Price for all two:
$6319.98
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Horizontal Engines
See All Kohler Horizontal Engines
Currently Viewing This Product
Specifications
Specifications
Kohler Liquid-Cooled Horizontal Diesel Engine - 686cc, 15.4 HP, 2-Cylinder, Electric Start, Model# PA-KDW702-1001A
Honda 118cc GX Series OHV Commercial-Grade Engine, 3/4in. Shaft, Model# GX120T3XQX2
Honda Engines, HONDA 120CC OHV 6:1 ENGINE, Engine Displacement 118 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 3/4 in, Model# GX120T3XHX2
NorthStar c180 Horizontal OHV Engine with Recoil Start, 179cc, 3/4in. x 2-7/16in. Shaft
Engine Displacement
Same
686 cc
118 cc
118 cc
179 cc
Engine Type
Same
Diesel Horizontal
GX Series OHV Commercial-duty
GX Series OHV Commercial-duty
OHV
Shaft Length
Same
Grp 8 in
2.43 in
2.09 in
2.43 in
Fuel Type
Same
Diesel
-
-
-
Start Type
Same
Electric
Recoil
Recoil
Recoil
Net Torque
Same
25 ft-lbs.
5.4 ft-lbs.
5.4 ft-lbs.
9.5 ft-lbs.
PTO Height
Same
Grp 8 in
4.17 in
4.17 in
4.17 in
Cylinders (qty.)
Same
2
1
1
1
Cylinder Bore
Same
Aluminum
Cast Iron
Cast Iron
2.56
Net Power Output
Same
15.4 HP
3.5 HP
3.5 HP
3.7 HP
Compression Ratio
Same
22.8:1
8.5:1
8.5:1
8.5:1
Oil Capacity
Same
1.7 qt
0.59 qt
0.59 qt
0.58 qt
Low Oil Shutdown
Same
Yes
Yes
Yes
Yes
Low Oil Alert
Same
Yes
Yes
Yes
Yes
Max. RPM
Same
3,600
-
-
-
Grade
Same
Diesel
-
-
-
CARB Approved
Same
Yes
-
-
-
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Internal Flyweight Governor
Centrifugal Mechanical
Centrifugal Mechanical
Yes
Ignition System
Same
Electronic
Electronic
Electronic
Transitorical Configuration
Lubrication System
Same
Full Pressure With Full Flow Filter
Splash
Splash
Splash
Bearing Type
Same
Parent Material
-
-
Ball
Auto Compression Release
Same
No
Yes
Yes
Yes
Cooling System
Same
Liquid
Air
Air
Air
Bore
Same
3.75 in
2.4 in
2.4 in
2.55 in
Stroke
Same
3.1 in
1.7 in
1.7 in
2.125 in
Air Cleaner Type
Same
Single Element
Dual Element
Dual Element
Foam+paper
Choke Control
Same
Remote
Manual
Manual
Manual
Throttle Control
Same
Remote
Remote
Remote
Adjustable
Fuel Filter
Same
Yes
-
-
-
Charging System Amps
Same
45
-
-
No
Muffler Included
Same
Yes
Yes
Yes
Yes
Shaft Diameter
Same
-
3/4 in
3/4 in
3/4 in
Shaft Keyway
Same
-
0.18 in
0.25 in
1-51/64 in
Crankshaft
Same
-
Q-type
H-type
SAE J609EXT3 Straight Key W/shaft Dia.: 19.050mm (0.750in.) - Nominal
Fuel Tank Capacity
Same
-
2.1 qt
2.1 qt
3.49 qt
Carburetor
Same
-
Float
Float
Carburated
Shaft Diameter Metric
Same
-
-
-
19.05 mm
Shaft Length Metric
Same
-
-
-
61.7 mm
Fuel Tank
Same
-
-
-
Yes
Bolt Circle
Same
-
-
-
3.625 in
Mounting Base Length
Same
-
-
-
6.378 in
Mounting Base Width
Same
-
-
-
3.15 in
