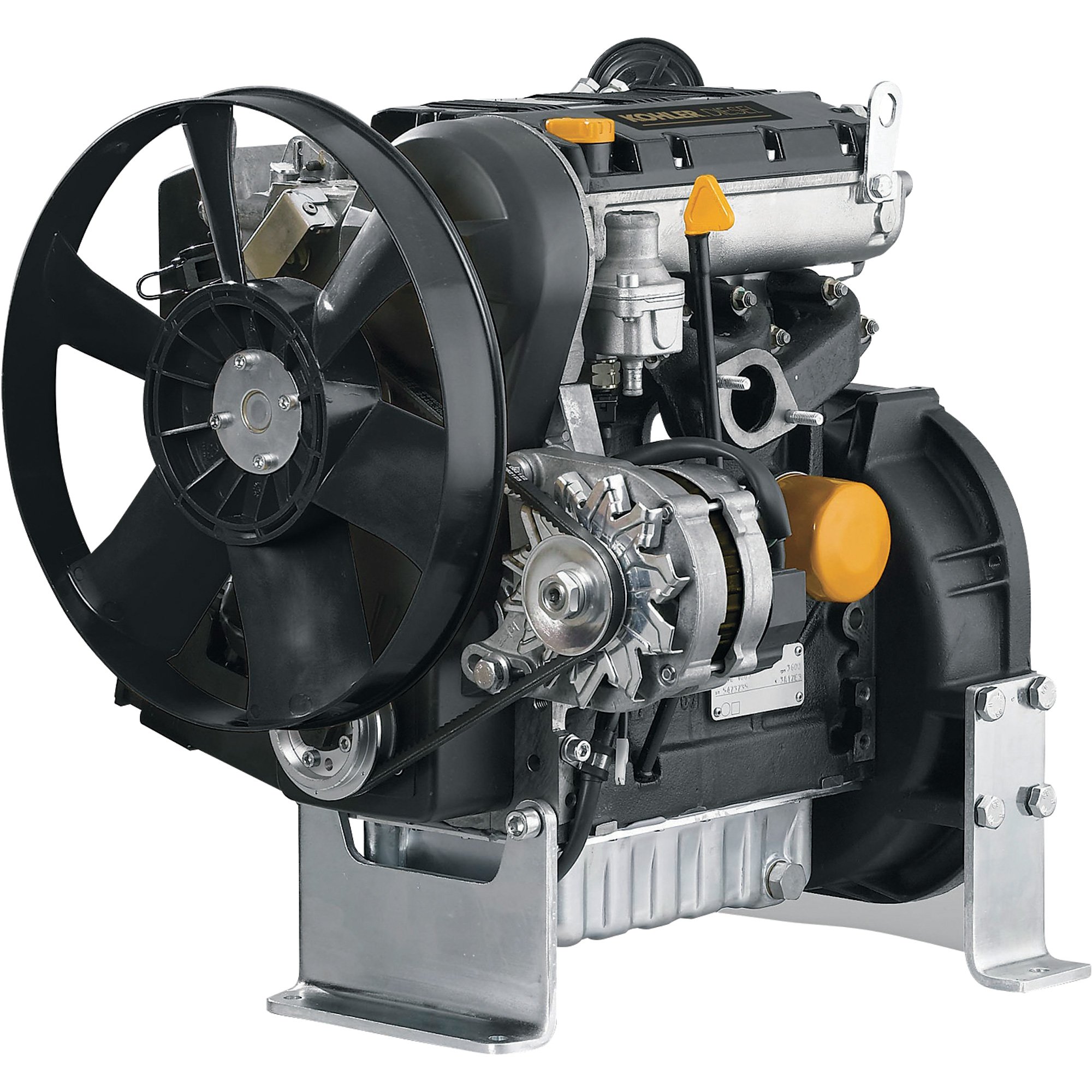

Kohler 3-Cylinder Diesel Engine — 1,028cc, High Speed Open Power with Group 8 Interchange, Model# PAKDW10031001A

Item# 60278
Kohler 3-Cylinder Diesel Engine — 1,028cc, High Speed Open Power with Group 8 Interchange, Model# PAKDW10031001A

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Kohler 3-Cylinder Diesel Engine — 1,028cc, High Speed Open Power with Group 8 Interchange, Model# PAKDW10031001A

Click or Tap image to Zoom

  • 4-stroke in-line liquid-cooled 3-cylinder engine with cast iron block
  • Comes with standard flywheel
  • Stub shaft (not included) can be bolted to flywheel
  • 26.1 HP historical rating
  • 47.2 ft.-lbs. of torque

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 1,028cc, high speed open power with group 8 interchange provides superior performance over broader RPM range. High efficiency combustion significantly lowers emissions to meet all CARB, EPA and EURO emissions standards. Fewer moving parts mean lower vibration, superior balance and low cylinder volume. Belt-driven overhead camshaft, low-turbulence precombustion chamber and quieter injection significantly reduce sound. Compact, heavy-duty design with multiple power takeoff points provides increased application flexibility.

What's Included

  • (1) Engine

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • 4-stroke in-line liquid-cooled 3-cylinder engine with cast iron block
  • Comes with standard flywheel
  • Stub shaft (not included) can be bolted to flywheel
  • 26.1 HP historical rating
  • 47.2 ft.-lbs. of torque
  • High speed open power with Group 8 Interchange Housing
  • Group 8 Interchange Housing and bolt pattern, exclusive to Kohler
  • Additional SAE housings can be attached to this housing to meet the user’s needs
  • Advanced injection system delivers fuel more efficiently
  • Superior performance over broader RPM range
  • High efficiency combustion significantly lowers emissions to meet all CARB, EPA and EURO emissions standards
  • Fewer moving parts mean lower vibration, superior balance and lower cylinder volume
  • Belt-driven overhead camshaft, low-turbulence precombustion chamber and inherently quieter injection design for reduced sound
  • Compact, heavy-duty design with multiple power takeoff points for increased application flexibility
  • 17.7 kW @ 3,600 RPM
  • Tier 4 final

Key Specs

AttributeSpecification

item#

60278

Brand

Kohler

Manufacturer's Warranty

3 Yr Consumer Limited

Ship Weight

251.32 LB
AttributeSpecification

Engine Type

Diesel 3-cylinder, 4-stroke

Shaft Rotation (From PTO Shaft Side)

Looking from front to back: Clockwise

Ignition System

Yes

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–10 of 20 Questions
Sort by:

  1. Can this engine be turbo charged---is one available

    1. With proper adapter kits, tools, knowledge, and experience, almost any combustion type engine can be turbo charged. The only limitations would be, 1; How much space do you have in the motor compartment, and 2; how much can the engine handle?

      Helpful?

    2. We are unable to provide the Kohler Engine in a turbo charged version.

      Helpful?

  2. Where can i purchase the stub shaft for the engine?

    1 answer

    1. Parts for this engine can be obtained through Kohler Genuine Parts website.

      Helpful?

  3. Hi, is this Made In USA or Imported?

    1 answer

    1. This engine is made in Italy.

      Helpful?

  4. what type of control panel? key or something else?

    1 answer

    1. This Kohler diesel engine has a key control.

      Helpful?

  5. what is the fuel consumption per hour

    1 answer

    1. At this time, the manufacturer does not release a fuel consumption per hour rating on the engine. The fuel consumption can vary through different applications.

      Helpful?

  6. direction of rotation???

    1 answer

    1. The fan on this Kohler engine turns clockwise and the shaft turns counter clockwise.

      Helpful?

  7. What kind of motor mounts does it require?

    Can it be bolted directly to a frame or does it need rubber or spring mounts?

    1 answer

    1. This Kohler Diesel Engine can be mounted directly to a frame and does not require any rubber or spring mounts.

      Helpful?

  8. Does this engne come with the starter or is there at least a place to mount a starter?

    1 answer

    1. This diesel engine will include the starter.

      Helpful?

  9. Does this unit have a diesel particulate filter?

    1 answer

    1. This engine comes with an in line diesel fuel filter.

      Helpful?

  10. Does this unit have a fuel tank included?

    1 answer

    1. A fuel tank is not included with this diesel engine.

      Helpful?
