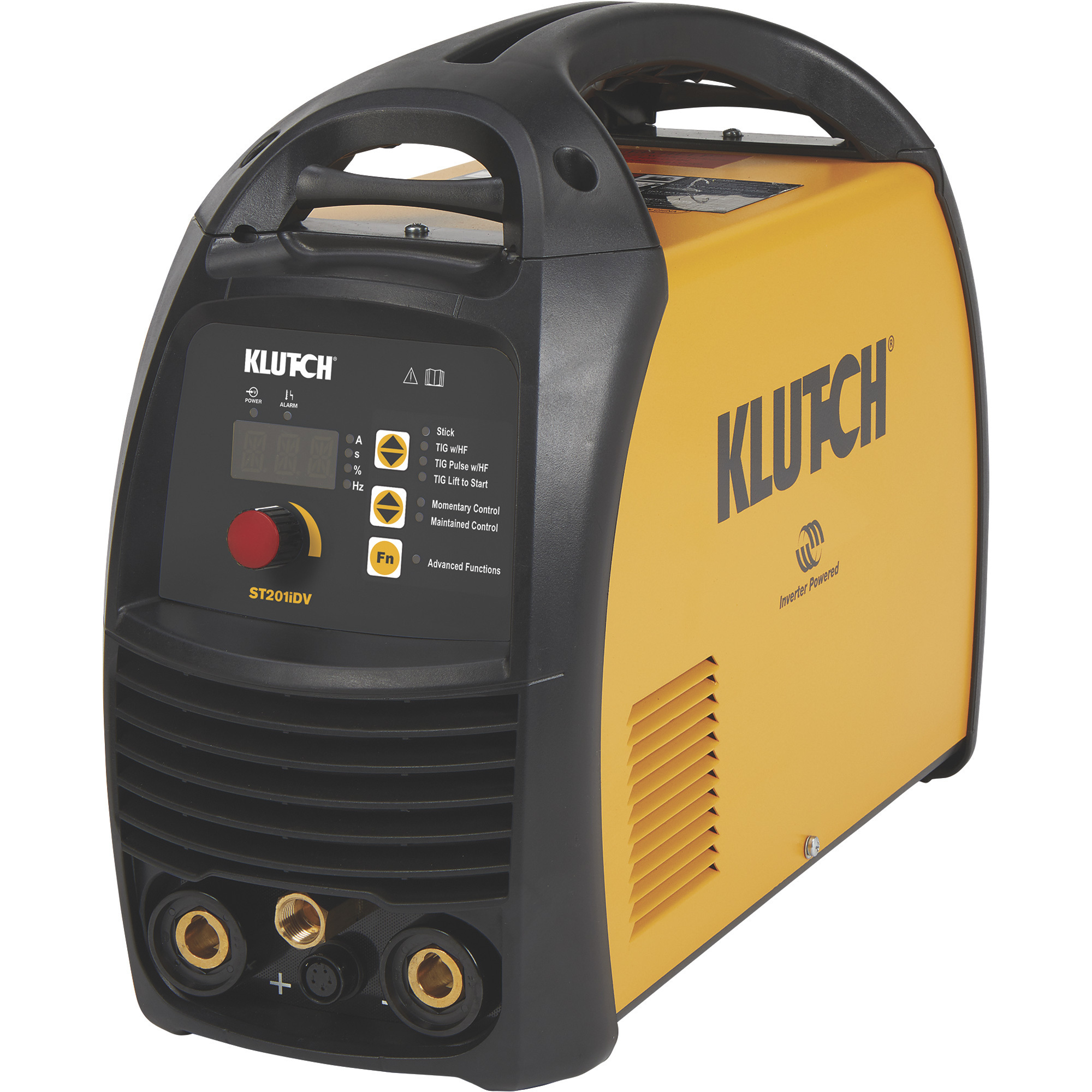

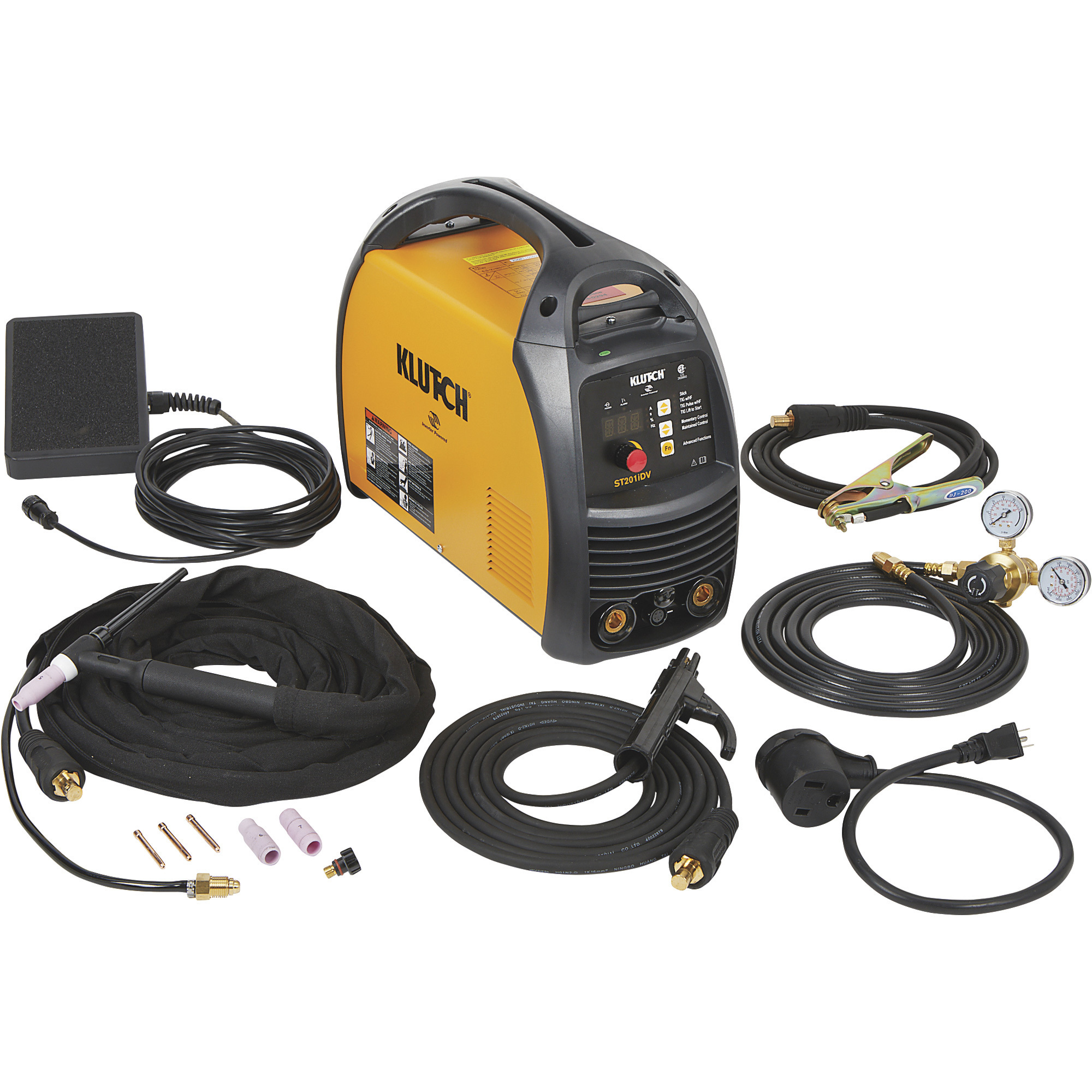

Klutch ST201iDV Dual Voltage DC Arc Welder with TIG Function, Inverter, 120V/230V, 10-200 Amp Output

Item# 96583
"Klutch ST201iDV Dual Voltage DC Arc Welder with TIG Function — Inverter, 120V/230V, 10–200 Amp Output"
On Sale
Klutch ST201iDV Dual Voltage DC Arc Welder with TIG Function, Inverter, 120V/230V, 10-200 Amp Output

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch ST201iDV Dual Voltage DC Arc Welder with TIG Function, Inverter, 120V/230V, 10-200 Amp Output

Click or Tap image to Zoom

  • Lightweight inverter technology is ideal for portable welding
  • PFC (Power Factor Correction) for increased performance
  • High frequency for easier, contaminate-free arc starts
  • Simple-to-use front panel interface for easy setup and adjustments
  • Welds mild steel, stainless steel, cast iron, and hard surfacing materials

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Professional Klutch® ST201iDV Dual Voltage TIG/Stick DC welder with High Frequency, inverter, and PFC (Power Factor Correction) Technology. Dual Voltage power allows for welding with 120V/230V, DC weld output for welding mild steel, stainless steel, cast iron and hard surfacing materials. Lightweight inverter technology is excellent for portable welding. PFC (Power Factor Correction) for increased performance on 120V Stick up to 120A output for welding with 1/8in electrodes. High Frequency start for easy and contamination-free starting. CSA approved.

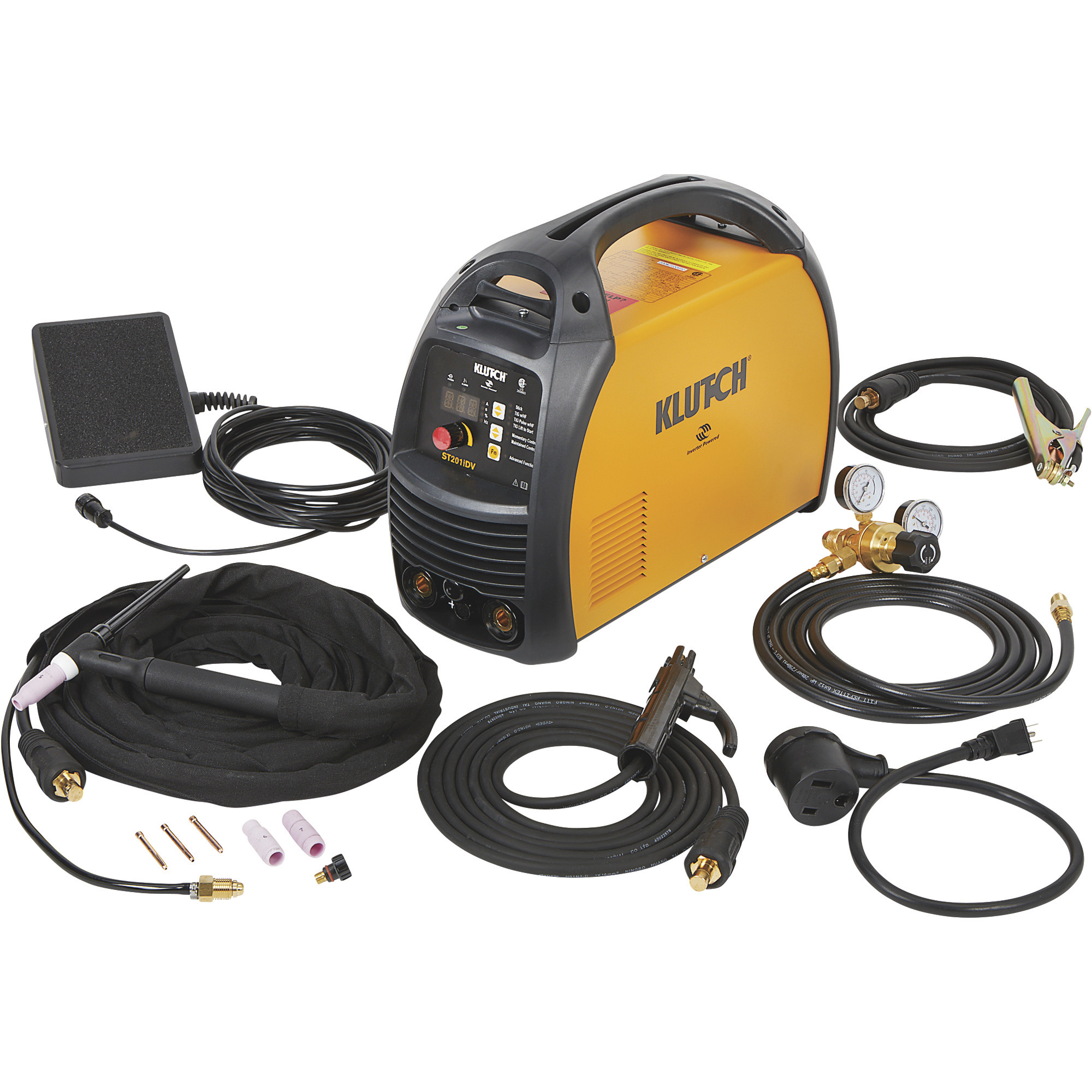

What's Included

    (1) 200A HF DC TIG/Stick power source (1) 13ft. TIG Torch (1) 10ft. electrode holder with cable (1) 10ft. ground cable with clamp (1) 6ft. gas hose (1) Dual gauge regulator (2) Extra collets (1) Long cap (1) Short cap (1) Sample Tungsten
Play Item Video

Features + Benefits

  • Lightweight inverter technology is ideal for portable welding
  • PFC (Power Factor Correction) for increased performance
  • High frequency for easier, contaminate-free arc starts
  • Simple-to-use front panel interface for easy setup and adjustments
  • Welds mild steel, stainless steel, cast iron, and hard surfacing materials
  • TIG: 120V 10-130A; 230V 10-200A
  • STICK: 120V 20-120A (welds with 1/8in electrode); 230V 20-180A
  • CSA approved

Key Specs

AttributeSpecification

item#

96583

Brand

Klutch

Manufacturer's Warranty

3 year limited warranty

Ship Weight

43.2 LB

Volts

Multi

Max. Amps

200

Max. Weld Thickness

0.18 in

Duty Cycle

30% At 200a; 25% At 130a

Weldable Materials

Mild Steel, Stainless Steel, Cast Iron, Hard Surfacing Materials
AttributeSpecification

Min. Amps

10

Power Cord Length

6.5 ft

Clamp Cable Length

10 ft

Electrode Cable Length

10 ft

Regulator and Gas Hose Included

Yes

Shielding Gas Required

Yes

Product Weight

44.2000 lb

Dimensions L x W x H (in.)

20.67 x 11.02 x 15.16 in

Reviews

Questions & Answers

18 Reviews This action will navigate to reviews.

Questions

1–10 of 29 Questions
Sort by:

  1. Can I tig weld without a foot pedal?

    1 answer

    1. The TIG welder can be used with scratch start. Foot pedal is recommended.

      Helpful?

  2. Van a spool gun be used with this unit

    1 answer

    1. The welder is not compatible with a spool gun.

      Helpful?

  3. Can you weld heavy wall pipe with this welder? For a weld pipe test

    1 answer

    1. The maximum thickness this unit is designed to weld is 0.18".

      Helpful?

  4. Is it suitable for high frequency aluminum TIG

    1 answer

    1. This welder cannot be used to weld aluminum. See item #99365 for welding aluminum.

      Helpful?

  5. Hi, what are the package (box) dimensions and weight?.

    1 answer

    1. This welder ships in a box that is 25.79"L x 12.8"W x 17.52"H. The ship weight is 31.5 pounds.

      Helpful?

  6. What style of leads do I need for my klutch welder?

    1 answer

    1. This welder uses 35-70 quick connect leads.

      Helpful?

  7. What is the minimum aluminum sheet thickness this machine can but weld

    1 answer

    1. This welder cannot weld aluminum.

      Helpful?

  8. Where is the “finger tip control button” I want to tig weld without the foot pedal and can’t seem to find that button the manual isn’t real clear on its location and the torch doesn’t have any buttons on it.

    1 answer

    1. The welder is not compatible with TIG torch trigger switch. It is designed for scratch start only.

      Helpful?

  9. Where is the Klutch ST201iDV manufactured?

    1 answer

    1. This item is manufactured in China.

      Helpful?

  10. What gas is required for tig?

    1 answer

    1. Argon gas is recommended for TIG welding.

      Helpful?
