Klutch PFC700 Dual-Voltage Plasma Cutter, Inverter, 120V/230V, 45 Amp Output

Item# 96580
Clearance
Klutch PFC700 Dual-Voltage Plasma Cutter, Inverter, 120V/230V, 45 Amp Output

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch PFC700 Dual-Voltage Plasma Cutter, Inverter, 120V/230V, 45 Amp Output

Click or Tap image to Zoom

  • Dual 120 Volt and 230 Volt capabilities provide versatility
  • Wide 20-60 A output adjustment for fine tuning amperage needs
  • (PFC) Power Factor Correction for increased cutting performance
  • Continuous pilot arc is ideal for use cutting expanded metals, highly rusted metals and fencing
  • Water separator provides longer lasting life for consumables

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

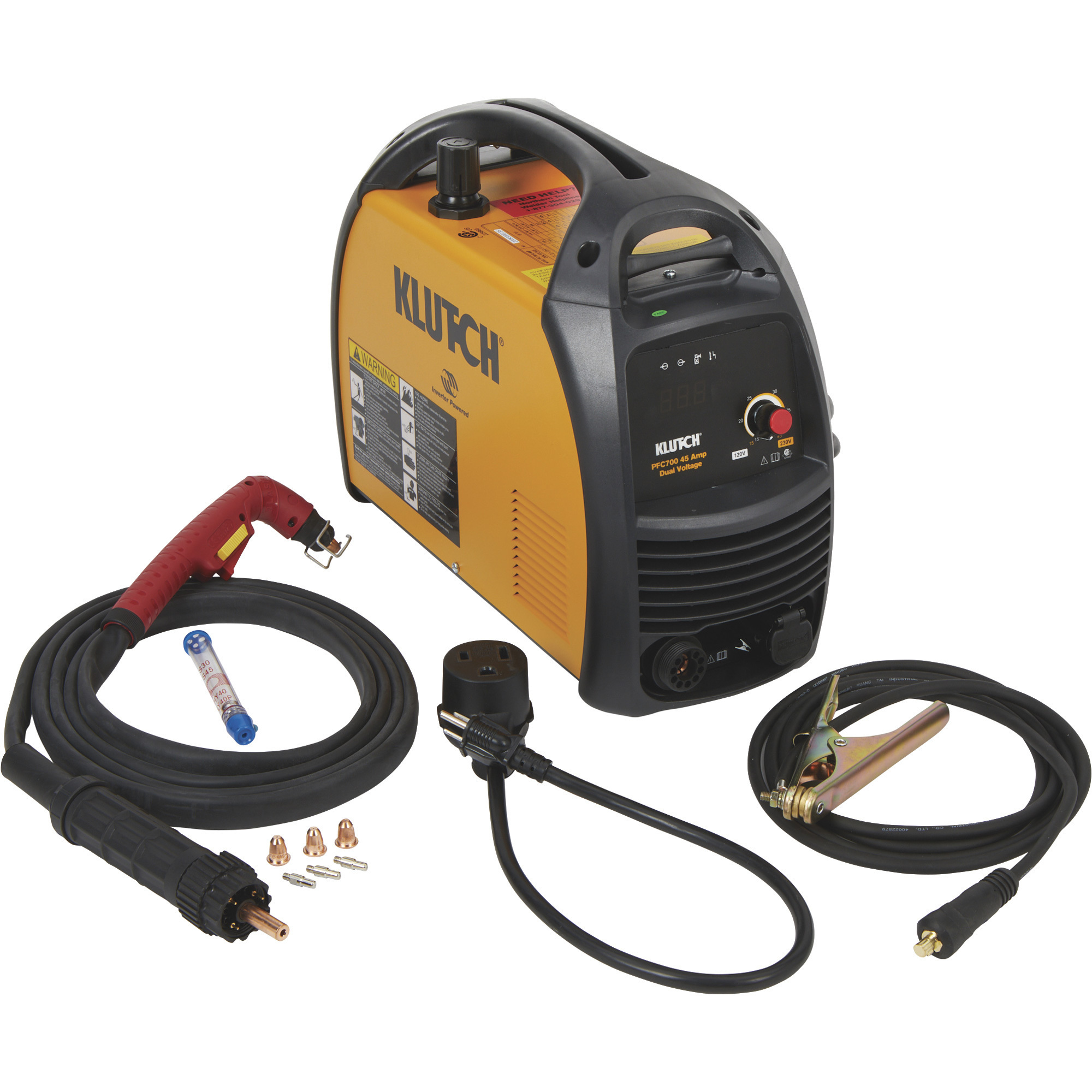

This Klutch® PFC700 120V/230V Dual-Voltage Plasma Cutter is like having 2 plasma cutters in one. The cutter can be used anywhere there is 120 or 230 Volt power. Cuts all electrically conductive materials. Pilot arc sustains the arc for cutting expanded metals and fencing. Includes 12ft. torch, 10ft. ground cable/clamp, 6.5ft., 230V power cord with attached NEMA 6-50P plug and 2ft., 120V adapter cord assembly, extra electrodes, and extra nozzles. CSA approved.

What's Included

    (1) Plasma cutter (1) Plasma torch (1) Ground cable/clamp (1) 120V power cord adapter (3) Electrodes (3) Nozzles
Play Item Video

Features + Benefits

  • Dual 120 Volt and 230 Volt capabilities provide versatility
  • Wide 20-60 A output adjustment for fine tuning amperage needs
  • (PFC) Power Factor Correction for increased cutting performance
  • Continuous pilot arc is ideal for use cutting expanded metals, highly rusted metals and fencing
  • Water separator provides longer lasting life for consumables
  • Cuts clean up to 11/16in. (230V)/1/4in. (120V), and severs up to 7/8in.
  • 12ft. plasma torch and 10ft. ground cable extend the work area reach
  • Clean, narrow kerf produces a small heat-affected area and minimal warping
  • Easy-to-understand indicator lights make troubleshooting simple
  • Duty cycle: 35% @ 23 Amps (120V); 50% @ 45 Amps (230V)
  • Requires 4.5 CFM at 60 PSI gas flow
  • CSA approved

Key Specs

AttributeSpecification

item#

96580

Brand

Klutch

Manufacturer's Warranty

3 year limited warranty

Ship Weight

30.8 LB

Volts

230

Amps

45

Cutting Thickness

0.688 in

Clamp Cable Length

0.83 in

Plasma Gas Flow

4.5 cfm
AttributeSpecification

Max. PSI

60

Duty Cycle

50% At 45a; 35% At 23a

Power Cord Length

6.5 ft

Pilot Arc

Yes

Compressor Included

No

Cart Included

No

Product Weight

lb

Dimensions L x W x H (in.)

18.0 x 7.5 x 13.75 in

Reviews

Questions & Answers

32 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. Do you use gas with this plasma cutter?

    1. This operates on air only, it requires an air compressor that provides 4.5 CFM @ 60 psi.

      Helpful?

    2. This Does NOT use Gas, It uses Compressed air.

      Helpful?

  2. What amp circuit breaker is required for 240 and 120?

    1 answer

    1. The required input power circuit for 120V is either 15 Amp or 20 Amp and for 230V is 50 Amp.

      Helpful?

  3. What’s the yellow thing on the red gun

    1 answer

    1. The yellow piece on the gun is a safety lock to prevent accidental arc.

      Helpful?

  4. Does this unit operate on 110 and 220 outlets?

    1 answer

    1. This comes with an adapter cord so it can be operated off either 120 or 230 volts.

      Helpful?

  5. Will the Klutch PFC700 cut Stainless Steel?

    1 answer

    1. This unit can cut stainless steel up to 1/8" thick.

      Helpful?

  6. what size of air hose do you need for connection with air compressor

    1 answer

    1. The plasma cutter would use a standard 3/8" air hose.

      Helpful?

  7. High frequency start or blowback start?

    1 answer

    1. This plasma cutter has a blowback start.

      Helpful?

  8. Does this have CNC connection capability or expandable for use with CNC plasma table.

    1 answer

    1. This plasma cutter does not have CNC connection capability and is not designed for use with a CNC plasma table.

      Helpful?

  9. What type of torch does this plasma cutter utilize.  Need to know for consumables replacement

    1 answer

    1. This is equipped with a Klutch plasma torch. The electrode set is item 96474. The nozzle set is item 96473.

      Helpful?

  10. Where are klutch plasma cutters manufactured?

    1 answer

    1. This Klutch plasma cutter is manufactured in China.

      Helpful?
