Klutch Dual-Voltage 180 Amp MIG/Flux-Core Multi-Process Welder with Inverter Technology, LCD Display and Spool Gun, 120/240 Volts, 180 Amp Max.

Item# 5873687
Klutch Dual-Voltage 180 Amp MIG/Flux-Core Multi-Process Welder with Inverter Technology, LCD Display and Spool Gun, 120/240 Volts, 180 Amp Max.

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch Dual-Voltage 180 Amp MIG/Flux-Core Multi-Process Welder with Inverter Technology, LCD Display and Spool Gun, 120/240 Volts, 180 Amp Max.

Click or Tap image to Zoom

$419.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    1 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Extra-Versatile Operation: Multi-process MIG/flux-core welding functions offer the welding capabilities you need to handle a variety of projects
  • Dual-Voltage Design Operates Where You Need It: 120/240V input allows the unit to be plugged in almost anywhere
  • Handles the Heavy Metals: Get powerful performance welding steel, stainless steel and aluminum up to 1/4in. thick

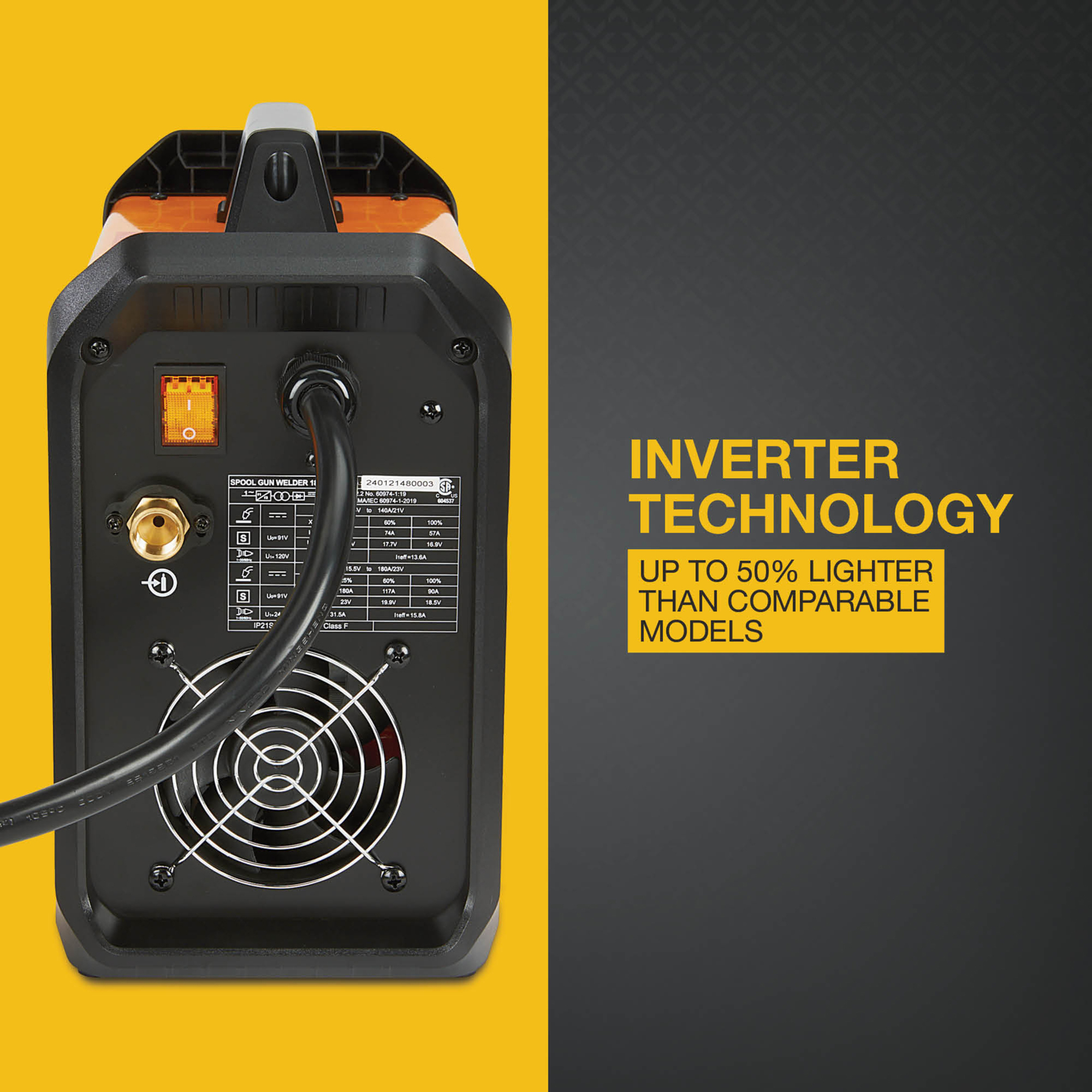

  • Extra-Lightweight Inverter Design: Special inverter technology weighs in at up to 50% lighter than comparable models and delivers ultra-consistent welds

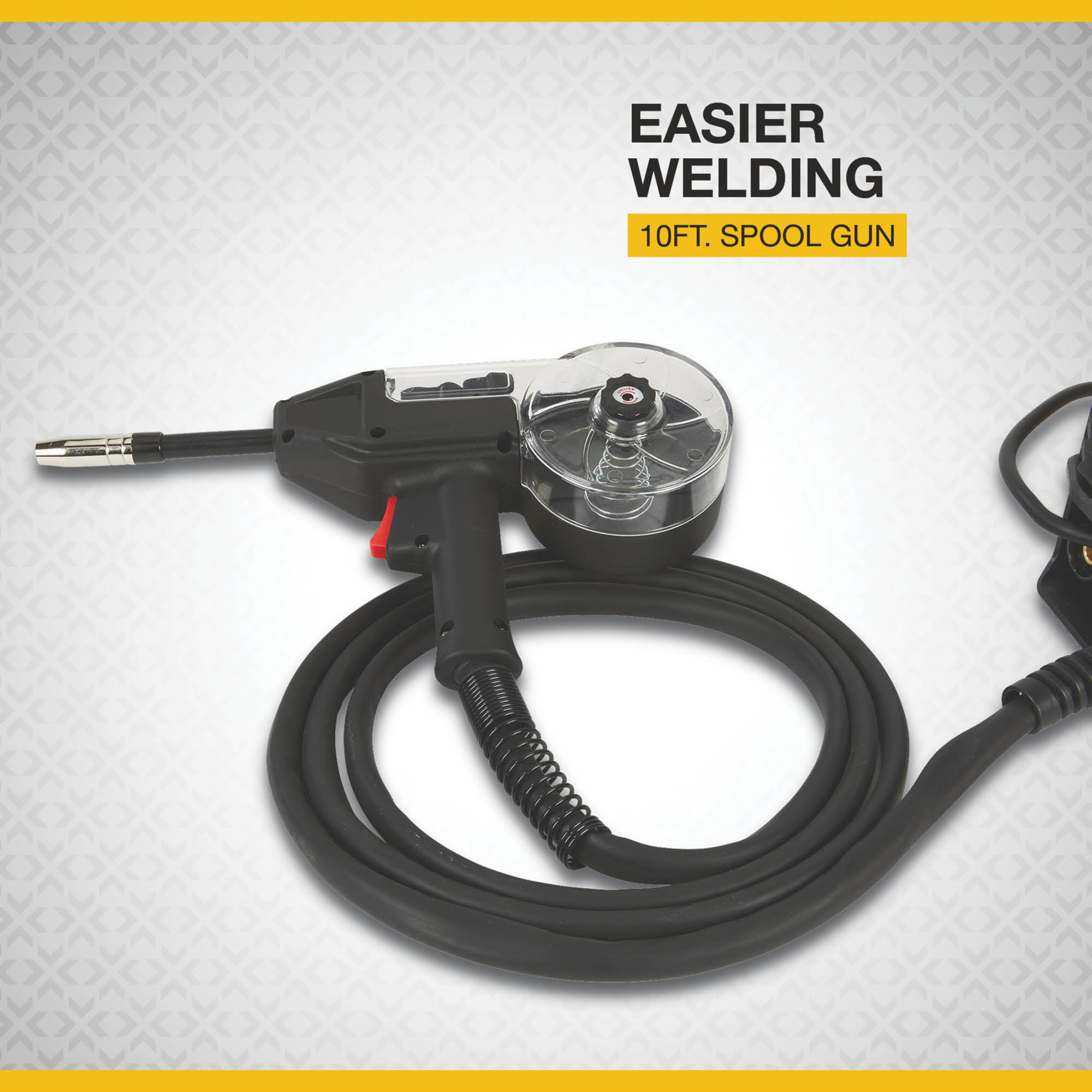

  • Complete Setup with Spool Gun: Includes a Klutch 10ft. spool gun to help make welding tasks easier

See full description

Complete Your Solution

  • Klutch Dual-Voltage 180 Amp MIG/Flux-Core Multi-Process Welder with Inverter Technology, LCD Display and Spool Gun, 120/240 Volts, 180 Amp Max.
  • Hobart Welding Apron, Flame-Retardant Cotton, Black, One size fits most, Model# 770686
  • Ironton Flame-Resistant Welding Sleeves — Pair, 18in.L
  • Klutch Cut-Resistant Goatskin/Cowhide TIG Welding Gloves
Price for all four:

$473.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Klutch 120/240V Dual-Voltage 180A MIG/Flux-Core Welder with LCD Display and Spool Gun is designed to give you a smooth and stable arc to provide a consistent welding bead with all kinds of material, especially aluminum. The hardwired spool gun allows for a quick welding start without the need to connect or change when working. Features a full-screen LCD control display plus advanced IGBT technology to provide added efficiency. Professional synergic settings enable easier operation to benefit users; even beginners can make a perfect weld with the default synergic settings. The efficient inverter-powered system is super lightweight, up to 50% lighter for easy transport, and requires up to 25% less input power than traditionally powered welders while also delivering consistent power output. The unit features multi-process welding capabilities with MIG/flux-core functions. Dual-voltage 120/240V input can be plugged into most outlets for convenient use almost anywhere. The smooth DC output can weld a wide variety of materials including steel, stainless steel and aluminum up to 1/4in. thick. Output: 30–180A (240V), 30–140A (120V); duty cycle: 25% @ 180A (240V), 40% @ 90A (120V). The welder comes complete with a fixed 10ft. spool gun, fixed 6ft. ground clamp and cable and a 240–120V adapter.

What's Included

    (1) Klutch Flux-Core/MIG Spool Gun Welder (1) Fixed 10ft. spool gun (1) Fixed 6ft. ground clamp and cable (1) 240–120V adapter

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Extra-Versatile Operation: Multi-process MIG/flux-core welding functions offer the welding capabilities you need to handle a variety of projects
  • Dual-Voltage Design Operates Where You Need It: 120/240V input allows the unit to be plugged in almost anywhere
  • Handles the Heavy Metals: Get powerful performance welding steel, stainless steel and aluminum up to 1/4in. thick
  • Extra-Lightweight Inverter Design: Special inverter technology weighs in at up to 50% lighter than comparable models and delivers ultra-consistent welds
  • Complete Setup with Spool Gun: Includes a Klutch 10ft. spool gun to help make welding tasks easier
  • Take-Anywhere Portability: A robust carrying handle is built into the machine for easy, convenient movement during transport or at the jobsite
  • Built-In LCD Screen Offers Easy Control: Easy-to-read LCD screen simplifies operation of the welder

Key Specs

AttributeSpecification

item#

5873687

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

23.4 LB

Volts

120/240

Max. Amps

180

Power Type

DC

Multi-process

Yes

Spool Gun Included

Yes

Welding Processes

Flux-Core, MIG

Max. Weld Thickness

0.375 in

Max. Welding Wire Diameter

0.035 in

Duty Cycle

120V: 90A 25% 240V: 180A 25%
AttributeSpecification

Weldable Materials

Steel

Min. Amps

30

Wire Feed Speed Control

Yes

Cart Included

No

Mig Ready

Yes

Power Cord Length

6.5 ft

Clamp Cable Length

6.5 ft

Electrode Cable Length

0 ft

Regulator and Gas Hose Included

Yes

Shielding Gas Required

No

Product Weight

19.0000 lb

Dimensions L x W x H (in.)

15.4 x 12.2 x 7.1 in

Reviews

Questions & Answers

11 Reviews This action will navigate to reviews.

Questions

1–10 of 21 Questions
Sort by:

  1. Is the spool gun connected to the welder with a Dinse (or similar) connector, or is it hard-wired? I.E.: can the spool gun cable be detached for moving/packing?

    1 answer

    1. The spool gun is hard-wired.

      Helpful?

  2. How do I set up the machine to weld Aluminum

    1 answer

    1. Connect the polarity conversion cable to the positive (+) Dinse terminal and the ground cable to the negative (–) Dinse socket. Install the U-type drive roll on the spool gun. Ensure the ground clamp is securely connected to the workpiece and that all connections are tight before welding.

      Helpful?

  3. Can you hook up argon gas

    1 answer

    1. This welder will work with argon gas.

      Helpful?

  4. Can you change it out to a regular mig gun

    1 answer

    1. The spool gun cannot be replaced with a standard MIG gun because it is integrated into the welder’s design.

      Helpful?

  5. No warranty? Seems odd. All other klutch welders say 3 years? Can someone please verify this?

    1 answer

    1. This welder comes with a 1 year limited warranty. Please see complete details for the warranty on page 22 of the Product Manual which is located below the Product Summary on the web page.

      Helpful?

  6. Does it weld aluminum on a condenser coils

    1 answer

    1. This welder is not suitable for welding aluminum on condenser coils, as the coils are very thin and are likely to be burned through during the process.

      Helpful?

  7. Can this welder be used with a generator that produces 7000 watts?

    1 answer

    1. This welder can draw up to 200 maximum amps and 120V or 240V. A 7,000 watt generator will not be large enough to support this welder.

      Helpful?

  8. Can you use this spool gun without gas?

    1 answer

    1. The spool gun is designed for MIG welding and gas is recommended for this welding process.

      Helpful?

  9. Size of spool the spool gun will hold: 1 lb? 2lb?

    1 answer

    1. The spool gun will hold 1.1 lb. and 2.2 lb. wire spools.

      Helpful?

  10. How many amps will this draw from a typical 120v outlet? I dont want to trip my breaker if it needs something atypical like 30amps or higher.

    1 answer

    1. The maximum amperage draw for 120V is 21.4 amps and for 240V it is 31.5 amps.

      Helpful?
