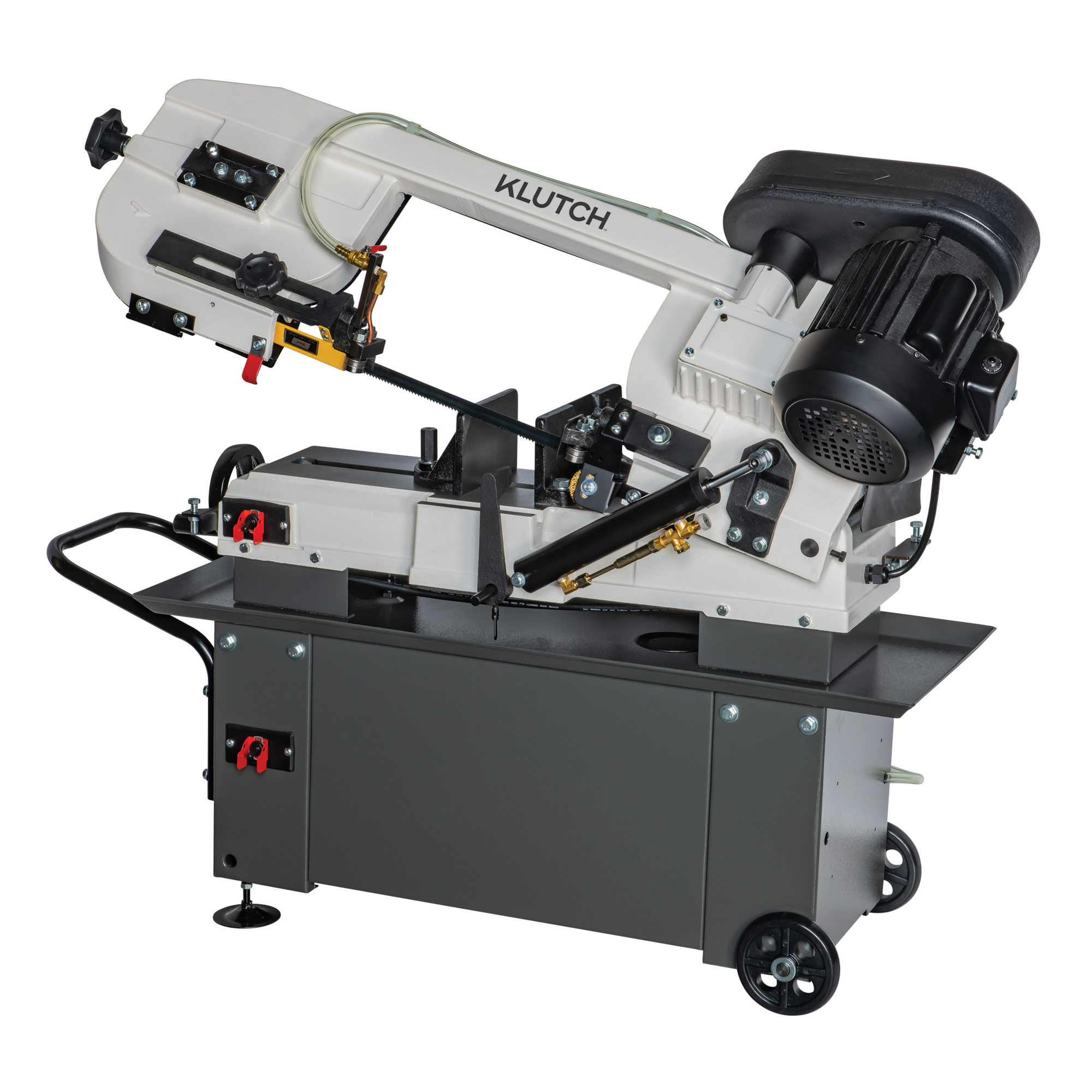

Klutch Metal Cutting Band Saw, 7in. x 12in., 1 HP, 115V

Item# 108498
Top SellerOn Sale
Klutch Metal Cutting Band Saw, 7in. x 12in., 1 HP, 115V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch Metal Cutting Band Saw, 7in. x 12in., 1 HP, 115V

Click or Tap image to Zoom

$1349.99
Reg $1499.99Save $150.00

Order today to get this price.

  • Shipping:

    Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not Available
  • 1 HP, 115V, single-phase motor
  • 4 blade speeds: 90/135/195/255 FPM
  • Durable high-quality 93in.L x 3/4in.W x 0.0315in. thick carbon steel blade (included)
  • Capacity: 7in. round stock; 7in. x 12in. flat stock
  • 0°–45° cutting angles

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Klutch Metal Cutting Band Saw, 7in. x 12in., 1 HP, 115V
  • SuperCut Carbon Tool Steel Replacement Band Saw Blade, 93in.L x 3/4in.W x 0.032in., 10 Raker Teeth Per In.
  • SuperCut Bi-Metal Replacement Band Saw Blade, 93in.L x 3/4in.W, 10/14 TPI
Price for all three:

$1431.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

This Klutch Metal Cutting Band Saw with 115 Volt operation has all the features you need to attain professional results when cutting metal. The large-capacity band saw features fully adjustable hydraulic downfeed control, a built-in coolant system for wet cutting, pulley belt and more. Rolls on 2 wheels for maneuverability. Includes stand, case and blade.

What's Included

    (1) Klutch Metal Cutting Band Saw (1) Blade

Downloads

Product Manual

Features + Benefits

  • 1 HP, 115V, single-phase motor
  • 4 blade speeds: 90/135/195/255 FPM
  • Durable high-quality 93in.L x 3/4in.W x 0.0315in. thick carbon steel blade (included)
  • Capacity: 7in. round stock; 7in. x 12in. flat stock
  • 0°–45° cutting angles
  • Fully adjustable hydraulic downfeed offers maximum control
  • Built-in coolant system keeps the metal cool and also washes away metal chips for wet cutting
  • Quick-positioning vise easily and securely holds work piece in the optimum cutting position
  • Full complement of belt and blade guards for safety
  • Rugged cast base stand provides solid support while cutting
  • Rolls on 2 wheels for easy maneuverability
  • 48.62in.L x 17in.W x 37.6in.H overall size
  • Includes case

Key Specs

AttributeSpecification

item#

108498

Brand

Klutch

Ship Weight

328.0 LB

Volts

115

Max. Cutting Capacity

255 SFPM
AttributeSpecification

Case Included

Yes

Horsepower

1 HP

Product Weight

lb

Dimensions L x W x H (in.)

48.62 x 17.0 x 37.6 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. What type of lubicated wash is used for klutch band saw

    1 answer

    1. Lubricate the driven pulley bearing with 6–8 drops of SAE 30 oil per week. Lubricate the vise lead screw with SAE 30 oil as needed.

      During the first few days of operation, the worm gear drive will run hot. Unless the temperature exceeds 200°F, there is no cause for alarm.

      The following lubricants may be used for the gearbox: Atlantic Refinery Co. Mogul Cyl. Oil, Cities Service Optimus No. 6, Gulf Refinery Co. Medium Gear Oil, or Pure Oil Co. Park Clipper.

      Helpful?

  2. where is it made

    1 answer

    1. This band saw is manufactured to our specifications in Taiwan.

      Helpful?

  3. Do you print a parts diagram. i need to replace a couple parts

    1 answer

    1. Parts are no longer available for this band saw. However, the parts diagrams and lists begin on page 23 of the Product Manual which is located below the Product Summary on the web page.

      Helpful?

  4. Where can I get a replacement motor

    1 answer

    1. The replacement motor, part #KLH49465.189, is offered through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  5. What is the coolant capacity for this saw?

    1 answer

    1. This band saw has a 2.5 gallon coolant capacity.

      Helpful?

  6. can WD 40 be used as a coolant?

    1 answer

    1. Use a water-soluble cutting fluid for coolant. WD-40 is not recommended, as it is not water-soluble and does not provide the same cooling performance.

      Helpful?

  7. How much does the whole thing weigh

    1 answer

    1. This band saw weighs 304 lbs.

      Helpful?

  8. Will this be able to cut 6'' x 6'' x 1'' thk plate ?

    1 answer

    1. This band saw is capable of cutting 6" x 6" x 1" thick plate.

      Helpful?

  9. Can this be used to cut an 8” diameter stainless steel pipi

    1 answer

    1. This band saw will not cut 8" diameter piping. The maximum capacity is a 7" diameter.

      Helpful?

  10. What type of coolant does this machine use?

    1 answer

    1. For aluminum, stainless steel, and other non-ferrous metals, QualiChem Xtreme Cut 251C could be used. It resists the staining and hazing that can happen with other coolants in aluminum. Please follow the coolant manufacturer recommended dilution ratio for the metal being cut.

      Helpful?
