Klutch 17in. Floor Drill Press, Variable Speed with Digital Display, 1-1/2 HP, 120V

Item# 49385
Clearance
Klutch 17in. Floor Drill Press, Variable Speed with Digital Display, 1-1/2 HP, 120V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch 17in. Floor Drill Press, Variable Speed with Digital Display, 1-1/2 HP, 120V

Click or Tap image to Zoom

$90.20
Reg $819.99Save $729.79

Order today to get this price.

  • Shipping:

    Not available

  • In Store Only:

    Sold only in stores -
  • 5/8in. chuck capacity with 1in. maximum drilling capacity
  • 6in. vertical stroke
  • 17in. swing adds versatility
  • 45° table tilt offers a multitude of drilling angles
  • Depth lock with a ball knob handle for precise adjustments that stay true, hole after hole

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The 17in. Klutch Floor Drill Press is the perfect choice for drilling metal or wood. Features power, accuracy and versatility packed into a sturdy floor mount base. Has a powerful 1-1/2 HP, 120V motor with variable speeds that generate 600–2,400 RPM. CE certified.

What's Included

    (1) Drill press (1) Chuck key (1) 3mm Allen key (1) 4mm Allen key (1) 5mm Allen key (1) Wedge

Downloads

Product Manual
Play Item Video

ROBUST AND RELIABLE

The Klutch® FLOOR DRILL PRESS STANDS out in the market with its robust build and powerful performance, making it an ideal choice for both PROFESSIONAL and HOBBYIST PROJECTS

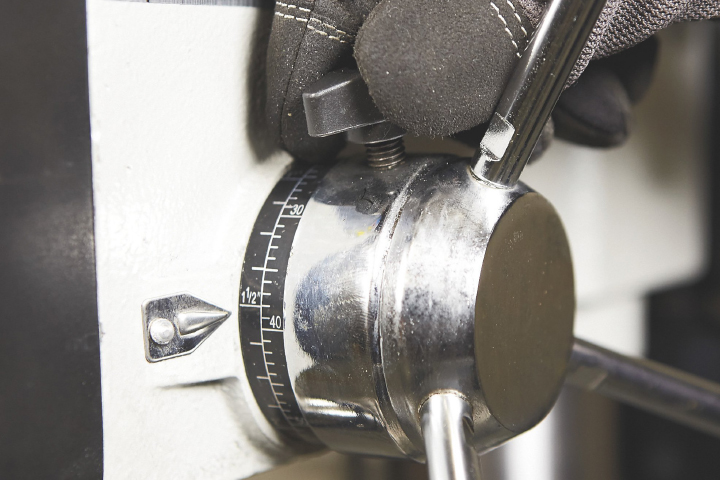

VERSATILE DRILLING OPTIONS

With its extensive range of speeds and adjustable table, this drill press can handle various materials and sizes, providing FLEXIBILITY FOR ANY DRILLING TASK

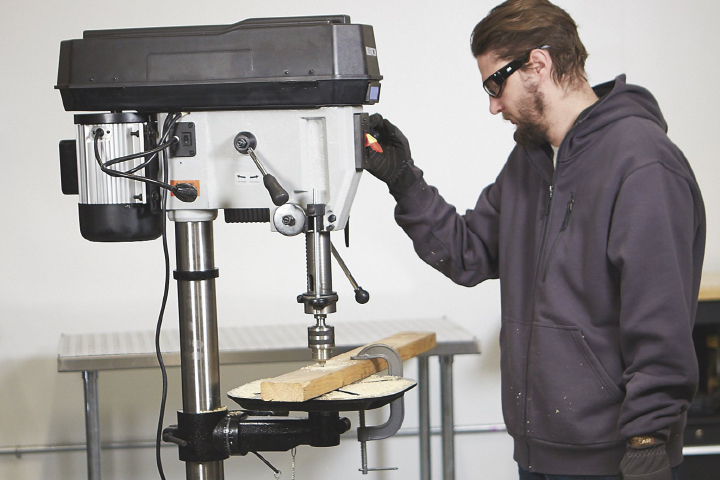

ADVANCED FEATURES

This machine is designed with USER-FRIENDLY FEATURES such as a depth lock for PRECISE HOLE MEASUREMENTS and a gooseneck LED light that illuminates the work area for increased accuracy

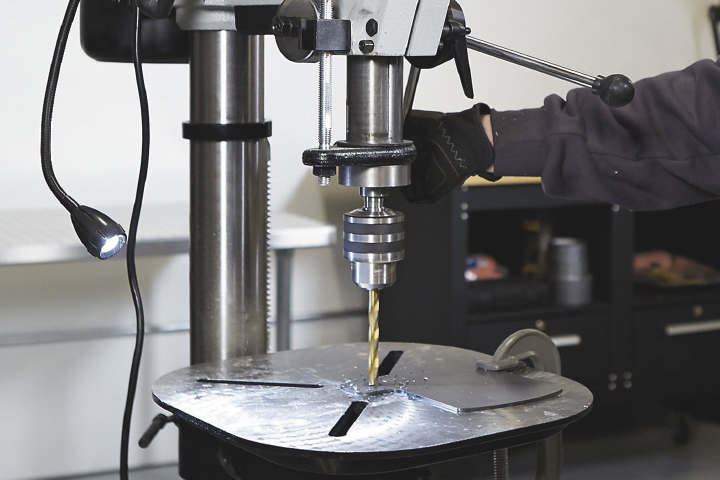

STURDY CONSTRUCTION

The SOLID FLOOR MOUNT BASE ensures stability and minimizes vibration during operation, enhancing the overall precision of the tool

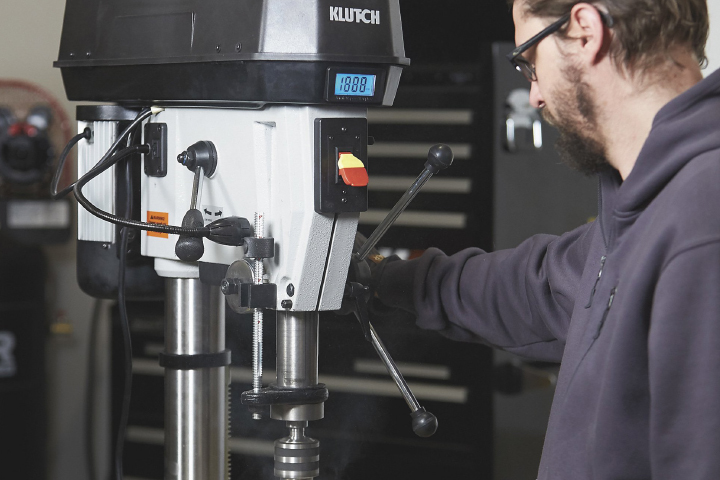

EFFICIENT OPERATION

Integrated CHUCK KEY STORAGE and a clear digital display contribute to a STREAMLINED WORKFLOW, saving time and enhancing productivity

Features + Benefits

  • 5/8in. chuck capacity with 1in. maximum drilling capacity
  • 6in. vertical stroke
  • 17in. swing adds versatility
  • 45° table tilt offers a multitude of drilling angles
  • Depth lock with a ball knob handle for precise adjustments that stay true, hole after hole
  • Roomy 14in. x 14in. worktable
  • 28-3/4in.L x 14-1/2in.W x 68-7/8in.H overall size
  • Built-in chuck key storage keeps the chuck close at hand and easy to find
  • Includes a gooseneck LED light to illuminate your work surface
  • Digital display for easy reading
  • 13 Amp rating

Key Specs

AttributeSpecification

item#

49385

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

237.6 LB

Horsepower

1.5 HP

Volts

120

Max. Speed

2,400 rpm

360 Degree Head Swivel

No

Product Type

Drill Press

Vertical Stroke

6 in
AttributeSpecification

Drilling Capacity

1 in

Chuck Size

5/8 in

Light Included

Yes

Stand Included

Yes

Variable Speed

Yes

Draw Bar

Yes

Swing

17 in

Product Weight

lb

Dimensions L x W x H (in.)

28.75 x 14.5 x 68.875 in

Reviews

Questions & Answers

61 Reviews This action will navigate to reviews.

Questions

1–10 of 24 Questions
Sort by:

  1. How do you categorize the speed of this press?is it a 16 speed or what is it?

    1. You have to see the drive mechanism to understand it. It only has 2 pulleys but the "variable pulley" can split apart and compress back together causing the v pulley diameter to change. You just move the lever back and forth while its running and watch the tachometer to get to the speed you want. Very slick setup.

      Helpful?

    2. Vicoy, machine is infinitely variable ... easy to put at 25 to 50 rpm increments from 524 rpm to over 2000. The digital readout if nice to have.

      Helpful?

    3. It is variable speed motor. There is no need to change belt positions. You simply turn a crank handle on the side of the head to adjust the RPM. A digital display on the front of the head displays the RPM. This is a great feature, particularly, if you need to change speed often.

      Helpful?

    4. This drill has a CVT ( continously variable transmission) , so technically it can get pretty close to any RPM from about 560rpm all the way up to 2400rpm. It has a handle on the left side of head, which when rotated adjusts the pulley's ratio. You won't be able to get an exact RPM, but you can get close.

      Helpful?

    5. This drill press is a variable speed machine with a digital RPM display.

      Helpful?

  2. Do you have to manually change a belt to change speeds or is it servo controlled?

    1. It adjust with variable speed pulleys. Just move the handle and the speed changes.

      Helpful?

    2. The speed control on this drill press is done by changing the belts positions.

      Helpful?

    3. Dave , it has two sheaves that move in and out while machine is spinning to change the speeds. This moves the belt in and out the diameter of the pulley. Very effective.

      Helpful?

  3. Are parts available?

    Can I get replacement parts for this machine when it breaks? I'd rather not have to bring the entire machine back to the store if something breaks.

    1. YES, parts are readily available

      Helpful?

    2. Replacement parts for this drill press are available through our Parts department. Please call 1-800-657-0516 for pricing and availability. The Parts department is open Monday-Friday, 7am-6pm Central time and 7am-3pm on Saturday.

      Helpful?

  4. What is the noise level?

    How loud is this machine? What noise level does it run at?

    1. Even though it has a big 1.5 hp motor and is a 17 in floor model, it runs very quiet to the point to here measuring noise is almost pointless.

      Helpful?

    2. This has a normal noise level as that of most selling on the market. It is approximately 70 dB.

      Helpful?

  5. Is the base really big enough to provide a stable footing since I assume it is quite top heavy??

    1. The base is large, heavy and has four bolt holes in it, but yes, it is very top heavy with that big motor and the top being cast iron. For my peace of mind and to keep it very stable, I'm fastening my base to a concrete floor plus strapping it down securely near the top, to heavy eye-bolts in the wall studs.

      Helpful?

    2. The base is designed to be bolted to the floor for stability.

      Helpful?

  6. Does it have a morse taper? If, what size.

    1. The manual states a MT2 taper

      Helpful?

    2. The spindle taper is MT2.

      Helpful?

  7. Can you buy a replacement head for this unit?

    1 answer

    1. The replacement head, part #KLH49385-169, can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  8. What does a 1 inch maximum drilling capacity mean?

    1 answer

    1. The 1" maximum drilling capacity refers to the maximum diameter of drill bit that can be used with the drill press.

      Helpful?

  9. What is the minimum speed?

    1 answer

    1. The minimum speed of this drill press is 600 RPM.

      Helpful?

  10. Why is drilling capacity limited to 1 inch?

    1 answer

    1. That is the max capacity the drill press is rated to.

      Helpful?
