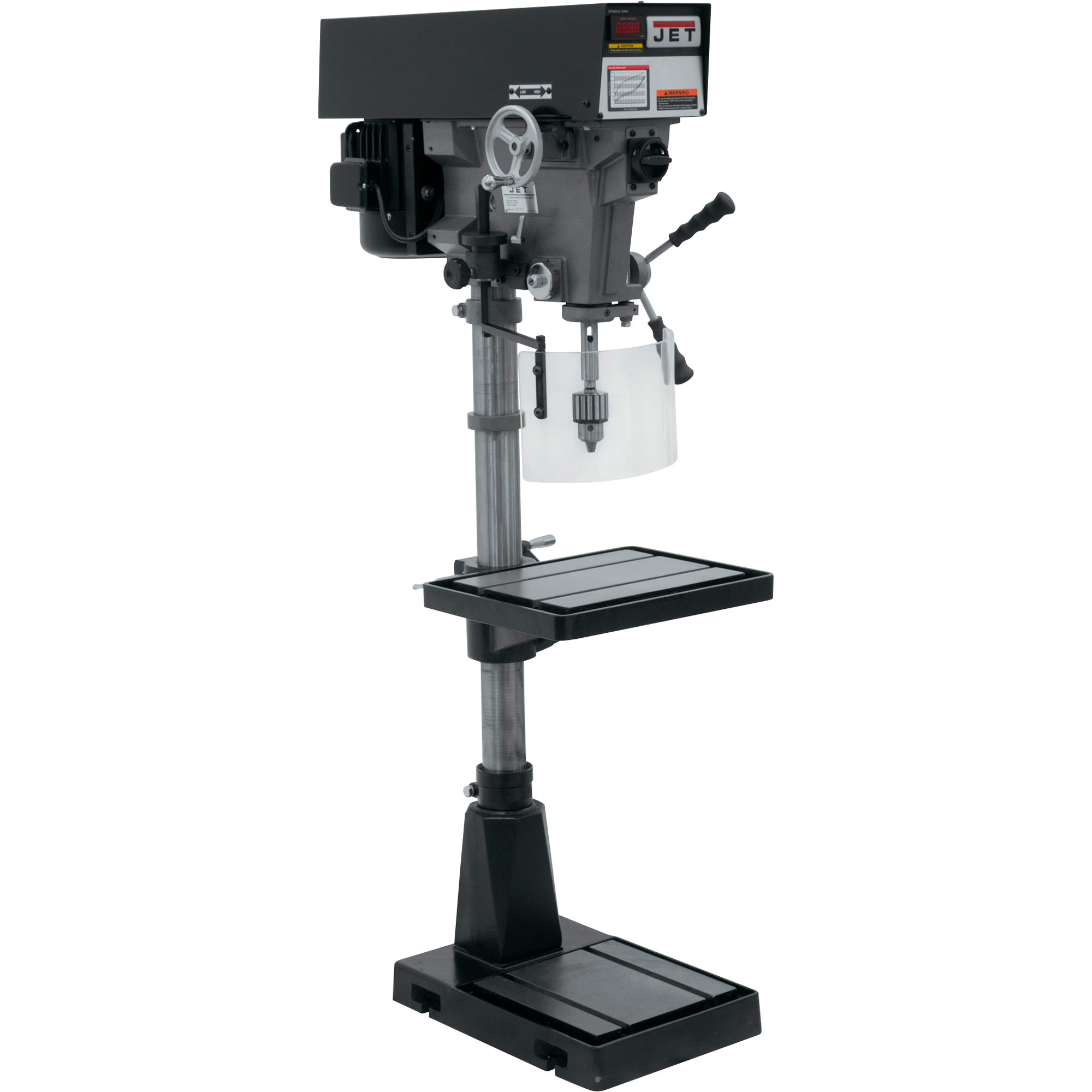

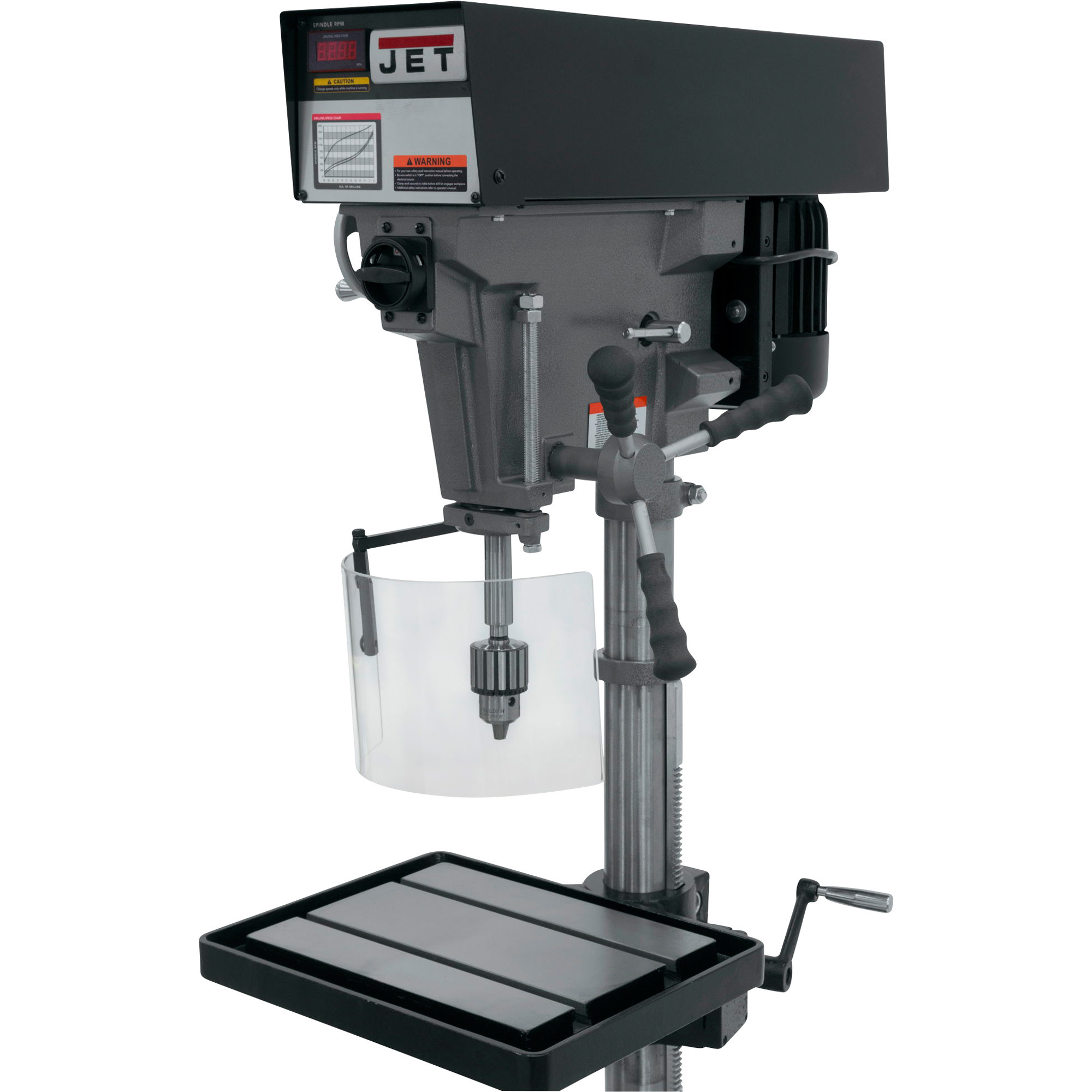

JET Variable Speed Floor Drill Press, 15in., 1 HP, 230/460V, 3-Phase, Model# J-A5818

Item# 66132
JET Variable Speed Floor Drill Press, 15in., 1 HP, 230/460V, 3-Phase, Model# J-A5818

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Variable Speed Floor Drill Press, 15in., 1 HP, 230/460V, 3-Phase, Model# J-A5818

Click or Tap image to Zoom

$2914.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • Variable handwheel speed adjustment of 400 to 5,000 RPM offers exceptional versatility
  • Full bearing support on quill for maximum spindle stiffness
  • Large 2 1/4in. quill for greater accuracy
  • 3in. column provides maximum head support
  • 6in. stroke for deep hole application

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Variable Speed Floor Drill Press, 15in., 1 HP, 230/460V, 3-Phase, Model# J-A5818
  • Wilton Cross Slide Drill Press Vise, 6in. Jaw Length, Model# CS6
Price for all two:

$3324.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This heavy-duty 15in. JET Variable Speed Floor Drill Press uses a variable-speed motor with the stepped-pulley system and comes equipped with a continuously variable transmission. This enables use at a wide range of speeds, as well as the ability to change speed during operation. A scale-marked hand wheel that matches the desired machine speed is mounted to a reduction gearing system for precise operator control. This adjusts the gearing ratio between the motor's fixed pulley and the output shaft's variable pulley, changing the speed of the chuck. A tensioner pulley is implemented in the belt transmission to take up or release the slack in the belt as the speed changes.

What's Included

    (1) Floor drill press

Downloads

Product Manual

Features + Benefits

  • Variable handwheel speed adjustment of 400 to 5,000 RPM offers exceptional versatility
  • Full bearing support on quill for maximum spindle stiffness
  • Large 2 1/4in. quill for greater accuracy
  • 3in. column provides maximum head support
  • 6in. stroke for deep hole application
  • Accurate depth stop for precise hole depths
  • 1/2in. drill chuck and arbor are included
  • Safety collar

Key Specs

AttributeSpecification

item#

66132

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

388.0 LB

Horsepower

1 HP

Volts

230/460

Max. Speed

5,000 rpm

360 Degree Head Swivel

No

Product Type

Drill Press
AttributeSpecification

Drilling Capacity

3/8 in

Chuck Size

1/2 in

Light Included

No

Stand Included

Yes

Variable Speed

Yes

Max. Spindle Distance

25.75 in

Product Weight

388.0000 lb

Dimensions L x W x H (in.)

31.0 x 31.0 x 70.0 in
