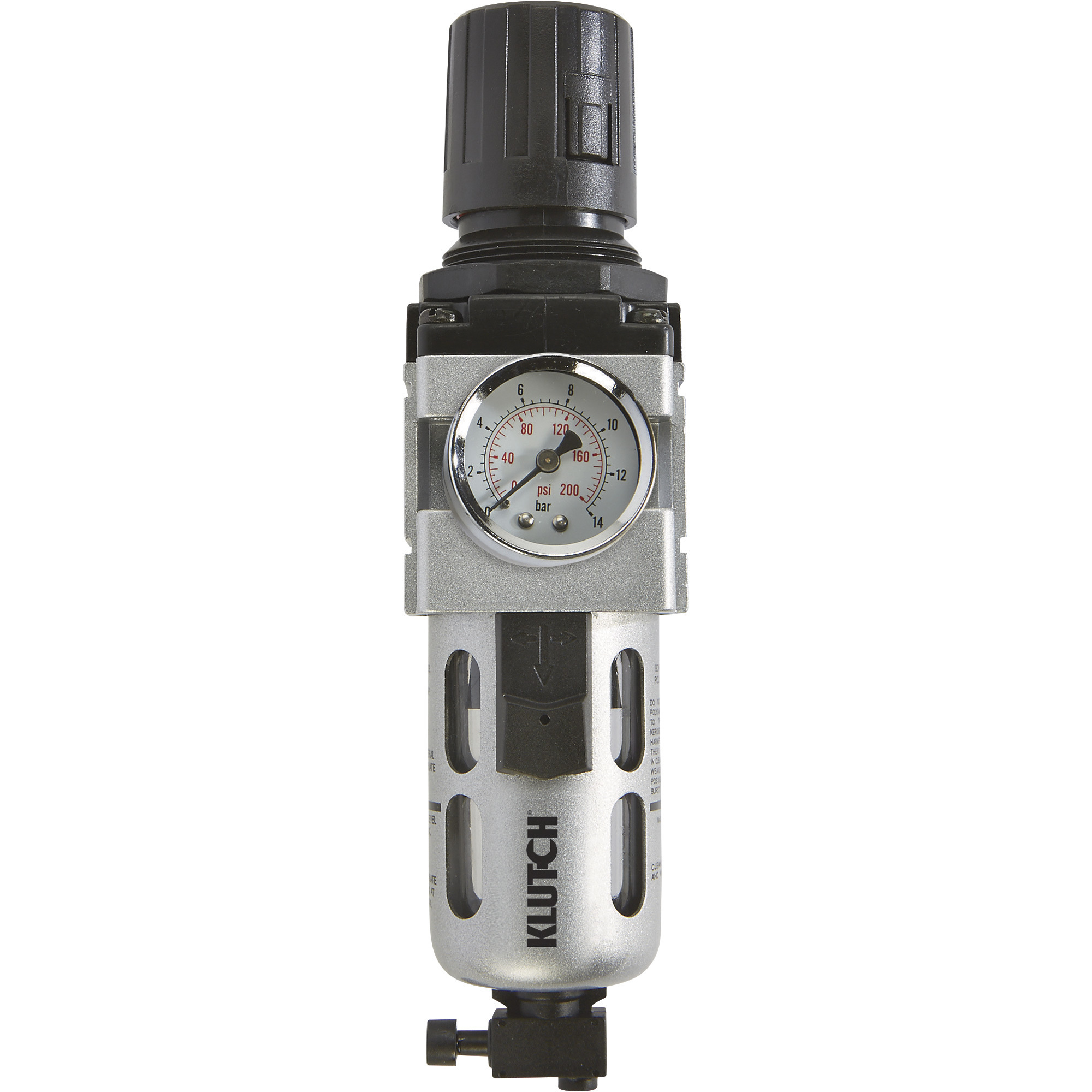

Klutch Air Compressor Filter–Regulator Combo, 3/8in. NPT, 77 CFM

Item# 48522
Klutch Air Compressor Filter–Regulator Combo, 3/8in. NPT, 77 CFM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch Air Compressor Filter–Regulator Combo, 3/8in. NPT, 77 CFM

Click or Tap image to Zoom

$89.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • 3/8in. NPT air inlet
  • 77 CFM
  • 145 max. PSI
  • 1-piece design saves space
  • 40-micron sintered bronze filter element can be cleaned and never needs to be replaced

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Klutch Air Compressor Filter–Regulator combo features a 1-piece space-saving design. The 40-micron sintered bronze filter element can be cleaned and never needs to be replaced. Aluminum body. Polycarbonate bowl is protected from breakage by steel bowl guard. Red Band alert indicates when regulator is in unlocked position. Semiautomatic nighttime drain ensures filter is drained when compressor is shut down. Includes mechanical air pressure gauge and mounting bracket.

What's Included

    (1) Air compressor filter–regulator combo (1) Air pressure gauge (1) Wall-mounting bracket

Features + Benefits

  • 3/8in. NPT air inlet
  • 77 CFM
  • 145 max. PSI
  • 1-piece design saves space
  • 40-micron sintered bronze filter element can be cleaned and never needs to be replaced
  • Aluminum body
  • Steel bowl guard protects polycarbonate bowl from accidental breakage
  • Red Band alert indicates regulator in unlocked position
  • Semiautomatic nighttime drain automatically drains filter when line pressure falls below 11 PSI
  • Wall-mounting bracket for easy installation

Key Specs

AttributeSpecification

item#

48522

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.69 LB

CFM

77 cfm
AttributeSpecification

Inlet Diameter

0.37 in

Outlet Diameter

0.375 in

Material

Polycarbonate

Recommended Use

Filter and Regulator

Max. PSI

145

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. Is there a part number for the filter element?

    1 answer

    1. At this time, a replacement filter element is not offered. The 40-micron sintered bronze filter element can be cleaned and does not need to be replaced.

      Helpful?

  2. Can I add a lubricator to this filter-regulator

    1 answer

    1. A lubricator can be added to this filter-regulator, but Northern Tool doesn't carry a 3/8" lubricator separately. Northern Tool item #48575 or 48522 would be recommended.

      Helpful?

  3. Max input psi?

    I see it shows 145 psi max is that input pressure or output?

    1 answer

    1. The maximum input pressure on this filter-regulator combo is 145 PSI.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
