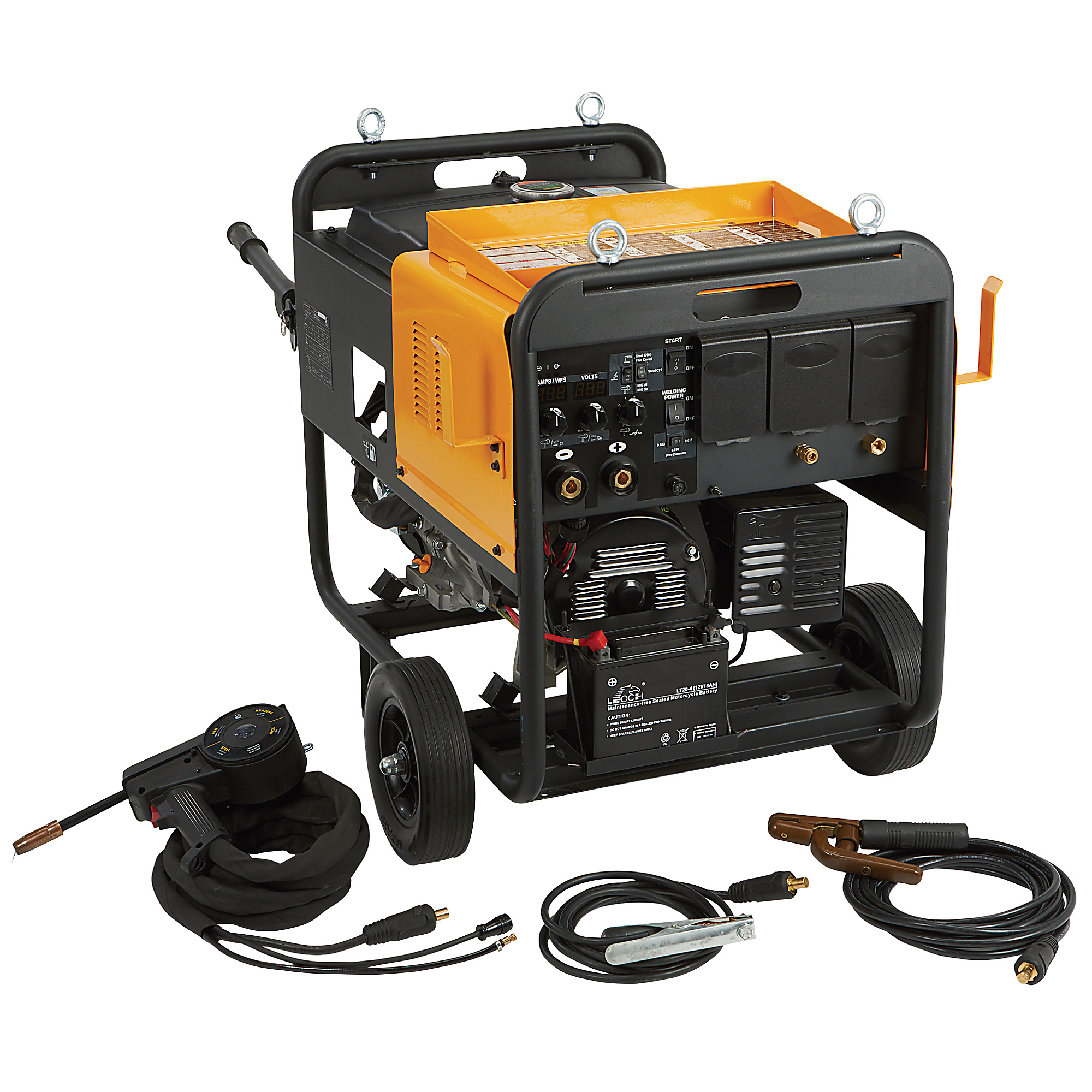

Klutch 7kW Multi-Process Engine-Driven Inverter DC Arc Welder/AC Generator with Spool Gun and Wheel Kit, 20–195 Amp DC Output, 120/240 Volts, 7kW Max. Power Output, MIG Ready

Item# 5908747
Top Seller
Klutch 7kW Multi-Process Engine-Driven Inverter DC Arc Welder/AC Generator with Spool Gun and Wheel Kit, 20–195 Amp DC Output, 120/240 Volts, 7kW Max. Power Output, MIG Ready

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch 7kW Multi-Process Engine-Driven Inverter DC Arc Welder/AC Generator with Spool Gun and Wheel Kit, 20–195 Amp DC Output, 120/240 Volts, 7kW Max. Power Output, MIG Ready

Click or Tap image to Zoom

$2279.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not Available
  • Comes Complete with Spool Gun for Added Performance: Innovative design integrates a 20ft. spool gun to provide easier welding and added MIG and flux-core welding capabilities
  • Extra-Versatile Operation: Multi-process TIG/flux-core/MIG/stick welding functions offer the welding capabilities you need to handle a variety of projects
  • Handles the Heavy Metals: Get powerful performance welding steel, stainless steel, aluminum, cast iron and hard surfacing up to 3/8in. thick

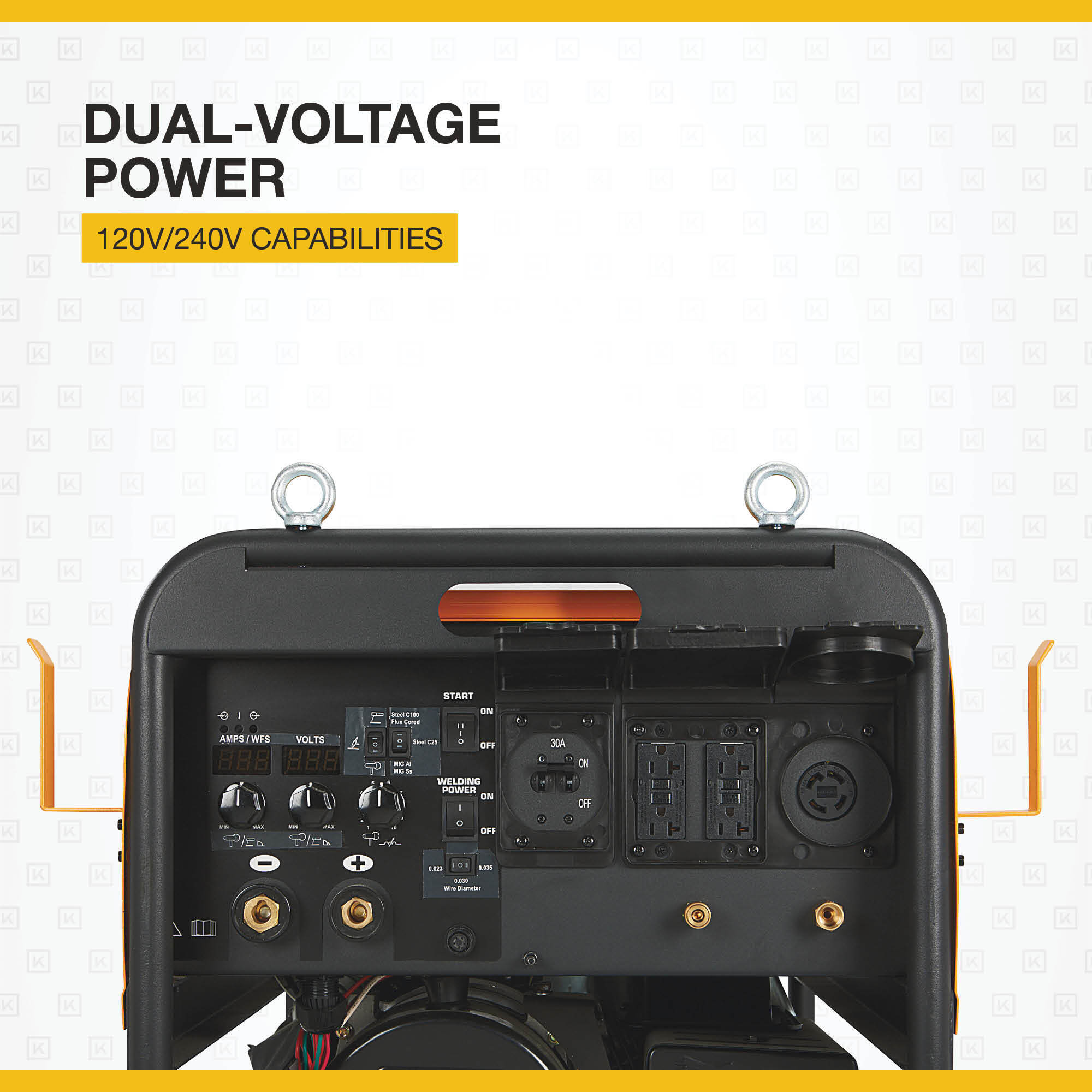

  • Delivers Dual-Voltage Power Right to Your Jobsite: 120/240V capabilities includes 2 sets of 120V GFCI receptacles and (1) 240V twist-lock (NEMA L14-30) receptacle
  • Dependable Engine with Electric Start Instantly Delivers the Power You Need: A 420cc, 14 HP air-cooled engine with electric start along with recoil backup drives the welder and blasts out the power you need

See full description

Complete Your Solution

  • Klutch 7kW Multi-Process Engine-Driven Inverter DC Arc Welder/AC Generator with Spool Gun and Wheel Kit, 20–195 Amp DC Output, 120/240 Volts, 7kW Max. Power Output, MIG Ready
  • Klutch MonsterView 1400 Auto-Darkening Welding Helmet
  • Hobart Welding Apron, Leather, Brown, One Size Fits Most, Model# 770548
  • Klutch Steel Welding Table with Tool Kit, 36in.L x 24in.W x 33-1/4in.H
Price for all four:

$2579.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Klutch Inverter Welder/Generator with Spool Gun features advanced inverter technology to provide smooth DC weld arc performance. This design includes MIG/flux-core/TIG/stick functions. Synergic MIG functions make machine setup easier. Infinite wire-feed speed and voltage adjustment contributes to smooth DC welding performance. Inductance adjustment is designed for hard-soft weld arc performance. The digital display allows easy reading. The spool gun connects for MIG/flux-core welding. The 78V no-loading voltage design is available for cellulose electrodes. This unit includes auxiliary power supply, rated output power of 6kW and max. output power 7kW. The start is electric/manual. The 5-gallon fuel tank allows for up to 5 hours of run time. 120/240V auxiliary power includes 1 set of 120V GFCI receptacles and (1) 240V 4-pin receptacle. The circuit breaker protects the machine from overloading. Folding handle and wheels allow easier transportation. 4 lifting eyes allow easy lifting and hanging. Also features a duty cycle of 30% @ 195A plus an amperage range adjustment of 30–195A. This unit welds a wide variety of materials up to 3/8in. including steel, stainless steel, cast iron, hard surfacing and aluminum. Includes 20ft. spool gun, 20ft. grounding cable with clamp, 20ft. welding cable with electrode holder, 10ft. gas hose and gas regulator. CSA and EPA approved.

What's Included

    (1) Welder generator (1) 20ft. spool gun (1) 10ft. gas hose (1) 20ft. grounding cable with clamp (1) Handle and wheels (1) Regulator

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Comes Complete with Spool Gun for Added Performance: Innovative design integrates a 20ft. spool gun to provide easier welding and added MIG and flux-core welding capabilities
  • Extra-Versatile Operation: Multi-process TIG/flux-core/MIG/stick welding functions offer the welding capabilities you need to handle a variety of projects
  • Handles the Heavy Metals: Get powerful performance welding steel, stainless steel, aluminum, cast iron and hard surfacing up to 3/8in. thick
  • Delivers Dual-Voltage Power Right to Your Jobsite: 120/240V capabilities includes 2 sets of 120V GFCI receptacles and (1) 240V twist-lock (NEMA L14-30) receptacle
  • Dependable Engine with Electric Start Instantly Delivers the Power You Need: A 420cc, 14 HP air-cooled engine with electric start along with recoil backup drives the welder and blasts out the power you need
  • Extended Run Time: Large 5-gallon fuel capacity provides up to 5 hours of run time on 1 tank
  • Extra-Lightweight Inverter Design: Special inverter technology weighs in at up to 50% lighter than comparable models and delivers ultra-consistent welds
  • Take-Anywhere Portability: Folding handle teams with easy-rolling wheels to help make transport to, from or around the jobsite much easier
  • Overload Protection: Circuit breaker safeguards the machine from overloading
  • Effortless Setup: Synergic MIG function simplifies adjustments for a smoother welding experience
  • Take-Anywhere Portability: Folding handle teams with easy-rolling wheels for hassle-free transport
  • Versatile Lifting Options: Four lifting eyes enable easy hoisting and secure hanging

Key Specs

AttributeSpecification

item#

5908747

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

342.0 LB

Volts

120/240

Max. Amps

195

Power Type

DC

Multi-process

Yes

Spool Gun Included

Yes

Welding Processes

Flux-Core, MIG, Stick, TIG

Max. Weld Thickness

0.375 in

Max. Welding Wire Diameter

0.035 in

Duty Cycle

30% at 195A

Fuel Type

Gasoline

Fuel Capacity

5 Gal

Engine Type

Single Cylinder

Engine Displacement

420 cc

Electric Start

Yes

Battery Included

Yes

Hour Meter Included

No
AttributeSpecification

Receptacles Included

Yes

120V Receptacles Included

Yes

240V Receptacles Included

Yes

GFCI Protection

Yes

Lifting Hook

Yes

Welding Cables Included

Yes

Generator Output (Continuous Watts)

6,000

Generator Output (Surge Watts)

6,500

Weldable Materials

Steel,Stainless steel, Iron

Min. Amps

30

Wire Feed Speed Control

Yes

Cart Included

No

Mig Ready

Yes

Clamp Cable Length

20 ft

Electrode Cable Length

20 ft

Regulator and Gas Hose Included

Yes

Shielding Gas Required

Yes

Product Weight

350.0000 lb

Dimensions L x W x H (in.)

49.4 x 32.5 x 28.3 in

Reviews

Questions & Answers

18 Reviews This action will navigate to reviews.

Questions

1–10 of 30 Questions
Sort by:

  1. Can I run longer leads with this welder?

    1 answer

    1. A longer ground cable can be used as long as it is equipped with a 10-25 DINSE connector. The torch lead is fixed and cannot be replaced or extended.

      Helpful?

  2. There are no specifics on engine model or oil capacity! Pretty important info , only 429cc.

    1 answer

    1. This machine is equipped with a Loncin G420FDA engine with an oil capacity of 54 - 61 fl oz.

      Helpful?

  3. What ends does the leads take

    1 answer

    1. The torch is fixed and has no connector ends. The ground cable uses a 10-25 DINSE connector.

      Helpful?

  4. What is the length and width of main unit for mounting on a service truck

    1 answer

    1. The machine measures 32.76" L × 21.73" W × 26.97" H without the handle and wheels.

      Helpful?

  5. Does engine idle when not welding?

    1 answer

    1. The engine will idle down when the user stops welding.

      Helpful?

  6. how well it weld 6010 rods if at all?

    1 answer

    1. This welder is compatible with 6010, 6011, 6013, 7018, and 7024 rods. However, 6010 rods will burn faster during use.

      Helpful?

  7. How long will a tank of gas run at full throttle?

    1 answer

    1. The 5-gallon fuel tank allows for up to 6 hours of run time.

      Helpful?

  8. does this welder when used as a generator idle the engine down when needed

    1 answer

    1. The generator is equipped with an idle controller to lower the engine speed when the electrical load it reduced.

      Helpful?

  9. What type oil and gasoline do you use in this machine?

    1 answer

    1. SAE 10W-30 oil is recommended for general use. An 87 octane or higher unleaded gasoline should be used.

      Helpful?

  10. What tig fits this macine

    1 answer

    1. At this time, we do not have a TIG torch available for this machine. It will accept a TIG torch with 35-70 twist lock connections.

      Helpful?
