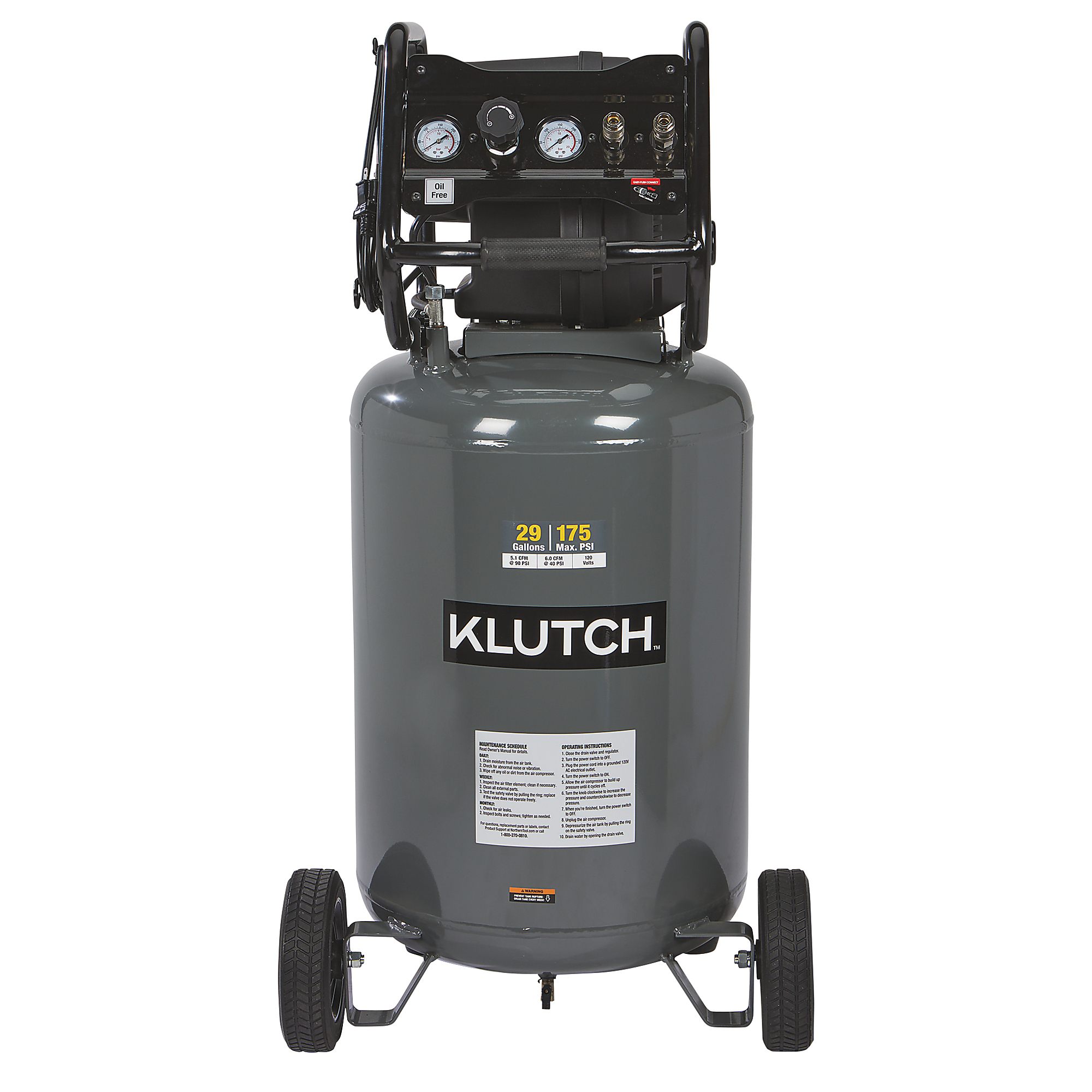

Klutch 29-Gallon Air Compressor, 2.5 HP, 120 Volts, 175 PSI

Item# 5820673
"Klutch 29-Gallon Air Compressor, 2.5 HP, 120 Volts, 175 PSI"
Top Seller
Klutch 29-Gallon Air Compressor, 2.5 HP, 120 Volts, 175 PSI

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch 29-Gallon Air Compressor, 2.5 HP, 120 Volts, 175 PSI

Click or Tap image to Zoom

$499.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    8 in stock at Fredericksburg VA

  • Powerful Performance: Features a robust 2.5 HP motor operating on 120 Volt standard household power, delivering high-pressure output of up to 175 PSI
  • Versatile Design: Engineered for both intermediate and continuous use

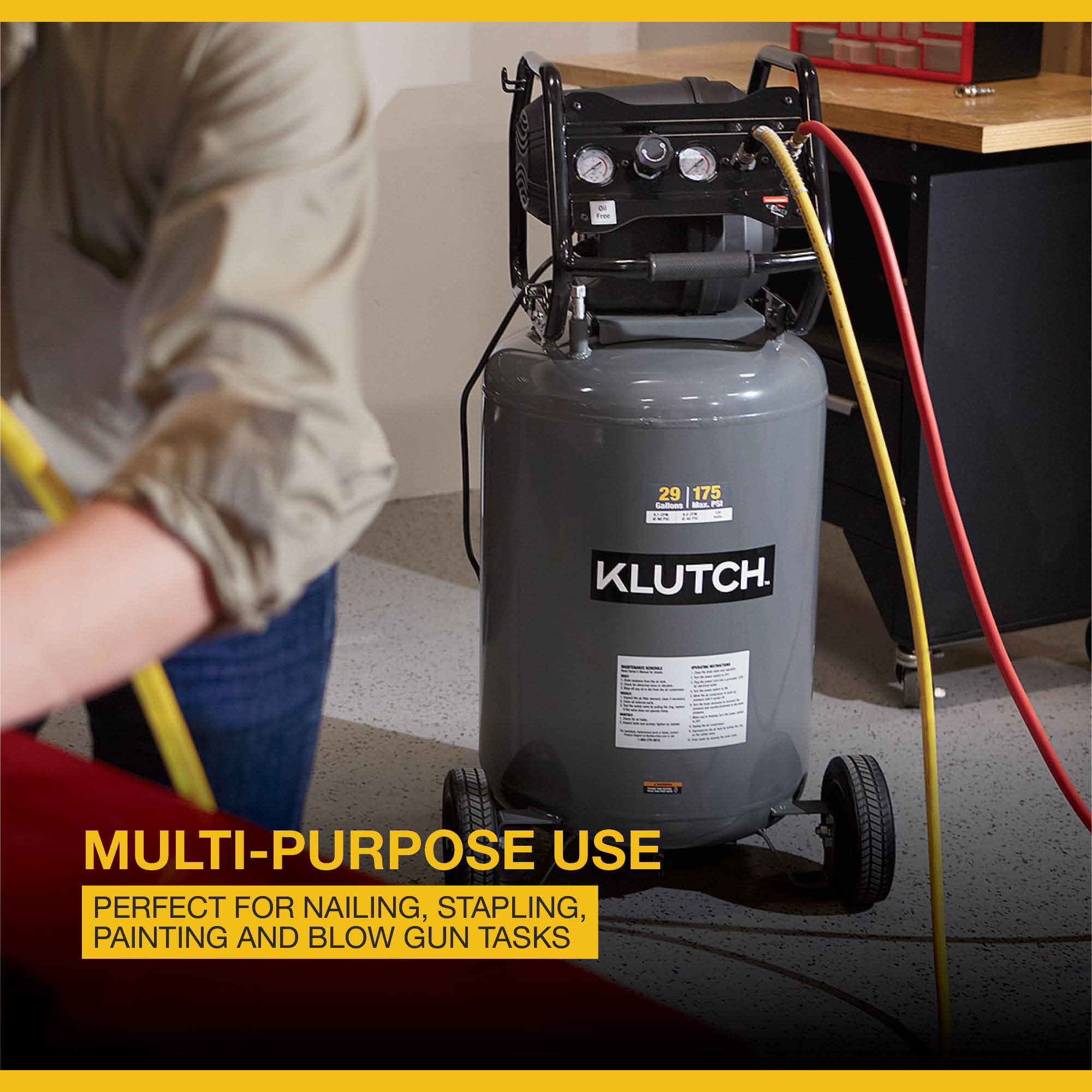

  • Multi-Application Use: Perfect for nailing, stapling, painting and blow gun operations
  • Optimal Airflow: 5.1 SCFM @ 90 PSI, 6 CFM @ 40 PSI
  • Quick Recovery Times: Reduces downtime with rapid cycle performance

See full description

Complete Your Solution

  • Klutch 29-Gallon Air Compressor, 2.5 HP, 120 Volts, 175 PSI
  • Klutch Rubber Air Hose, 3/8in. x 50ft., 300 PSI
  • Klutch Air Line Inflator Gauge
  • Klutch 20-Pc. Air Line Connector Kit, 1/4in. NPT
Price for all four:

$572.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Klutch 29-Gallon Air Compressor is versatile and powerful, featuring a 2.5 HP motor that operates at 120 Volts and delivers up to 175 PSI. This oil-free vertical compressor is designed for both intermediate and continuous use, making it perfect for a variety of pneumatic applications, including nailing, stapling, painting and blow gun operations. With a performance rating of 5.1 SCFM @ 90 PSI, it ensures quick recovery and cycle times. The compressor is equipped with a brass quick-connect coupler for effortless 1-handed hose connections and features large flat-free tires for easy maneuverability. Its ergonomic handle and large rubber wheels enhance portability, while a conveniently located forward-facing drain valve allows for fast and thorough tank drainage, ensuring hassle-free maintenance.

What's Included

    (1) Klutch 29-Gallon Air Compressor

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Powerful Performance: Features a robust 2.5 HP motor operating on 120 Volt standard household power, delivering high-pressure output of up to 175 PSI
  • Versatile Design: Engineered for both intermediate and continuous use
  • Multi-Application Use: Perfect for nailing, stapling, painting and blow gun operations
  • Optimal Airflow: 5.1 SCFM @ 90 PSI, 6 CFM @ 40 PSI
  • Quick Recovery Times: Reduces downtime with rapid cycle performance
  • User-Friendly Connections: Brass quick-connect coupler allows for seamless one-handed hose connections
  • Enhanced Portability: Ergonomic handle is designed for comfortable transport while large rubber wheels ensure smooth movement over various terrain
  • Effortless Maintenance: Forward-facing drain valve for quick, complete tank drainage and a user-friendly design that simplifies upkeep
  • Low-Maintenance Operation: Oil-free compressor eliminates the need for oil changes and oil checks; produces cleaner air

Key Specs

AttributeSpecification

item#

5820673

Brand

Klutch

Manufacturer's Warranty

2 year limited warranty

Ship Weight

127.0 LB

Horsepower

2.5 HP

Air Tank Size

29 Gal

Volts

120

CFM at 90 PSI

5.1

Max. PSI

175

Stage

1

Air Outlets (qty.)

2

Amps

14.5

Duty Cycle

75 %

Motor RPM

10,000

Working Pressure

175 PSI

Pump Life

400 hr
AttributeSpecification

Pump Material

Aluminum

Pump Drive

Direct

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

6

Noise Level

81 dB

Oil Required

No

Low Oil Shutdown

No

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Tank Fill Time

9.3 min

Air Dryer

None

Drain Type

Manual

Tank Orientation

Vertical

Product Weight

114.6400 lb

Dimensions L x W x H (in.)

23.22 x 21.06 x 45.27 in

Reviews

Questions & Answers

94 Reviews This action will navigate to reviews.

Questions

1–10 of 32 Questions
Sort by:

  1. what is the warrenty on this compressor?

    1 answer

    1. This air compressor has a 2 year limited warranty. Complete details can be found on page 22 of the Product Manual located below the Product Summary on the web page.

      Helpful?

  2. Can it be converted to run on 220vac?

    1 answer

    1. The motor is not designed to be converted to 220V. Any modifications like this could damage the machine and would void the warranty.

      Helpful?

  3. What is the bore size of the piston? I need to replace the reed valve and am having trouble locating the proper size.

    1 answer

    1. The piston bore diameter is 3.21" (81.5mm). The manufacturer recommends replacing parts 28-34.

      Helpful?

  4. Is there a special connection required at the compressor side , I used a 1/4 and it’s not sealing correctly and air is leaking

    1 answer

    1. The air outlet is 1/4" NPT. For proper connection, make sure the hose fitting also has an NPT thread.

      Helpful?

  5. Can I paint a car without losing pressure

    1 answer

    1. This air compressor can produce 5.1 CFM at 90 PSI and 6 CFM at 40 PSI. It has a 75% duty cycle. It is best to check the requirements of the equipment to determine what air compressor is needed.

      Helpful?

  6. What is the normal brake in procedure for this air compressor

    1 answer

    1. Please use the following procedure for breaking in the air compressor:
      1. Turn the power switch to OFF and unplug the power cord.
      2. Turn the regulator to “+”and fully open it.
      3. Fully open the drain valve.
      4. Plug in the power cord.
      5. Turn the power switch to ON.
      6. Let the unit run for 15 minutes. Air will expel freely through the drain valve.
      7. Turn the power switch to OFF.
      8. Unplug the power cord and close the drain valve.

      Helpful?

  7. Is it a twin piston?

    1 answer

    1. This air compressor does not feature twin pistons.

      Helpful?

  8. Is the pressure regulator knob supposed to be lockable after you set your desired pressure?

    1 answer

    1. The pressure regulator knob does not lock once the pressure has been adjusted.

      Helpful?

  9. Will it handle power air tools

    1 answer

    1. This air compressor can produce up to 5.1 CFM at 90 PSI and up to 6 CFM at 40 PSI. Please check the requirements of the specific tool being used with it.

      Helpful?

  10. amperage draw

    1 answer

    1. This air compressor draws up to 14.5 amps.

      Helpful?
