Ingersoll Rand Garage Mate Portable Electric Air Compressor, 2 HP, 20-Gallon Horizontal, 5.2 CFM, Model# P1.5IU-A9-H

Item# 107061
"Ingersoll Rand Garage Mate Portable Electric Air Compressor, 2 HP, 20-Gallon Horizontal, 5.2 CFM, Model# P1.5IU-A9-H"
Ingersoll Rand Garage Mate Portable Electric Air Compressor, 2 HP, 20-Gallon Horizontal, 5.2 CFM, Model# P1.5IU-A9-H

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Garage Mate Portable Electric Air Compressor, 2 HP, 20-Gallon Horizontal, 5.2 CFM, Model# P1.5IU-A9-H

Click or Tap image to Zoom

$849.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 2 HP, 115V 15 Amp motor
  • Low 80dB noise level
  • V-belt drive
  • Cast-iron pump
  • All-season select synthetic lubricant provides 2000 hours of service between change-outs

See full description

Complete Your Solution

  • Ingersoll Rand Garage Mate Portable Electric Air Compressor, 2 HP, 20-Gallon Horizontal, 5.2 CFM, Model# P1.5IU-A9-H

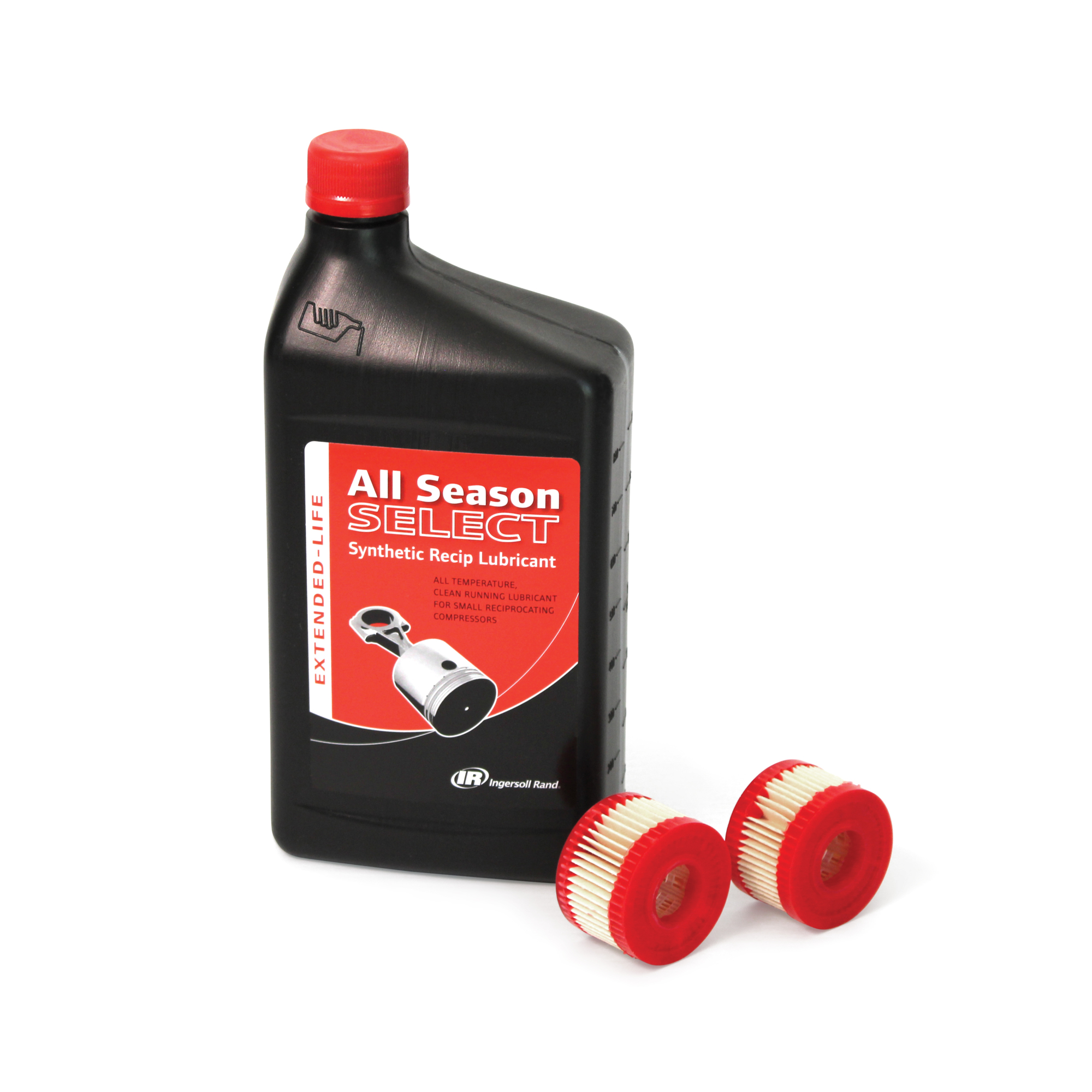

  • Ingersoll Rand, 2 Year Warranty Startup Kit - P1.5IU-A9 Garage Mate, Model# 47853635003-R
Price for all two:

$939.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Designed for professionals and serious do-it-yourselfers, this versatile Ingersoll Rand Garage Mate is ideal for the home, shop or jobsite. Delivering maximum air, this compressor can power impact guns, ratchets, grinders, drills, nailers, paint sprayers, sanders and more. Durable cast iron cylinder and frame, protective enclosed belt guard and manual overload motor protection provide excellent longevity. All season select synthetic lubricant increases efficiency; with 2000 hours of service between change-outs, it performs four times longer than petroleum-based lubricants. Portable compressor has heavy-duty ergonomic handle and semi-pneumatic tires for easy handling. Extend your pump warranty by purchasing using the 2yr Warranty Start Up Kit (Item# 6132338 - sold seperately).

What's Included

    (1) 2 HP portable electric air compressor with 20-gallon horizontal tank

Downloads

Product Manual

Features + Benefits

  • 2 HP, 115V 15 Amp motor
  • Low 80dB noise level
  • V-belt drive
  • Cast-iron pump
  • All-season select synthetic lubricant provides 2000 hours of service between change-outs
  • Protective enclosed belt guard
  • Heavy-duty ergonomic handle and semi-pneumatic tires for easy handling
  • Idle control
  • Manual overload motor protection for longevity
  • Easily accessible drain valve
  • Splash lubrication
  • 100% cast iron cylinders
  • Automatic start/stop pressure switch control
  • Extend the pump warranty to 2yrs by purchasing & using the 2yr Warranty Start Up Kit (Item# 6132338 - sold seperately)

Key Specs

AttributeSpecification

item#

107061

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

200.0 LB

Horsepower

2 HP

Air Tank Size

20 Gal

Volts

115

CFM at 90 PSI

5.2

Max. PSI

135

Air Outlets (qty.)

1

Amps

15
AttributeSpecification

Duty Cycle

100 %

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1/4 in. NPT

Noise Level

80 dB

Oil Required

Yes

Drain Type

Manual

Tank Orientation

Horizontal

Product Weight

200.0000 lb

Dimensions L x W x H (in.)

35.0 x 22.0 x 39.0 in

Reviews

Questions & Answers

16 Reviews This action will navigate to reviews.

Questions

1–10 of 20 Questions
Sort by:

  1. Can it be stored/shipped upright with oil? (I’m pretty sure no, but I’ll ask.)

    1 answer

    1. This model is a horizontal air compressor and should not be stored upright.

      Helpful?

  2. Where can I purchase a pressure swtich for this unit? I’ve been looking online but can’t find the exact one

    1 answer

    1. The pressure switch for this model can be purchased from our sister company, Jacks Small Engines, by visiting https://jackssmallengines.com/ and using Part#: 23192487.

      Helpful?

  3. Does it come with separate tank

    1 answer

    1. The compressor will come with a 20 gallon horizontal tank. The tank is not separate. The motor and compressor pump are installed on top of the tank.

      Helpful?

  4. How tall is the ingersoll Rand 2hp 20 gal horizontal shop air compressor? I have seen the specs as 39 and 29 inches on line.

    1 answer

    1. The overall assembled dimensions for this air compressor are 35" long x 22" wide x 39" high.

      Helpful?

  5. What is the continuous operating wattage? Start up wattage? Asking for my AC/DC inverter.

    1 answer

    1. The continuous operating wattage will be 1691 watts. The surge wattage will be 2300 watts. The compressor will require 14.7 amps at 115 volt for continuous run and 20 amps at 115 volt for start up.

      Helpful?

  6. How long is the electric cord?

    1 answer

    1. This comes with a 6 foot power cord.

      Helpful?

  7. What is the recommended flat free tire for this model?

    1 answer

    1. Northern Tool does not carry a flat free tire to fit this compressor.

      Helpful?

  8. Hello what is the axel bolt size? or bearing?hole size of the wheel ID thankyou

    1 answer

    1. The center hole on the wheel is 3/4". The bolt for the wheel is 0.735". There is no axle. The wheel bolts directly to the compressor. The dimensions on the wheel are 2 x 2.54. The overall diameter of the wheel is 10 inches.

      Helpful?

  9. How long does it take to fill the tank with air?

    1 answer

    1. The fill time is 4.7 minutes at 0-135 PSI and 1.22 minutes at 90-135 PSI.

      Helpful?

  10. what is the width of just the tank. we are limited on space and mounting solid to the floor . so we wont use the wheels

    1 answer

    1. The width of the tank with out the wheels is approximately 12 inches.

      Helpful?
