Klutch Electric Air Compressor, 20-Gal., Vertical, 2 HP, 120 Volts, 175 PSI, 4.2 CFM @ 90 PSI

Item# 5820681
Top SellerOn Sale
Klutch Electric Air Compressor, 20-Gal., Vertical, 2 HP, 120 Volts, 175 PSI, 4.2 CFM @ 90 PSI

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch Electric Air Compressor, 20-Gal., Vertical, 2 HP, 120 Volts, 175 PSI, 4.2 CFM @ 90 PSI

Click or Tap image to Zoom

$299.99
Reg $329.99Save $30.00

Order today to get this price.

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available

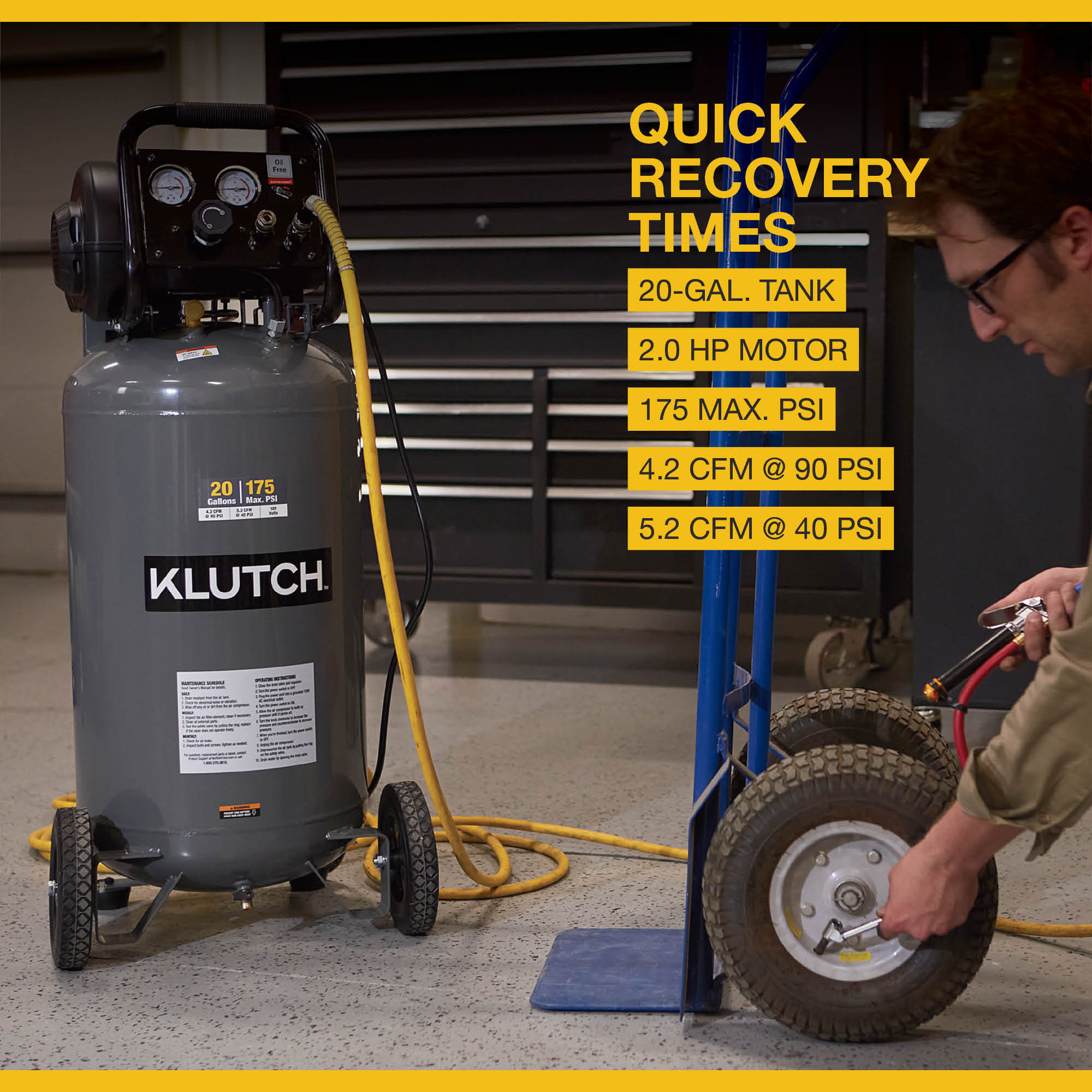

  • 20-Gal. Vertical Tank: Provides compressed air storage while minimizing floor space requirements
  • 2 HP Motor: Operates on 120 Volt household power

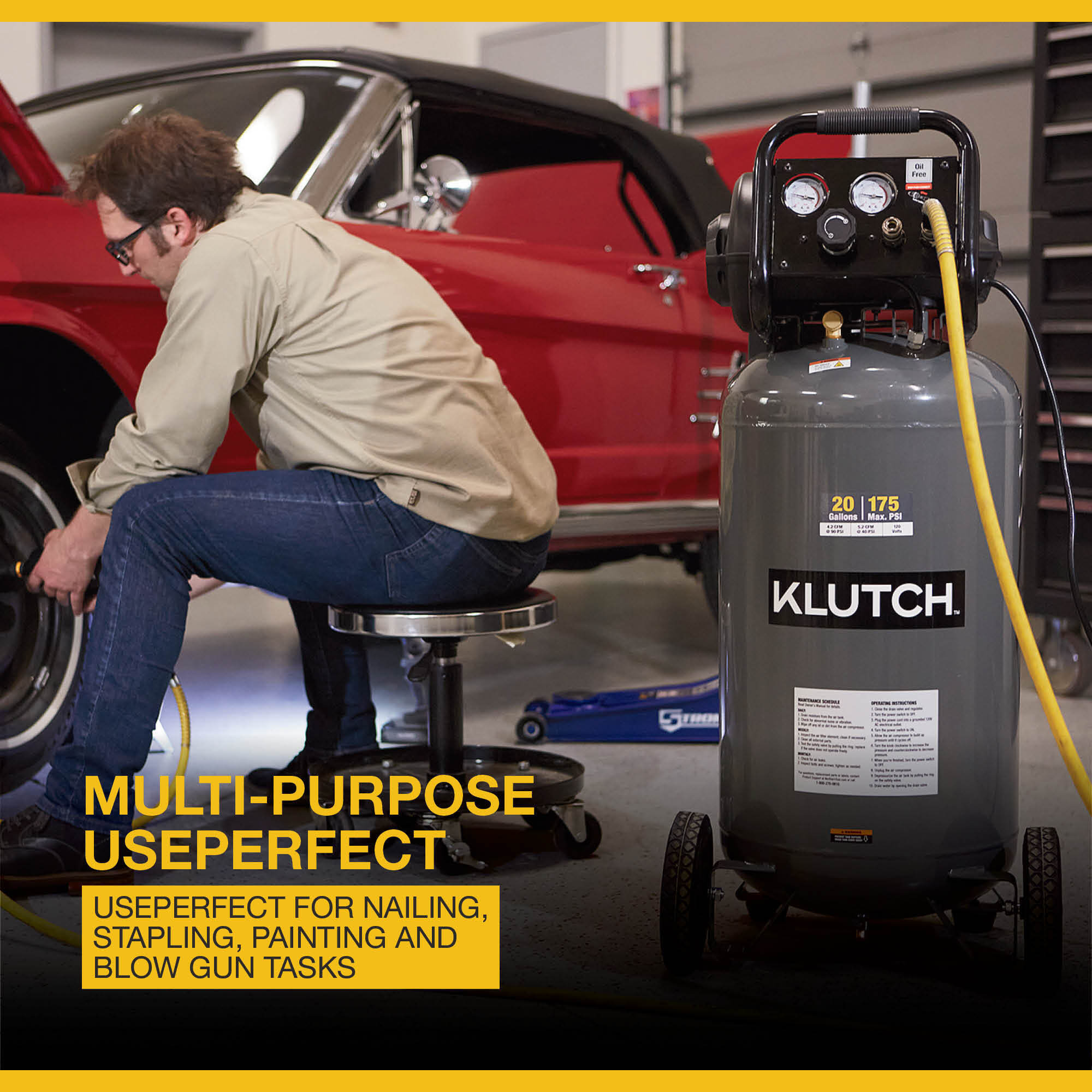

  • 175 PSI Max. Pressure: Delivers compressed air for nailing, stapling, painting and blow gun applications
  • 4.2 CFM @ 90 PSI, 5.2 CFM @ 40 PSI Airflow: Provides air delivery for a variety of pneumatic tools
  • Oil-Free Pump: Eliminates oil changes and routine maintenance

See full description

Complete Your Solution

  • Klutch Electric Air Compressor, 20-Gal., Vertical, 2 HP, 120 Volts, 175 PSI, 4.2 CFM @ 90 PSI
  • Klutch Rubber Air Hose, 3/8in. x 50ft., 300 PSI
  • Klutch Air Line Inflator Gauge
  • Klutch 20-Pc. Air Line Connector Kit, 1/4in. NPT
Price for all four:

$379.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Klutch 20-Gallon Electric Air Compressor delivers up to 175 PSI with a 2 HP motor operating on 120 Volt household power for a variety of pneumatic applications. This oil-free vertical air compressor provides airflow ratings of 4.2 CFM @ 90 PSI and 5.2 CFM @ 40 PSI, making it suitable for nailing, stapling, painting and blow gun operations. Designed for intermediate and continuous use, the compressor features quick recovery times, thermal overload protection and a forward-facing drain valve for simplified maintenance. Large rubber wheels, an ergonomic handle and rubber foot stabilizers enhance portability and help reduce vibration during operation.

What's Included

    (1) Klutch 20-Gallon Electric Air Compressor

Downloads

Product Manual
Play Item Video

Features + Benefits

  • 20-Gal. Vertical Tank: Provides compressed air storage while minimizing floor space requirements
  • 2 HP Motor: Operates on 120 Volt household power
  • 175 PSI Max. Pressure: Delivers compressed air for nailing, stapling, painting and blow gun applications
  • 4.2 CFM @ 90 PSI, 5.2 CFM @ 40 PSI Airflow: Provides air delivery for a variety of pneumatic tools
  • Oil-Free Pump: Eliminates oil changes and routine maintenance
  • 75% Duty Cycle: Supports intermediate and continuous-use applications
  • Thermal Overload Protection: Helps prevent overheating during operation
  • Forward-Facing Drain Valve: Simplifies tank draining and routine maintenance
  • Ergonomic Handle + Large Rubber Wheels: Improve portability around garages, workshops and jobsites
  • Rubber Foot Stabilizers: Reduce vibration during compressor operation

Key Specs

AttributeSpecification

item#

5820681

Brand

Klutch

Manufacturer's Warranty

2 year limited warranty

Ship Weight

90.0 LB

Horsepower

2 HP

Air Tank Size

20 Gal

Volts

120

CFM at 90 PSI

4.2

Max. PSI

175

Stage

1

Air Outlets (qty.)

2

Amps

14

Duty Cycle

75 %

Motor RPM

10,000

Working Pressure

175 PSI

Pump Life

400 hr
AttributeSpecification

Pump Material

Aluminum

Pump Drive

Direct

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

5.2

Noise Level

80 dB

Oil Required

No

Low Oil Shutdown

No

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Tank Fill Time

7.7 min

Air Dryer

None

Drain Type

Manual

Tank Orientation

Vertical

Product Weight

81.5700 lb

Dimensions L x W x H (in.)

19.09 x 17.51 x 41.53 in

Reviews

Questions & Answers

312 Reviews This action will navigate to reviews.

Questions

1–10 of 44 Questions
Sort by:

  1. Need a service manual

    1 answer

    1. A Product Manual can be found under the Product Summary on the web page.

      Helpful?

  2. Where can I find replacement parts?

    1 answer

    1. Parts for this air compressor are offered through our sister company, Jacks Small Engines. Please call our sales department at 1.800.221.0516 for assistance with part numbers and ordering instructions.

      Helpful?

  3. What wattage generator would be needed to run this air compressor?

    1 answer

    1. This air compressor will require a generator that can support a minimum of 1,700 continuous watts.

      Helpful?

  4. Can you bead blast with this

    1 answer

    1. This air compressor can produce up to 5.2 CFM at 40 PSI and up to 4.2 CFM at 90 PSI. Please check the requirements of the tool being used for bead blasting.

      Helpful?

  5. How many watts is required to run the air compressor with a step up transformer from 110V to 220V?

    1 answer

    1. For this application, a minimum of 5,000 watts is required.

      Helpful?

  6. Will this air compressor function properly if mounted horizontally?

    1 answer

    1. Although it is safe to transport this compressor on its side with the oil-free pump, it should only operate in the upright position.

      Helpful?

  7. Will it keep up with a plasma cutter?

    1 answer

    1. This air compressor can produce up to 4.2 CFM at 90 PSI. It is best to check the requirements of the plasma cutter to determine if this is enough for it to operate.

      Helpful?

  8. Can this compressor run on 220 volts

    1 answer

    1. This air compressor is designed to plug into a 120V power source. We do not recommend modifying this compressor to run on 220V power as it would void the warranty.

      Helpful?

  9. Will the compressor be able to fill a semi tire up to 110 psi

    1 answer

    1. This air compressor will fill a semi tire up to 110 PSI. The amount of time this compressor will take to fill that tire depends on how large the tire is and how much air is needed.

      Helpful?

  10. Does the compressor motor really spin at 10,000rpm during initial daily fill and every time it I’d called upon  to maintain the 30 gallon capacity by of the tank?

    1 answer

    1. This air compressor does spin at 10,000 RPM ± 10% during the initial daily fill and each time it refills to maintain the capacity.

      Helpful?
