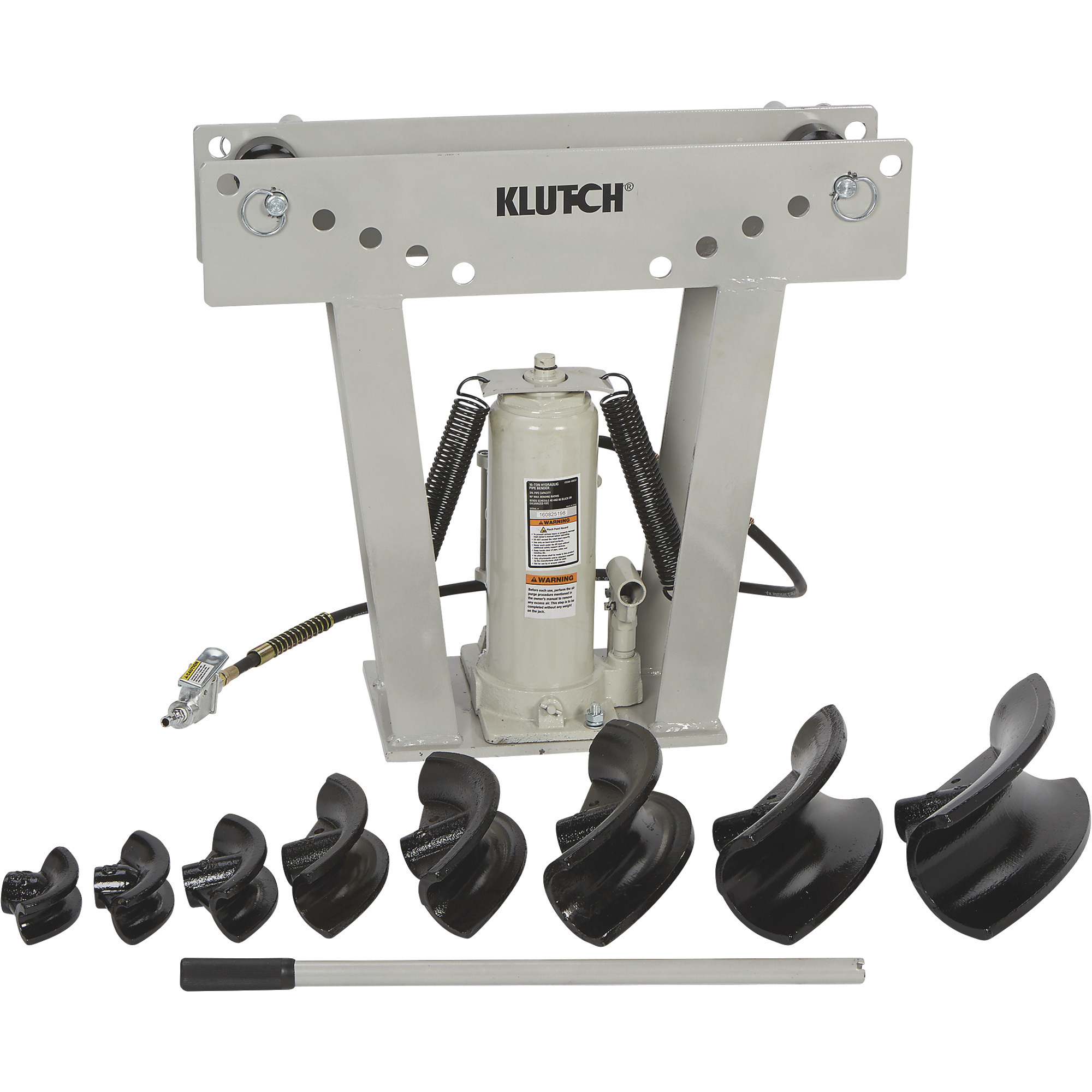

Klutch 16-Ton Air/Hydraulic Pipe Bender, 3in. Capacity

Item# 49654
Klutch 16-Ton Air/Hydraulic Pipe Bender, 3in. Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch 16-Ton Air/Hydraulic Pipe Bender, 3in. Capacity

Click or Tap image to Zoom

  • 16-ton limit
  • Bends Schedule 40 and 80 pipe
  • Bends pipe in 8 separate diameters: 1/2in., 3/4in., 1in., 1 1/4in., 1 1/2in., 2in., 2 1/2in. and 3in. dia.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Klutch® 16-Ton Air/Hydraulic Pipe Bender bends virtually all types of pipe, including black or galvanized pipe. Top rollers adjust for 90° bend.

What's Included

    (1) Pipe bender (8) Dies

Downloads

Product Manual
Play Item Video

Features + Benefits

  • 16-ton limit
  • Bends Schedule 40 and 80 pipe
  • Bends pipe in 8 separate diameters: 1/2in., 3/4in., 1in., 1 1/4in., 1 1/2in., 2in., 2 1/2in. and 3in. dia.

Key Specs

AttributeSpecification

item#

49654

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

165.0 LB

Max. Bending Radius

90 °
AttributeSpecification

Max. Bending Capacity (Diameter)

3 in

Dies Included

Yes

Material

Steel

Product Weight

lb

Dimensions L x W x H (in.)

24.75 x 8.75 x 22.5 in

Reviews

Questions & Answers

18 Reviews This action will navigate to reviews.

Questions

1–10 of 21 Questions
Sort by:

  1. Is the angle of the bend adjustable 0-90°?

    I need to bend schedule 40 at 45° angles. Thanks!

    1. yes, can do it, is simple but necessary machine, can produce some money, is simple to handle, operate and a way to fabricate good stuff. The air hose give efficiency and the probability of increase the level of production.

      Helpful?

    2. The top rollers will adjust from 0 to a 90 degree bend.

      Helpful?

  2. Will this Bend 1-1/2 Roll Bar Tubing .095

    1 answer

    1. This pipe bender will work with 1-1/2" roll bar tubing .095.

      Helpful?

  3. Can I buy a replacement 2 1/2 inch die for this bender?

    1 answer

    1. The part number for the 2 1/2" replacement die is KLH49654-14. Parts are no longer available through Northern Tool. To order, please contact our sister company Jacks Small Engines at the link below. https://jackssmallengines.com/

      Helpful?

  4. Hello. Is it possible to get a 2 1/8 inch. Die for this unit?

    1 answer

    1. At this time a 2-1/8" bending die is not available for this pipe bender.

      Helpful?

  5. Is it possible to just buy the cylinder from this model ?

    1 answer

    1. The air/hydraulic bottle jack, part #KLH49654-2, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  6. Will this work out of position. With the ram on top

    1 answer

    1. This pipe bender is not designed to be used in any other configuration than how it is pictured.

      Helpful?

  7. Will this product bend exhaust pipe?

    1 answer

    1. The pipe bender is not designed for bending thin walled pipe (conduit) or exhaust pipe.

      Helpful?

  8. Can you buy replacement parts I'm needing a v roller that the tubing presses against

    1 answer

    1. The part number for the roller is KLH49654-7. We no longer sell parts through Northern Tool. To order this part, please contact our sister company Jacks Small Engine through the link below. https://www.jackssmallengines.com/

      Helpful?

  9. Will this bend square tubing?

    1 answer

    1. Dies to bend square tubing are not available for this pipe bender currently.

      Helpful?

  10. Can it bend 1” carbon steel  sch 40 pipe at 2” radius?

    1 answer

    1. This unit cannot bend a 1" diameter carbon steel, schedule 40 pipe at a 2" radius. The maximum radius it will bend is 1.97".

      Helpful?
