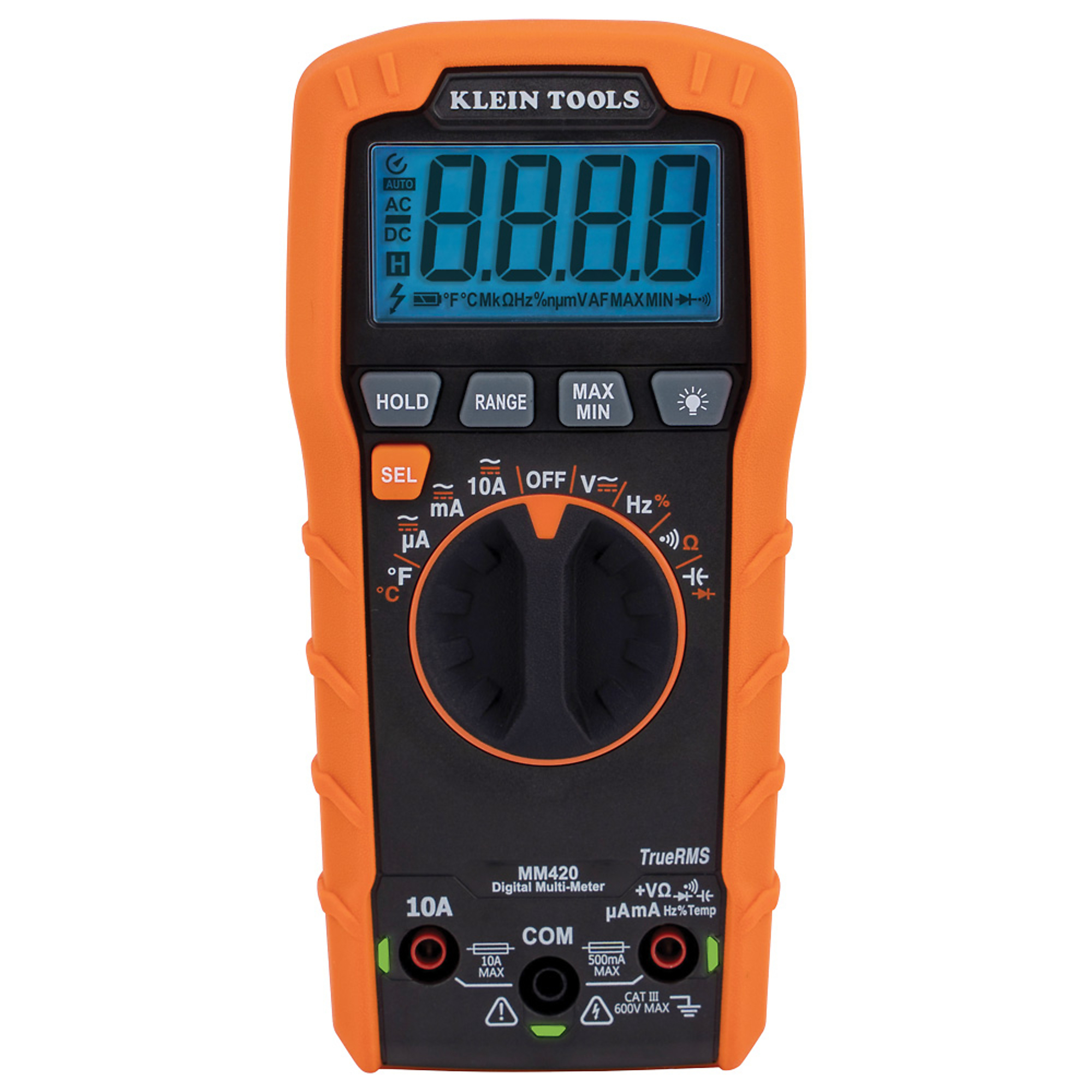

Digital Multimeter, TRMS Auto-Ranging, 600V, Temp, Model# MM420

Item# 5901271
Digital Multimeter, TRMS Auto-Ranging, 600V, Temp, Model# MM420

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Digital Multimeter, TRMS Auto-Ranging, 600V, Temp, Model# MM420

Click or Tap image to Zoom

$64.98

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

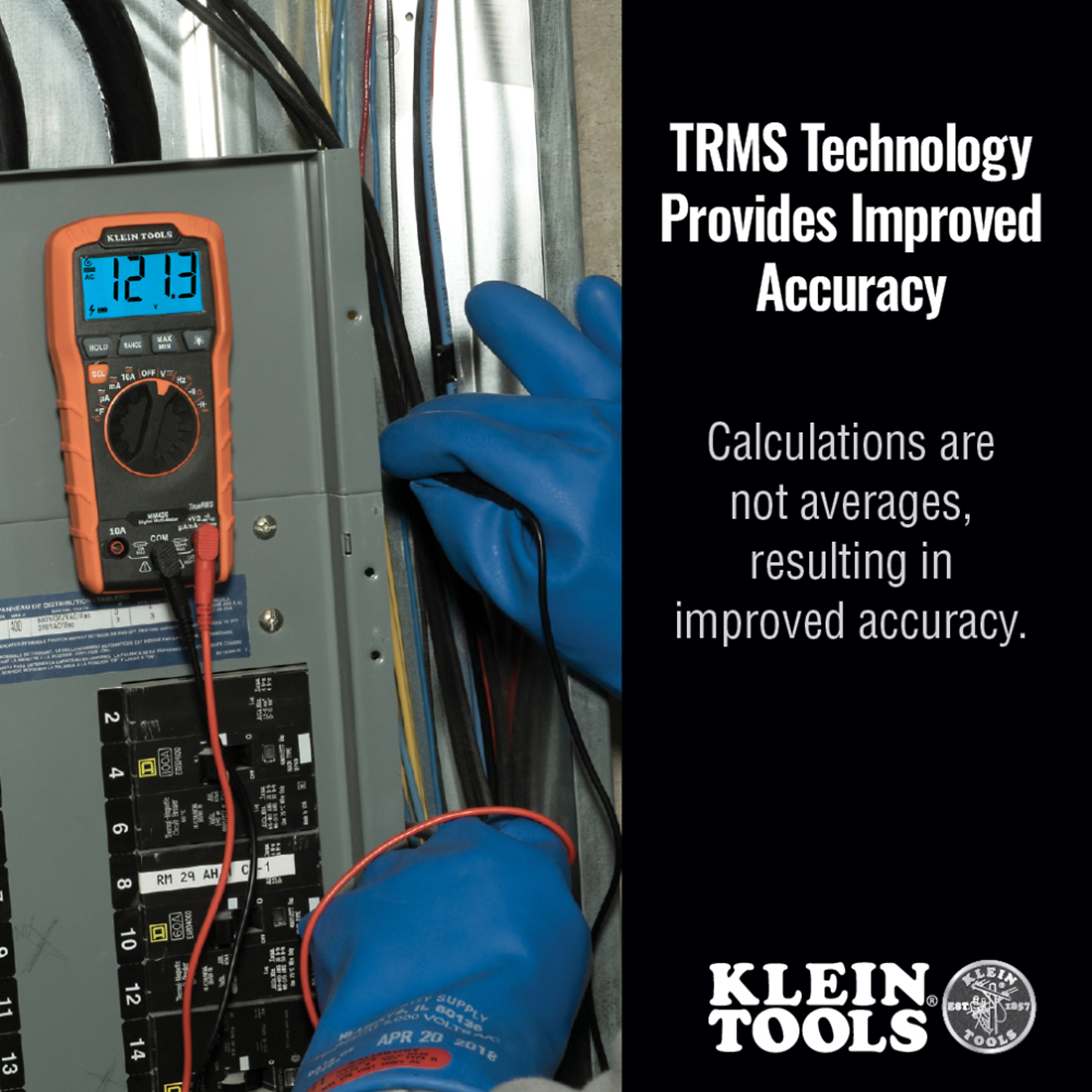

  • Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
  • Measures up to 600V AC/DC voltage, 10A AC/DC current and 50 MOhms resistance, continuity, temperature, capacitance, frequency, duty-cycle, and test diodes

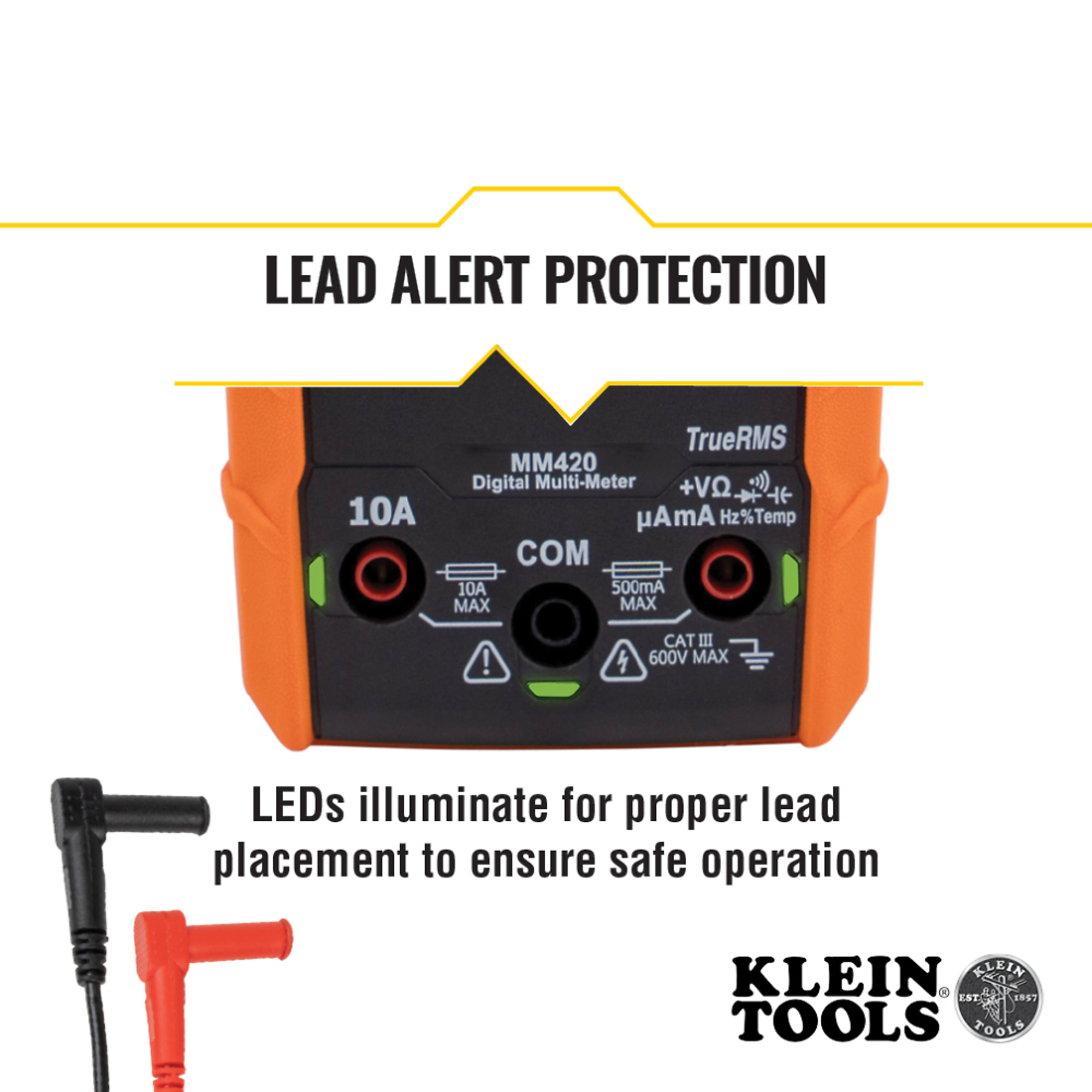

  • Lead Alert protection with LED illumination for lead placement and an easy-to-view backlit display
  • Low battery indicator and easily accessible battery and fuse compartment
  • Durable meter built to withstand a 6.6-Foot (2 m) drop

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Klein Tools MM420 Multimeter is an auto-ranging, true root mean square (TRMS) multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, and test diodes and continuity. Klein Tools' Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.

What's Included

    (1) Multimeter, TRMS Auto, 600V, Temp

Downloads

Safety Data Sheet

Features + Benefits

  • Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
  • Measures up to 600V AC/DC voltage, 10A AC/DC current and 50 MOhms resistance, continuity, temperature, capacitance, frequency, duty-cycle, and test diodes
  • Lead Alert protection with LED illumination for lead placement and an easy-to-view backlit display
  • Low battery indicator and easily accessible battery and fuse compartment
  • Durable meter built to withstand a 6.6-Foot (2 m) drop
  • Includes test leads, thermocouple with adapter, batteries and user manual
  • CAT III 600V safety rating
  • For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations

Key Specs

AttributeSpecification

item#

5901271

Brand

Klein Tools

Manufacturer's Warranty

2 year limited warranty

Ship Weight

0.98 LB

Display Type

LCD

Circuit or Voltage Tester

Voltage Tester

Max. DC Volts

600

Max. AC Volts

600

Max. AC Amps

10

Max. DC Amps

10

Max. Resistance

50000000

Battery Size

AAA

Low Battery Indicator

Yes

Battery Included

Yes

Capacitance Range

400 µF
AttributeSpecification

Polarity Indicator

No

Frequency

50 KHz

Measures

600 VAC/DC Voltage, 10A AC/DC Current, 50 M? Resistance, Temperature, Capacitance, Frequency, Duty-Cycle, Test Diodes, Continuity

Max. Temperature

1,832 °F

Case Included

No

Auto On/Off

Yes

Water Resistant

No

Power Source

Battery

UL Listed

No

Calibration Certificate Included

No

Max. Ohms

50,000,000

Material

ABS

Includes

Digital Multimeter, Test Leads, Batteries, Thermocouple, User Manual

Product Weight

0.9100 lb

Dimensions L x W x H (in.)

9.33 x 5.08 x 3.82 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
