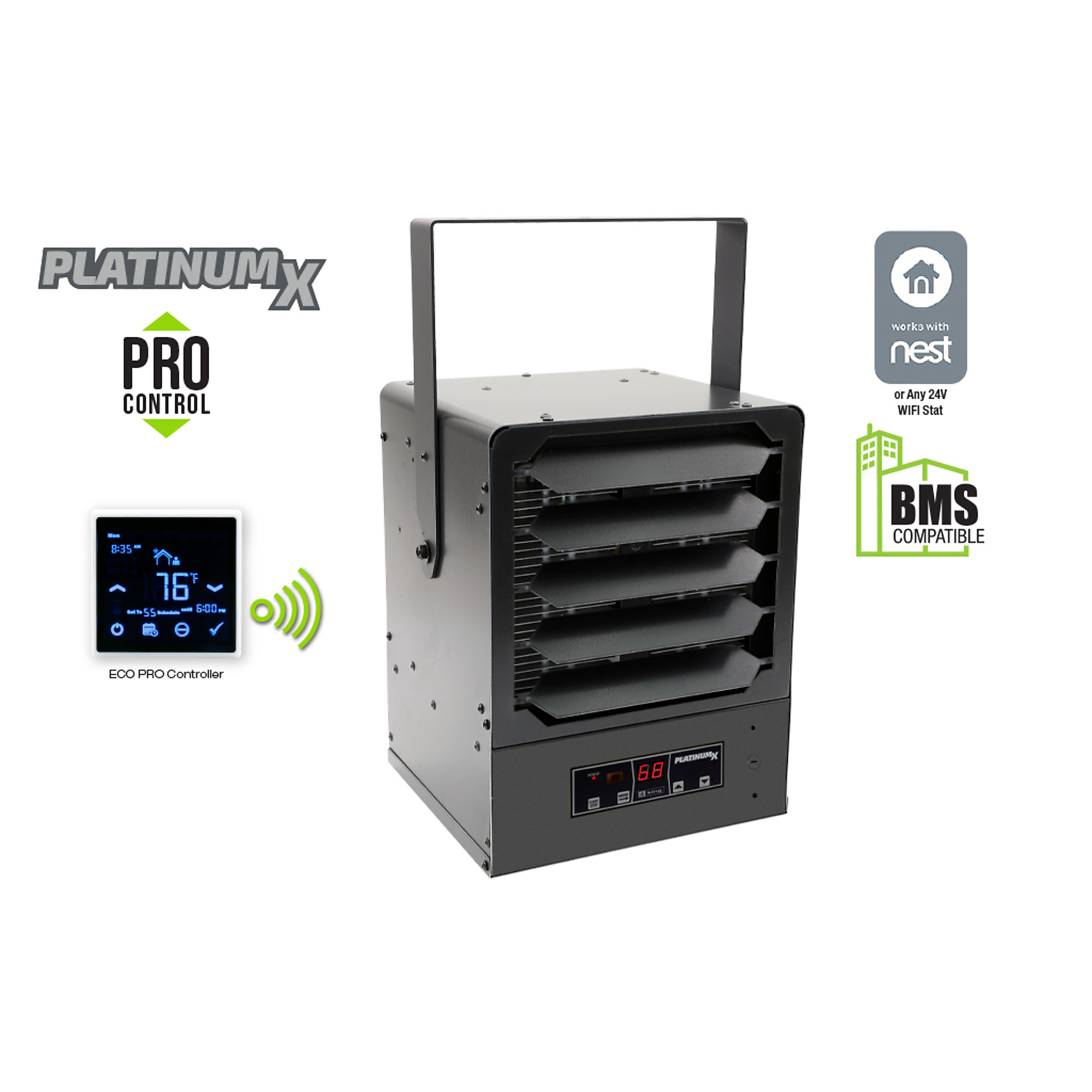

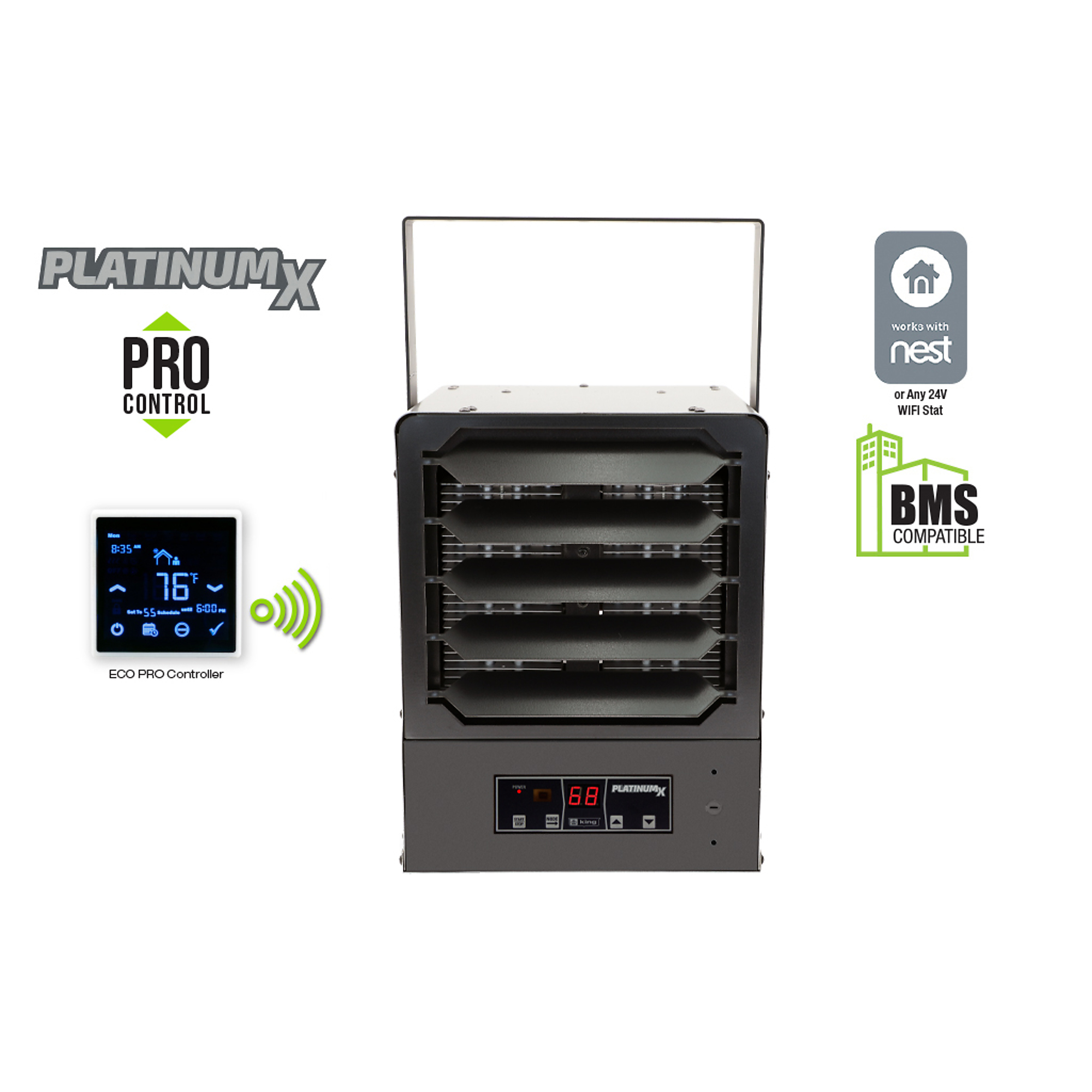

King Electric, KBP PlatinumX Pro 7-Day Programmable Unit Heater, Heat Output 19454 Btu/hour, Heating Capability 570 ft², Model# KBP2406-3MP-MB-PLTMX-PRO

Item# 7421473
New
King Electric, KBP PlatinumX Pro 7-Day Programmable Unit Heater, Heat Output 19454 Btu/hour, Heating Capability 570 ft², Model# KBP2406-3MP-MB-PLTMX-PRO

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

King Electric, KBP PlatinumX Pro 7-Day Programmable Unit Heater, Heat Output 19454 Btu/hour, Heating Capability 570 ft², Model# KBP2406-3MP-MB-PLTMX-PRO

Click or Tap image to Zoom

$2129.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Energy-Saving PlatinumX Design
  • Includes ECO PRO Controller Wireless RF 7-Day Programmable Thermostat

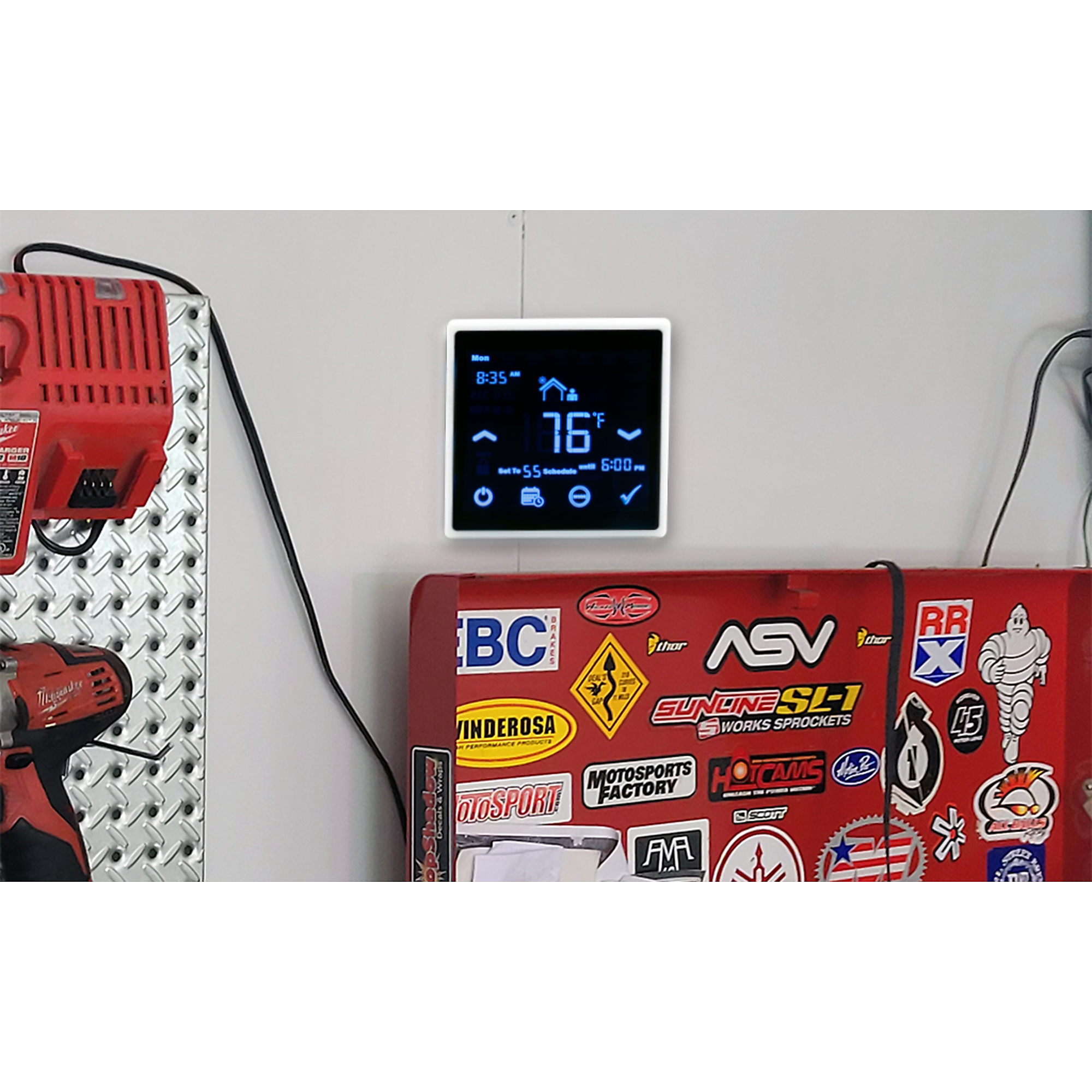

  • Remote Temperature Sensing - Place ECO PRO Controller On a Wall or Shelf & Get the Right Temperature, Right Where You Want It.
  • Thermostat Temperature Range: 40? to 95?
  • Create Heat Zones - Connect Multiple Heaters To Single Pro Controller

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Introducing the KBP PlatinumX PRO Series — the most advanced, full-featured compact multi-wattage unit heater in the KBP family. Engineered for precision comfort, energy efficiency, and year-round versatility, it sets a new standard for performance and flexibility. Available in 208V, 240V, 277V, and 480V, with field-convertible 1- or 3-phase configurations, the PlatinumX PRO stands apart with installation flexibility unmatched in its class — making it ideal for virtually any commercial or industrial environment. With the new ECO PRO Controller, users gain the flexibility of an RF Wireless 7-Day Programmable Thermostat with an integrated temperature sensor. The heater monitors room conditions, detects cold spots, and automatically adjusts to maintain consistent comfort. Simply place the ECO PRO Controller on a wall or shelf to ensure the ideal temperature exactly where you need it. The system is compatible with both wired or wireless window/door and occupancy sensors, which help reduce energy waste by setting back the temperature when a space is unoccupied or when a window or door is left open. Multiple heaters can also be paired to a single ECO PRO Controller, creating smart heating zones within a space for optimal comfort and control. A standard provision for an optional 24V remote thermostat allows integration with a building management system (BMS). Combined with summer fan-only and thermostat timer modes, the KBP PlatinumX PRO adapts to your needs year-round. Built for rugged performance in commercial environments, the flow-through design efficiently draws air in from the back and discharges it out the front, quickly heating large spaces. An integral fan delay continues to circulate heat during cool-down, maximizing warmth. King’s exclusive dual Pic-A-Watt® steel fin elements provide a range of wattage options, allowing the heater to be precisely tailored to any application.

What's Included

    (1) Heater (1) ECO Pro Controller (1) Wall/Ceiling Bracket (1) Installation Instructions

Downloads

Product Manual Product Manual2
Safety Data Sheet

Features + Benefits

  • Energy-Saving PlatinumX Design
  • Includes ECO PRO Controller Wireless RF 7-Day Programmable Thermostat
  • Remote Temperature Sensing - Place ECO PRO Controller On a Wall or Shelf & Get the Right Temperature, Right Where You Want It.
  • Thermostat Temperature Range: 40? to 95?
  • Create Heat Zones - Connect Multiple Heaters To Single Pro Controller
  • Built-In Provision For Using Any 24V Remote Thermostat (Optional)
  • Compatible with NEST / Any 24V Thermostat, Including WIFI Stats
  • Compatible with BMS Systems
  • Timer & Summer Fan Only Modes
  • Auto Memory Feature: Returns Unit to Last Settings After Power Outage
  • Adjustable Louvers to Direct Air
  • Built-In Fan Delay to Dissipate Heat
  • Dual Pic-A-Watt® Elements
  • Patented Smart Limit Protection®
  • 385 CFM Output
  • Solid Riveted Construction For Consistent, Long-Term Durability
  • Permanently Lubricated Unit Bearing Motor
  • Universal Wall/Ceiling Bracket Included
  • Proudly Made in the USA with U.S. & Global Materials
  • 5-Year Limited Warranty

Key Specs

AttributeSpecification

item#

7421473

Brand

King Electric

Manufacturer's Warranty

5 year limited warranty

Ship Weight

26.0 LB

Heat Output

19,449 Btu/hour

Heat Type

Forced Air

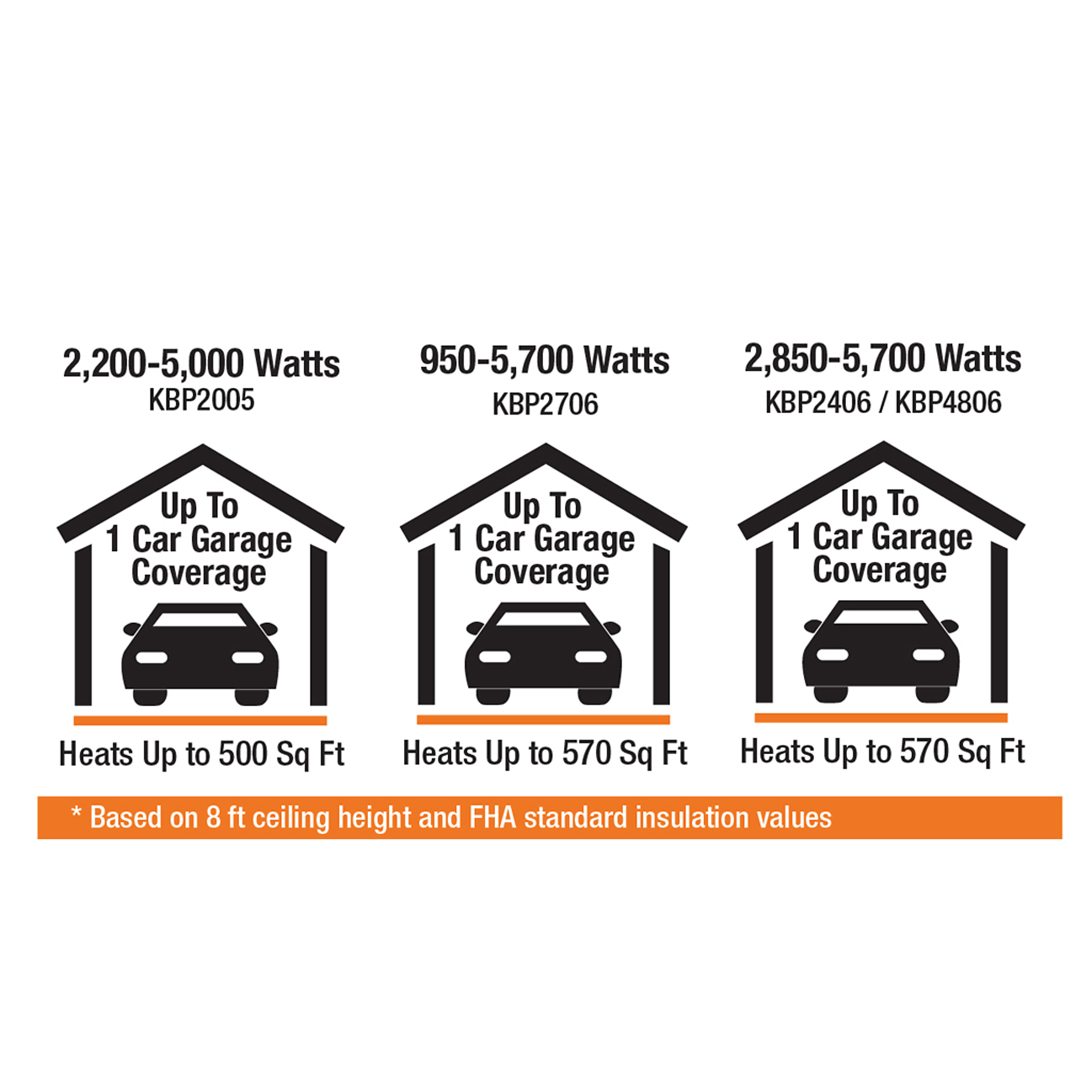

Heating Capability

570 ft²

Needs Direct Venting

No

Blower Included

Yes

Blower CFM

385 cfm

Amps

13.7

Thermostat Included

Yes
AttributeSpecification

Heat Settings (qty.)

1

Remote Included

Yes

Phase

Multi-phase

Power Cord Length

0 ft

Volts

240/208

Watts

5,700

Oxygen Depletion Sensor

No

Fuel Consumption

0 GPH

Hardwired

Yes

Product Weight

24.0000 lb

Dimensions L x W x H (in.)

10.38 x 9.5 x 13.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
