King Electric, KBP-LHP Compact Unit Heater w High-Low Switch, Heat Output 19454 Btu/hour, Heating Capability 570 ft², Model# KBP2406-1-S2-MB-T-LHP

Item# 7421457
New
King Electric, KBP-LHP Compact Unit Heater w High-Low Switch, Heat Output 19454 Btu/hour, Heating Capability 570 ft², Model# KBP2406-1-S2-MB-T-LHP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

King Electric, KBP-LHP Compact Unit Heater w High-Low Switch, Heat Output 19454 Btu/hour, Heating Capability 570 ft², Model# KBP2406-1-S2-MB-T-LHP

Click or Tap image to Zoom

$1199.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Dual Pic-A-Watt® Elements
  • Multiple Wattage Options, to Tailor to a Room’s Specific Heating Requirements

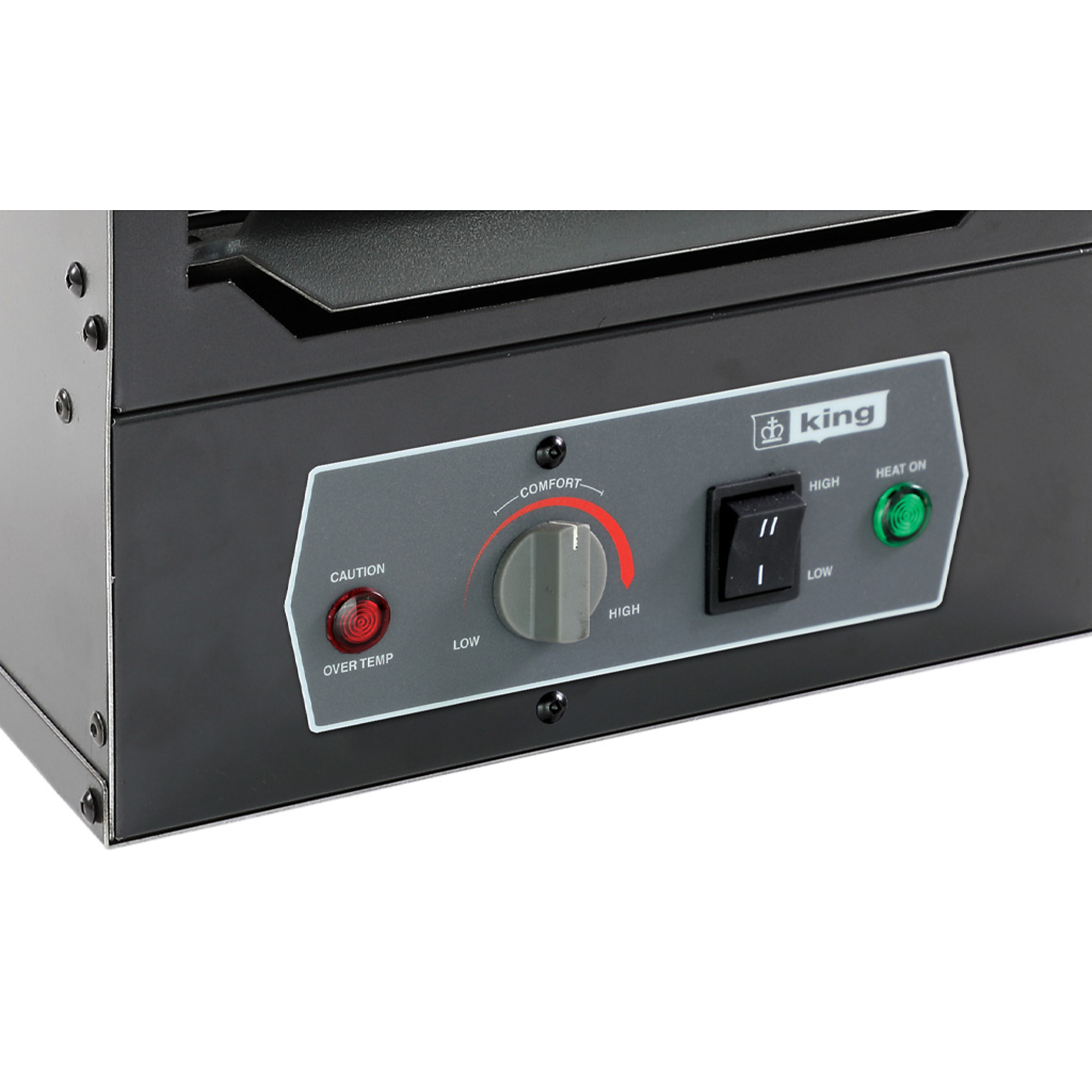

  • Includes High/Low Heat Switch
  • Includes Pilot Lights For Power Indication & Safety Limit Status.
  • Adjustable Louvers To Direct Airflow

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The KBP-LHP Series sets the industry standard for versatile, multi-wattage unit heaters with enhanced visual control. Built on the trusted legacy of the original KBP, the KBP-LHP delivers smarter design, improved controls, and easier installation—now featuring a factory-installed high/low heat switch and pilot lights for power indication and safety limit status. Engineered for rugged performance, the flow-through design efficiently circulates air by drawing it in from the rear of the heater and discharging it out the front, delivering fast, even heat to large spaces. Constructed with high-quality components, the KBP-LHP Series is well suited for both residential and commercial applications. All models include a built-in thermostat with an easy-connect terminal block for simple field conversion to a remote line-voltage thermostat. The versatile High-Low switch allows users to quickly choose between maximum heat for fast warm up and lower heat for steady, energy efficient comfort. The integral fan delay continues to dissipate residual heat from the elements during the cool-down period, maximizing heat transfer and overall efficiency. King’s exclusive dual Pic-A-Watt® steel fin elements provide multiple wattage options, allowing precise customization to meet the heating requirements of virtually any space – now with clear visual confirmation of operation and safety status.

What's Included

    (1) Heater (1) Wall/Ceiling Bracket (1) Installation Instructions

Downloads

Product Manual Product Manual2

Features + Benefits

  • Dual Pic-A-Watt® Elements
  • Multiple Wattage Options, to Tailor to a Room’s Specific Heating Requirements
  • Includes High/Low Heat Switch
  • Includes Pilot Lights For Power Indication & Safety Limit Status.
  • Adjustable Louvers To Direct Airflow
  • Includes High Accuracy Built-in Thermostat
  • (240V/25Amp) Thermostat.
  • Optional Heat/Fan/Off-Disconnect Switch Kit Available
  • 385 CFM Output
  • Solid Riveted Construction For Consistent, Long-Term Durability
  • Hinged Electrical Enclosure For Easy Access
  • Aluminum Fan Blade
  • Patented Smart Limit Protection®
  • Permanently Lubricated Unit Bearing Motor
  • Fan Delay To Dissipate Heat
  • Universal Wall/Ceiling Bracket Included
  • Proudly Made in the USA with U.S. & Global Materials
  • 5-Year Limited Warranty

Key Specs

AttributeSpecification

item#

7421457

Brand

King Electric

Manufacturer's Warranty

5 year limited warranty

Ship Weight

26.0 LB

Heat Output

19,449 Btu/hour

Heat Type

Forced Air

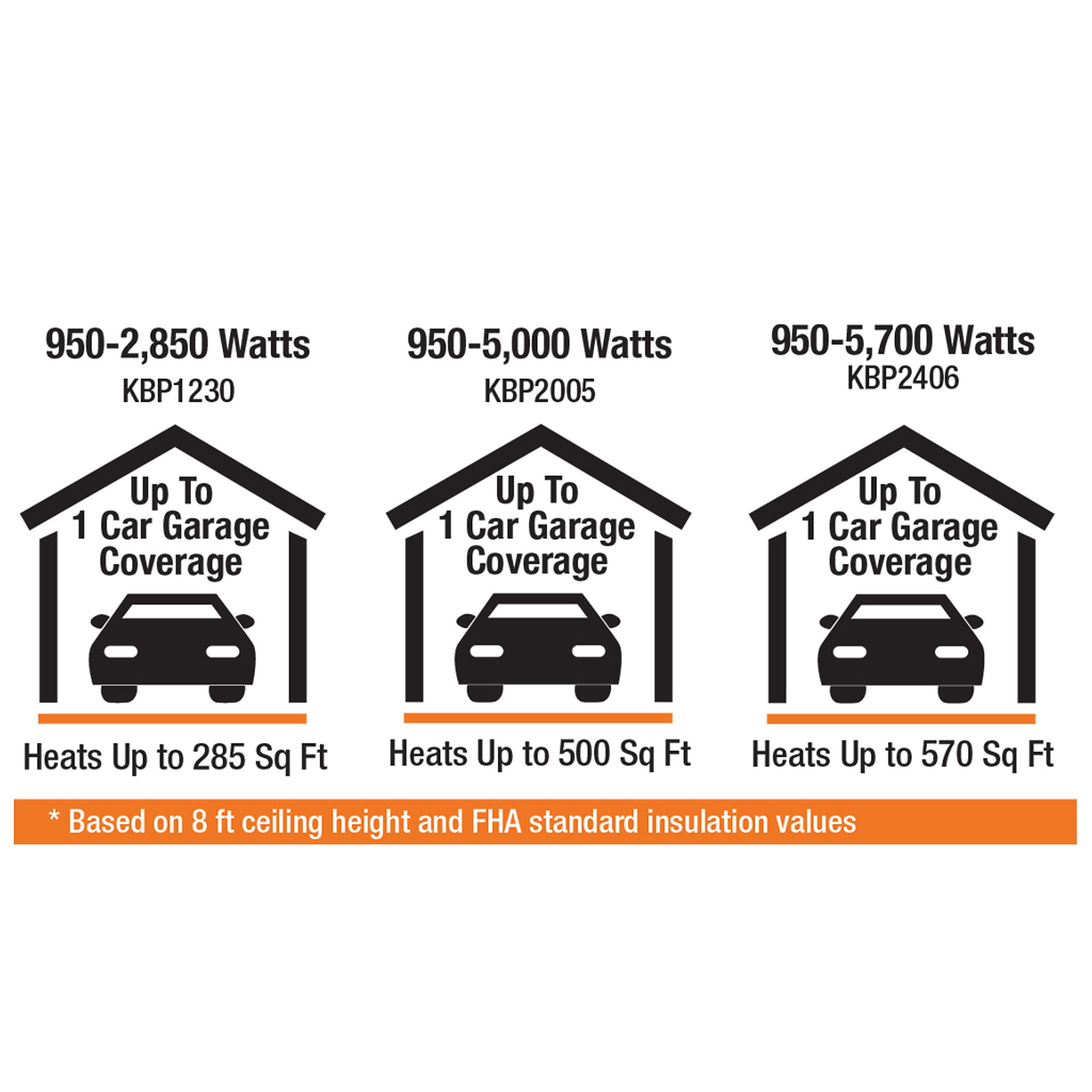

Heating Capability

570 ft²

Needs Direct Venting

No

Blower Included

Yes

Blower CFM

385 cfm

Amps

23.8

Thermostat Included

Yes
AttributeSpecification

Heat Settings (qty.)

1

Remote Included

No

Phase

Single-phase

Power Cord Length

0 ft

Volts

240/208

Watts

5,700

Oxygen Depletion Sensor

No

Fuel Consumption

0 GPH

Hardwired

Yes

Product Weight

24.0000 lb

Dimensions L x W x H (in.)

10.38 x 9.5 x 13.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
