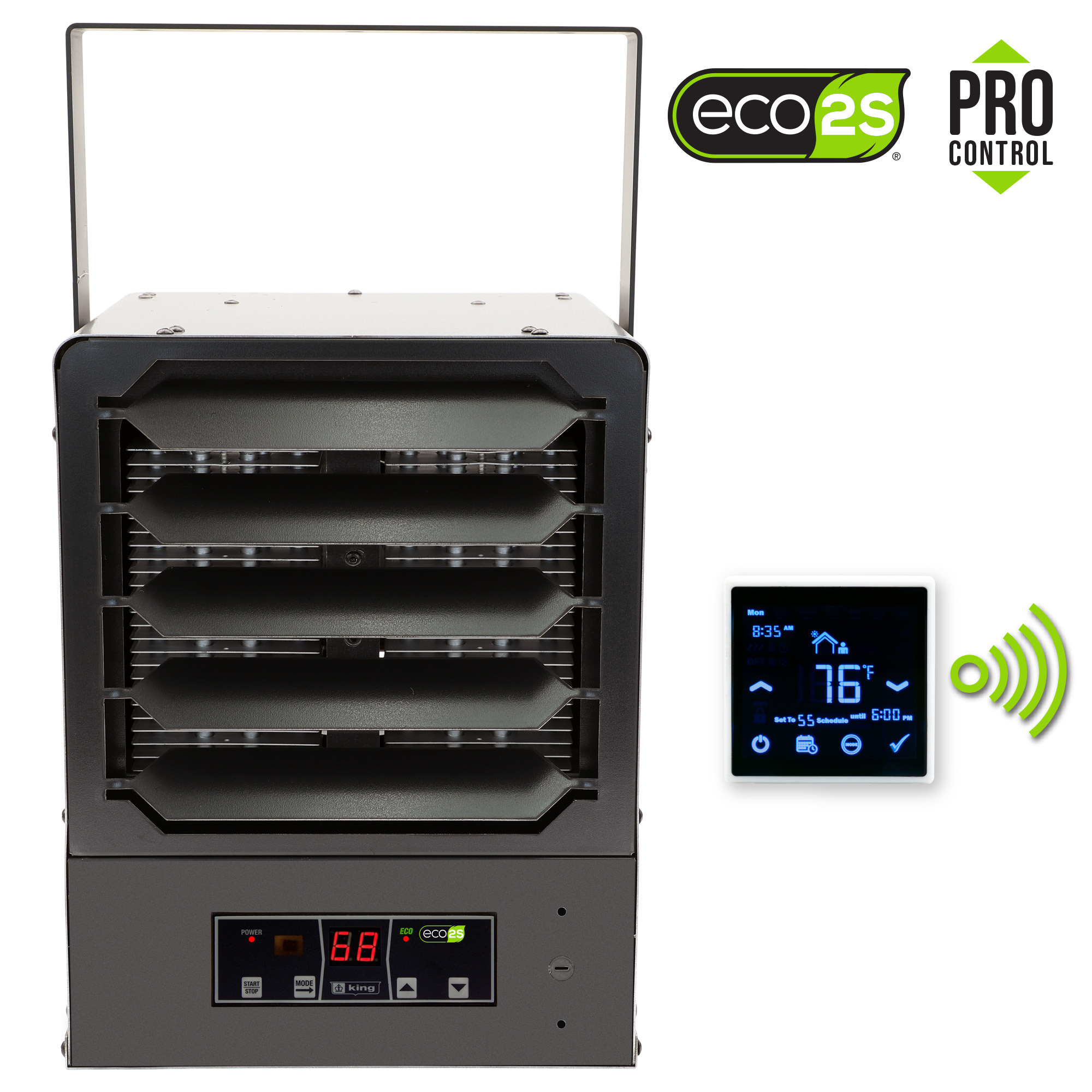

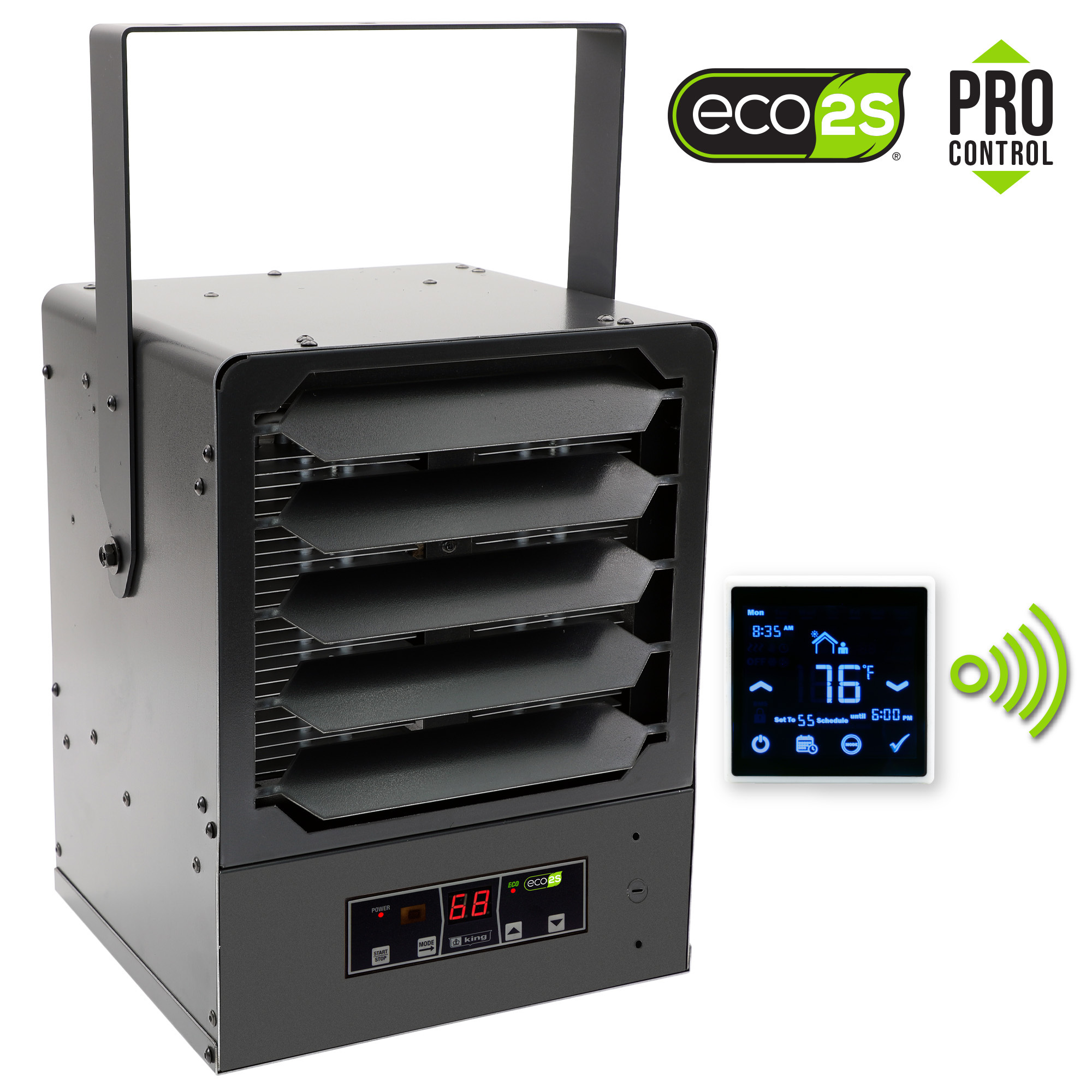

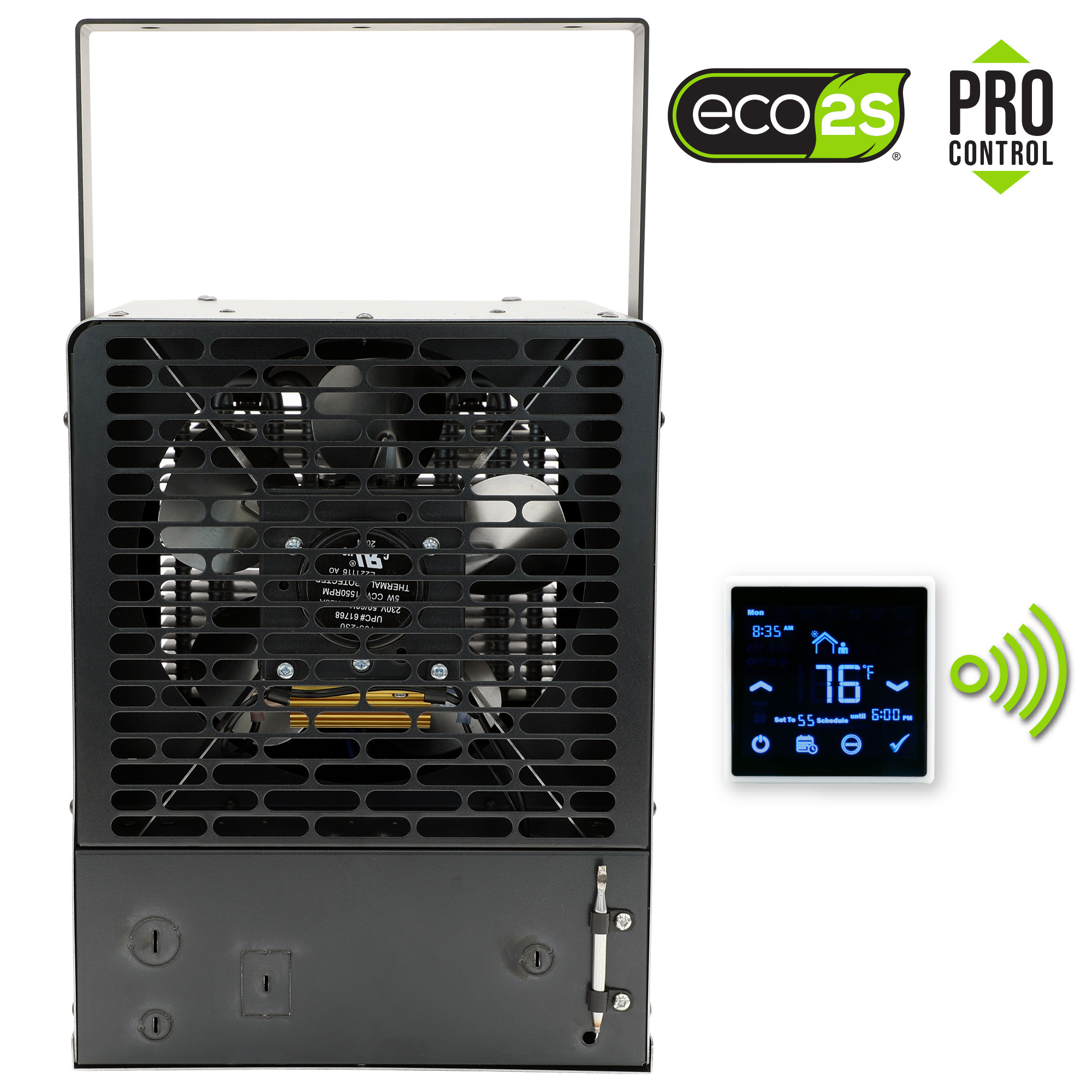

King Electric, KBP ECO2S Pro 7-Day Programmable 2-Stage Unit Heater, Heat Output 19454 Btu/hour, Heating Capability 570 ft², Model# KBP2406-1-MB-ECO2S-PRO

Item# 7421422
New
King Electric, KBP ECO2S Pro 7-Day Programmable 2-Stage Unit Heater, Heat Output 19454 Btu/hour, Heating Capability 570 ft², Model# KBP2406-1-MB-ECO2S-PRO

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

King Electric, KBP ECO2S Pro 7-Day Programmable 2-Stage Unit Heater, Heat Output 19454 Btu/hour, Heating Capability 570 ft², Model# KBP2406-1-MB-ECO2S-PRO

Click or Tap image to Zoom

$1579.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Smart ECO2S® Energy-Saving Design
  • 2-Stage Heating: Automatically Uses Lowest Wattage Needed
  • Eco Pro Controller with 7-Day Programmable Heating Schedule
  • Thermostat Temperature Range: 40? to 95?
  • Eco Pro Controller Features Integrated Temperature Sensor, So Your ECO2S Heater Knows Exactly Where the Room's Cold Spot is & Works Smarter to Keep the Entire Room Comfortable. Just Place It On a Wall or Shelf & Get the Right Temperature, Right Where You Want It.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The KBP ECO2S PRO Series Compact Unit Heater delivers exceptional performance, energy efficiency, and advanced user control, featuring King’s innovative ECO2S 2-stage design paired with the all-new ECO PRO Controller. The heater offers energy-efficient 2-stage heating, an Eco Mode that automatically uses the lowest wattage required, integrated fan-only and timer modes and intuitive wireless control for effortless operation. With the new ECO PRO Controller, users gain the flexibility of an RF Wireless 7-Day Programmable Thermostat with an integrated temperature sensor. The heater monitors room conditions, detects cold spots, and automatically adjusts to maintain consistent comfort. Simply place the ECO PRO Controller on a wall or shelf to ensure the ideal temperature exactly where you need it. The system is compatible with both wired or wireless window/door and occupancy sensors, which help reduce energy waste by setting back the temperature when a space is unoccupied or when a window or door is left open. Multiple heaters can also be paired to a single ECO PRO Controller, creating smart heating zones within a space for optimal comfort and control. A dedicated BMS lockout circuit allows building management systems to prevent heater operation during cooling cycles for seamless commercial integration. Combined with summer fan-only and thermostat timer modes, the KBP ECO2S PRO adapts to your needs year-round. Built for rugged performance, the flow-through design efficiently draws air in from the back and discharges it out the front, quickly heating large spaces. An integral fan delay continues to circulate heat during cool-down, maximizing warmth. King’s exclusive dual Pic-A-Watt® steel fin elements provide a range of wattage options, allowing the heater to be precisely tailored to any application.

What's Included

    (1) Heater (1) ECO Pro Controller (1) Wall/Ceiling Bracket (1) Installation Instructions

Downloads

Product Manual Product Manual2
Safety Data Sheet

Features + Benefits

  • Smart ECO2S® Energy-Saving Design
  • 2-Stage Heating: Automatically Uses Lowest Wattage Needed
  • Eco Pro Controller with 7-Day Programmable Heating Schedule
  • Thermostat Temperature Range: 40? to 95?

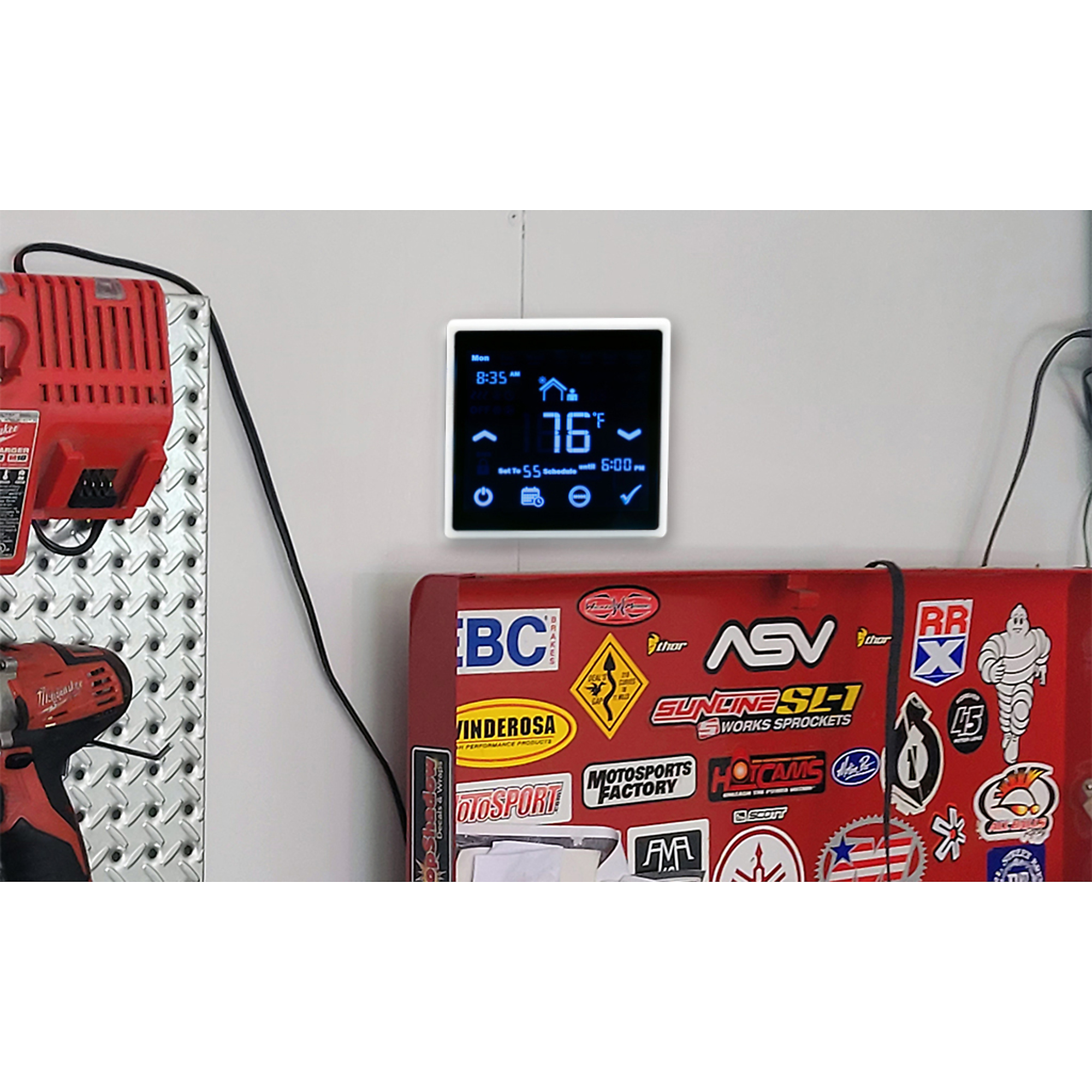

  • Eco Pro Controller Features Integrated Temperature Sensor, So Your ECO2S Heater Knows Exactly Where the Room's Cold Spot is & Works Smarter to Keep the Entire Room Comfortable. Just Place It On a Wall or Shelf & Get the Right Temperature, Right Where You Want It.
  • Integrated BMS Lockout Circuit
  • Compatible With Optional Wired Or Wireless RF Window/Door/Occupancy Sensors
  • Create Heat Zones - Connect Multiple Heaters To Single Pro Controller
  • Auto Memory Feature: Returns Unit To Last Settings After Power Outage
  • Dual Pic-A-Watt® Selectable Wattage Elements
  • Multiple Wattage Options, to Tailor to a Room’s Specific Heating Requirements
  • Patented Smart Limit Protection®
  • 385 CFM Output
  • Solid Riveted Construction For Consistent, Long-Term Durability
  • Permanently Lubricated Unit Bearing Motor
  • Timer & Summer Fan Only Modes
  • Display Lock Feature For High Traffic Areas
  • Adjustable Louvers to Direct Air
  • Built-In Fan Delay To Dissipate Heat
  • Universal Wall/Ceiling Bracket Included

Key Specs

AttributeSpecification

item#

7421422

Brand

King Electric

Manufacturer's Warranty

5 year limited warranty

Ship Weight

26.0 LB

Heat Output

19,449 Btu/hour

Heat Type

Forced Air

Heating Capability

570 ft²

Needs Direct Venting

No

Blower Included

Yes

Blower CFM

385 cfm

Amps

23.8

Thermostat Included

Yes
AttributeSpecification

Heat Settings (qty.)

1

Remote Included

Yes

Phase

Single-phase

Power Cord Length

0 ft

Volts

240/208

Watts

5,700

Oxygen Depletion Sensor

No

Fuel Consumption

0 GPH

Hardwired

Yes

Product Weight

24.0000 lb

Dimensions L x W x H (in.)

10.38 x 9.5 x 13.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
