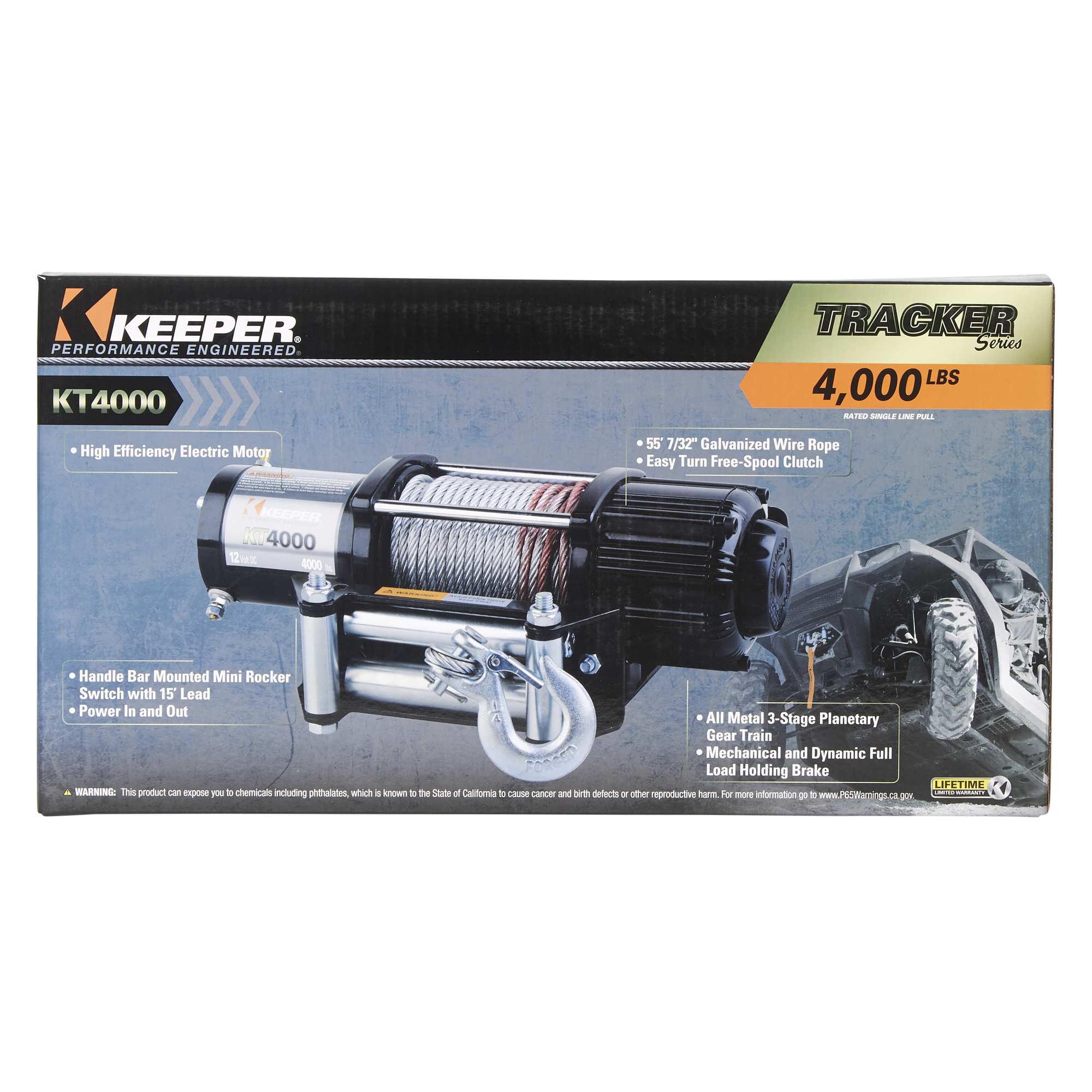

Keeper KT, DC Powered Winch, Plate, 4000lb. Capacity, Volts 12, Model# KT4000

Item# 5068098
Keeper KT, DC Powered Winch, Plate, 4000lb. Capacity, Volts 12, Model# KT4000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Keeper KT, DC Powered Winch, Plate, 4000lb. Capacity, Volts 12, Model# KT4000

Click or Tap image to Zoom

$340.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 2.2 HP 12V Permanent Magnet Motor
  • Power In and Power Out
  • Galvanized Wire Rope - 55’ L x 7/32” Aircraft Grade with Hook and Safety Latch
  • Free Spool Clutch
  • Handle Bar Mounted Mini Rocker Switch and 15’ Wired Hand Held Remote with Light

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Keeper KT, DC Powered Winch, Plate, 4000lb. Capacity, Volts 12, Model# KT4000
  • Keeper, Bow Shackle 3/4in. 9500 lbs WLL, Max. Capacity 9.5 lb, Model# KWA14617
  • Keeper, Quick Connect 6 Gauge, Model# KTA14127
  • Keeper, Trailer Wiring Kit 6 AWG, Model# KTA14128
Price for all four:

$528.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Keeper KT4000 Electric Winch is designed with tough terrain and off-roading situations in mind. This unit provides power, versatility, and durability that is essential for all UTV/ATV users, trailers and even portable winch applications. The winch features a 2.2 HP 12V DC permanent magnet motor, mechanical and dynamic full load brake and a 4000 lbs. single line pull rating. Equipped with a cam activated free-spool clutch that allows the user to easily and quickly disengage the drum and withdraw as much rope as needed. It also includes 3-stage, full-metal planetary gear train, case-hardened gears, mounting plate and a handlebar mounted mini rocker switch w/ mounting bracket for ease of removal and use as a handheld remote, load doubling pulley block, flatbed mounting plate, and a handheld power in/out switch with LED work light making this a truly all-purpose winch.

What's Included

    (1) Winch (1) Handle Bar Mounted Mini Rocker Switch with Mounting Bracket (1) Flatbed mounting plate (1) Pulley Block (1) Hand Saver Strap (1) User Manual

Features + Benefits

  • 2.2 HP 12V Permanent Magnet Motor
  • Power In and Power Out
  • Galvanized Wire Rope - 55’ L x 7/32” Aircraft Grade with Hook and Safety Latch
  • Free Spool Clutch
  • Handle Bar Mounted Mini Rocker Switch and 15’ Wired Hand Held Remote with Light
  • 4,000 lbs. single layer line pull, 24.1 FPM line speed (no load)
  • 3-Stage Planetary Gear Box, 166:1 gear ratio, All Metal Gear Train
  • Integrated Heavy Duty Sealed Solenoid
  • Case Hardened Gears
  • Circuit Breaker Protected
  • Roller Fairlead Included
  • Full-Load holding mechanic and dynamic brake
  • Flat Bed Mounting Plate Included
  • High Efficiency Low AMP Draw Motor
  • Load Doubling Pulley Block Included

Key Specs

AttributeSpecification

item#

5068098

Brand

Keeper

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

35.98 LB

Capacity (Line Pull)

4,000 lb

Volts

12

Max. Amps

235

Application

Multiple

Gear Type

Planetary

Line Speed

24 ft./min.

Gear Ratio

166:01:00

Rope Length

55 ft

Rope Diameter

7/32 in
AttributeSpecification

Rope Material

Galvanized Steel

Brake Type

Combination

Remote

Yes

Remote Cord Length

15 ft

Automatic Load Holding

Yes

Freespooling

Yes

Fairlead Type

Roller

Underwater Use

No

Engine Displacement

0 cc

Mounting Hardware Included

No

Dimensions L x W x H (in.)

9.5 x 15.5 x 8.25 in

Product Weight

35.9800 lb
